Precision HSK63F Standard Tool Holders

$174.61 USD

Sale Sold out

Shipping calculated at checkout.

Precision HSK Tool Holders PRC-HSK63F-16 Precision ER32 Collet Chuck - D=50mm x OA=73mm x b1=26mm x b2=63mm x coated nut PRC-HSK63F-20 Precision ER40 Collet Chuck - D=63mm x OA=77mm x b1=26mm x b2=63mm x coated nut PRC-HSK63F-38(ORT25) Precision ORT25 (SYOZ25) Collet Chuck - D=58mm x OA=73mm x b1=26mm x b2=63mm x bearing nut PRC-HSK63F-38L(ORT25) Precision ORT25 (SYOZ25) Collet Chuck - D=58mm x OA=73mm x b1=26mm x b2=63mm x bearing nut (left hand)

Quantity

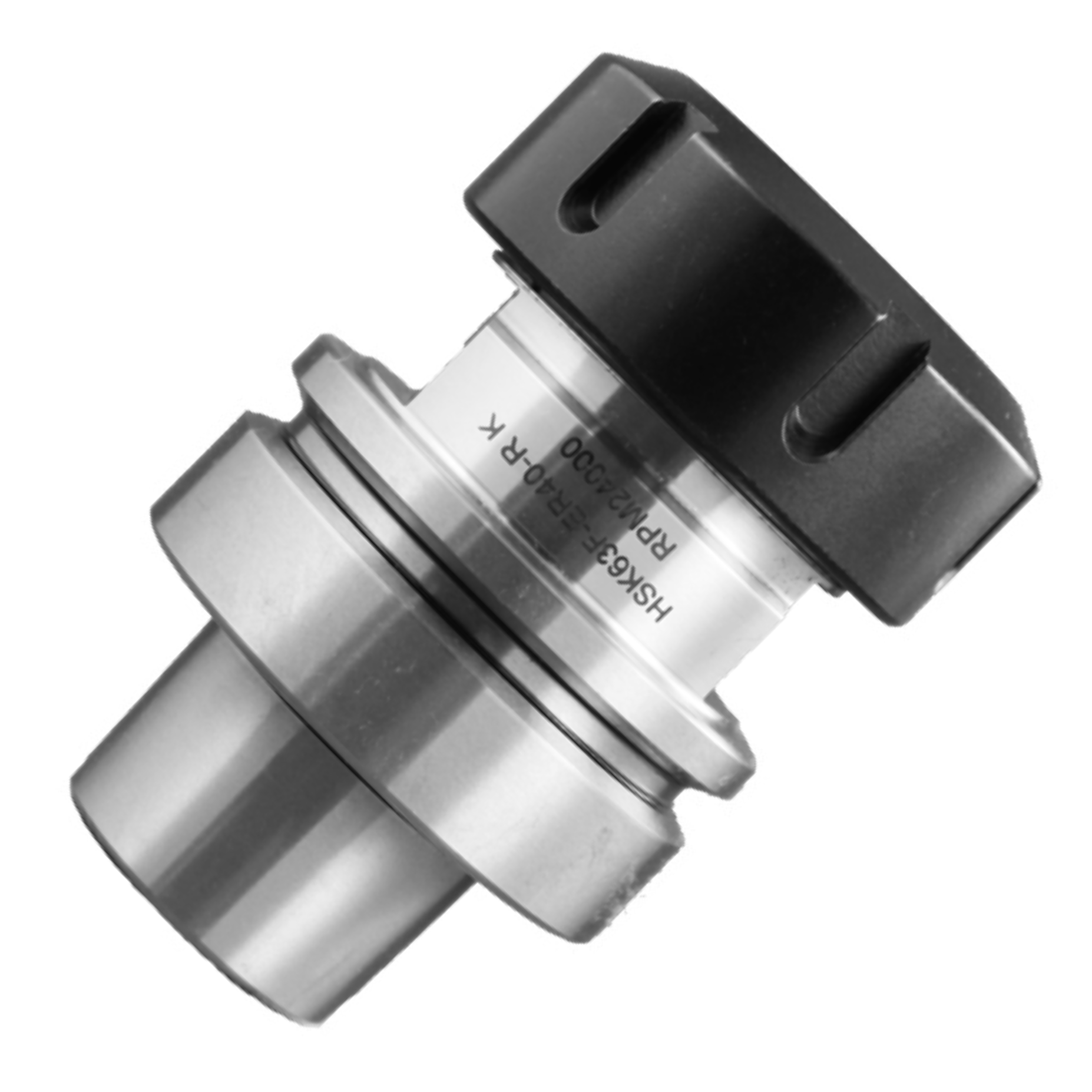

High precision HSK tool holders available in many styles. Holders include nut. Collets sold separately.

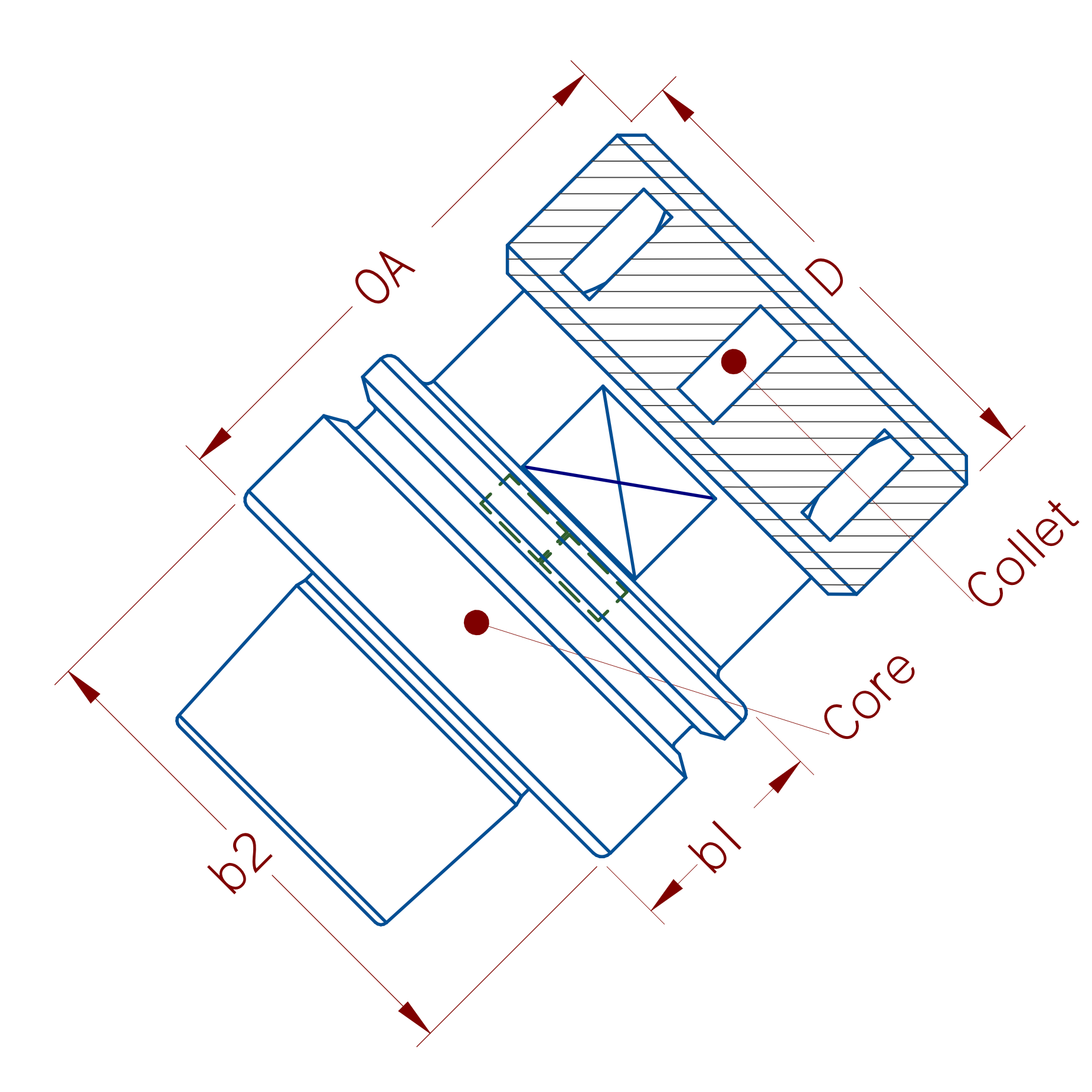

D=Nut Diameter
OA=Holder length below spindle interface
b1=Core length
b2=Core diameter

North American-made items from Canada and U.S.
