Precision HSK63F Hydraulic Tool Holders

$780.93 USD

Sale Sold out

Shipping calculated at checkout.

Precision HSK63F Hydraulic Precision Hydraulic Tool Holder 1/2” Shank ($) D=32mm x OA=87mm x b1=26mm x b2=63mm Precision Hydraulic Tool Holder 3/4” Shank - D=40mm x OA=99mm x b1=26mm x b2=63mm

SKU Code:

SKU:PRC-ETP.G2-1/2-HSK63F

Quantity

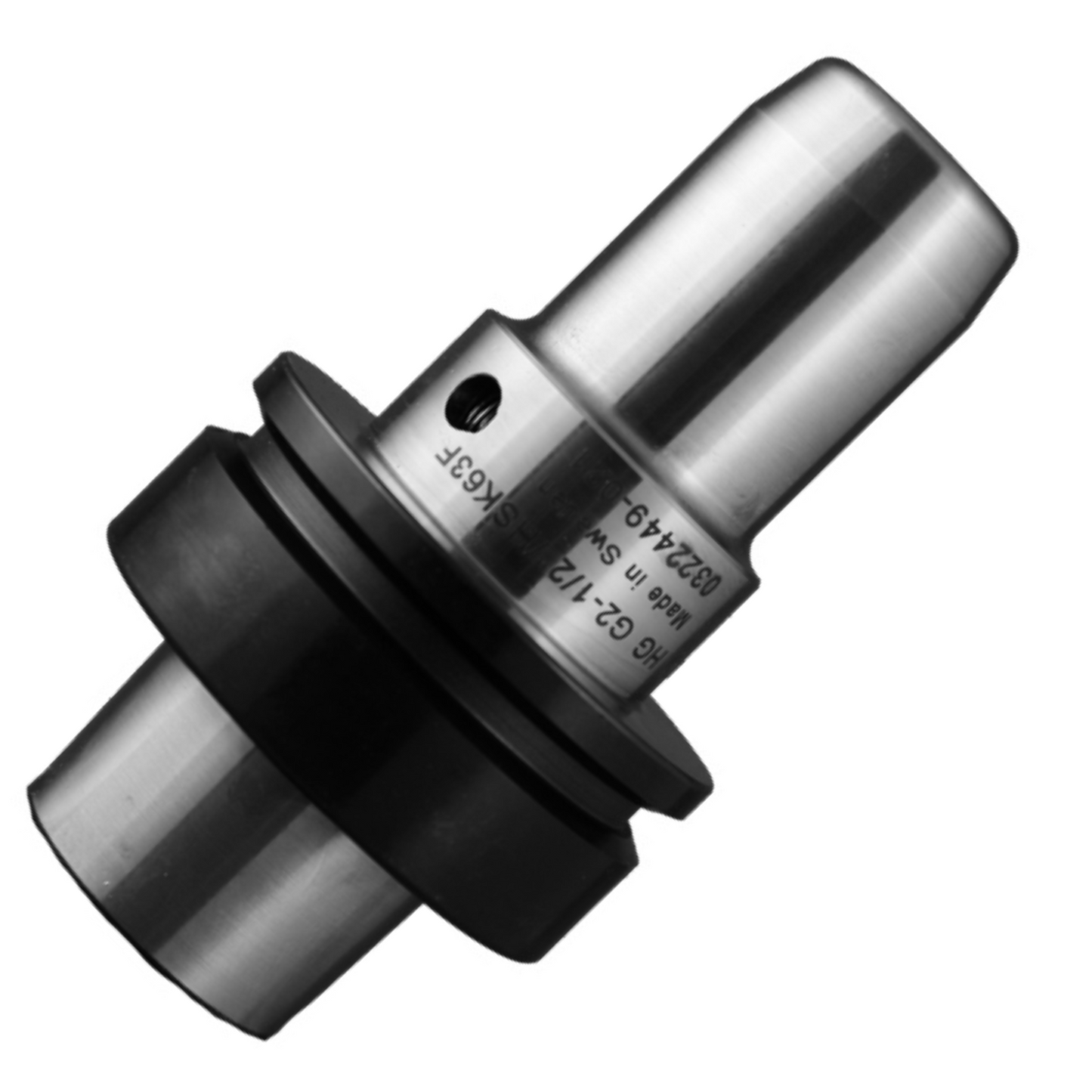

High precision HSK63F hydraulic tool holders for quick change of bits. Includes preset torque wrench.

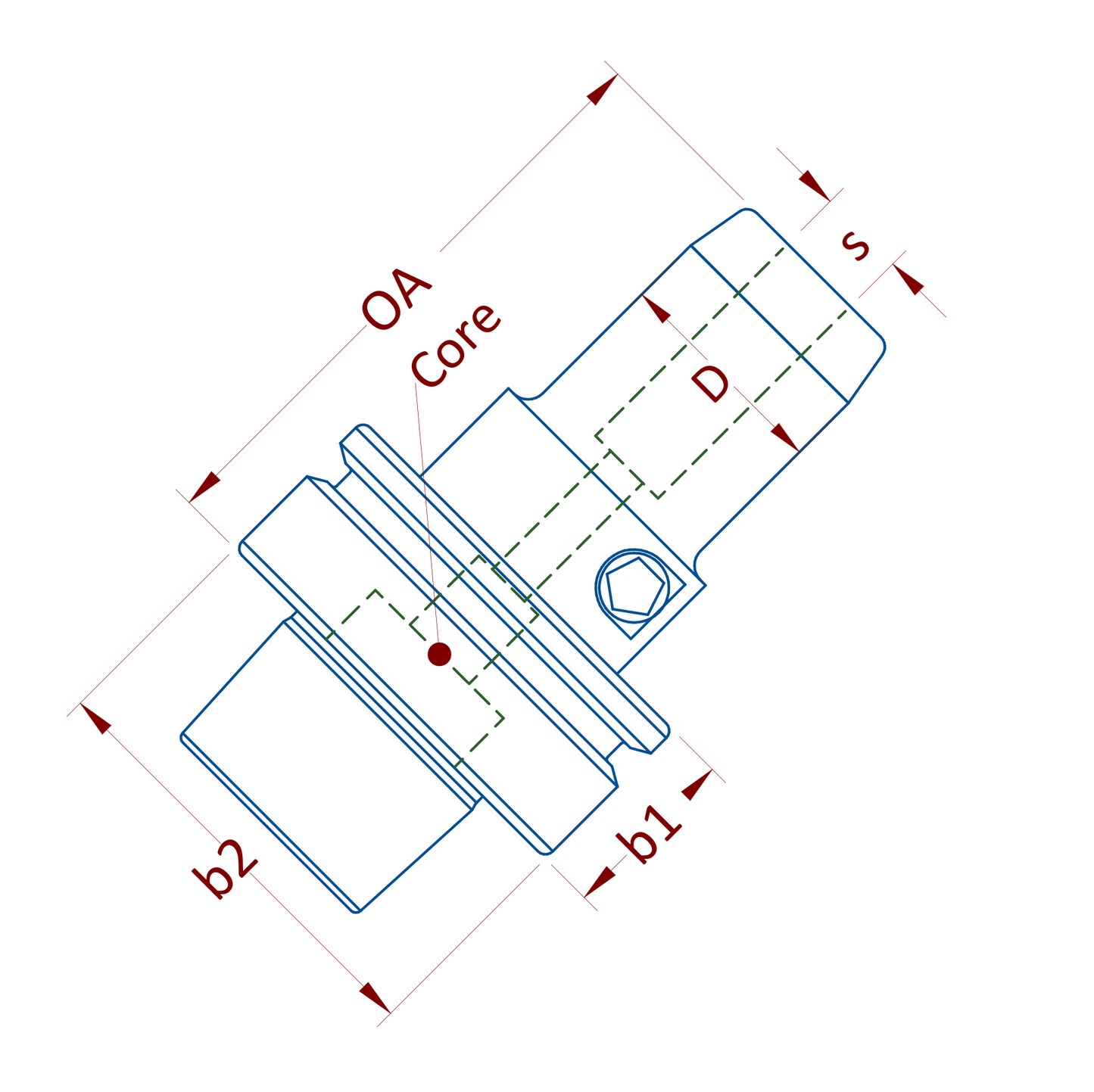

D=Body diameter
S=Shank diameter
OA=Length below spindle interface
b1=Core length
b2=Core diameter

North American-made items from Canada and U.S.

Hydraulic Reduction Collets allow you to run smaller diameter shank tooling in larger hydraulic holders.

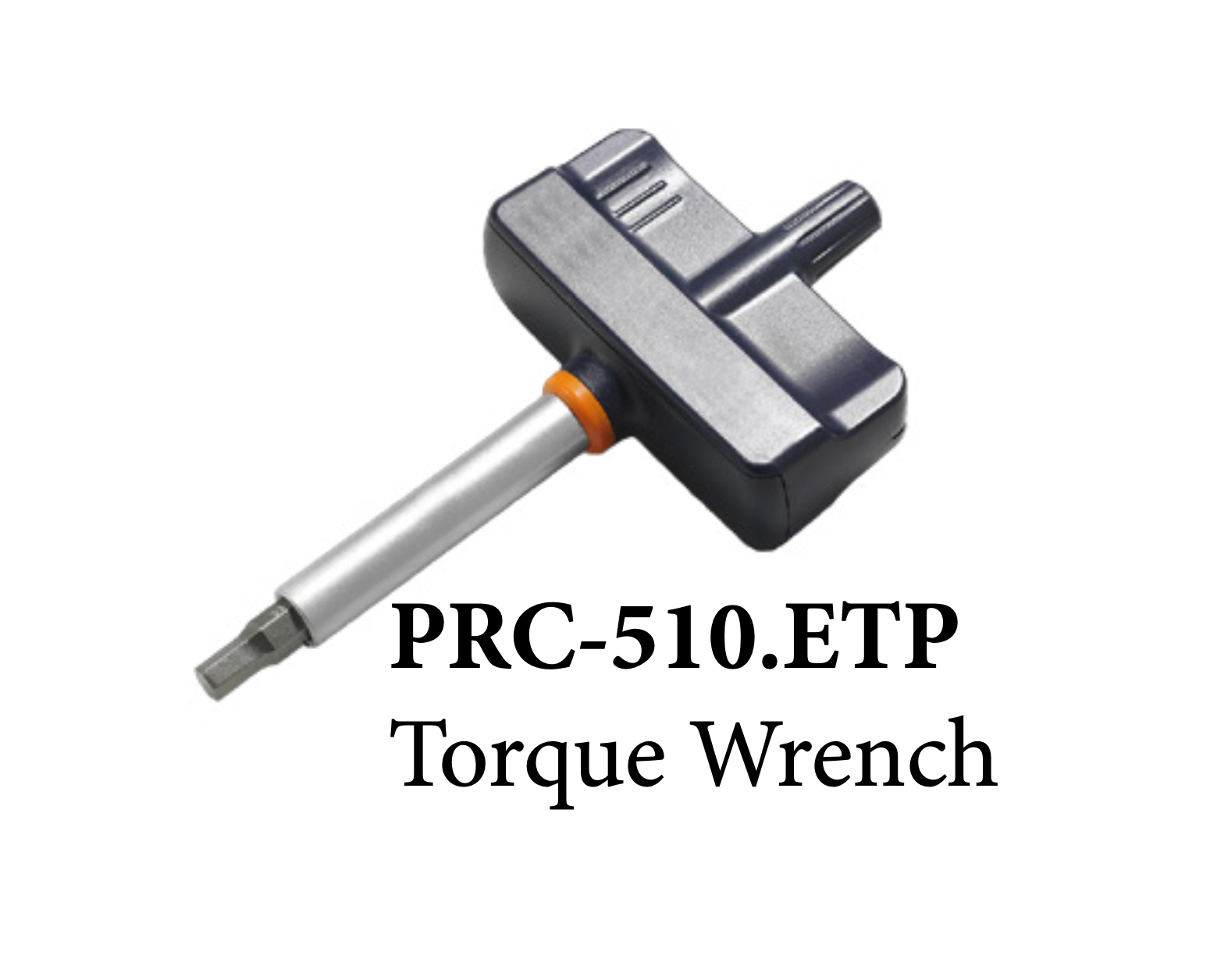

ETP-G2 Hydro 6Nm Torque Spanner and 10Nm Torque Spanner wrenches available.
