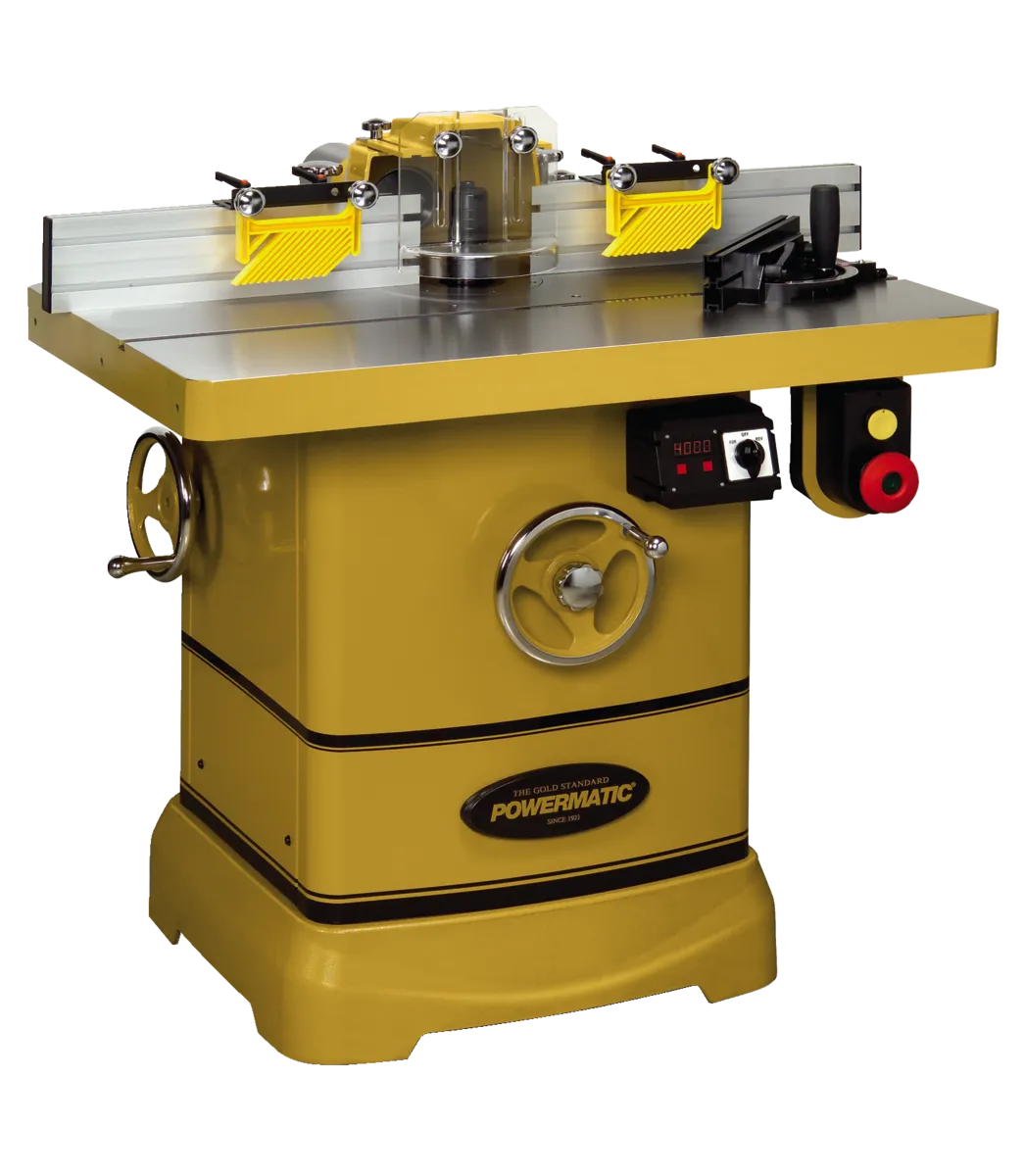

Single-Spindle Shaper

Overview:

The PM2700 Shaper offers more features than any other shaper in the same class. The extra-large 30" x 40" precision-ground cast iron table includes a heavy-duty miter gauge with an aluminum extruded support. The built-in, omnidirectional caster system is retractable into the base. A quick-release lever allows for fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in, and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows adjustments to be made within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.

Features:

• Digital readout gives the use exact spindle height and allows for .001" adjustments
• Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
• Heavy duty cast iron base
• Includes 3/4" and 1-1/4" spindles
• Independently adjustable fence sides
• Integrated casters can be raised and lowered to mobilize shaper
• Micro adjust control knobs allow for precision adjustment for the fence
• Superior clear cutter guard promotes safety, allows observation of the entire cut
• Table predrilled and tapped for feeder mounting in two locations
• Two speed reversible spindle speeds

Specifications:

• Table Size: 40in x 30in
• Table Height from Floor: 35.5in
• Spindle Size: 3/4in (interchangable with 1-1/4in)
• Spindle Capacity Under Nut (3/4in spindle): 3.75in
• Spindle Capacity Under Nut (1-1/4in spindle): 6in
• Maximum Spindle Diameter: 1-1/4in
• Spindle Travel: 4in
• Spindle Speeds: 7,500, 10,000, reversible
• Dust Port Outside Diameter: 4in
• Dust Collection Minimum CFM Required (CFM): 600
• Warranty: 5 Year

3 HP Single-Phase Motor Specs:

• Spindle Motor: 3 HP single-phase 230V only
• Recommended Circuit Size (Amps.): 30
• Machine Gross Weight: 690.0
• Machine Net weight: 664.0

5 HP Single-Phase Motor Specs:

• Spindle Motor: 5 HP single-phase 230V only
• Recommended Circuit Size (Amps.): 40
• Machine Gross Weight: 769.0
• Machine Net weight: 769.0

230V 3-Phase Motor Specs:

• Spindle Motor: 5 HP 230/460V 3-phase, prewired 230V
• Recommended Circuit Size (Amps): 30
• Machine Gross Weight: 690.0
• Machine Net weight: 664.0

460V 3-Phase Motor Specs:

• Spindle Motor: 5 HP 230/460V 3-phase, prewired 460V
• Recommended Circuit Size (Amps): 15
• Machine Gross Weight: 690.0
• Machine Net weight: 664.0

Optional Equipment: 1/2in spindle, 1in spindle, 30mm spindle, router bit collets, call for details

Some 460V machines may have 3-4 week delivery times. Please contact us at 570-584-2002 ext. 301 to check if you need an order rushed. Thank you.
