Single-Spindle Dovetail Machine

Overview:

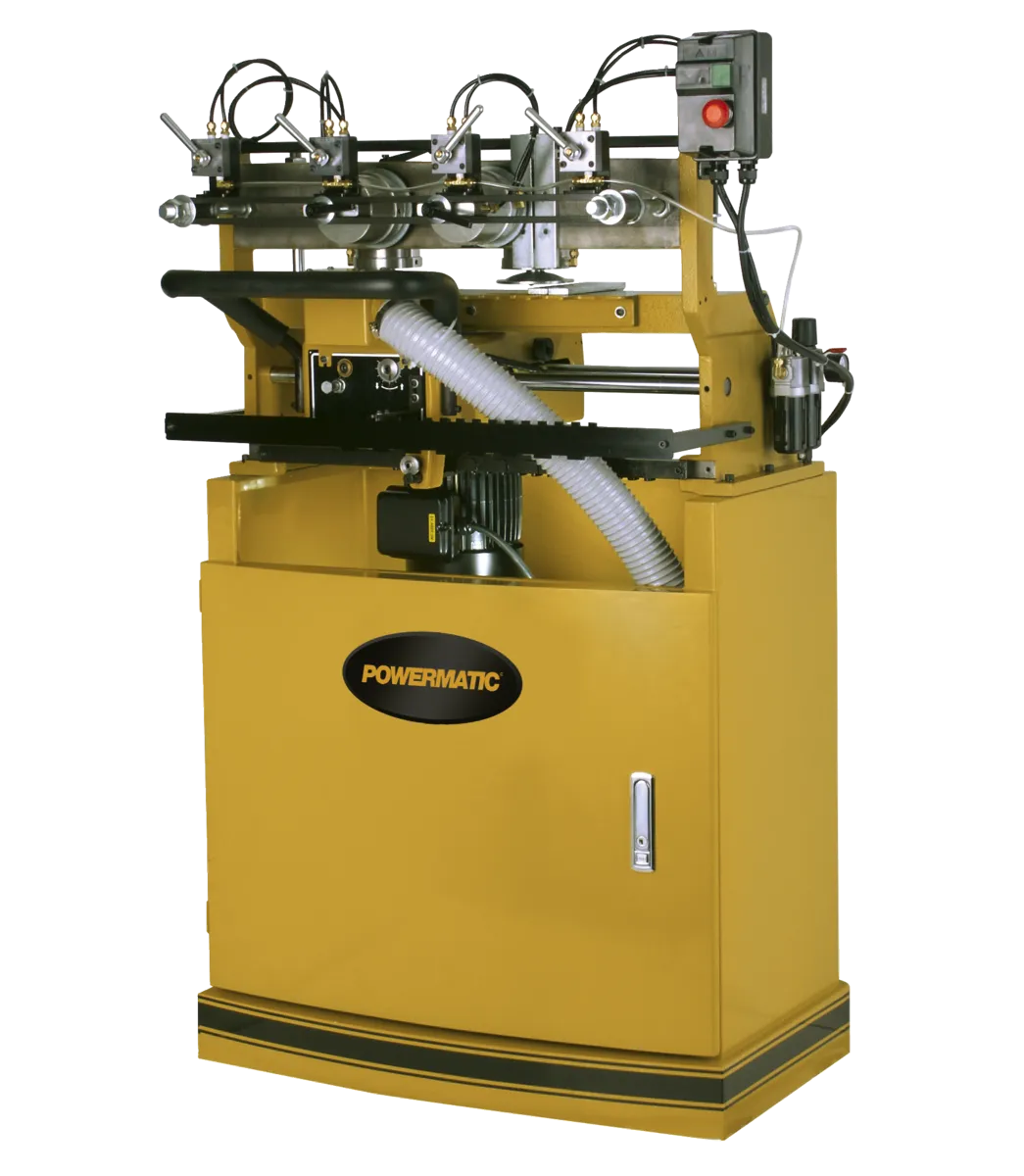

The POWERMATIC® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1", 1-1/2", 2", and 2-1/2" centerlines. The use of different dovetail centerlines gives a unique custom appearance.

Features:

• Cast iron and steel construction for added stability and durability
• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
• Eccentric spindle collet for resharpened cutters
• Extra large soft grip handle provides positive control and comfort
• Four dovetail center lines at 1", 1-1/2", 2", and 2-1/2" create a custom appearance
• Material stops provide convenient positioning of the workpiece
• Pneumatic clamping provides quick locking and unlocking of the work piece
• Spring loaded carriage makes for smooth, effortless dovetail cutting
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage

Specifications:

• Number of Dovetail Center Lines: 4
• Maximum Dovetail Height: 3/4-inch
• Maximum Front Thickness: 2-3/8-inch
• Maximum Side Thickness: 1-3/16-inch
• Minimum Dovetail Height: 3/16-inch
• Minimum Front Thickness: 9/32-inch
• Minimum Side Thickness: 3/8-inch
• Spindle Motor: 1 HP 230V single-phase
• Number of Spindles: 1
• Dust Collection Minimum Requirement: 500 CFM
• Prop 65: Cancer and Reproductive Harm
• Warranty: 5 Year
• Gross Weight: 510.0
• Net weight: 420.0
