Powermatic
Shaper with Sliding Table
Shaper with Sliding Table
Couldn't load pickup availability
Overview:

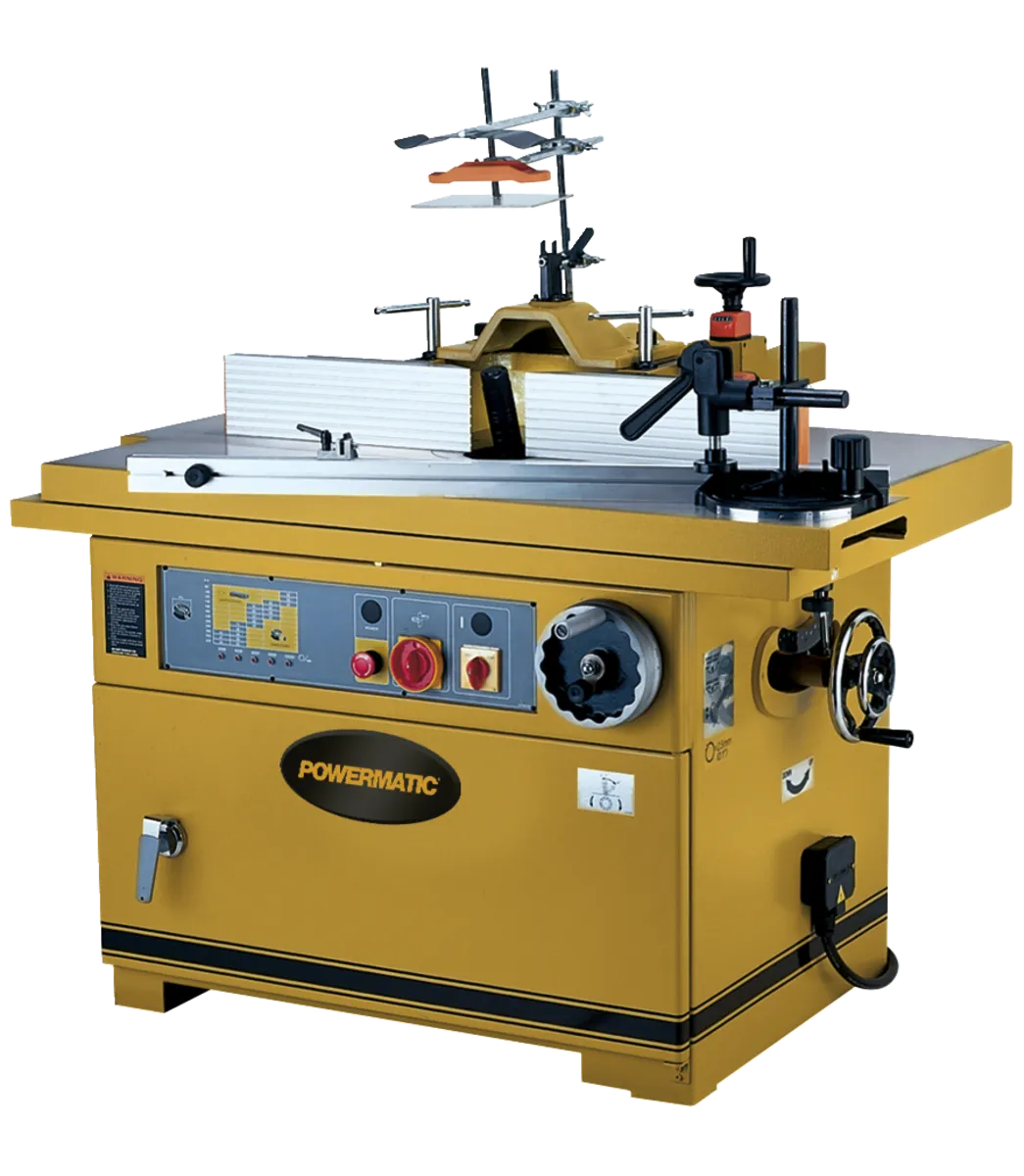

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.
Features:
- Five spindle speeds in forward and reverse with lighted indicator
- Full coverage guard with workpiece hold downs
- Fully adjustable fence has dual digital readout positioning with micrometer adjustments
- Includes 3/4", 1" and 1-1/4" spindles
- Large diameter multiple table inserts accommodate virtually any size cutter
- Large table with built-in slider with room for stock feeder
- Sliding table travels a full 49-1/4 inches
- Tilting spindle for additional angles
Specifications:
- Table Size: 51.25in x 33.5in
- Sliding Table Size: 51.25in x 11.25in
- Sliding Table Travel: 49.25in
- Tilting Spindle: 5° back, 45° forward
- Spindle Travel: 7in
- Spindle Speeds: 3,000, 4,000, 6,000, 8,000, 10,000
- Spindles (interchangeable): 3/4in, 1in, 1-1/4in
- Table Inserts (3): 2.5in ID, 5.5in ID, oval slotted
- Maximum Diameter Cutter Above Table: 12in
- Maximum Diameter Cutter Below Table: 9in
- Maximum Spindle Diameter: 1-1/4in
- Spindle Motor: 7.5 HP 230/460V 3-phase, prewired your choice 230V or 460V
- Dust Port Outside Diameter (2): 5
- Dust Collection Minimum CFM Required (CFM): 800
- Prop 65: Cancer and Reproductive Harm
- Warranty: 5 Year
- Gross Weight: 1280.0
- Net weight: 1183.0
Some 460V machines may have 3-4 week delivery times. Please contact us at 570-584-2002 ext. 301 to check if you need an order rushed. Thank you.
