SawStop 27” In-LIne Router Table for Professional (PCS) and Contractor Saws (CNS)

Overview:

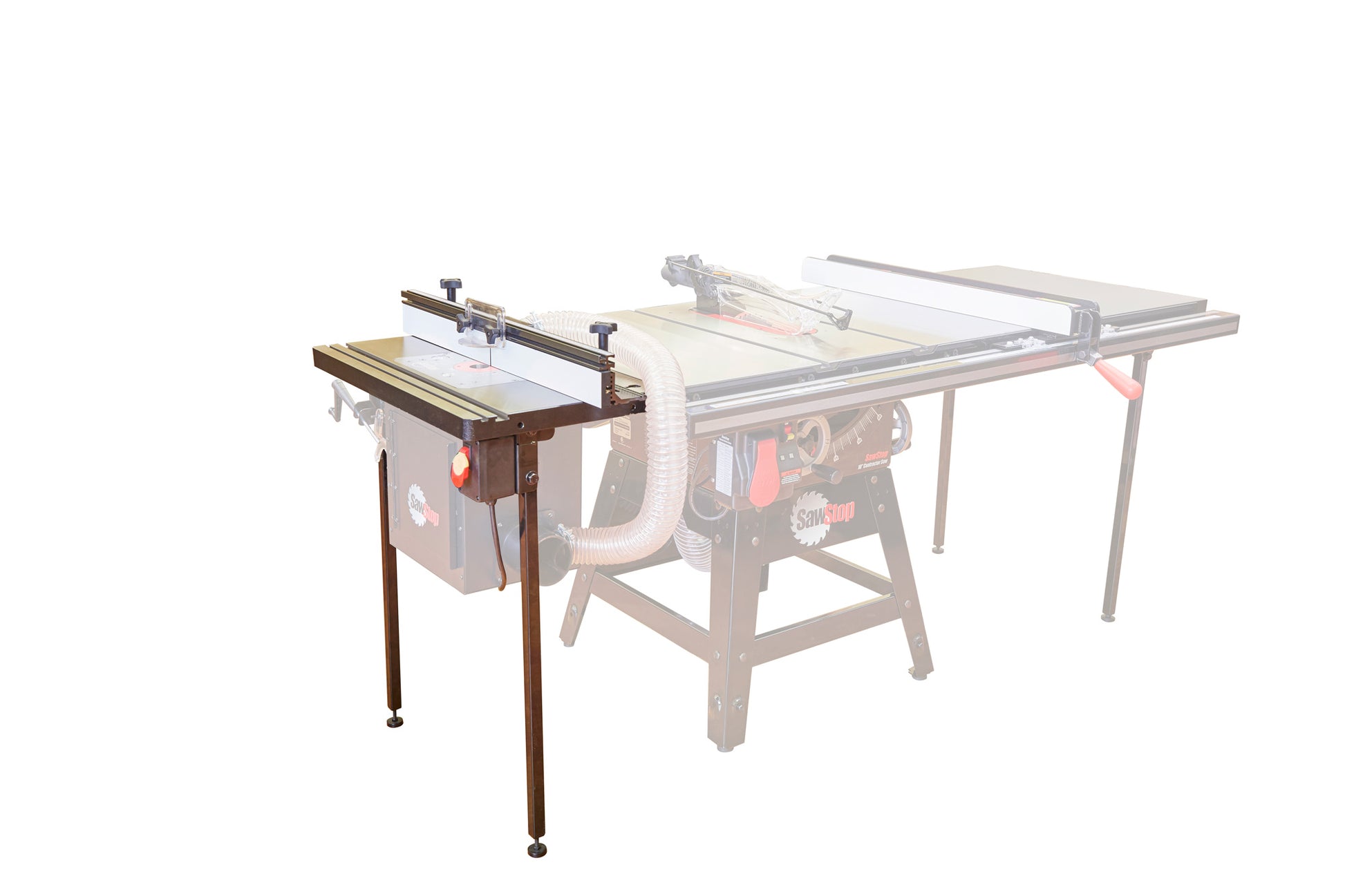

Optimize your SawStop saw with this In-Line Router Table Assembly. On a Professional Cabinet Saw, you can replace your extension table with beautiful cast iron. On a Professional or Contractor Saw, install it to the left of the saw. Includes a 27″ x 16″ precision cast iron table with internal fence channels, an external power switch for your router, two support legs, and a 27″ Router Fence Assembly featuring two adjustable faces with shims, a 2.25″ dust port, adjustable scales and compatibility with various routing accessories like feather boards, flip stops and more.

Features:

• Cast iron table dimensions: 27" x 16"
• Router table opening: 11 3/4" x 9 1/4"
• 27" fence assembly dimensions: 30 3/4"L x 3 1/2"H x 4"W
• Max fence travel: 5 1/2"
• Heavy Duty Construction-The 27" x 16" table is made from solid cast iron, and the two support legs secure firmly to the underside of the table to ensure a solid work space.

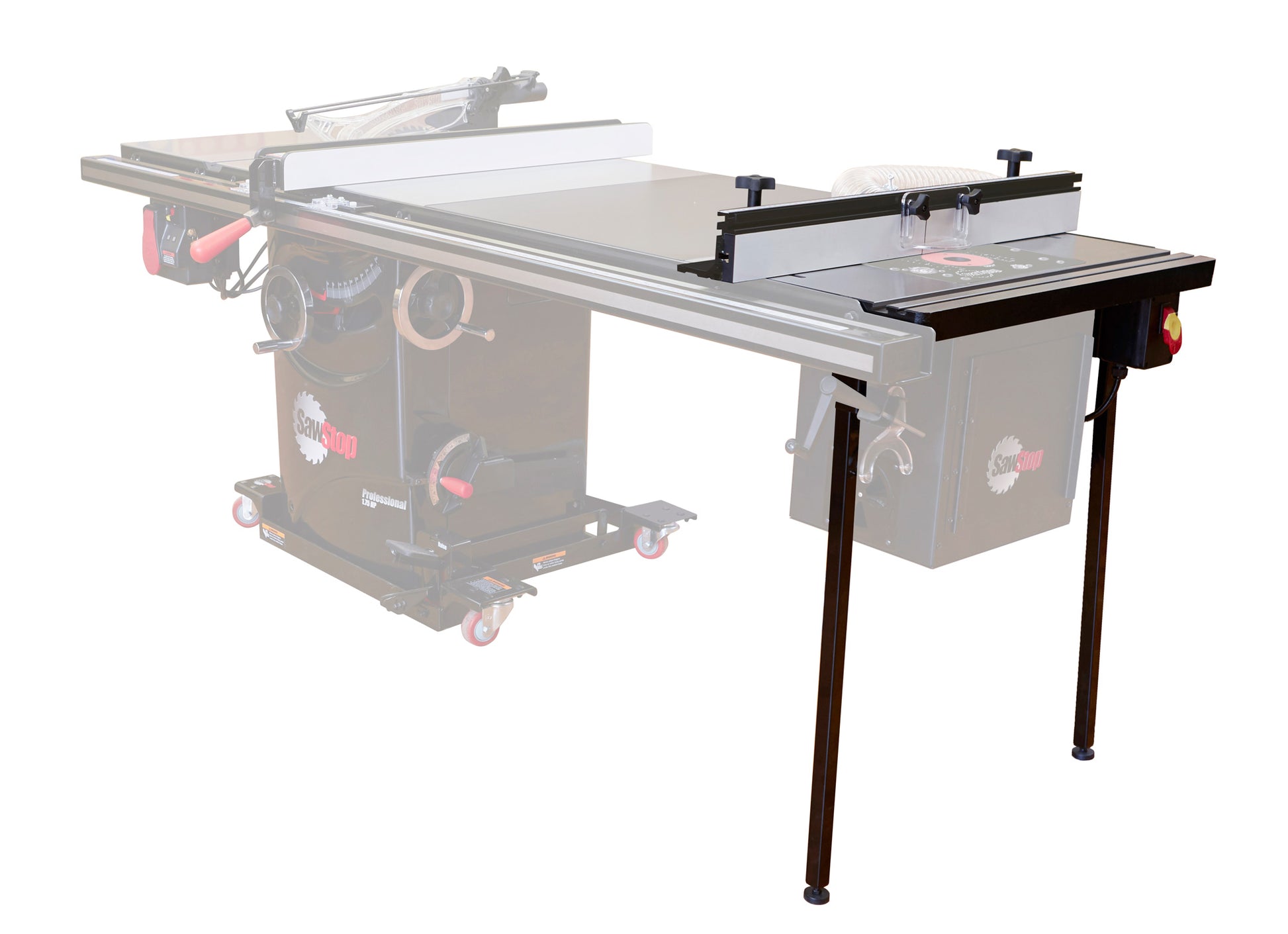

• Versatility-Depending on your shop configuration, there are two different mounting options. Save space by mounting the table in-line between the rails and replacing the existing extension table. For the 36" Professional Cabinet Saw, an optional cast iron filler table is available creating a full length cast iron table. The router table can also be mounted to the left of the saw, attaching to the left cast iron wing. The left mount setup is required for use with the Contractor Saw.

Included Items:

PCS In-Line Router Table

• RT-C27 27″ Cast Iron Table
• RT-F27 27″ Fence Assembly
• RT-PSW Power Switch
• RT-ST2 Support Legs
• Owner’s Manual
• Installation Hardware

Please note that the Router Lift (RT-LFT) and Dust Box (RT-DCB) are individual items and are sold separately as stand alone products.

Specifications:

• Cast Iron Table: 27” x 16”
• Router Table Opening: 11-3/4” x 9-1/4”
• Max. Fence Travel: 5-1/2”
• Front T-slot to Arbor Center: 6-1/2”
• Rear T-Slot to Arbor Center: 5”
• Width of Front Miter T-slot: 3/8” at top, 1/2” at bottom
• Width of Rear Miter T-slot: 3/4” at top, 1” at bottom, 3/8” deep
• RT-F27 (fence) Length: 35-3/4”
• RT-F27 (fence) Height: 3-1/2”
• RT-F27 (fence) Depth: 4”
