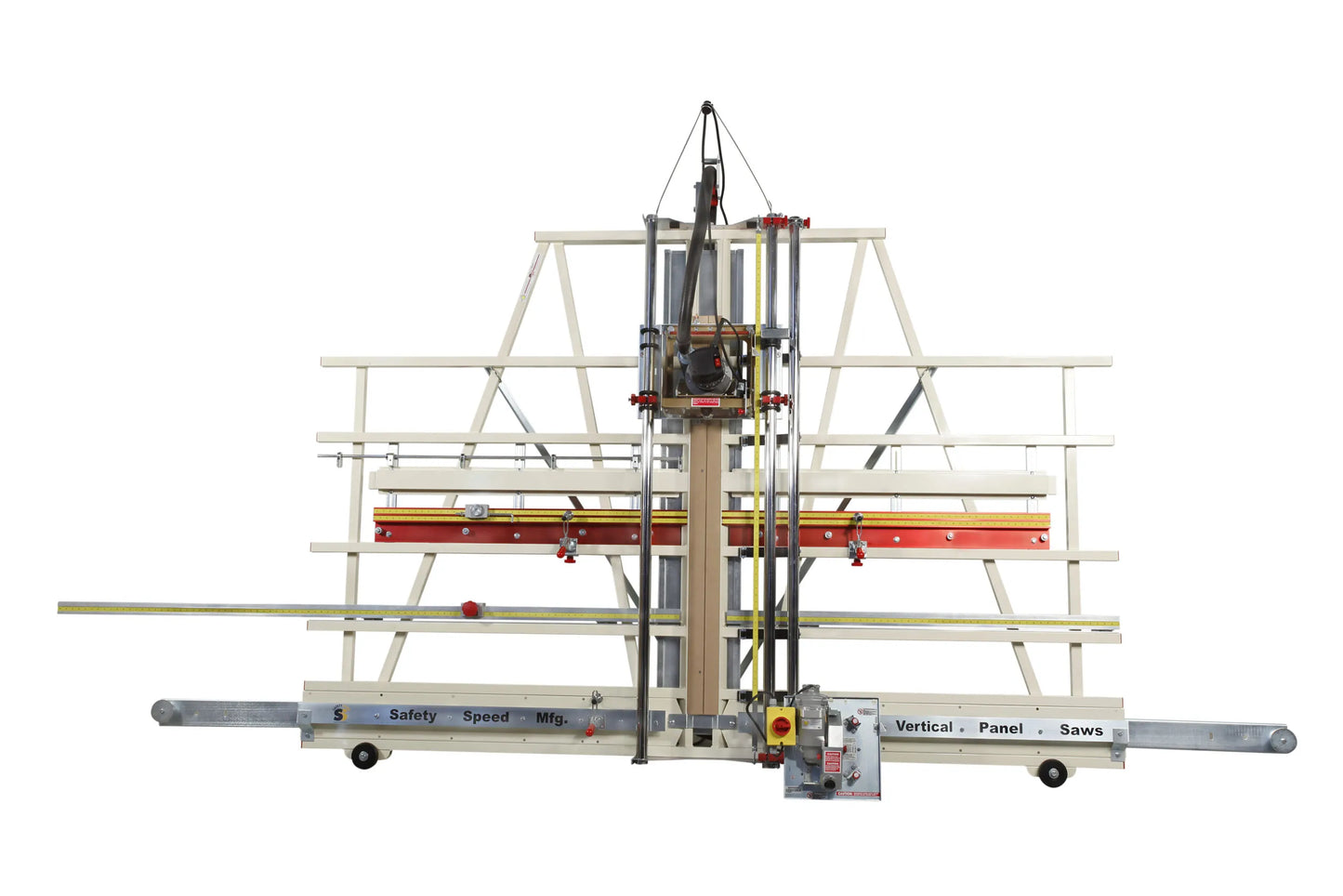

Safety Speed SR5UA ACM Panel Saw and Router Combo

Overview

The SR5UA Saw Router Combination Machine is a fully loaded solution for high production cutting and routing!

The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing.

It features over $1,400 in savings compared to ordering each accessory individually.  The following upgrades and accessories are included in the price of this machine:

• Upgraded 3 HP heavy-duty worm drive saw motor.
• Upgraded 3+ Hp heavy-duty router motor.
• Aluminum material rollers
• Wheels
• Fixed Stand
• Pair of extensions adding an additional 22” to each side
• Left (8’) and right (5’) quick stop gauges
• MID-WAY Fence for processing panels at waist level
• MID-WAY FENCE™ flip stop.
• Dust collection kit
• Hold down bar
• Backerboard
• Thin material pressure guard for accurately processing thin material
• 2 blind dado stops
• 860NRTCG Saw Blade

Applications

• ACM Fabricators
• Plastic Processors
• Sign Makers

Standard Equipment

• 3 Hp worm drive saw motor.
• 3+ Hp heavy-duty router motor.
• 10 ft. Welded steel frame.
• Chrome plated 1 ¾” guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical and horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Counterweight system.
• Adjustable floating router head.
• MID-WAY FENCE™ with stop.
• Backerboard
• 4 material clamps.
• 2 blind dado stops.
• Wheels.
• Fixed Stand.
• Extensions.
• Left and right quick stop gauges.
• MID-WAY FENCE™ flip stop.
• Dust hood and hose kit.
• Hold down bar.
• Specialty saw blade and router bit for v-grooving
• 1 year parts warranty.

Specifications

• Max. Crosscut: 62"/1575mm
• Max. Rip Cut: Unlimited
• Max. Cut Thickness: 1 3/4"/45mm
• Cut Accuracy, Straight and Square: 1/64"/.4mm
• Saw Motor Horsepower: 3 Horsepower
• Saw Motor Type: Worm Drive
• Saw Motor Amps: 13 amps
• Saw Motor Voltage: 120 Volts
• Saw Blade Diameter: 8"/210mm
• Router Motor Amps: 15 amp
• Frame Length: 120"/3050mm
• Router Motor Volt: 120 Volt
• Router Motor Horsepower: 3 Horsepower
• Router Motor Type: Variable Speed
• Router Bit Collet: 1/4" or 1/2" collet router bits
• Country of Origin: USA
• Dimensions: 124" x 17" x 92"
• Weight: 687 lbs
