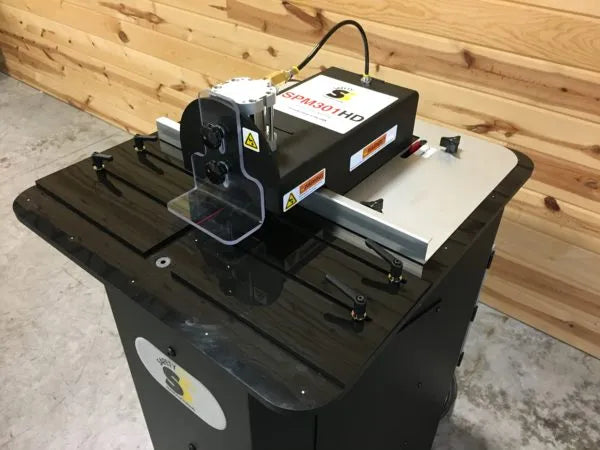

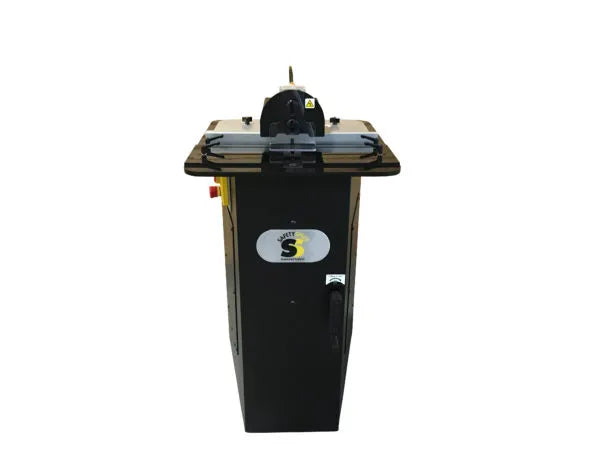

Safety Speed SPM301HD Heavy-Duty Screw Pocket Machine

Overview

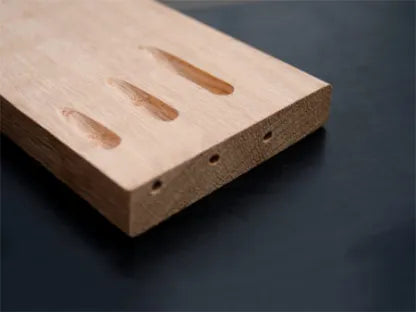

Pocket-hole joinery for high production woodworkers made easy with our SPM301HD Screw Pocket Machine. This machine allows for simultaneously drilling a pilot hole and machining a screw pocket in under a second.

Key enhancements on the SPM301HD from the SPM301 Screw Pocket Machine are:

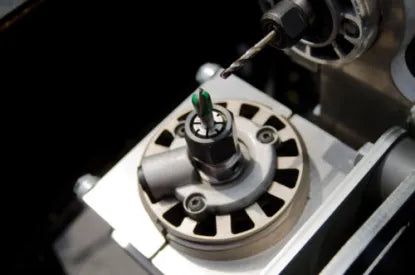

• A spindle motor just like the ones in a CNC machine, running continuously with minimal maintenance
• An air drill replacing a router motor
• A two-in-one motion simultaneously drills a six degree pilot hole and machines a screw pocket in under a second on most wood species.  The SPM301HD features a heavy-duty, direct drive continuous electric spindle motor, allowing for continuous pocketing production.

The SPM301HD features  a heavy-duty, direct drive continuous electric spindle motor for those jobs that just keep on coming.  Unlike others of its kind, the SPM301HD features cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. The new pilot air drill and end mill produce superior low-angle 6 degree screw pockets. Requires standard 220V and 6.2 CFM at 90 PSI based on 25% load factor, 25% duty cycle.

Applications

• Cabinet Shops
• Crate & Boxmaking
• Store Fixture Builders

Specifications

• Vacuum Diameter Required: 3" Hose Connection
• Vacuum CFM Required: 220 CFM
• Air Requirement: 6.2 CFM at 90 PSI * Rating based on 25% load factor, 25% duty cycle

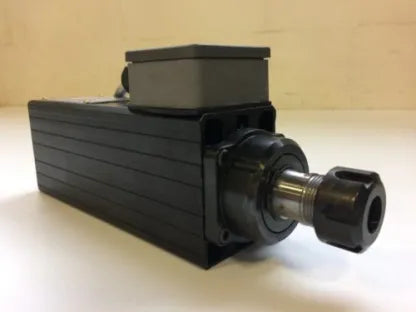

• Spindle Motor: 5 amp/18,000 RPM, 3/8" (ER20) Collet
• Screw Pocket Angle: Six Degrees
• Spindle Motor Amps: 5 amps
• Spindle Motor Collet: 3/8” Collet
• Spindle Motor Max RPM: 18,000
• Air Drill: .7HP
• Air Drill Collet: 1/4" Collet
• Air Drill Max RPM: 25,000
• Screw Pocket Depth Range: .5" to 1.5"
• Country of Origin: USA
• Crated Dimensions: 36" × 28" × 49"
• Dimensions: 32" x 22" x 44"
• Weight: 350 lbs
