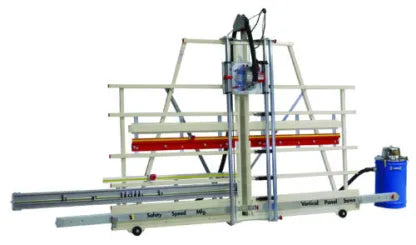

Safety Speed H5 Vertical Panel Saw with 64" Cutting Height

Overview

Featuring a 10′ frame, and 64″maximum crosscut with an unlimited rip cut, the H5 panel saw is a preferred solution for cabinet and furniture makers. The only difference between this model and our H4 and H6 models are that they provide 50″, and 74″ maximum crosscuts.

Our most common accessories include a fixed stand, 8″ saw blade, dust collection kit which allows for connecting your panel saw or router to your vacuum system of choice, and our pair of extensions adding 22″ to each side.

Applications

• Cabinet Shops
• Crate & Boxmaking
• Home Hobbyist
• Lumber Yards & Home Centers
• Plastic Processors
• Sign Makers
• Store Fixture Builders

Standard Equipment

• Zinc plated 1 ¾”steel guide tubes.
• Milwaukee Tool motor
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards

Specifications

• Max. Crosscut: 64"/1625mm
• Max. Rip Cut: Unlimited
• Cut Depth: 1 ¾"/45mm
• Cut Accuracy: 1/32"/.8mm
• Frame Length: 120"/3050mm
• Daily Usage: 1-3 Hours
• Rollers: 14
• Saw Blade Diameter: 8"/210mm
• Saw Blade Bore: 5/8"
• Motor Horsepower, Amperage and Volts: 3.25 HP, 15 amps, 120 Volt, 3.25 HP, 7.5 amps, 220 Volt
• Motor Manufacturer: Milwaukee Tool
• Country of Origin: USA
• Dimensions: 120" x 11" x 83"
• Weight: 298 lbs
