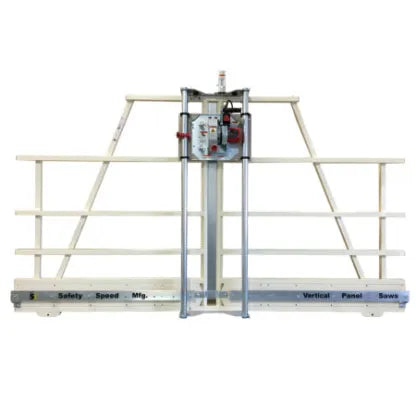

Safety Speed H4 Vertical Panel Saw with 50" Maximum Cutting Height

Overview

Featuring a 10′ frame, and 50″maximum crosscut with an unlimited rip cut, this panel saw is a preferred solution for cutting 4′ X 8′ sheets of plywood. The H4 panel saw cuts within 1/32″ on a wide variety of panel materials up to 1¾” thick.

Our most common accessories include a fixed stand, 8″ saw blade, dust collection kit which allows for connecting your panel saw or router to your vacuum system of choice, and our pair of extensions adding 22″ to each side.

Applications

• Cabinet Shops
• Crate & Boxmaking
• Home Hobbyist
• Lumber Yards & Home Centers
• Plastic Processors
• Sign Makers
• Store Fixture Builders

Standard Equipment

• 3 ¼ Hp, 15 amp industrial duty saw motor.
• Zinc plated 1 ¾”steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.

• TUV certified to UL/CSA standards.

Specifications

• Max. Crosscut: 50"/1270mm
• Max. Rip Cut: Unlimited
• Cut Depth: 1 ¾"/45mm
• Cut Accuracy: 1/32"/.8mm
• Frame Length: 120"/3050mm
• Daily Usage: 1-3 Hours
• Saw Blade Diameter: 8"/210mm
• Saw Blade Bore: 5/8"
• Rollers: 14
• Motor amps and volts: 15 amp, 120 Volt, 7.5 amp, 220 Volt
• Motor Manufacturer: Milwaukee Tool
• Country of Origin: USA
• Dimensions: 120" x 11" x 70"
• Weight: 244 lbs
