Safety Speed Manufacturing

Safety Speed C5 Vertical Panel Saw

$2,562.00 USD

Sale Sold out

Shipping calculated at checkout.

C5 Vertical Panel Saw Options C5 Vertical Panel Saw - 3.25 Hp 15A 120V C5 Vertical Panel Saw - 3.25 Hp 7.5A 220V

Quantity

Overview

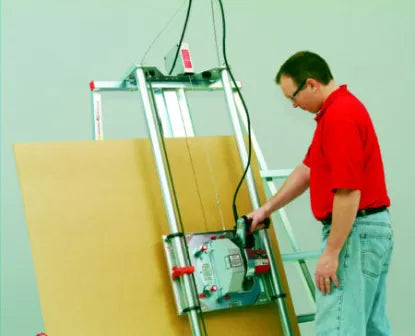

The C5 portable panel saw features a 64″ maximum crosscut and cuts material up to 1.75″ thick. Photos are shown with a stand and wheels, which are optional accessories.

This panel saw can travel to work sites and fit into shops with limited floor space. The only difference between this machine and the C4 Panel saw are the maximum crosscut lengths.

Applications

Cabinet Shops
Crate & Boxmaking
Home Hobbyist
Plastic Processors
Sign Makers
Store Fixture Builders

Standard Equipment

Zinc plated 1 ¾” steel guide tubes.
Milwaukee Tool motor
4 Nylatron roller bearing systems.
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard.
Injection-molded plastic material rollers.
Spring loaded counter balance system.
Integrated dust collection bonnet.
Extended warranty.
TUV certified to UL/CSA standards

Specifications

Max. Crosscut: 64"/1625mm
Max. Rip Cut: 96"/2450mm
Cut Depth: 1.75"/45mm
Cut Accuracy: 1/32"/.8mm
Frame Length: 60"/ 525mm
Daily Usage: 1-3 Hours
Rollers: 8
Saw Blade Diameter: 8"/210mm
Saw Blade Bore: 5/8"
Motor Horsepower, Amperage and Volts: 3.25 HP, 15 amp, 120 Volt, 3.25 HP, 7.5 amp, 220 Volt
Motor Manufacturer: Milwaukee Tool
Country of Origin: USA
Dimensions: 60" x 11" x 83"
Weight: 219 lbs

View full details
