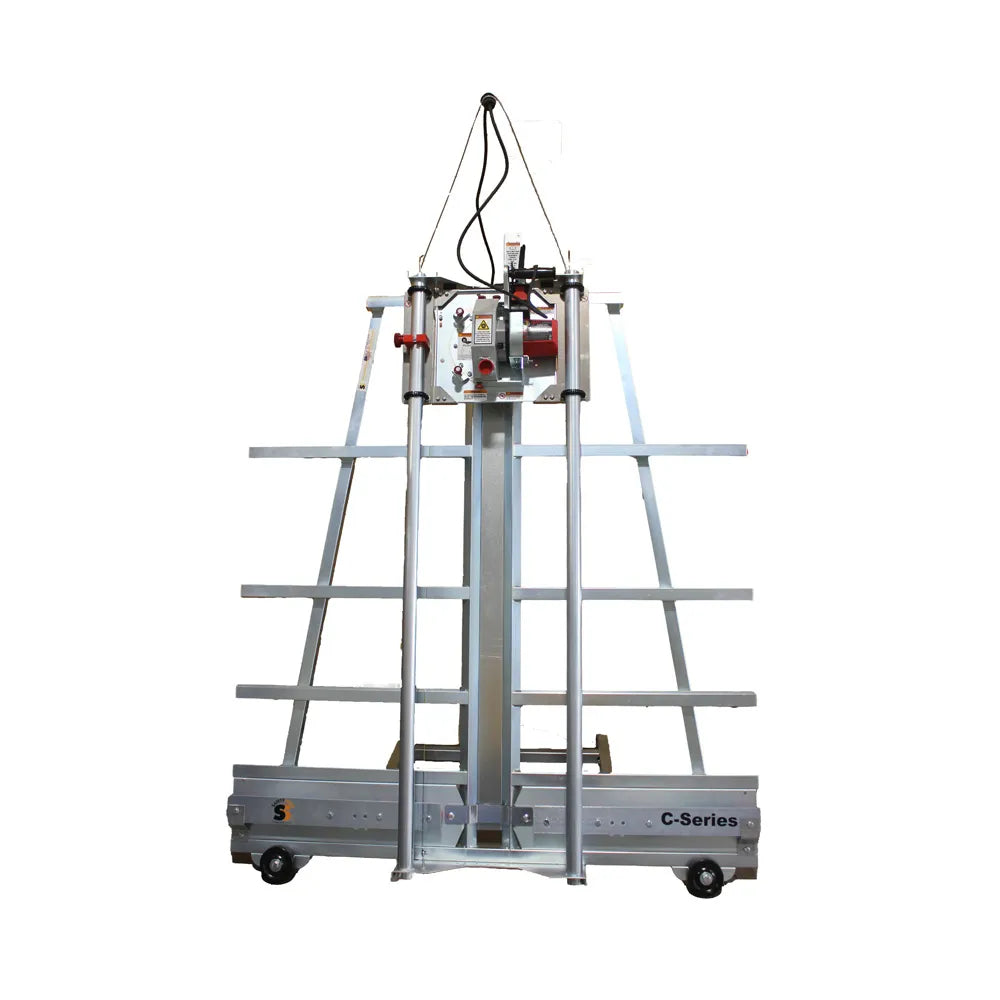

6480-20C Vertical Panel Saw

Overview

The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32″, and a 1.75″ cut depth, the 6480-20C is eerily similar to our C4 panel saw while having optional accessories built into the price.

The 6480-20C features over $500 in savings compared to buying the C4 Panel Saw with each accessory. Accessories included as standard equipment on the 6480-20C  include:

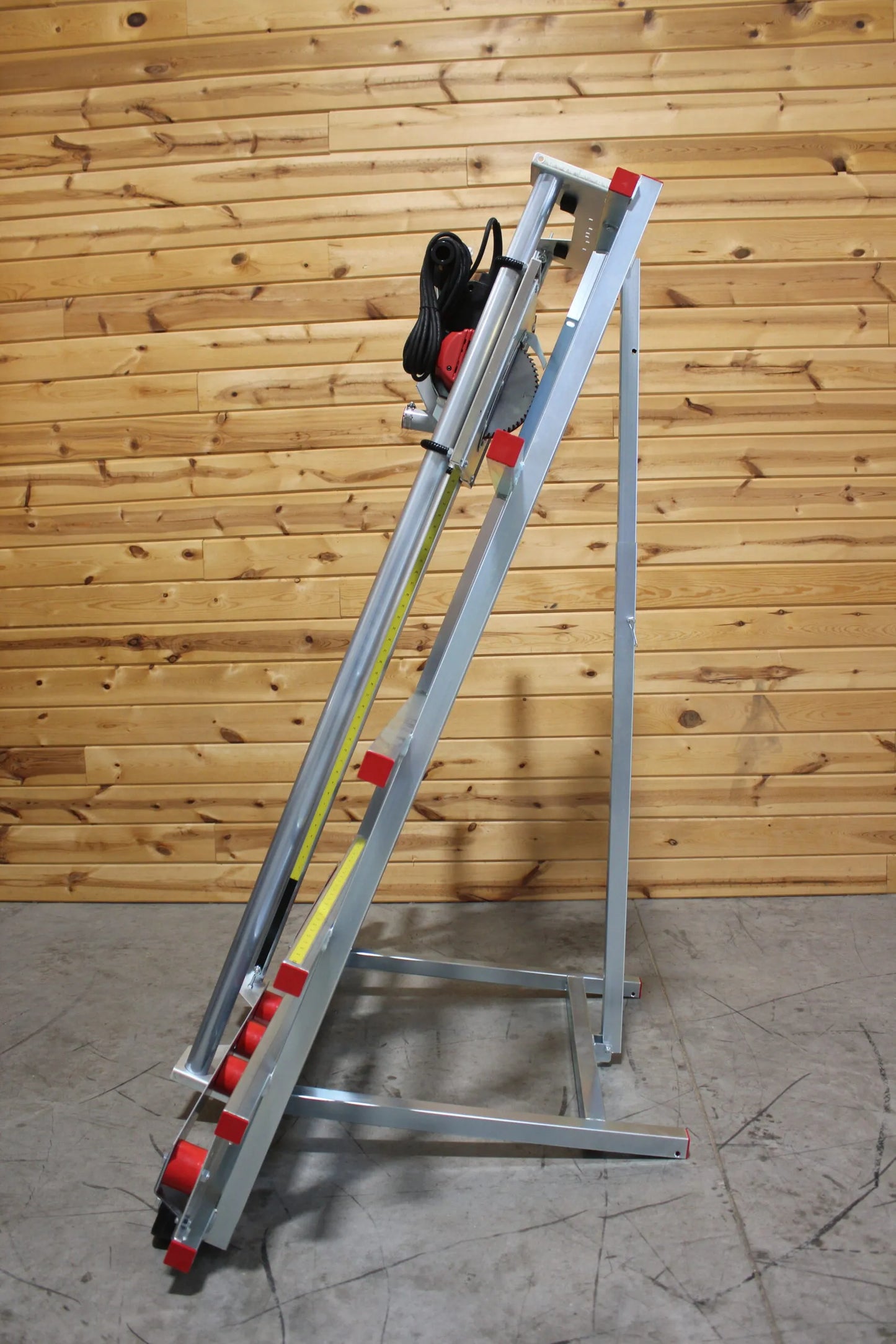

• A portable folding stand and wheels allowing for moving the panel saw around your shop as your day-to-day operations change.
• General-purpose saw blade.

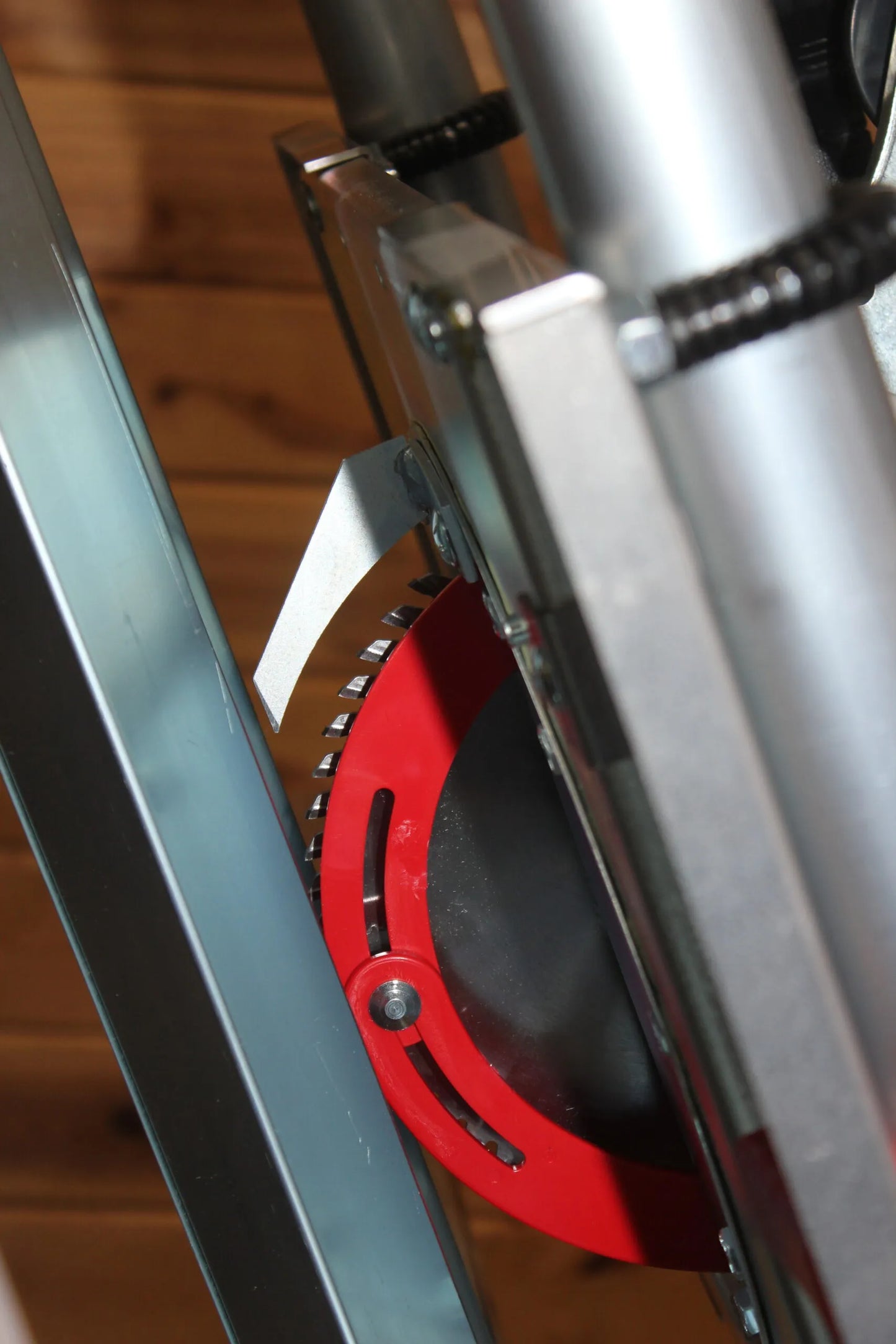

• A dust bonnet allowing you to set your machine up for collecting dust.
• The 6480-20C includes a 3.25 horsepower Milwaukee Tool motor.
• Optional accessories include a dust collection kit and vacuum for collecting as much dust as possible.

Applications

• Cabinet Shops
• Crate & Boxmaking
• Home Hobbyist
• Plastic Processors
• Sign Makers
• Store Fixture Builders

Standard Equipment

• 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
• Folding Stand

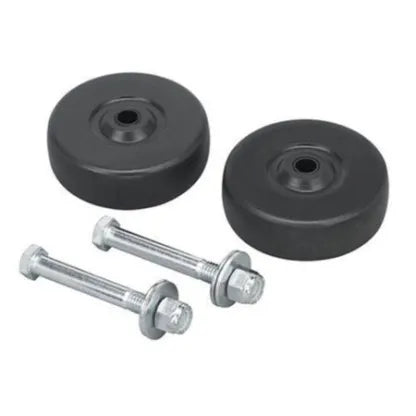

• Wheels
• Zinc plated 1 ¾” steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards

Specifications

• Max. Crosscut: 50"/1270mm
• Max. Rip Cut: 96"/2450mm
• Cut Depth: 1 ¾"/45mm
• Cut Accuracy: 1/32"/.8mm
• Frame Length: 60"/ 525mm
• Saw Blade Diameter: 8"/210mm
• Saw Blade Bore Size: 5/8"
• Daily Usage: 1-3 Hours
• Rollers: 8
• Motor volt and amperage: 15 amp, 120V, 7.5 amps, 220V
• Motor Manufacturer: Milwaukee Tool
• Machine Footprint: 15sqft
• Machine Length: 60"/1525mm
• Machine Height: 75"/1900mm
• Machine Width with stand attached: 36"/915mm
• Circular Saw Motor Revolutions Per Minute (RPM): 5,800 RPM
• Country of Origin: USA
• Dimensions: 60" x 11" x 70"
• Weight: 189 lbs
