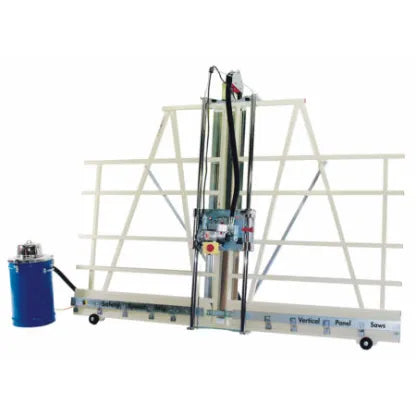

Safety Speed 6400 Vertical Panel Saw with 64" Cutting Height

Overview

The 6400 provides a 64″ maximum crosscut while the 6800 provides a 74″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.

Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:

• An upgraded, worm drive motor providing greater longevity.
• 1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series
• Machines that’s made possible by additional bearings.
• Additional steel welded at a diagonal plane adding significant weight to the frame.
• A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance.
• Additional bearings within the motor providing a tighter cutting tolerance.
• Aluminum material rollers  instead of red material rollers.

Applications

• Cabinet Shops
• Crate & Boxmaking
• Lumber Yards & Home Centers
• Plastic Processors
• Sign Makers
• Store Fixture Builders

Standard Equipment

• 3 Hp worm driven heavy-duty saw motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 3/4″ guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Integrated dust collection bonnet.
• TUV certified to UL/CSA standards.

Specifications

• Max. Crosscut: 64"/1625mm
• Max. Rip Cut: Unlimited
• Cut Depth: 1 ¾"/45mm
• Cut Accuracy: 1/64"/.4mm
• Frame Length: 120"/3050mm
• Daily Usage: 3-5 Hours
• Rollers: 14
• Saw Blade Diameter: 8"/210mm
• Saw Blade Bore: 5/8"
• Motor: 13 amp, 120V
• Country of Origin: USA
• Dimensions: 124" x 17" x 92"
• Weight: 598 lbs
