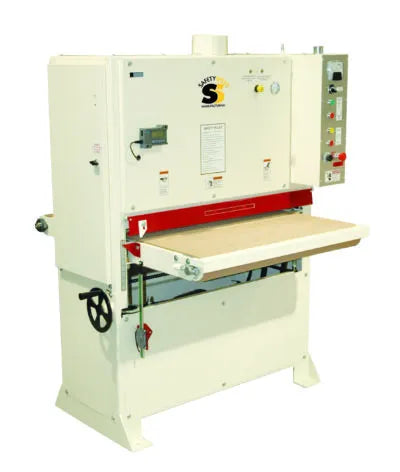

Safety Speed 3760 37" Wide Belt Sander

Overview

Our American Made 3760 Wide Belt Sander will improve your finishing time, decrease your hand sanding and increase your productivity. Available with either a 10 horsepower, single phase or a 15 horsepower, three phase motor these American made wide belt sanders are workhorses that will likely outlive you. Don’t take our word for it, learn how Roltgen Woodworks did it!

Testimony

Jeff Roltgen of Roltgen Woodworks stated, “Even the fussiest of finishes only need a cursory random orbit sanding after coming out of this machine.”

Standard Equipment

• Photo electric belt tracking.
• 2 1/2″ removable platen.
• 2 height adjustment indicators.
• 5 emergency stops.
• 2 rubber-covered pinch rollers 1 1/2″ OD.
• Rubber-covered contact roller 4 1/4″ OD with 13/8″ drive bearing.
• 2 machined idler rollers 2 3/16″ OD with 3/4″ bearings.
• Conveyor table set on four 3/4″ acme-threaded jackscrews
• Pneumatic belt tensioning.
• 3 year warranty.
• 6″ internal dust chute.
• 3/4 Hp conveyor motor

Specifications

• Max. Working Length: Unlimited
• Min. Working Length: 12"/305mm
• Main Motor Options: 10 Hp, Single Phase (1~), 220 Volt, 15 Hp, 3 Phase (3~) 208 Volt / 230 Volt
• Max. Working Width: 36"/915mm
• Max. Working Thickness: 7 1/4"/184mm
• Min. Working Thickness: 1/8"/3mm
• Vacuum Requirement: 1000 CFM
• Conveyor Speed: 0-18 FPM
• Durometer of Contact Roller: 60
• Sanding Belt Size: 37" x 60"
• Sanding Belt Width: 37"
• Sanding Belt Length: 60"
• Country of Origin: USA
• Dimensions: 60" x 60" x 71"
• Weight: 1,362 lbs
