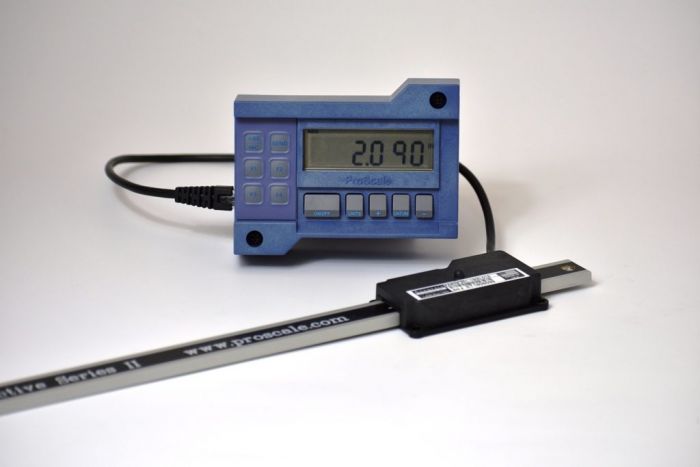

Proscale 190-series Incremental Linear Encoder

ProScale uses inductive incremental measuring technology.

These encoders require a constant power source to maintain their position (a good battery in the digital readout provides this, even when the LCD is off).

This system may be used in a 'Scale Stationary, Encoder Moving' or a 'Scale Moving, Encoder Stationary' configuration.

The maximum slew rate of inductive incremental encoders is approximately 80 inches (2000 mm) per second.

For applications that require absolute encoder technology, use Model 150 or Model 150G instead.

Features:

• No Gap to Set: All Encoders are "captive" on the Scale so you never need to set the Encoder gap.
• Battery or 12-24 VDC Operation: Readouts are available that operate on battery, or 12-24 VDC.
• Accuracy: +/- .002 inches when installed correctly.
• Repeatability: +/- .001 inches when installed correctly.
• Resolution: All readouts support inches to 4 decimal places, millimeters to 2 decimal places.  Most readouts can display fractions to 1/64th divisions.
• High Noise Immunity: Electrical noise, magnetic fields, or power transients affecting the measurement accuracy or signal integrity is rare.
• Scalability: The ProScale 190 supports multiple Encoders and Readouts operating simultaneously on the same Scale.
• Wireless Data: Systems are available with 2 way ProRF-SPC or Encoder wireless data transmitters.
• Wired (cabled) Data acquisition:  Several cabled data acquisitions solutions are available.
• Encoder Speed: Up to 80 inches (2000 mm) per second.
• mRoHS compliant: Lead Free Product
• MADE IN USA: 3 year warranty

Each ProScale Model 190 System Includes:

• 1 Inductive Incremental Measuring Scale - Measuring Range + 4 inches = Physical length
• 1 Inductive Incremental Encoder (with selected cable length)
• 1 Digital Readout (if selected)

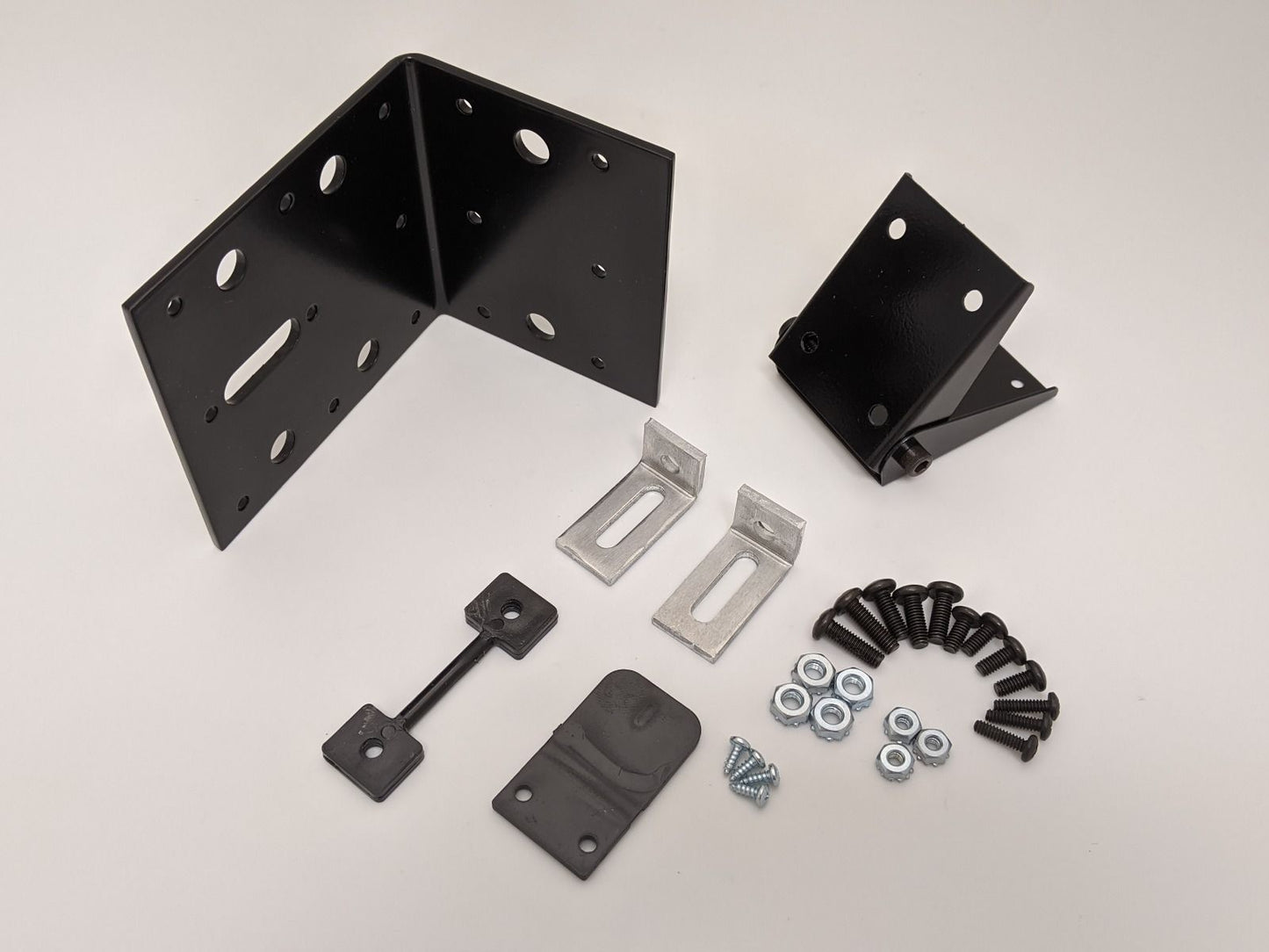

• 1 Pkg. Mounting Hardware containing
• Mounting Screw (8-32 x 1/2 pan head Phillips)
• 1 Connector Link (used to move the scale through the encoder)
• 1 Guide Clip (used to move the encoder along the scale)
• Quick Start Installation and Operation Manuals
