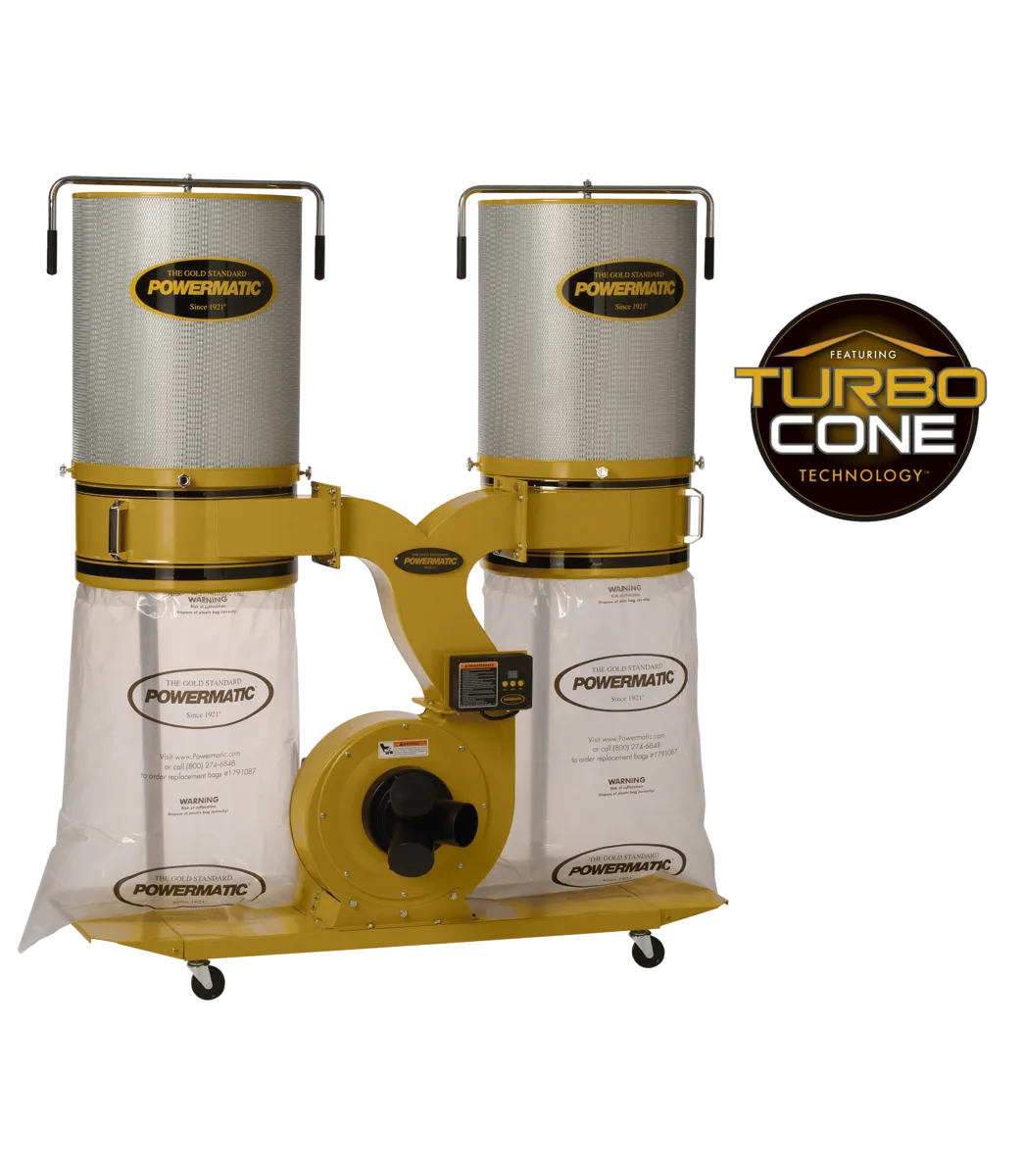

Portable Dust Collector with TurboCone™ Chip Separation

Overview:

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

Features:

• 2-micron canister filters for improved capture of fine dust particles
• All-metal duct construction for rigidity and improved air flow
• Eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• Cone eliminates premature filter clogging for sustained performance
• The steel impeller is powered by a 3HP motor for peak performance
• Triple 4” dust ports allow for several hoses to be attached at the same time
• TurboCone™ improves chip separation and collector bag packing efficiency

General Specifications:

• 1-Hose Connection Diameter: 8in
• 3-Hoses Connection Diameter: 4in
• Bag Diameter: 20in
• Collection Bag Length: 30in
• Efficiency (Micron): 2
• Filter Bag/Canister Length: 26in
• Impeller Diameter: 14in
• Impeller Fins: 7
• Impeller Material: Steel
• Sound Rating (Db.): 86-92
• Static Pressure (Wc.): 12.15
• Prop 65: Cancer and Reproductive Harm
• Overall Dimensions (L x W x H): 61in x 30in x 72in
• Gross Weight: 272.0
• Net weight: 268.0

Single-Phase Motor Specs:

• Impeller Motor: 3 HP 230V single-phase only
• Motor Amps: 15

3-Phase Motor Specs:

• Impeller Motor: 3 HP 230/460V 3-phase, prewired 230V
• Motor Amps: 8.2@230V, 4.1@460V
