Portable Dust Collector with TurboCone™ Chip Separation

Overview:

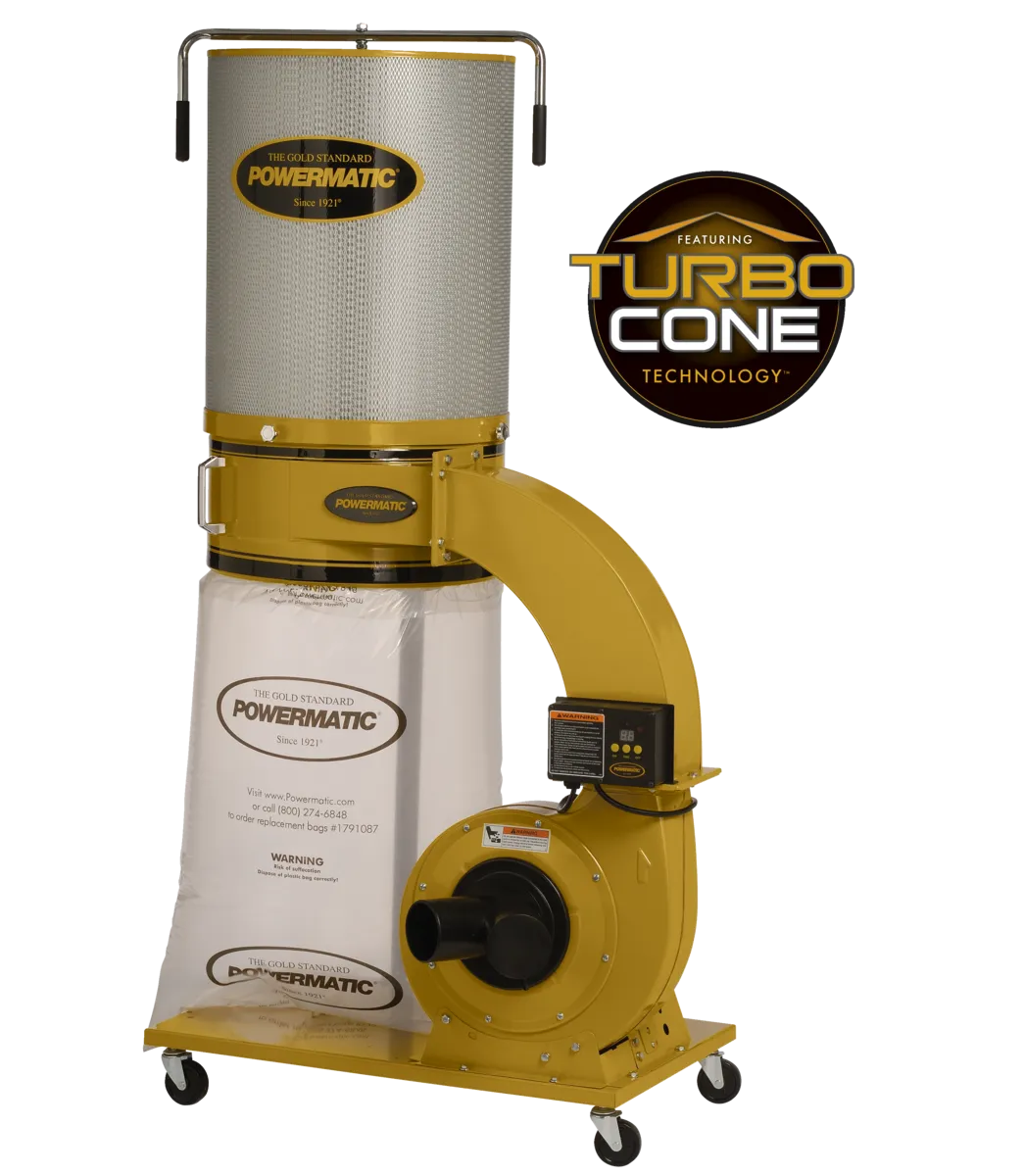

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

Features:

• 10 Cubic feet capacity collection bag reduces number of bag changes
• All-metal duct construction for rigidity and improved air flow
• Clear plastic collection bag uses snap ring for rapid installation/removal
• Dual 4" dust ports for simultaneous collection from two machines
• Eliminates premature filter clogging for sustained performance
• Four swivel casters for easy maneuverability
• Remote-controlled digital timer can be programmed for up to 99 minutes
• The large steel impeller is powered by a 1-3/4HP motor for peak performance.
• TurboCone™ improves chip separation and collector bag packing efficiency

General Specifications:

• 1-Hose Connection Diameter: 6in
• 2-Hoses Connection Diameter: 4in
• Impeller Diameter: 12in
• Impeller Fins: 6in
• Impeller Material: Steel
• Impeller Motor: 1.75 HP 115/230V single-phase, prewired 115V
• Prop 65 Cancer and Reproductive Harm
• Sound Rating (Db.): 75-90
• Static Pressure (Wc.): 11.31
• Warranty: 5 Year

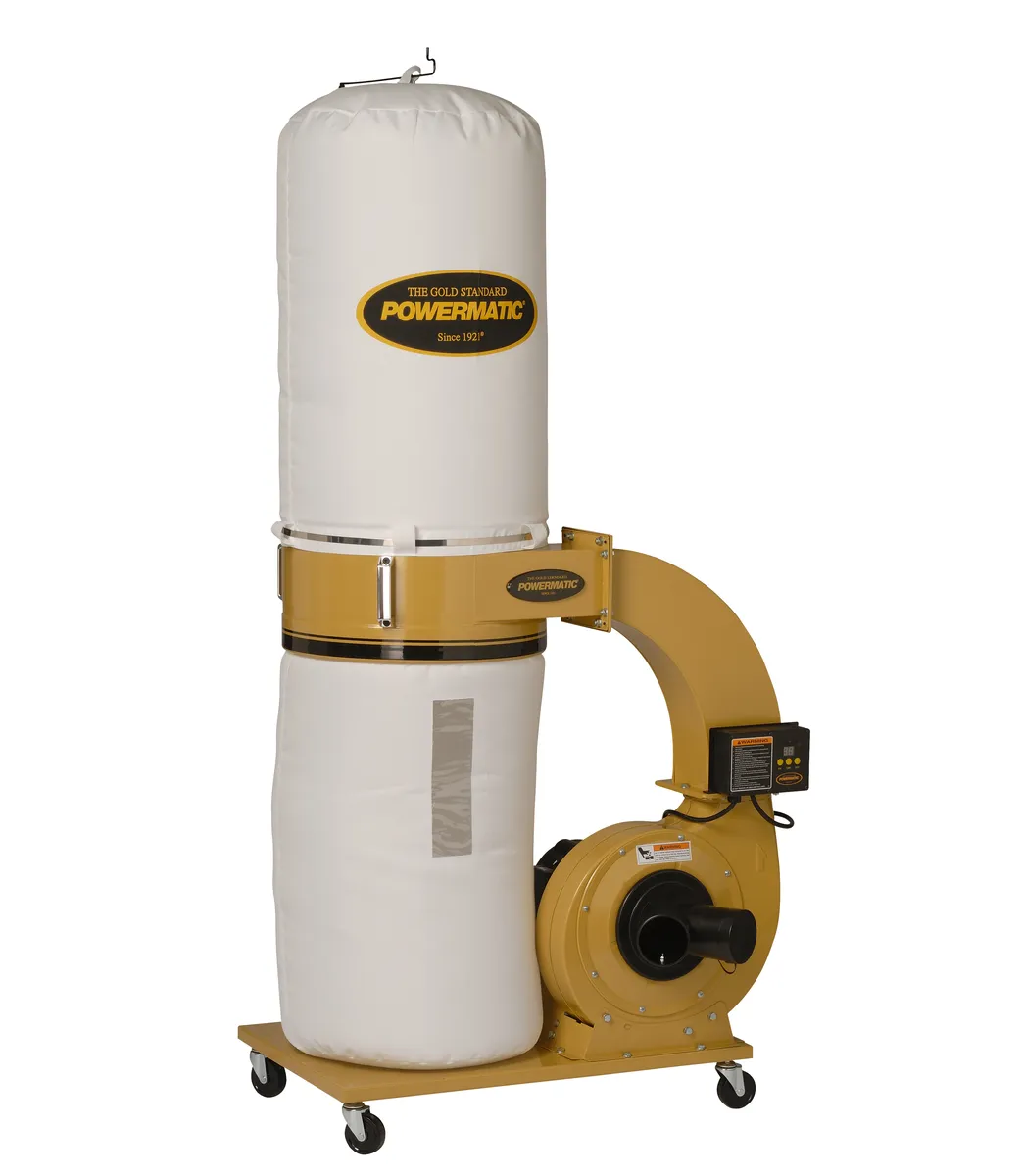

Bag Filter Specifications:

• Bag Diameter: 20in
• Collection Bag Length: 30in
• Efficiency (Micron): 30in
• Filter Bag Length: 48in
• Motor Amps: 18@115V, 9@230V
• Overall Dimensions (L x W x H): 37in x 29in x 79in
• Gross Weight 144.0
• Net weight 127.0

Canister Filter Specifications:

• Air Flow @ 6" (CFM): 1,300
• Velocity @ 6" (FPM): 5,374
• Bag Diameter: 20in
• Canister Filter Length: 26in
• Collection Bag Length: 26in
• Efficiency (Micron): 2
• Filter Canister Length: 26in
• Motor Amps 15@ 115V, 7.5@230V
• Overall Dimensions (L x W x H): 37in x 29in x 72in
• Gross Weight: 165.0
• Net weight: 154.0
