Open-End Belt Sander

Overview:

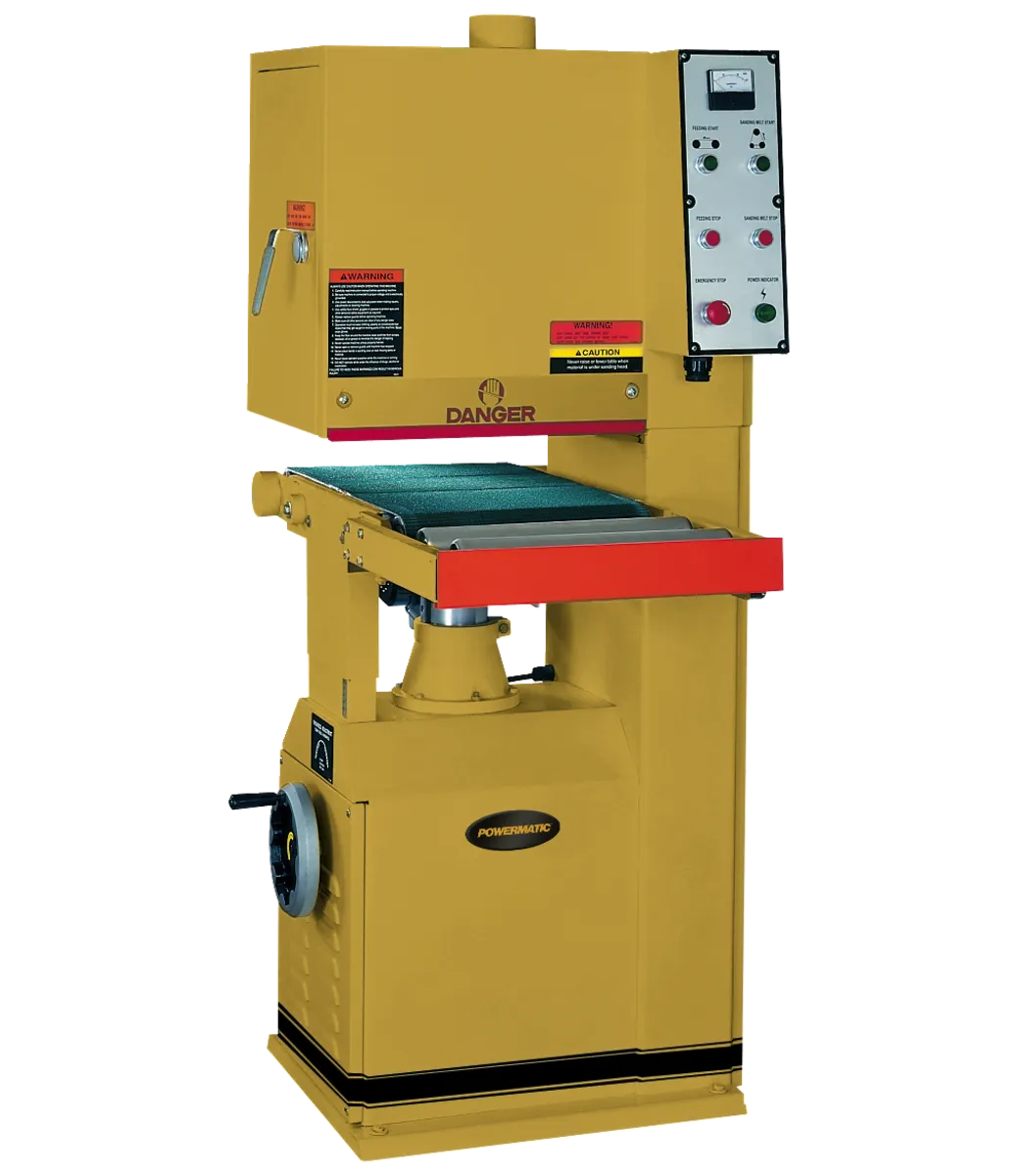

The 16" Open-End Belt Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.

Features:

• Air pressured oscillating movement for smoother surfaces
• Choose from 15 or 32.5 FPM dual feed speed
• Conveniently mounted load meter maintains constant check during operation
• Extendable workpiece support arm
• Front facing emergency safety stop
• Limiters will stop sander instantly if belt breakage occurs
• Pneumatic sanding belt tracking keeps belt centered
• Side access door for easy belt changes
• Combination head promotes a more consistent finish

Specifications:

• Maximum Board Width: 16in
• Maximum Board Thickness: 5in
• Minimum Board Length: 13-3/4in
• Feed Motor Power: 1/4 HP
• Feed Rate (FPM): 15/32.5
• Sanding Belt Speed (FPM): 2,200
• Air Required: 4 at 5 atm
• Dust Port Outside Diameter: 4in
• Sanding Belt Motor: 5 HP single-phase 230V only
• Recommended Circuit Size (Amps.): 40
• Dust Collection Minimum CFM Required (CFM): 800
• Prop 65: Cancer and Reproductive Harm
• Warranty: 5 Year
• Gross Weight: 1,106.0
• Net weight: 996.0
