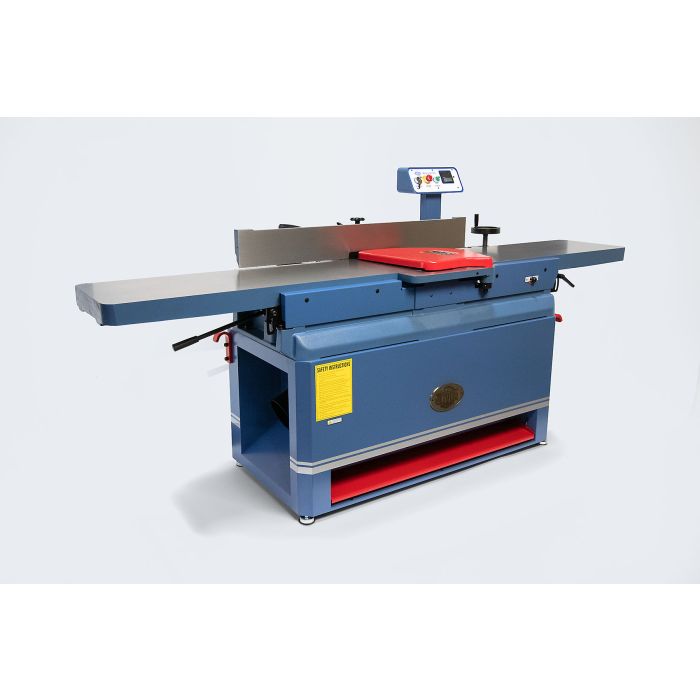

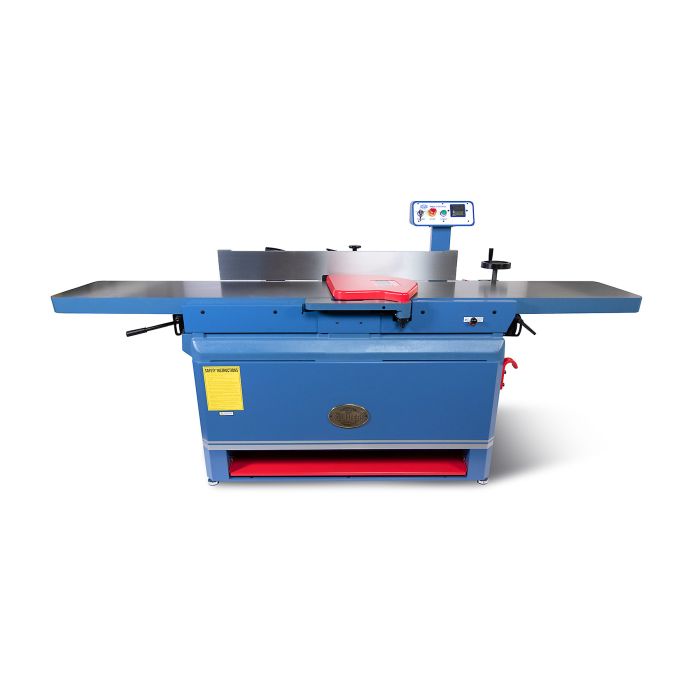

12” Parallelogram Jointer with HCX Helical Cutterhead

Overview

Achieve unparalleled precision in your woodworking projects with the Oliver 12" Parallelogram Jointer with HCX Cutterhead. Engineered for stability and accuracy, this jointer features extra-long precision ground tables and a massive cast iron frame that ensures a solid work surface. The advanced helical cutterhead, equipped with 56 premium carbide inserts, delivers smooth cuts and easy maintenance. With a Wixey Digital Readout (DRO) for precise infeed table movement and a powerful TEFC motor, this jointer is designed for serious woodworkers. The long solid cast iron fence tilts to 45° and includes positive stops for added convenience. Experience the perfect combination of power, precision, and safety with the Oliver 12" Parallelogram Jointer—your ultimate tool for achieving flawless finishes.

Features

• Extra-long precision ground tables provide a stable work surface.
• Parallelogram design provides smooth accurate cuts.
• Massive cast iron frame offers stable table support.

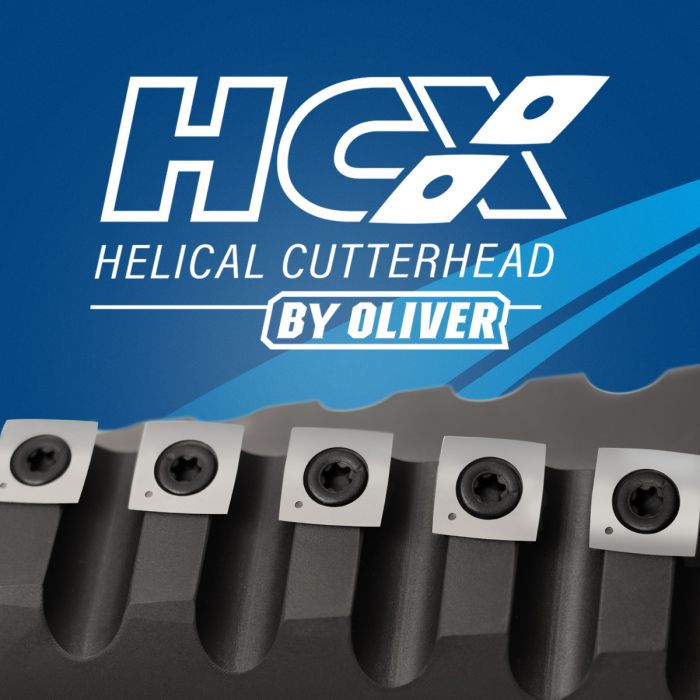

• Helical cutter head includes premium carbide inserts.
• 4-sided cutting inserts are indexed and easy to replace.

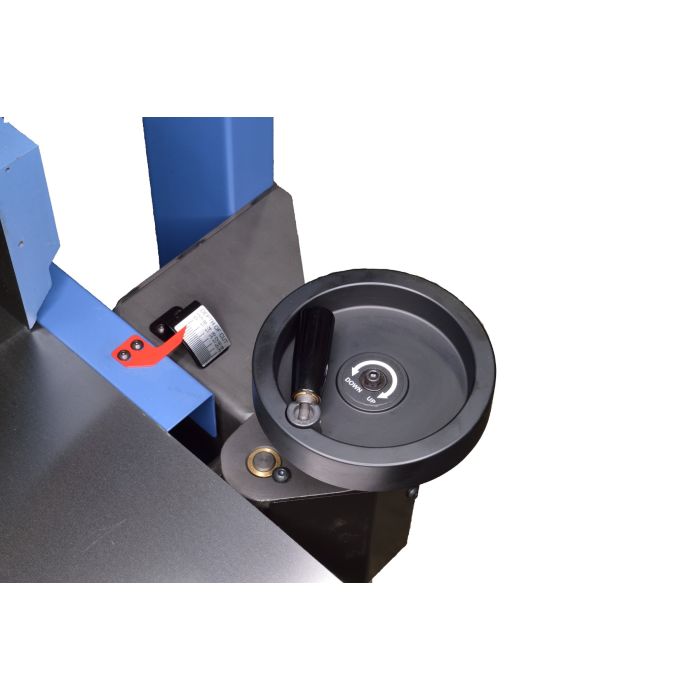

• Wixey DRO shows table infeed table movement for precision cuts.
• Pre-drilled bracket for easy (optional) powerfeed mounting.

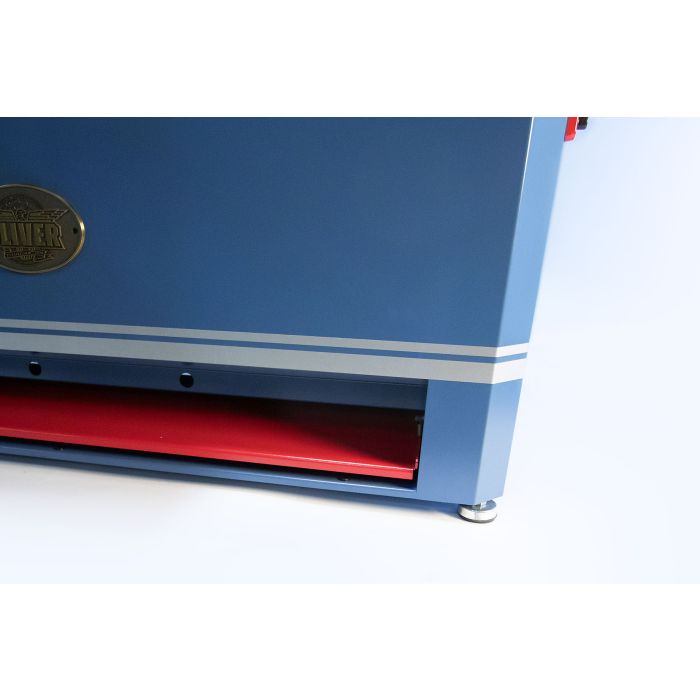

• Foot activated emergency power shutoff.

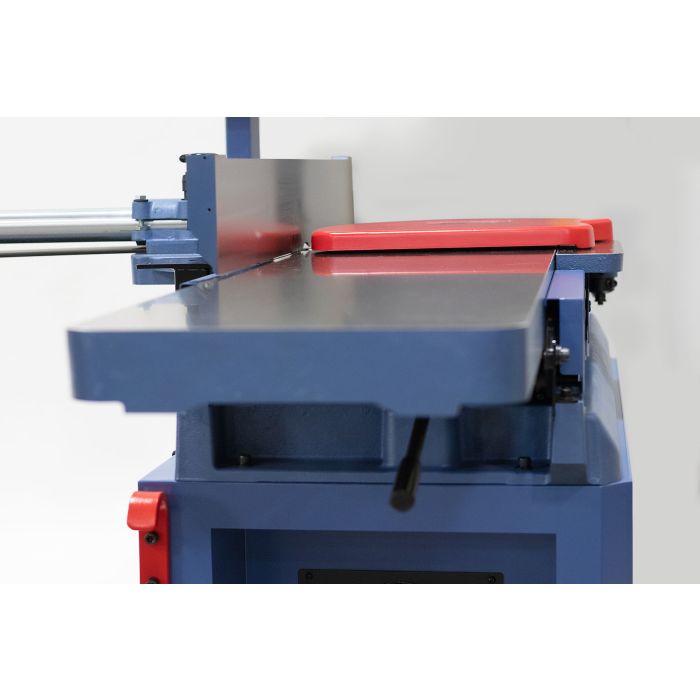

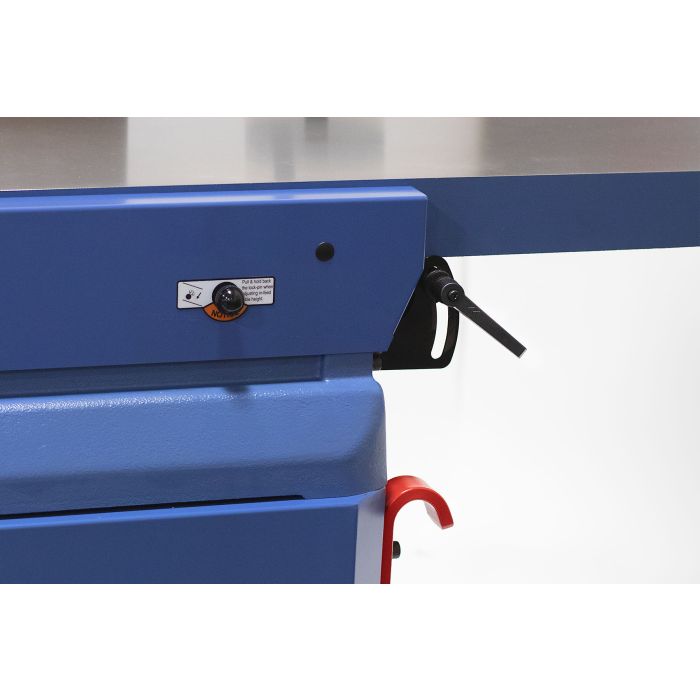

• Lever controlled outfeed table allows easy adjustment.

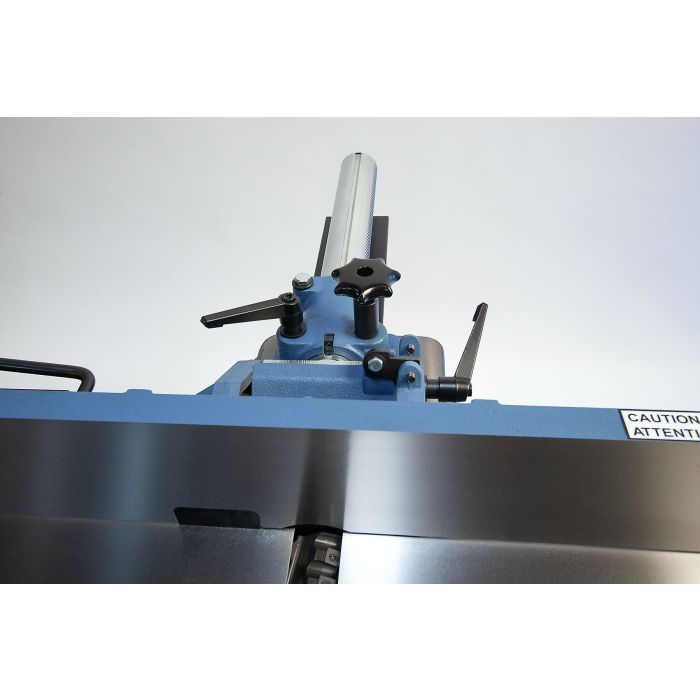

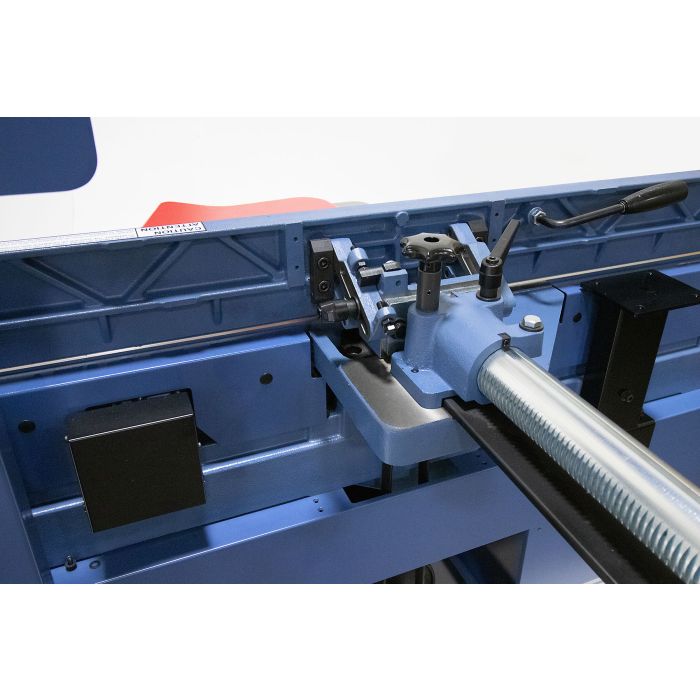

• Long solid cast iron fence features positive stops at 45° and 90°
• Easy to read depth of cut gauge.
• Powerful TEFC motor.
• Poly V-belt drive efficiently delivers power to the cutter head.

Specifications

• Infeed Table Travel: 3/4"
• Cutterhead Speed: 5,500 (RPM)
• Number of Knives (helical): 56 Inserts
• Maximum Depth of Cut: 1/8"
• Rabbeting Capacity: 3/4"

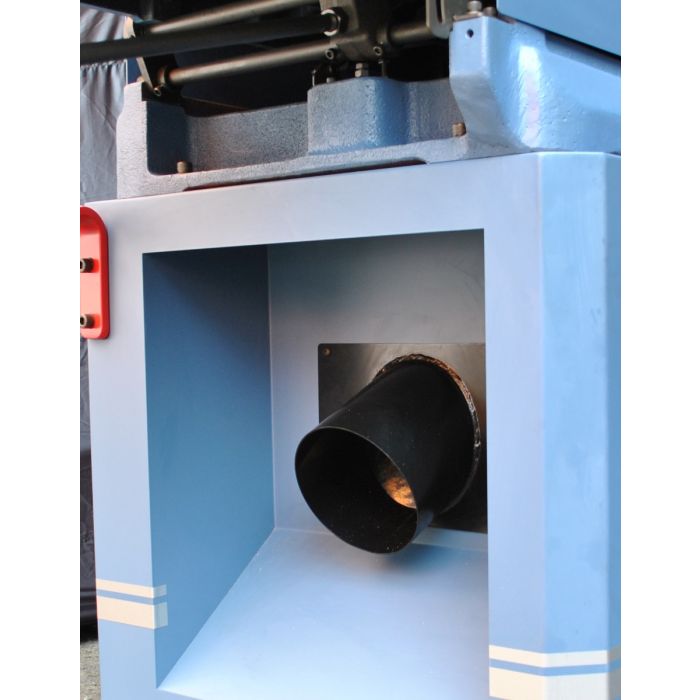

• Dust Port Diameter: 6"
• Table Dimensions: 88”L x 12”W
• Table Height: 34-3/4”
• Fence Dimensions: 47”L x 6”W
• Fence Tilts: 45°
• Positive Stops: 90° and 45°
• Motor 1Ph: 4265.101.4S 5HP, 230V (1Ph, 14.5 Amp)
• Motor 3Ph: 4265.102.4S 5HP, 230V (3Ph, 11.8/5.9 Amp)
• Optional: 460V three-phase upgrade (additional cost, contact us at 570-584-2002)
• Overall Dimension: 88”L x 29”W x 55”H
• Net Weight: 814 lbs.
• Gross Weight: 980 lbs.
• Note: This new 4265C 16" jointer has a solid cast iron fence that replaces the aluminum fence and fold down guide. The new model does not have the fold down guide. This machine is only available for shipping to the nearest terminal with loading ramp for local pick up due to its size.
