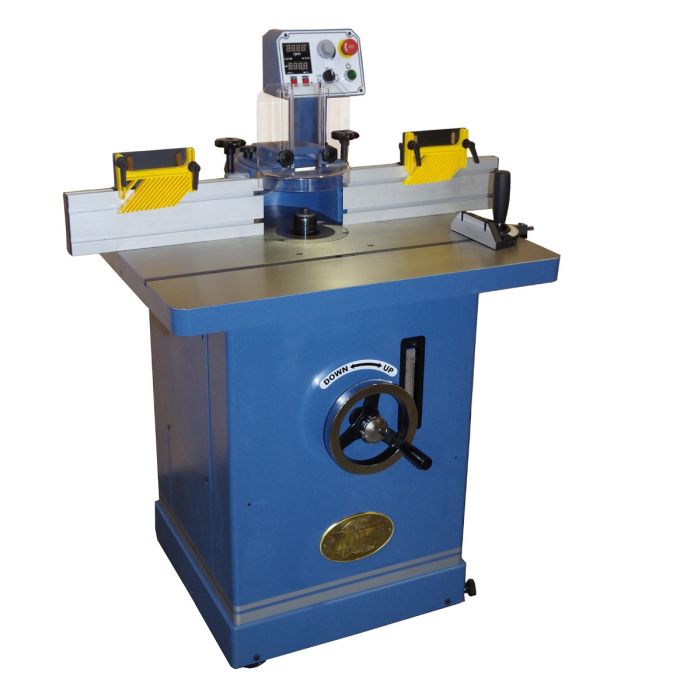

Variable Speed Shaper 3HP Single-Phase

Introducing the Oliver Model 10047 Variable Speed Shaper, the ultimate tool for woodworkers seeking precision and adaptability. This advanced version features a large, precision-ground cast iron table that provides a stable work surface, complemented by a full cabinet stand with wheels for easy mobility. With its variable spindle speed control, you can effortlessly adjust the speed to suit a wide range of applications, while the reversible spindle adds versatility to your setups. Designed for safety and convenience, this shaper includes adjustable hold downs, a micro-adjustable fence, and a starting pin for irregular shapes. The Oliver Model 10047 Variable Speed Shaper is engineered to meet the demands of professional woodworkers, making it an indispensable addition to your workshop.

Features

• Variable Frequency Drive provides 5,000 to 10,000 Spindle RPM.

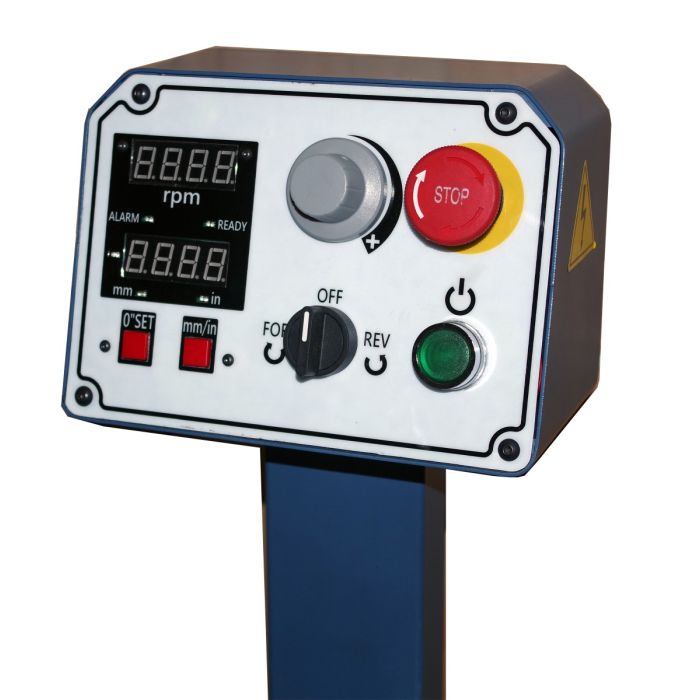

• Elevated control panel with DRO, emergency stop, and speed control.
• DRO measures spindle RPM and spindle height.
• Large cast iron table is precision ground to provide a solid work surface.
• Table features pre-drilled and threaded holes for optional power feeder.
• Full cabinet stand includes wheels and locks.

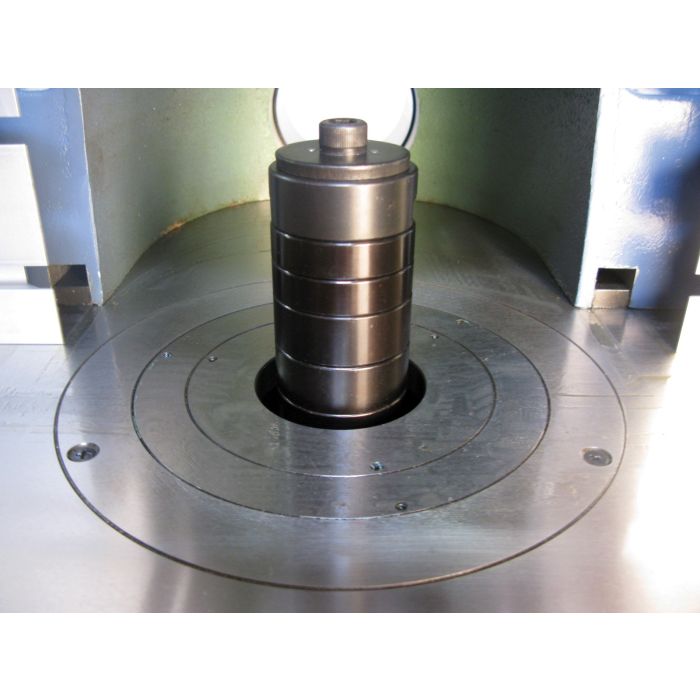

• 1-1/4” interchangeable spindle included, other optional sizes available.
• Optional router bit collets available.
• Poly V-belt drive for smoother operation.
• Spindle reverses for more options with each set-up.
• Four inches of spindle travel allows more set-up options.
• Starting pin for irregular shapes included.

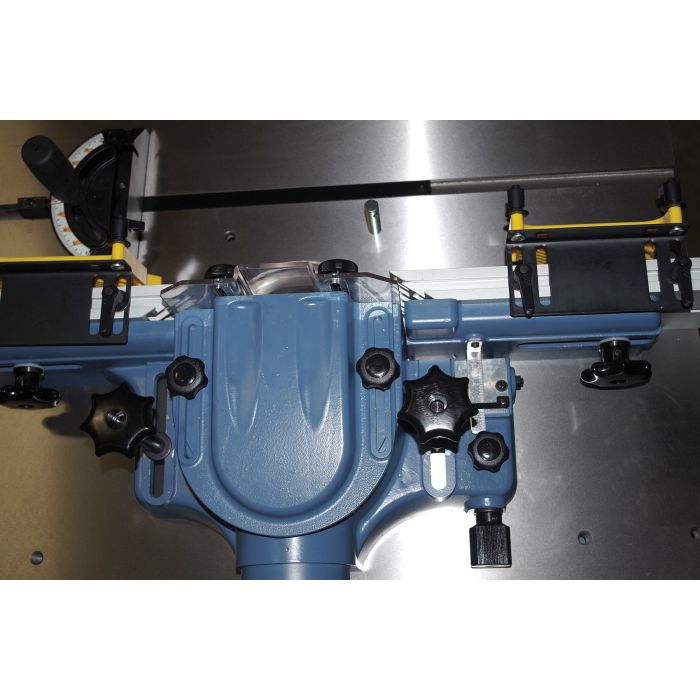

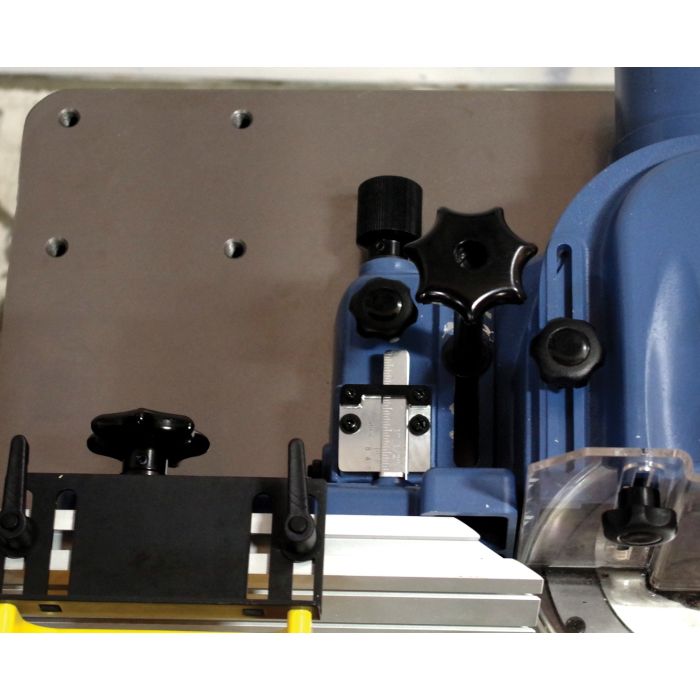

• Fence is independent and includes micro adjustment.
• Adjustable hold downs add to a safer operation.

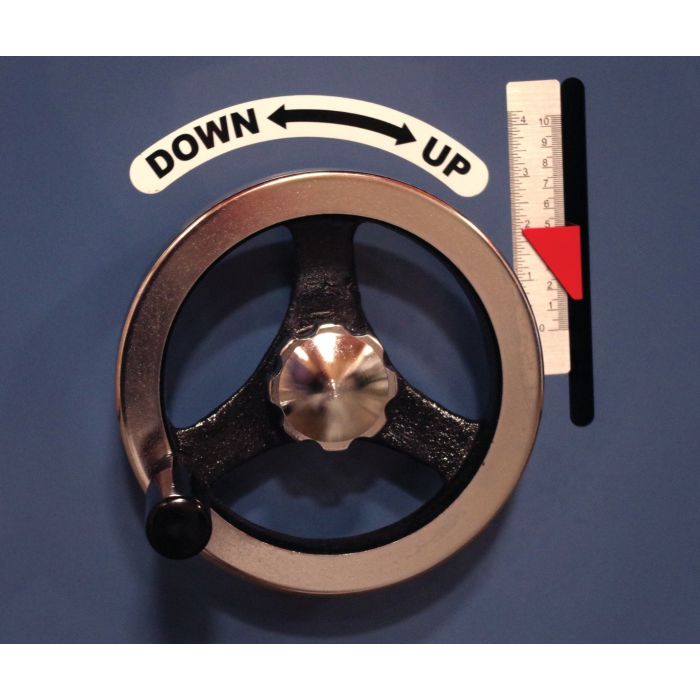

• Extra large handwheel for easy and quick height adjustment.
• Miter gauge included.
• Powerful TEFC motor to meet your needs.

Specifications

• Spindle Speeds: 5,000 to 10,000 RPM
• Spindle Diameter: 1-1/4”
• Verticle Spindle Travel: 4"
• Spindle Direction: Reversible
• Under Nut Capacity: 4" with 1-1/4" Spindle
• Table Opening: 6-1/4”
• Large Insert Opening: 4-5/16”
• Small Insert Opening: 2-1/2”
• Table Height: 34-3/8"
• Table Size: 32” x 26”
• T-Slot: 3/4" x 3/8"
• Fence Size (2): 4-13/16” x 16”
• Dust Port Diameter: 4"
• Minimum CFM: 800
• Motor 1Ph: 3HP, 220V only (8 Amp)
• Net Weight: 396 lbs.
• Gross Weight: 511 lbs.
