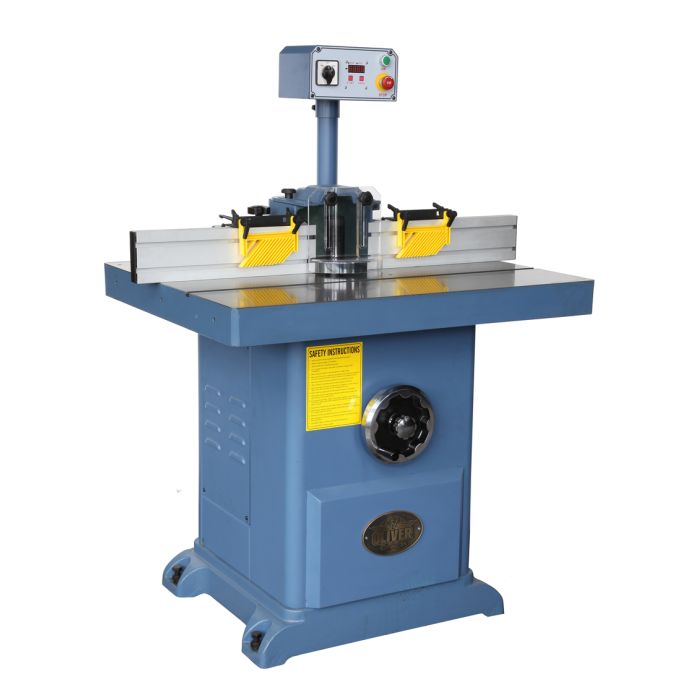

Shaper with Cast Iron Base

Overview

Introducing Oliver's robust cast iron woodworking shaper, engineered for precision and versatility in your woodworking projects. The massive precision-ground cast iron table provides a solid work surface, complete with pre-drilled and threaded holes for easy attachment of a power feeder. With interchangeable spindles (3/4” and 1-1/4”) and three spindle speeds (5,000, 7,000, and 10,000 RPM), this shaper allows you to achieve a superior finish tailored to your specific needs. The innovative dovetail design ensures accurate spindle height adjustments, while the top-mounted control panel features a digital readout for convenience. Safety is paramount, with magnetic controls and an emergency off switch for secure operation. Designed for both professional woodworkers and dedicated hobbyists.

Features

• Massive cast iron precision ground table provides a solid work surface.
• Table features pre-drilled and threaded holes for power feeder.
• Cast iron base provides a steady platform.
• Table features pre-drilled and threaded holes for optional power feeder.

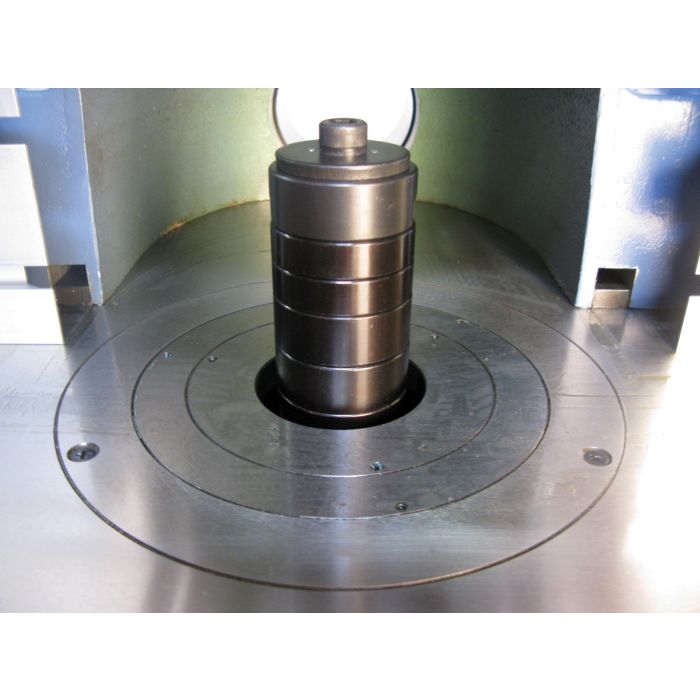

• 3/4” and 1-1/4” interchangeable spindles are included for added versatility.
• Three spindle speeds allow more choices to produce a better finish.
• Reversing spindle gives more options for each set-up.

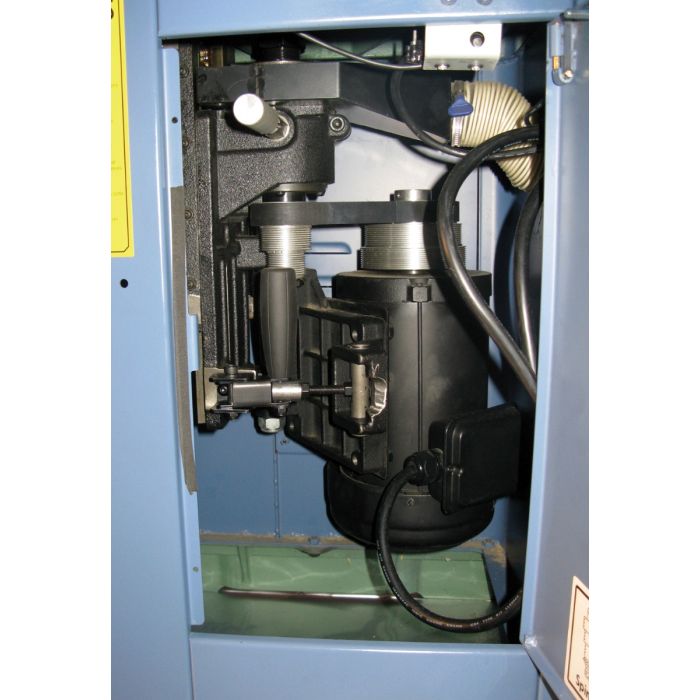

• Innovative dovetail design accurately raises and lowers the spindle.

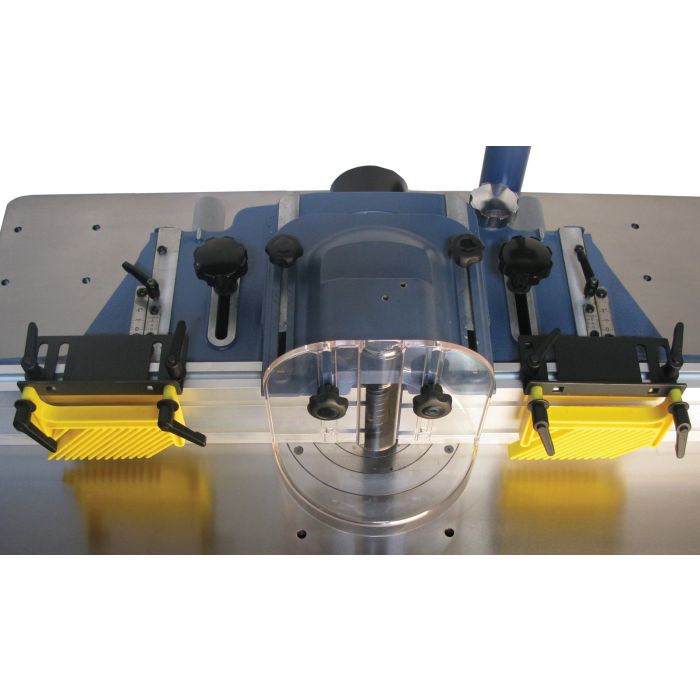

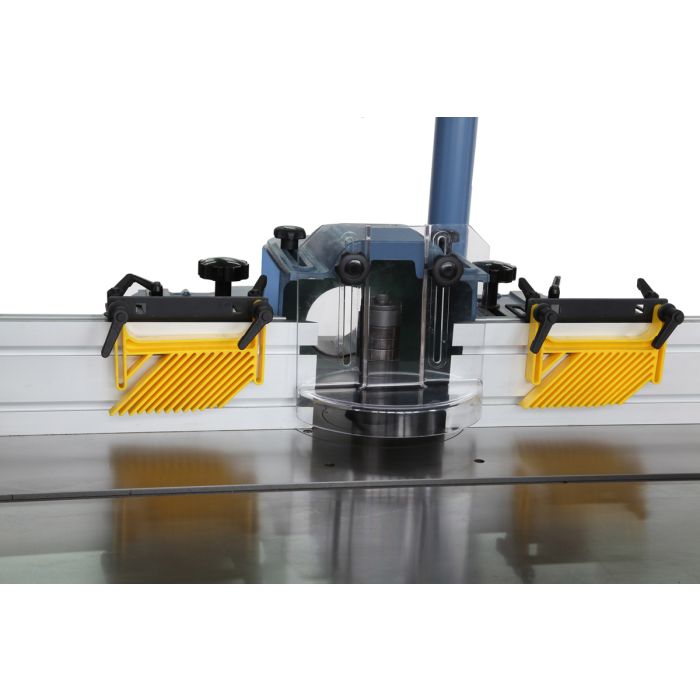

• Fence is independent and features micro adjustments for quick set-up.

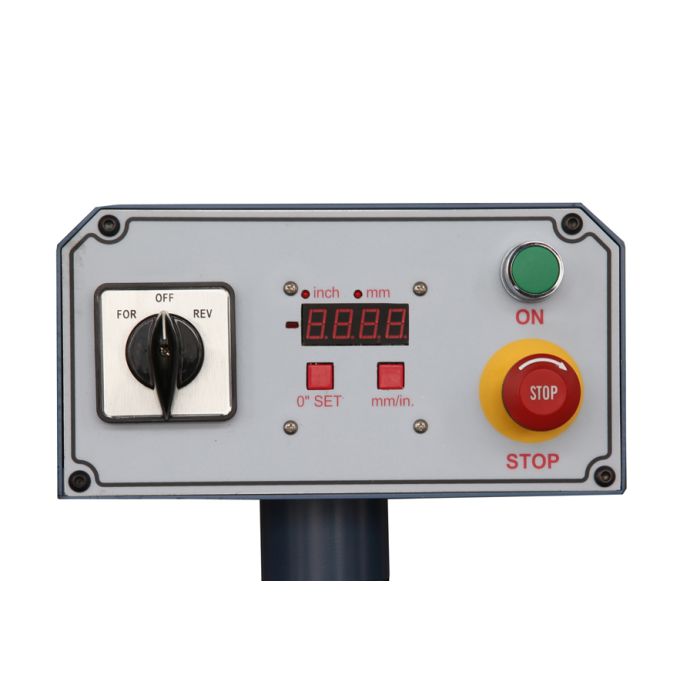

• Top mounted control panel includes a digital readout for spindle height.
• Large hand wheel for quick spindle height adjustment.
• Miter gauge included.
• Magnetic controls with emergency off switch for safer operation.
• Powerful TEFC motor available in single phase.

Specifications

• Spindle Speeds: 5,000, 7,000, 10,000 RPM
• Maximum Tool Diameter: 7” Below Table, 8” Above Table
• Spindle Diameter: 1-1/4” and 3/4” Interchangeable
• Vertical Spindle Travel: 4"
• Spindle Direction: Reversible
• Table Height: 36-1/2”
• T-Slot: 3/4” x 3/8”
• Dust Port Diameter: 4”
• Minimum CFM: 800
• Footprint: 28-1/2”L x 24-3/4”W
• Table Dimensions: 39”L x 31-1/2”W
• Motor 1Ph: 5HP, 220V only (18 Amp)
• Motor 3Ph: 7.5HP, 220/440V*, Prewired 220V (16.8/8.4 Amp)
• Net Weight: 660 lbs.
• Gross Weight: 800 lbs.
