Shaper

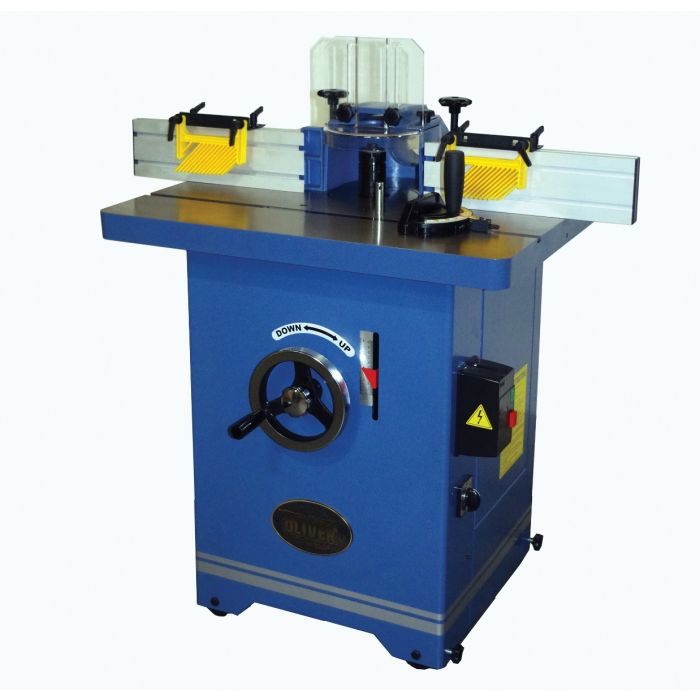

Elevate your woodworking projects with the Oliver Model 10047 Shaper, a powerful and versatile machine designed for precision and efficiency. Featuring a large, precision-ground cast iron table, this shaper provides a solid work surface for all your shaping needs. With four spindle speeds and a reversible spindle, you can easily adapt to various applications. The full cabinet stand, equipped with wheels and locks, ensures stability and mobility in your workshop. Whether you're working with interchangeable spindles or optional router bit collets, the Oliver Model 10047 is engineered to deliver exceptional performance and safety, making it an essential tool for any serious woodworker.

Features

• Large cast iron table is precision ground table to provide a solid work surface.
• Table features pre-drilled and threaded holes for optional power feeder.
• Full cabinet stand includes wheels and locks.

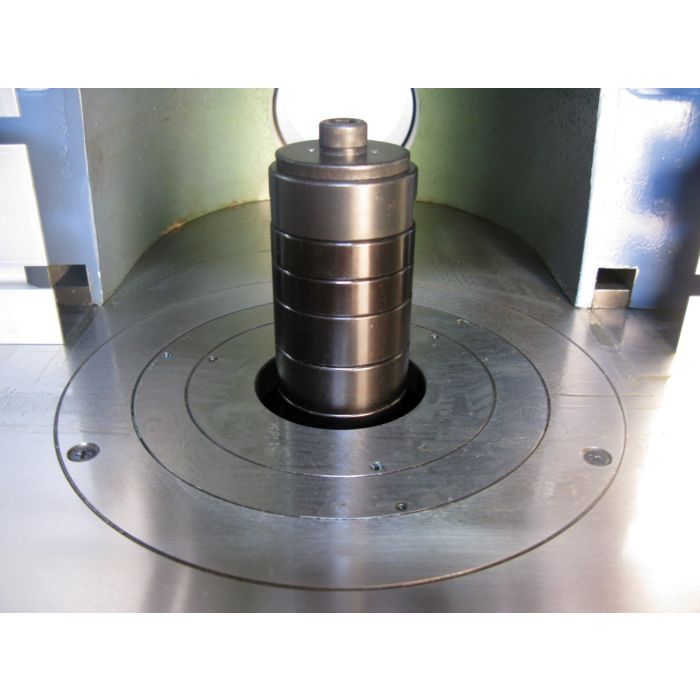

• 1-1/4” interchangeable spindle included, other optional sizes available.
• Optional router bit collets available.
• Four spindle speeds for versatility
• Belt changes are quick and convenient with unique tensioner.

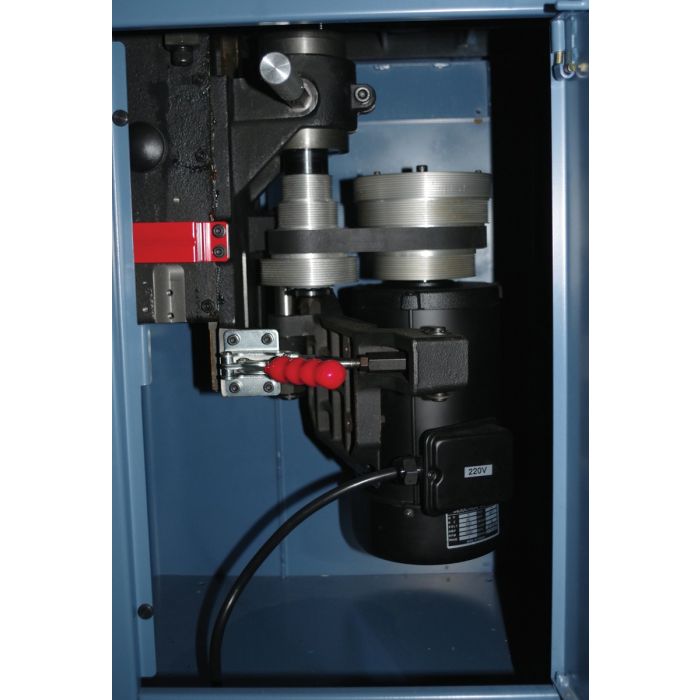

• Poly V-belt drive for smoother operation.
• Spindle reverses for more options with each set-up.
• Four inches of spindle travel allows more set-up options.
• Starting pin for irregular shapes included.

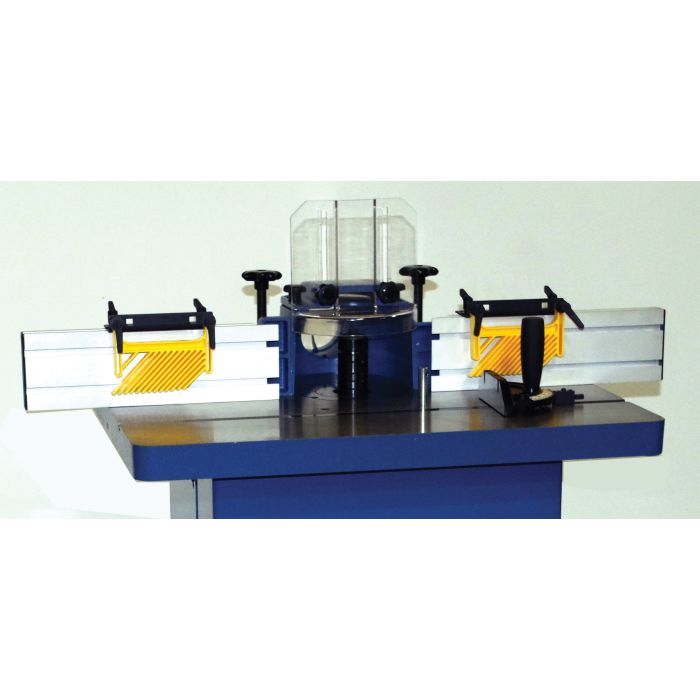

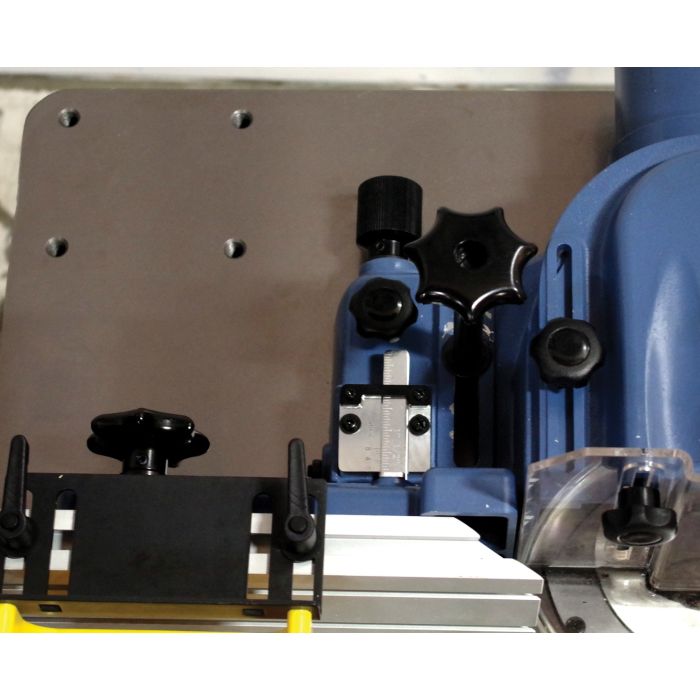

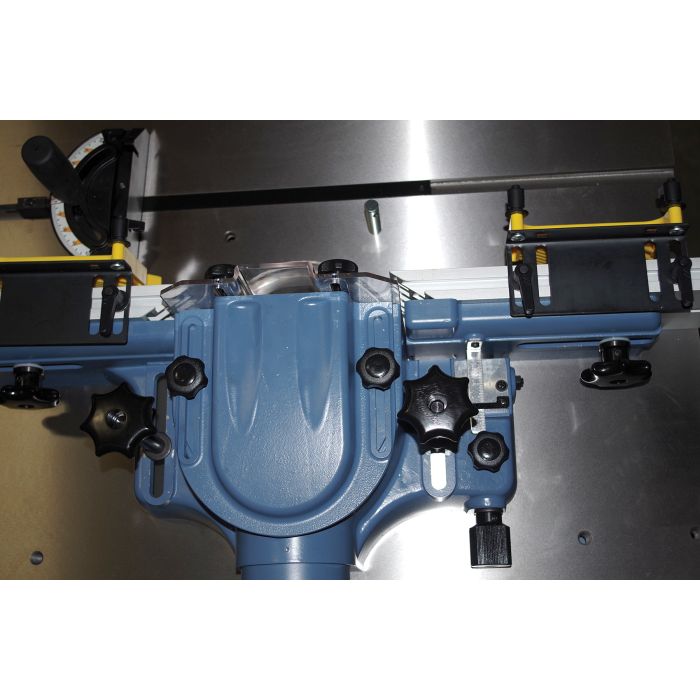

• Fence is independent and includes micro adjustments.
• Adjustable hold downs add to a safer operation.

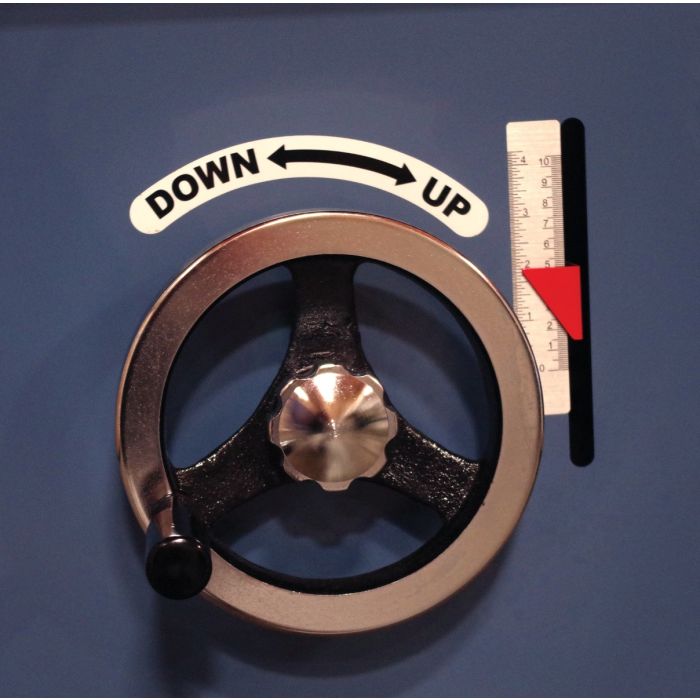

• Extra large handwheel for easy and quick height adjustment.
• Miter gauge included.
• Magnetic controls for added safety.

Specifications

• Spindle Speeds: 4,000, 6,000, 8,000, 10,000 RPM
• Spindle Diameter: 1-1/4”
• Verticle Spindle Travel: 4"
• Spindle Direction: Reversible
• Under Nut Capacity: 4” with 1-1/4” Spindle
• Table Opening: 6-1/4"
• Large Insert Opening: 4-5/16”
• Small Insert Opening: 2-1/2”
• Table Height: 34-3/8”
• Table Size: 32” x 26”
• T-Slot: 3/4” x 3/8”
• Fence Size (2): 4-13/16” x 16”
• Dust Port Diameter: 4"
• Minimum CFM: 800
• Motor 1Ph: 3HP or 5HP, 220V 1Ph only (8/18 Amp)
• Net Weight: 473 lbs.
• Gross Weight: 550 lbs.
