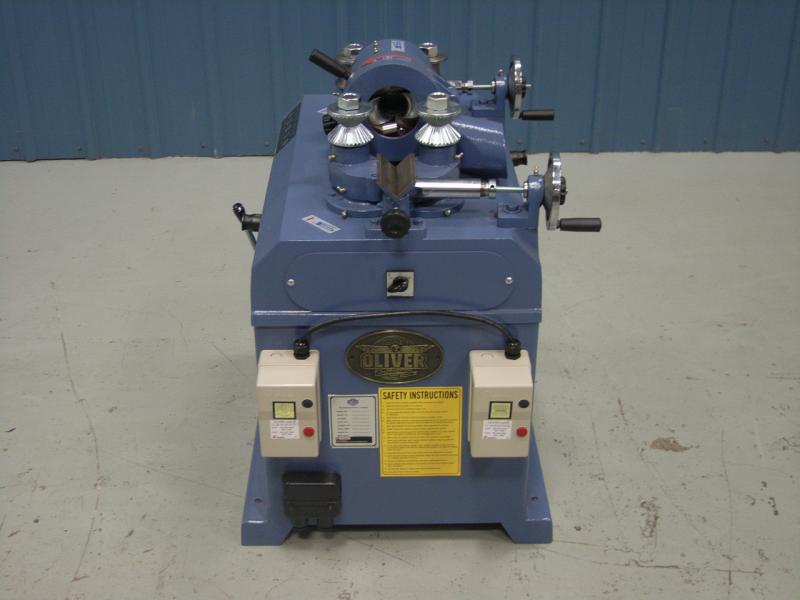

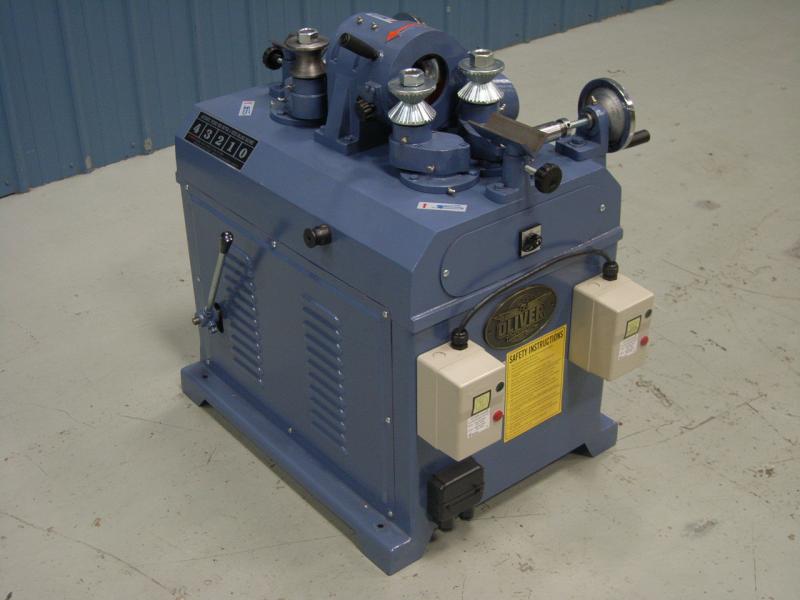

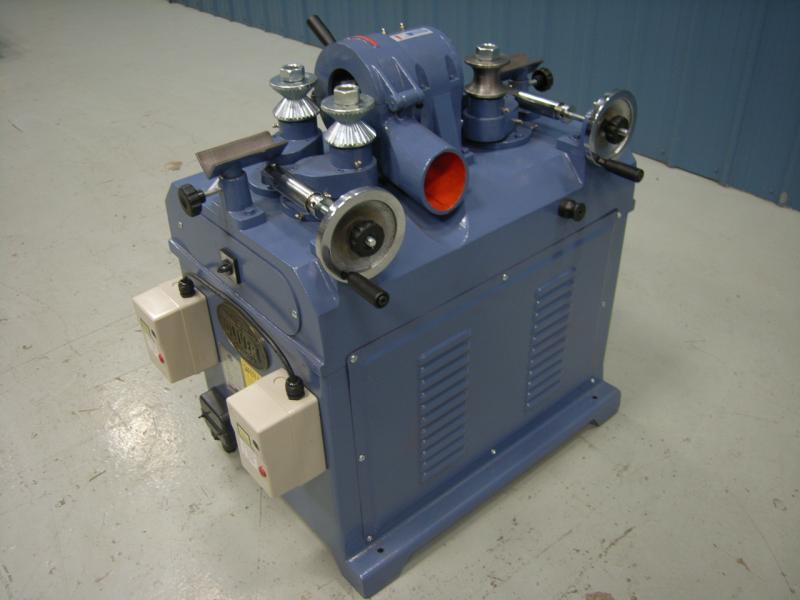

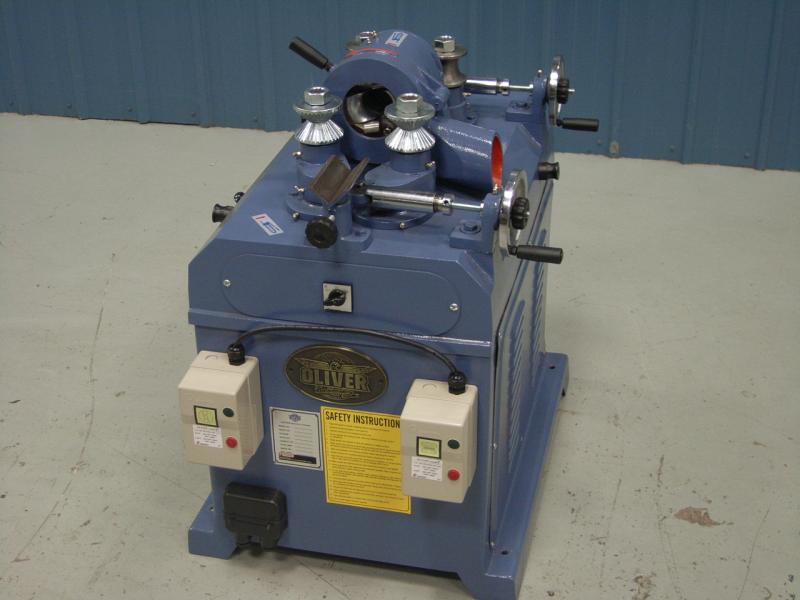

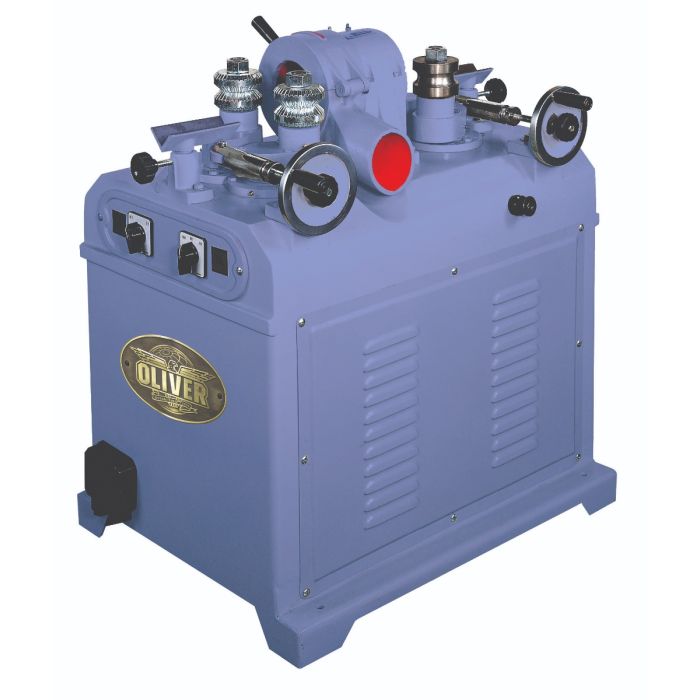

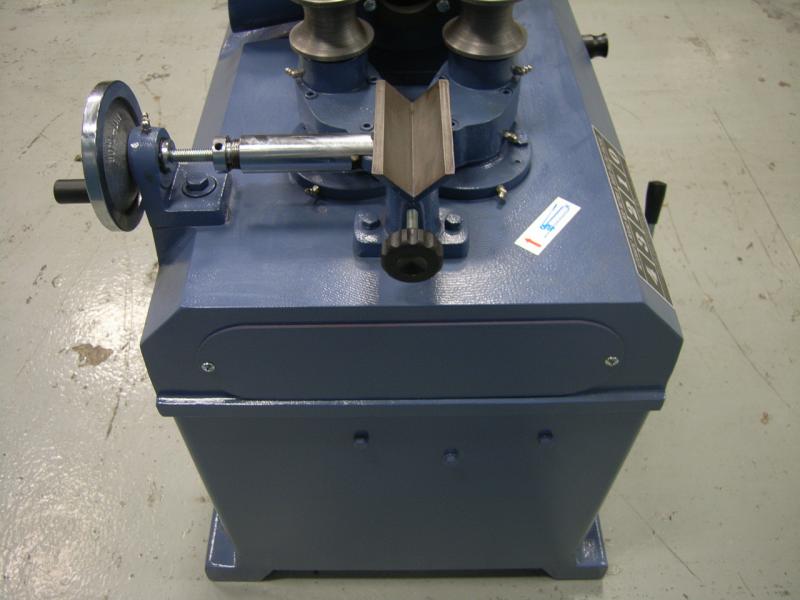

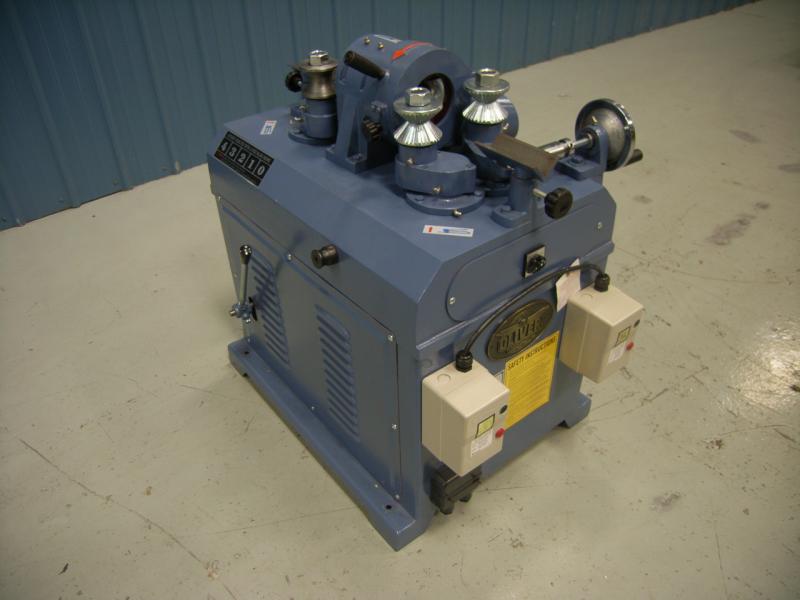

Round Rod Milling Machine

Features

• Highly efficient design for maximum production.

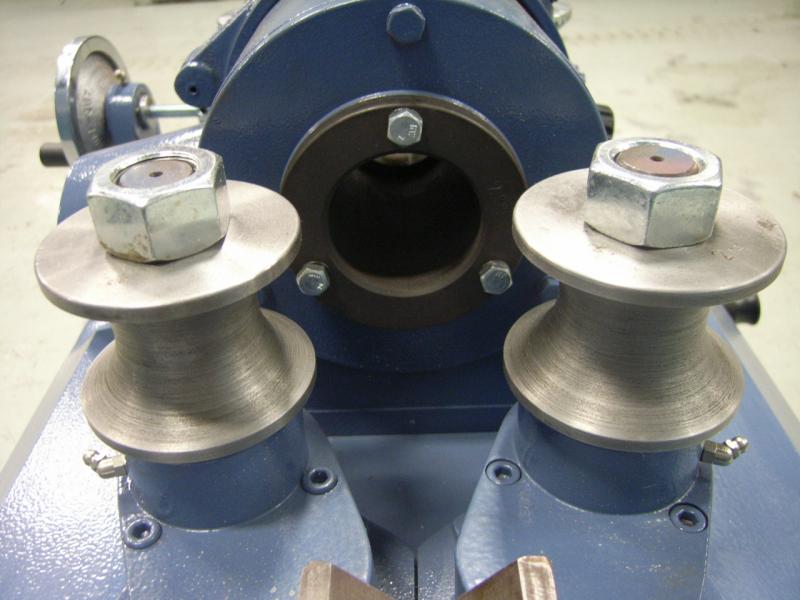

• Independent cutter head and feed motor provide unmatched performance with a maximum feed rate of 52 feet per minute.

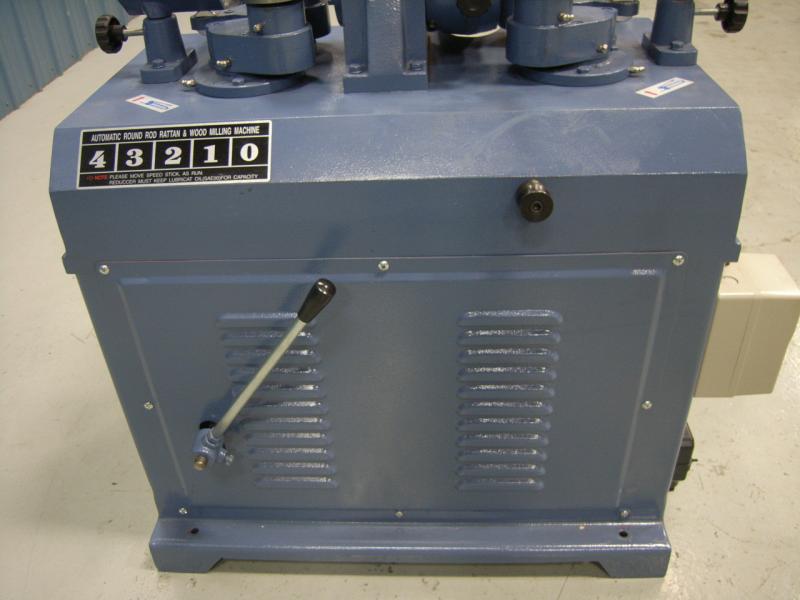

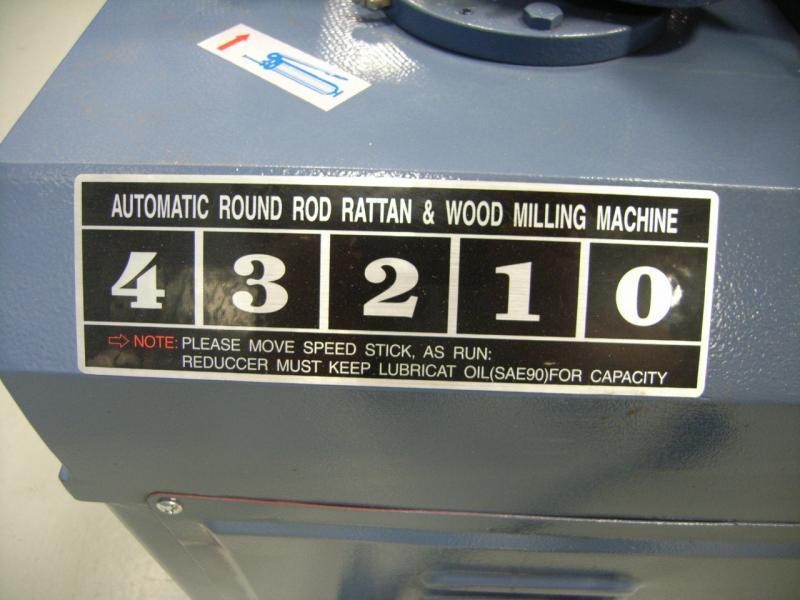

• 4-feed rates allow greater versatility of material and applications.
• Feed can be reversed for quick stock removal in the case of a jam.
• Fully guarded hood provides a safe work station.

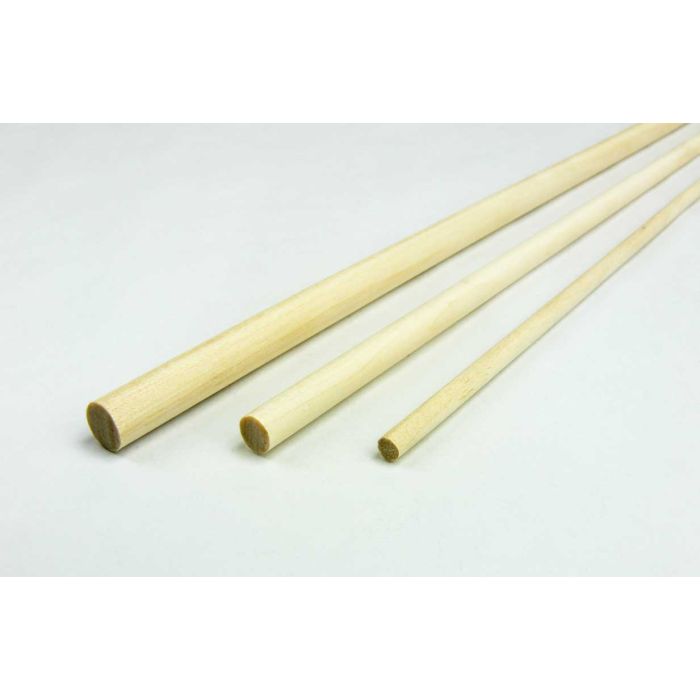

• Wide range of capacity from 3/8” to 2-1/4” with optional cutter sets.

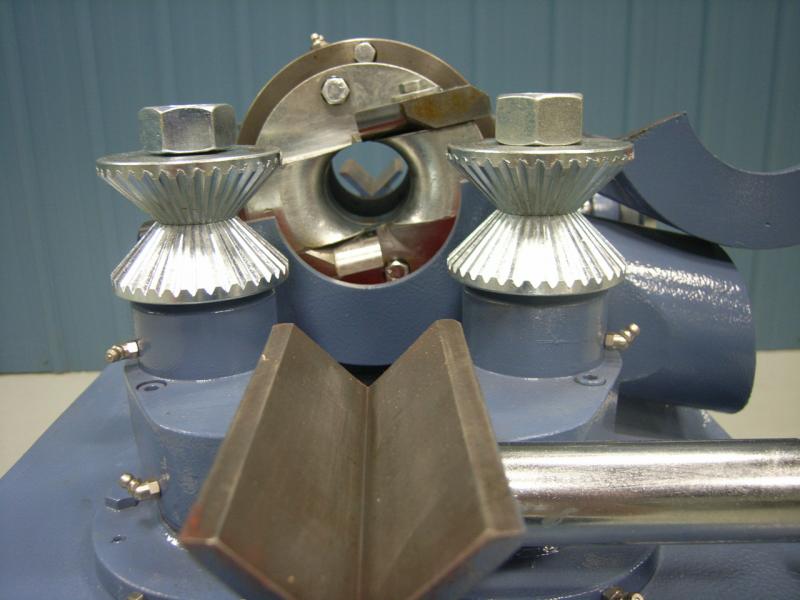

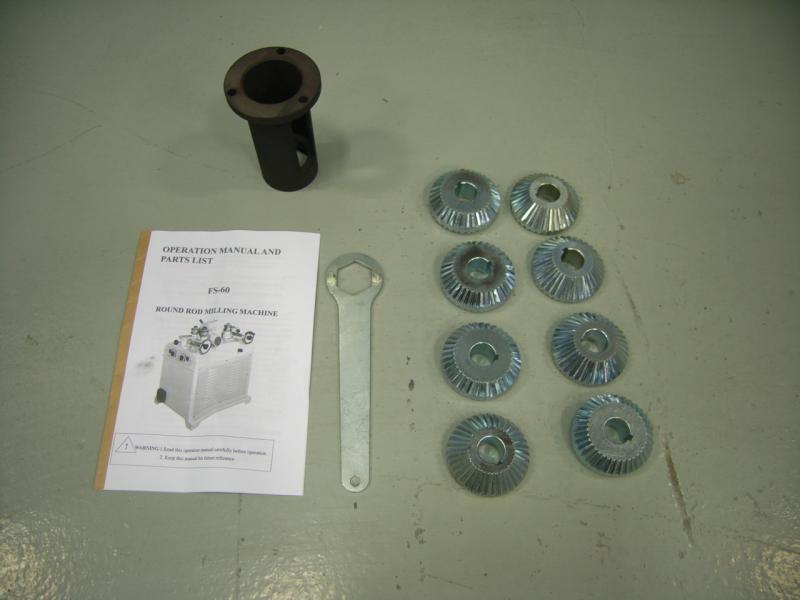

• Includes 1” and 2” cutter sets.
• Built-in 4” dust port allows efficient dust management.

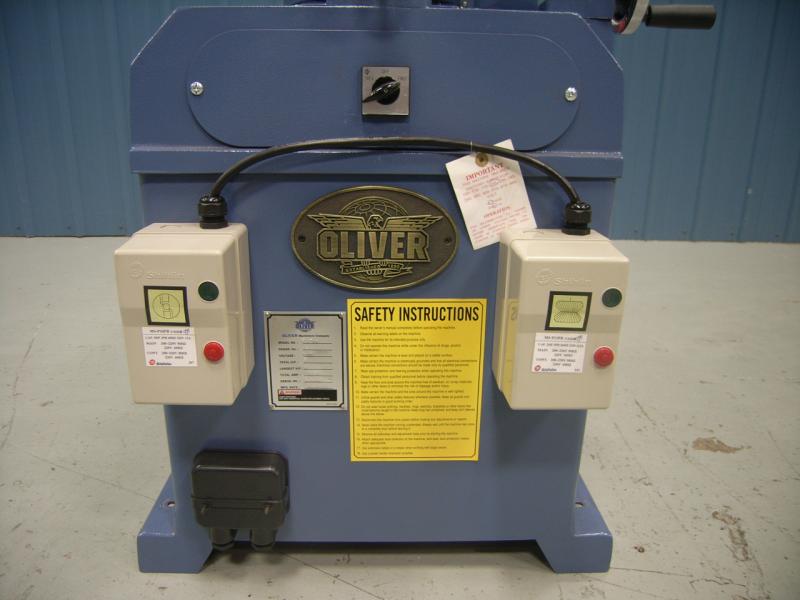

• Magnetic controls for safer operation.

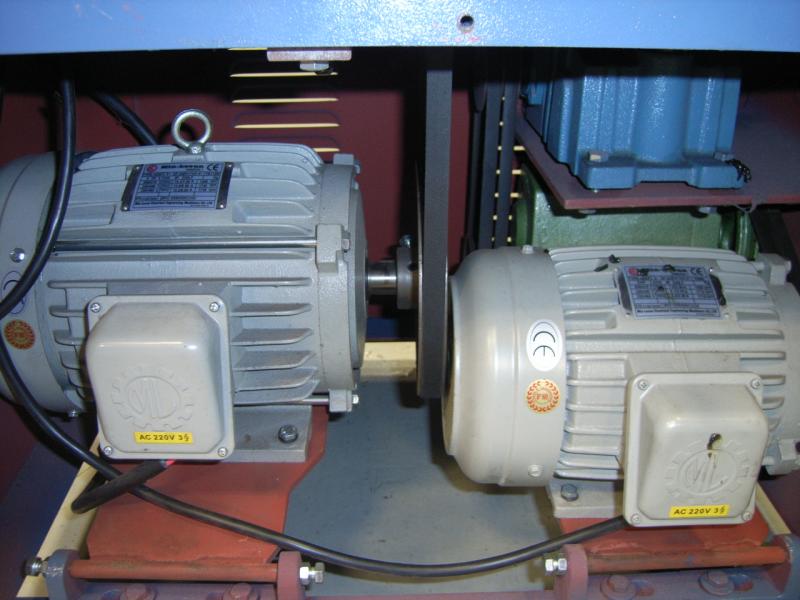

• Powerful three phase 5HP TEFC cutter head and 2HP TEFC feed motor.

Specifications

• Cutting Capacity: 3/8” - 2-3/8”

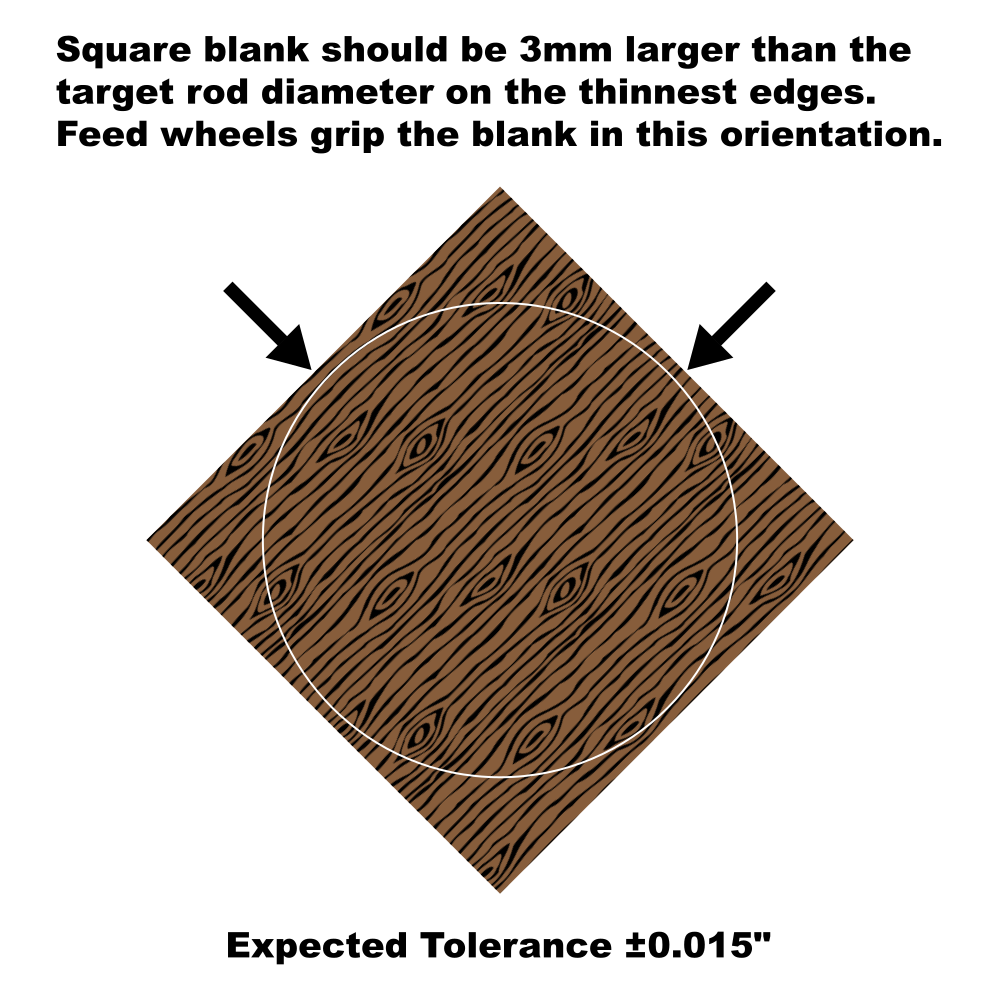

• Maximum Material Removal: 3mm
• Cutter Set Included: 1” & 2” only
• Minimum Length of Stock: 12"
• Cutterhead Drive Motor: 5HP
• Feed Motor: 2HP
• Cutterhead Speed: 3,000 RPM
• Feed Speeds: 20, 30, 43, 53 FPM
• Overall Dimensions: 36-1/4 x 30 x 39-1/2”
• Main Motor: 5HP, 3Ph 220V/440V Prewired 220V (20/10 Amp)
• Optional: 460V three-phase upgrade (additional cost, contact us at 570-584-2002)
• Net Weight: 660 lbs.
• Gross Weight: 770 lbs.
