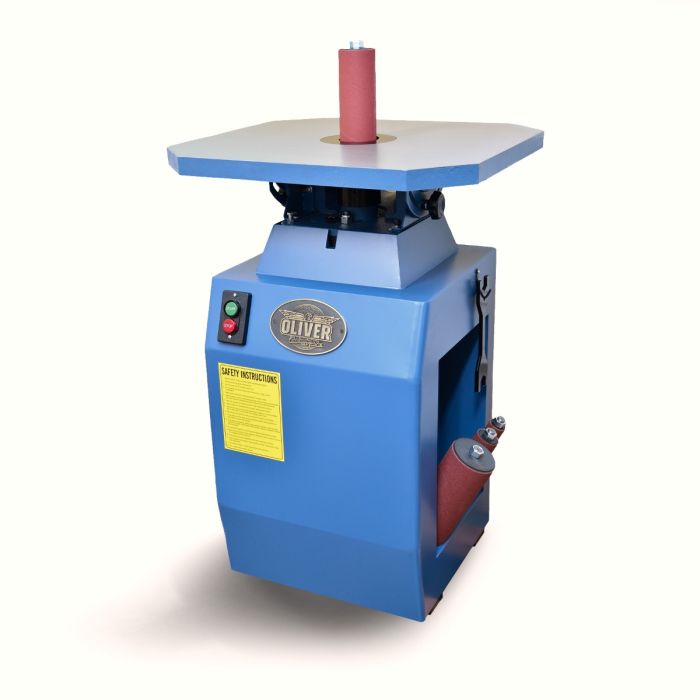

Oliver Machinery Oscillating Spindle Sander

Experience superior sanding with Oliver's Oscillating Spindle Sander, featuring a precision ground cast iron table that tilts up to 45° for versatile operation. With a powerful TEFC 2HP motor and 75 oscillations per minute, this sander minimizes heat build-up for a flawless finish. It includes 10 tapered spindles with built-in storage, three table inserts, and a 4” dust port for efficient dust management, making it an essential tool for any woodworking shop.

Features

• Precision ground table provide a stable work surface.

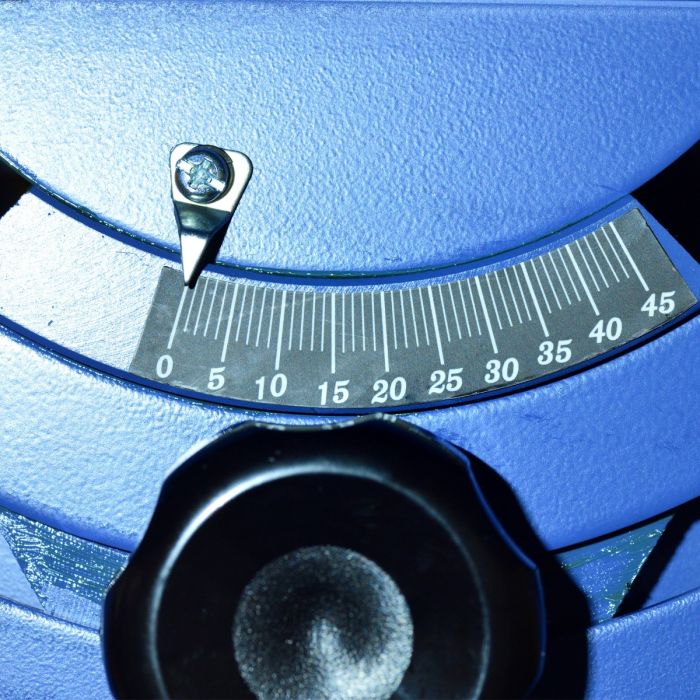

• Table tilts 45 degrees for added versatility.
• Unique corner cut table design allows better operator position.
• 1-1/2” Spindle oscillation provides greater capacity.
• 75-oscillations per minute lowers heat build-up providing a better finish.
• 10-spindle sizes are included with built-in storage for easy access.

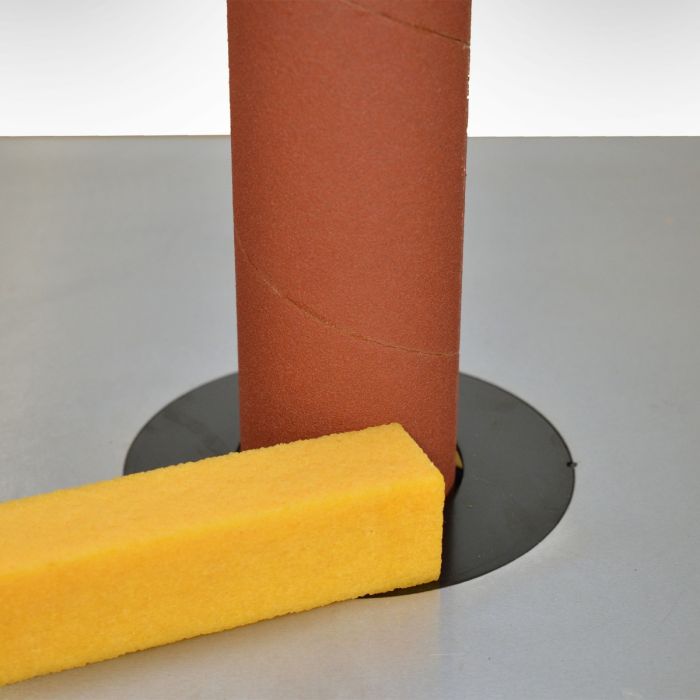

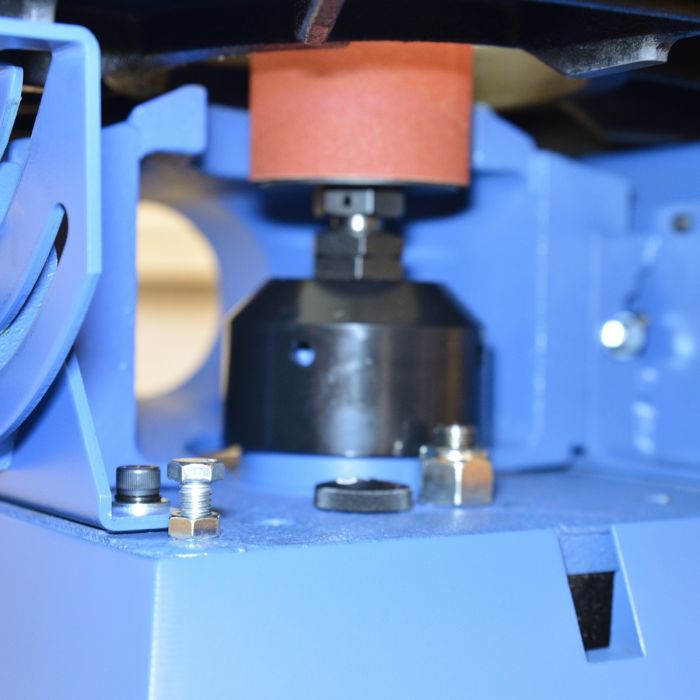

• Spindles are tapered and end-threaded allowing a quick change.

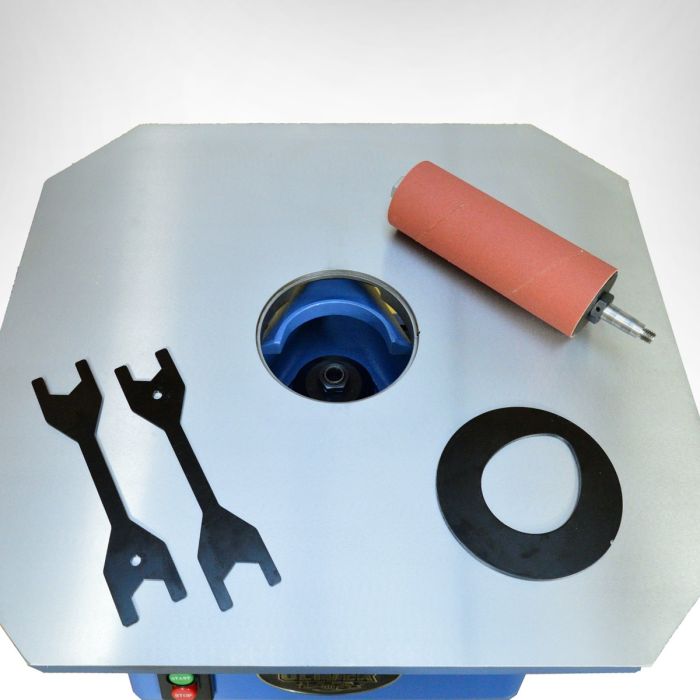

• Three table inserts are included to match the spindle choices.

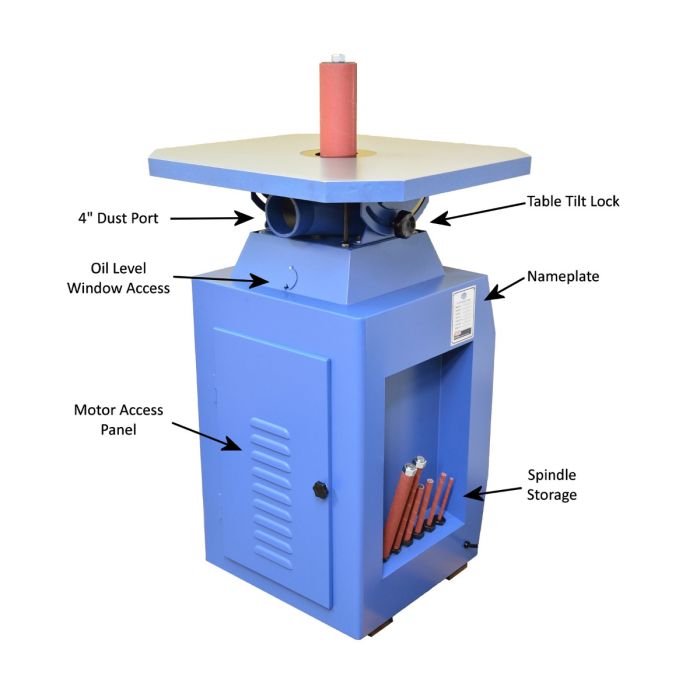

• Heavy-gauge steel cabinet is uniquely designed for operator convenience.

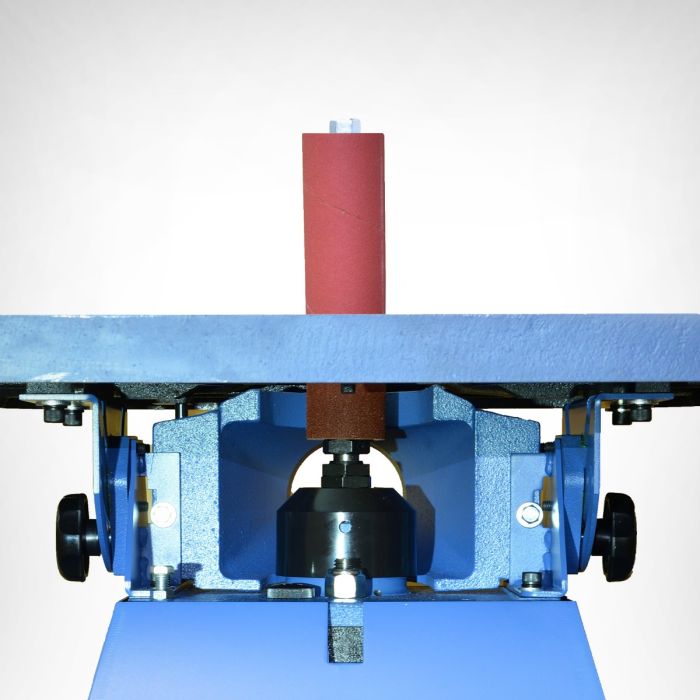

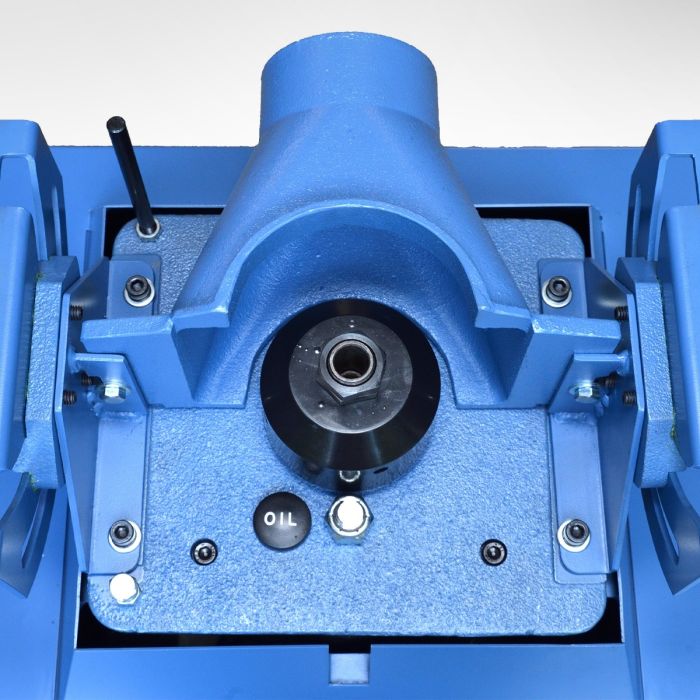

• Oscillation mechanism runs in an oil bath for long life.

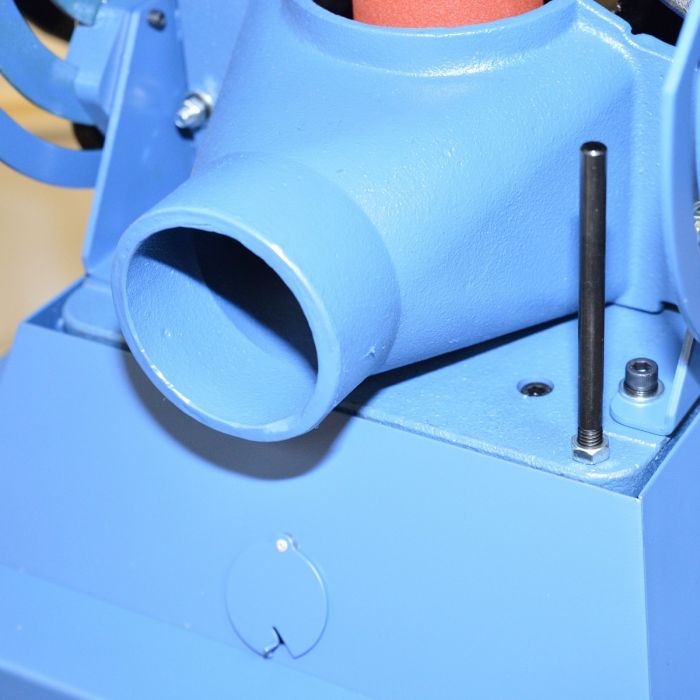

• Built-in 4” dust port allows efficient dust management.
• Industrial push button controls are located for easy use.
• Powerful TEFC 2HP single phase motor

Specifications

• Table Material: Cast Iron
• Table Size: 25-1/4” x 27-1/4”
• Table Tilt: 0 to 45°
• Table Height: 42-1/2” (Floor to Top)
• Number of Table Inserts: 3
• Spindle Speed: 1,720 RPM
• Oscillation: 1-1/2” Travel
• Dust Port Diameter: 4"
• Oil: 90 Weight Gear Oil
• Spindle Sizes Included (dia. x length, in.):
• 1/4 x 5
• 3/8 x 6
• 1/2 x 6
• 5/8 x 6
• 3/4 x 9
• 1 x 9
• 1-1/2 x 9
• 2 x 9
• 3 x 9
• 4 x 9
• Footprint: 19-1/2”L x 18-1/2” W
• Motor: 2HP, 115/230V Prewired 115V Plug (6/8 Amp)
• Overall Dimensions: 25-1/4 x 27-1/4 x 50
• Net Weight: 295 lbs.
• Gross Weight: 320 lbs.
