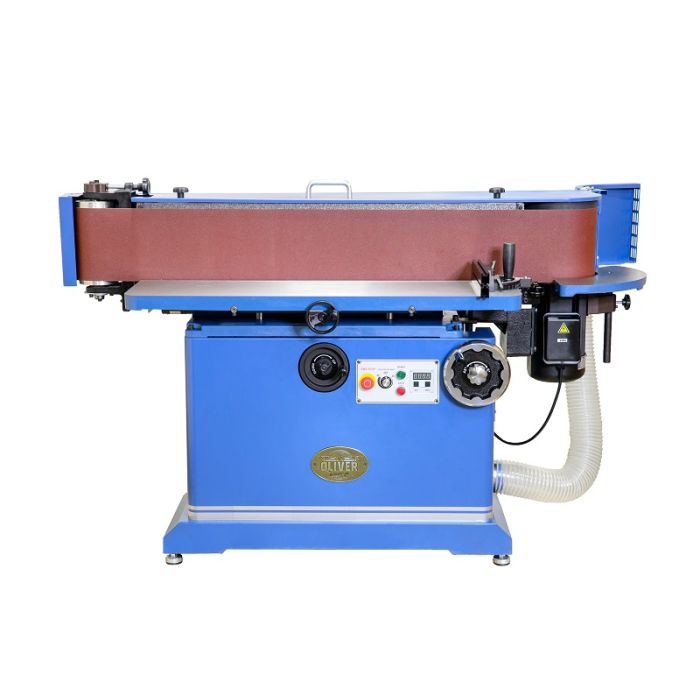

Oliver Machinery 9” x 138” Oscillating Edge Sander 3Hp Three-Phase

Introducing the ultimate edge sanding workhorse with a large 9" x 138.5" belt with adjustable oscillation action. The heart of this edge sanding marvel lies in its precision-balanced drums and a robust TEFC 3HP motor. This dynamic duo ensures your woodworking experience is characterized by smooth, reliable operation, resulting in projects completed with impeccable quality efficiently.

The heavy cast iron tables, precision-ground to exacting standards, deliver exceptional stability and consistency, setting the stage for extraordinary craftsmanship. What truly sets this belt sander apart is its unparalleled versatility. With the ability to adjust both tables up and down, you wield complete control over the sanding process, while the spring-assisted raising and lowering feature on the main table ensures ease of operation. For intricate tasks, the end table allows you to tackle contoured sanding applications with precision.

Our Large 9" x 138.5" belt sander is meticulously designed to meet your professional needs and elevate your woodworking experience to new heights.

Features

• Large 9” x 138.5” belt features adjustable oscillation action for a superior finish.
• Tables are heavy cast iron and precision ground.
• Both tables adjust up and down for complete use of belt.
• Main table features spring assisted raising and lowering.
• End table allows contoured sanding applications.
• Drums are precision balanced for smooth operation.

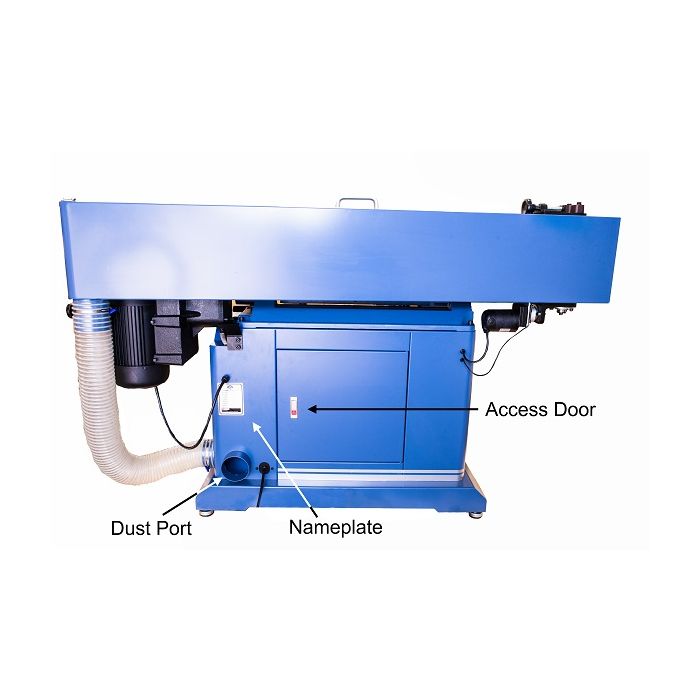

• Built-in 4” port for efficient dust management.

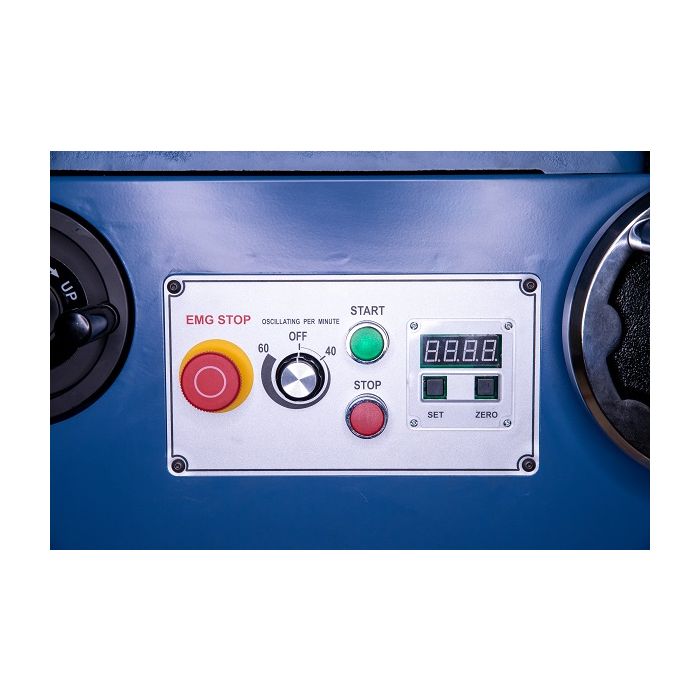

• Magnetic Controls for added safety and motor protection.
• Powerful TEFC 3HP.
• 3Ph power.

Specifications

• Table Material: Cast Iron
• Main Table Size: 13” x 46”
• End Table Size: 13” x 18” Radius
• Both Table Working Height: 34-1/2” to 42-1/2”
• Main Table Tilt: -5° in 45° out
• End Table Tilt: Fixed
• Belt Size: 9” x 138.5”
• Belt Speed: Approx. 4,100 FPM
• Oscillation: 0, 40-60 per minute
• Table Height: 33"-40.5"
• Oscillation Stroke: 13/64" - 25/64"
• Dust Port Diameter: 1 x 4"
• Minimum CFM Required: 650 CFM
• Motor: 3HP, 3Ph 230V Only

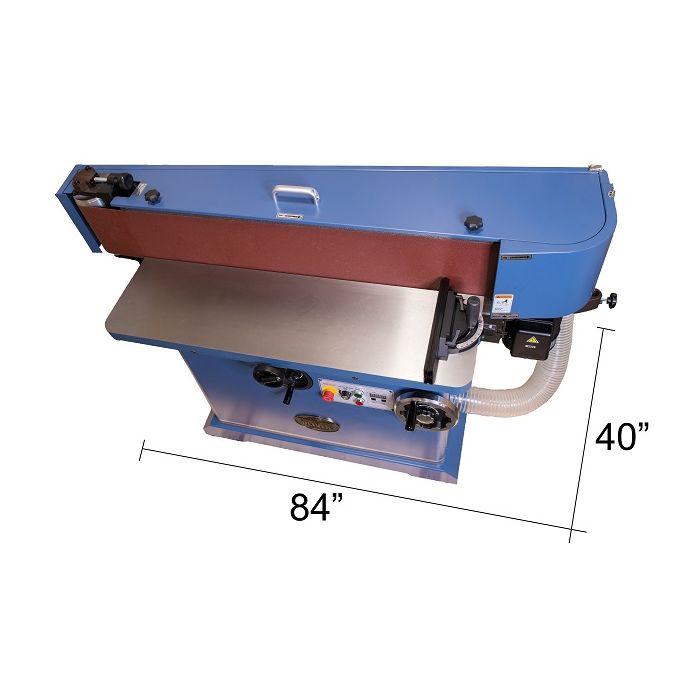

• Overall Dimensions: 84“(W) x 40”(D) x 44”(H)
• Gross Weight: 773 lbs.
