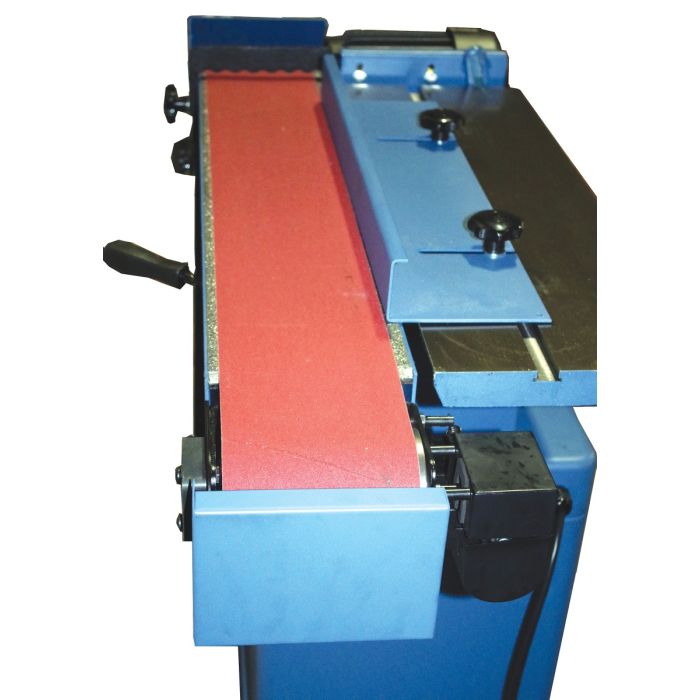

• tilting platen edge sander front corner

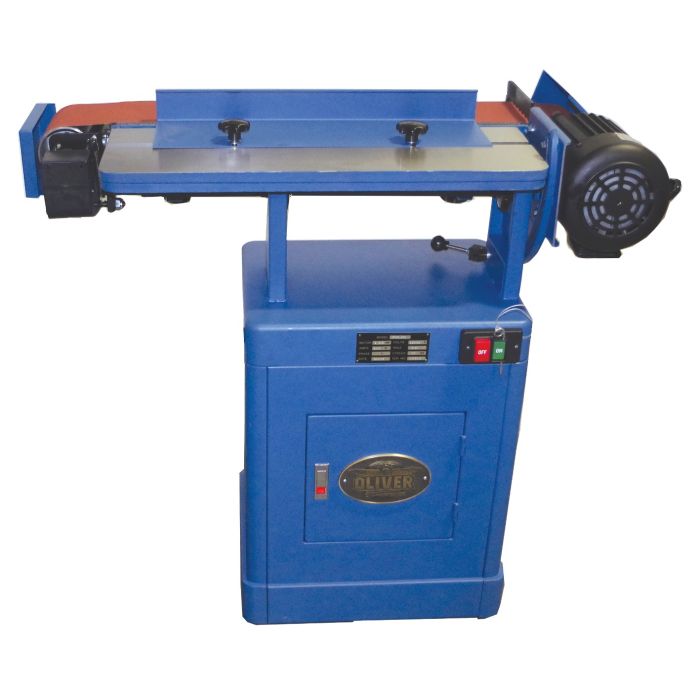

  • tilting platen edge sander front view
  • edge sander platen tilted for flat sanding
  • edge sander platen tilted 90 degrees

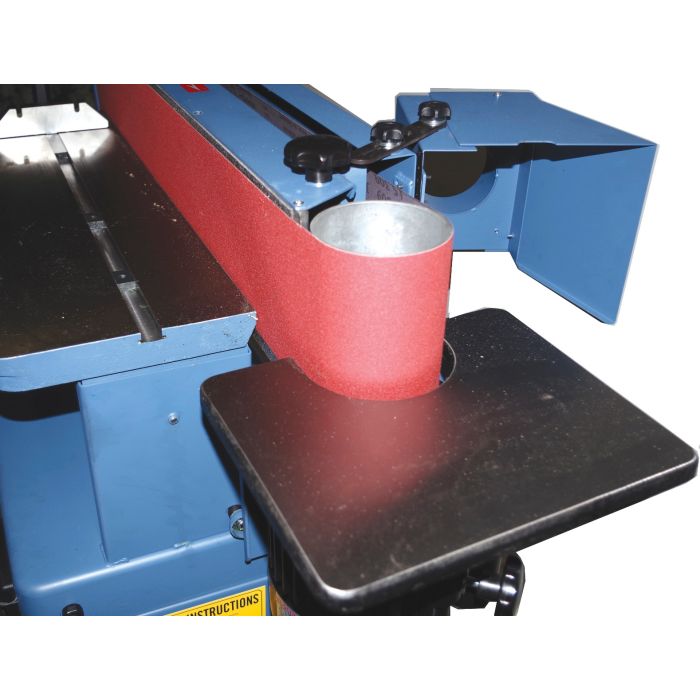

  • edge sander guard removed for contour sanding

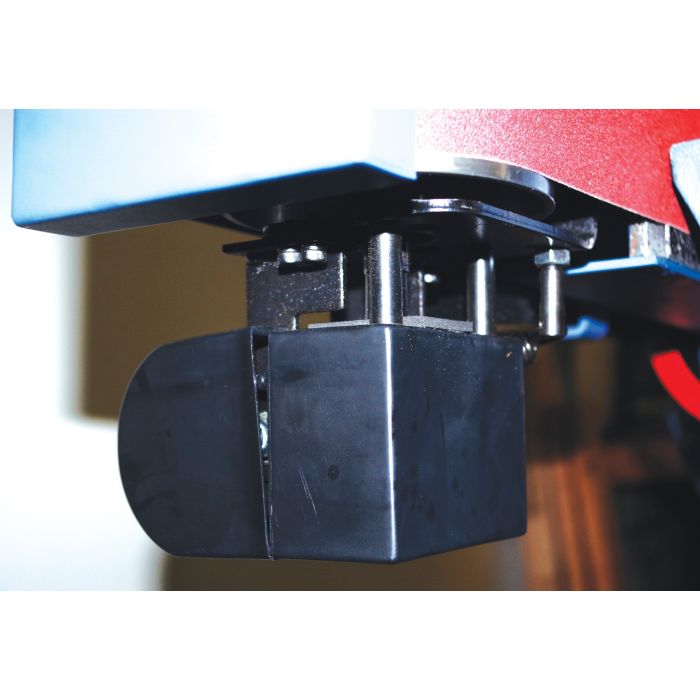

  • edge sander oscillating motor guard
1 6

Oliver Machinery

6” x 89” Oscillating Edge Sander

6” x 89” Oscillating Edge Sander

$1,649.99 USD
$1,885.00 USD $1,649.99 USD
Sale Sold out
Shipping calculated at checkout.

Experience superior sanding with Oliver's Oscillating Edge Sander, featuring a 6” x 89” belt with oscillation action for a flawless finish. This versatile tool operates at any angle, includes easy belt changes, and boasts heavy cast iron tables for stability. With a powerful 1.5HP motor and integrated safety features, it's perfect for both professional and DIY woodworkers.

Features

  • 6” x 89” belt features oscillation action for a superior finish.
  • Belt operates at any angle between horizontal and vertical.
  • Easy belt changing and tracking adjustments.
  • Steel platen is graphite covered for reduced friction.
  • Contoured sanding possible with end table in place.
  • Tables are heavy cast iron and precision ground.
  • Tables adjust up and down for complete use of belt.
  • Main table slotted and includes a miter gauge.
  • Table fence included to assist in operation.
  • Heavy duty enclosed cabinet features a storage area.
  • Lockable on/off switch.
  • Powerful TEFC 1.5HP single phase motor.

Specifications

  • Table Material: Cast Iron
  • Main Table Size: 10” x 29-1/2”
  • End Table Size: 9-3/4” x 11-3/4”
  • Main Table Working Height: 38” - 41-1/2”
  • End Table Working Height: 37-1/2” - 42”
  • Belt Size: 6” x 89”
  • Belt Speed: 3,900 FPM
  • Oscillation Stroke: 1/2”
  • Fence Size: 3” x 23-1/2”
  • Dust Port Diameter: 4"
  • Minimum CFM Required: 650 CFM
  • Motor: 1.5HP 115/230V 1Ph Prewired 115V w/Plug (18/9 Amp)
  • Overall Dimensions: 50” x 24” x 49”
  • Net Weight: 247 lbs.
  • Gross Weight: 270 lbs.
