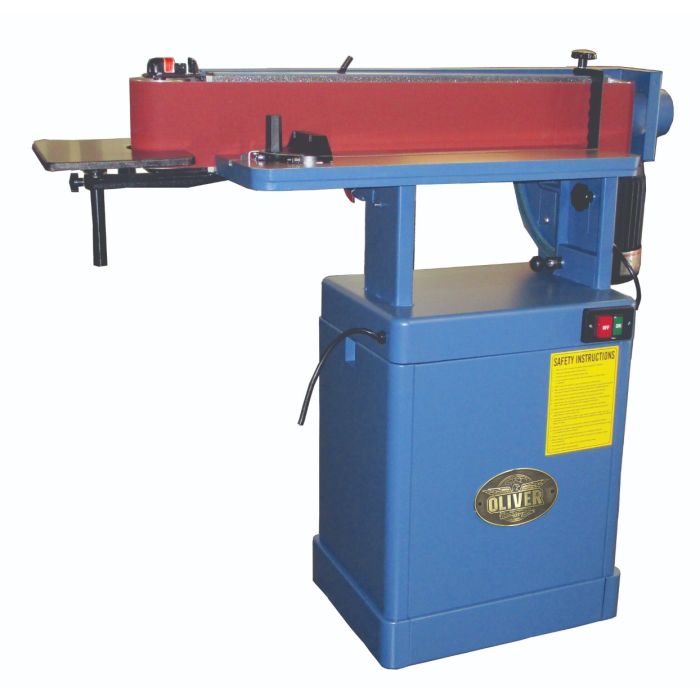

Oliver Machinery 6” x 89” Non-Oscillating Edge Sander

Achieve precision and versatility in your sanding tasks with the Oliver Edge Sander. This powerful machine allows you to use the belt in horizontal, vertical, or any angle in between, making it perfect for a variety of applications. The precision ground steel platen is graphite-covered to minimize heat, while the cast iron table is vertically adjustable for full use of the belt. With easy belt tracking and tension adjustments, quick belt replacement, and an adjustable end table for contour sanding, this sander is designed for efficiency. The built-in 4” dust port ensures effective dust management, and the industrial push-button controls provide easy operation. Powered by a robust 1.5 HP TEFC motor, the Oliver Edge Sander is an essential tool for any serious woodworker looking to elevate their craftsmanship.

Features

• Can be used with the belt in the horizontal or vertical position or any angle in between.
• Precision ground steel platen is graphite covered to reduce heat.

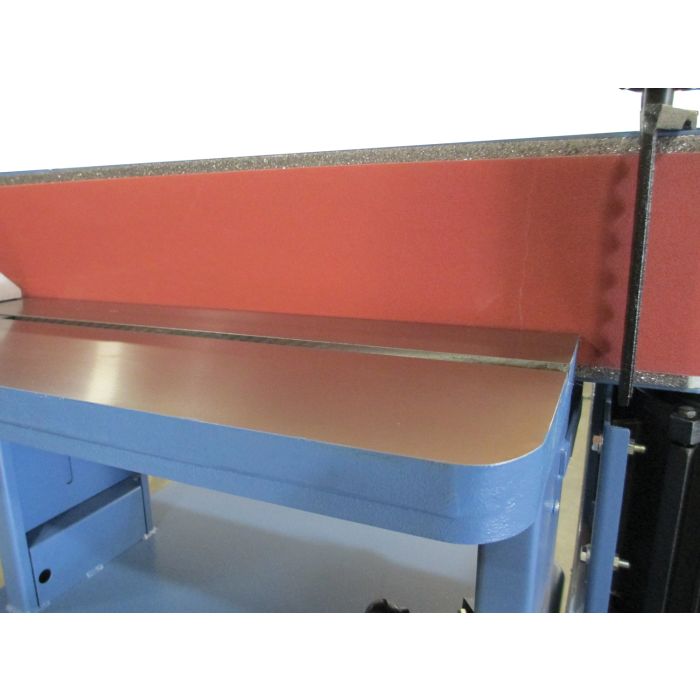

• Cast iron table is vertically adjustable allowing full use of belt.
• Belt tracking and tension are easy to adjust.
• Full access to the belt allows quick replacement.
• Adjustable end table is included allowing contour sanding applications.
• Miter gauge is included for added value and increased versatility.
• Full cabinet design provides a stable work station.

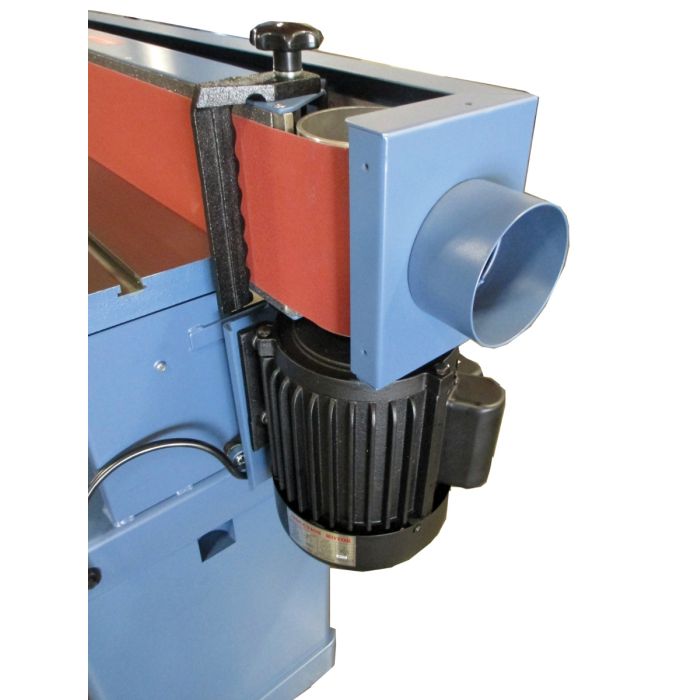

• Built-in 4” dust port allows efficient dust management.
• Industrial push button controls are located for easy control.
• Powerful TEFC 1.5HP single phase motor.

Specifications

• Table Length: 27”
• Table Width: 10”
• Table Material: Cast Iron
• Belt Size: 6” x 89”
• Belt Speed: 3,900 FPM
• Front Table Size: 27” x 9.8”
• Table Tilt: 90° to 180°
• Table Height: 37-1/2” - 40-1/2
• Dust Port Diameter: 4"
• Motor: 1.5 HP, 1Ph 115/220V Prewired 115 (18/9 Amp)
• Overall Dimensions: 48” x 21” x 48”
• Net Weight: 247 lbs.
• Gross Weight: 280 lbs
