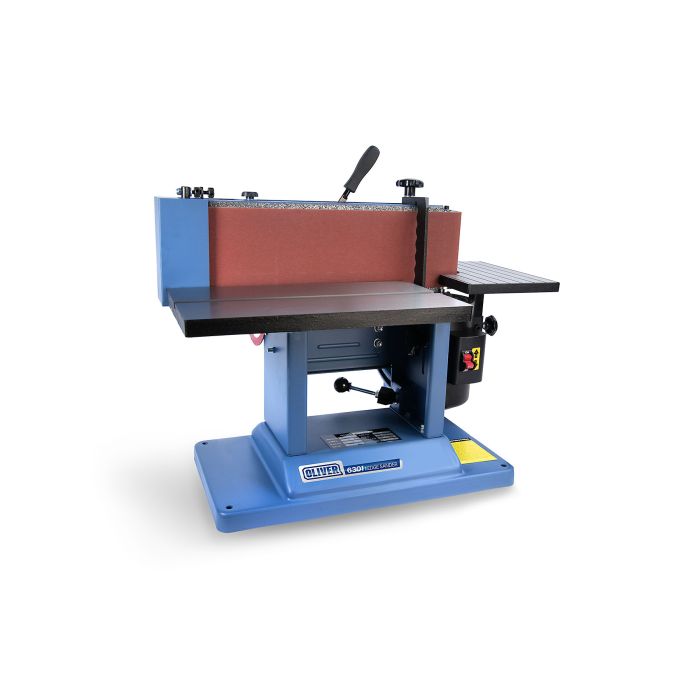

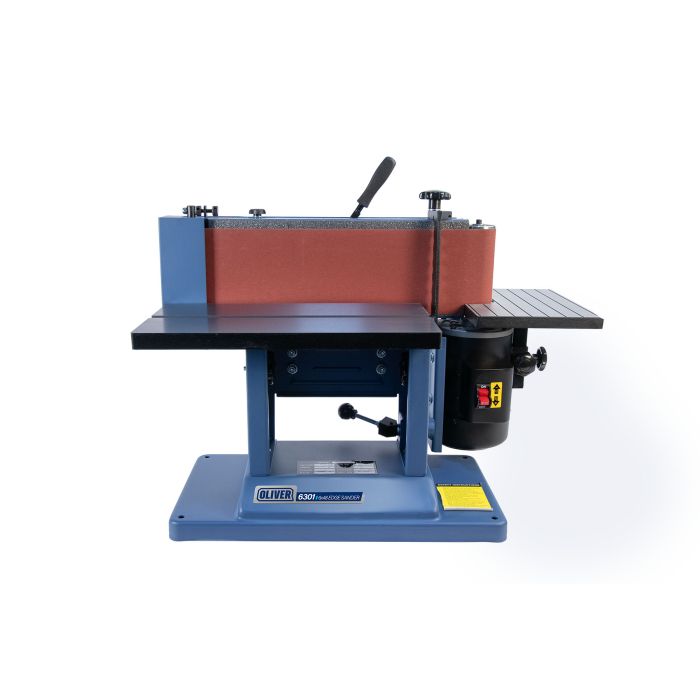

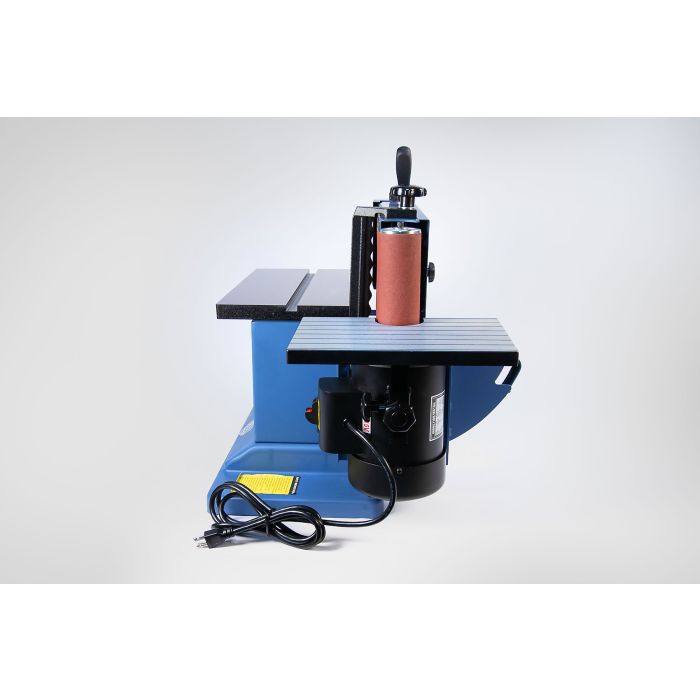

6” x 48” Benchtop Edge Sander

Our 6301 6x48” Edge Sander brings the features of our larger edge sanders to a true benchtop sized machine. Using our 6301 edge sander in smaller shop production has many benfits:

Efficiency: Edge sanders are known for their efficiency in removing material quickly and consistently. Our 6301 helps ensure uniformity in surface finish and dimensions in a small form factor.

Precision: The 6301 allows for multiple angle adjustments for flat and contour sanding. This is essential when working on intricate details or achieving specific, repeatable results.

Time Savings: Compared to manual sanding or using less powerful sanding tools, our 6301 can significantly reduce production time. This efficiency can translate into cost savings and faster turnaround times for your products.

Features

• Powerful 3/4HP 1Ph 15Amp 115V motor

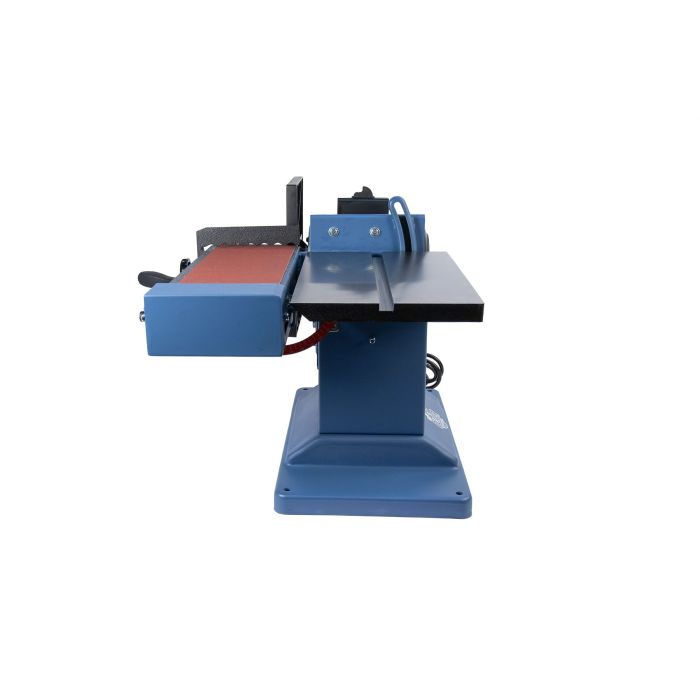

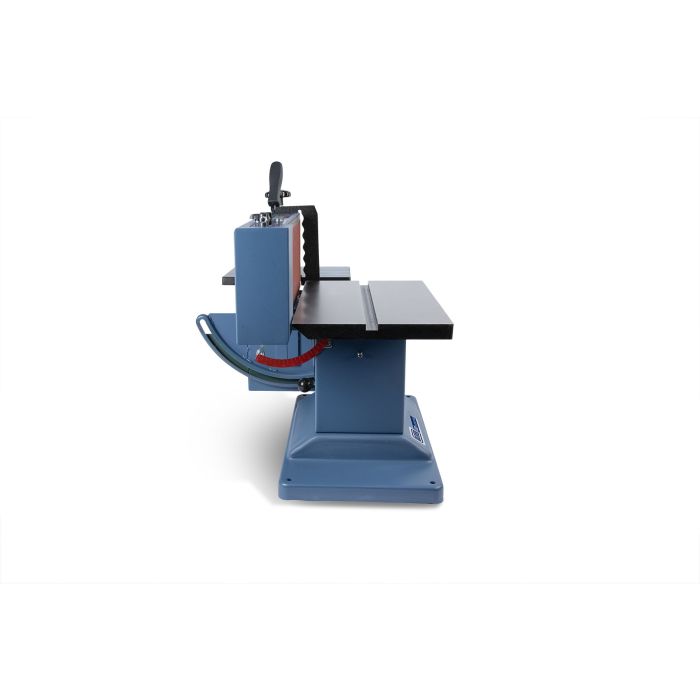

• Can be used with the belt in the horizontal or vertical
  position or any angle in between.
• Precision ground steel platen is graphite covered
  to reduce friction and heat.
• Adjustable contour sanding table allows full use of belt.

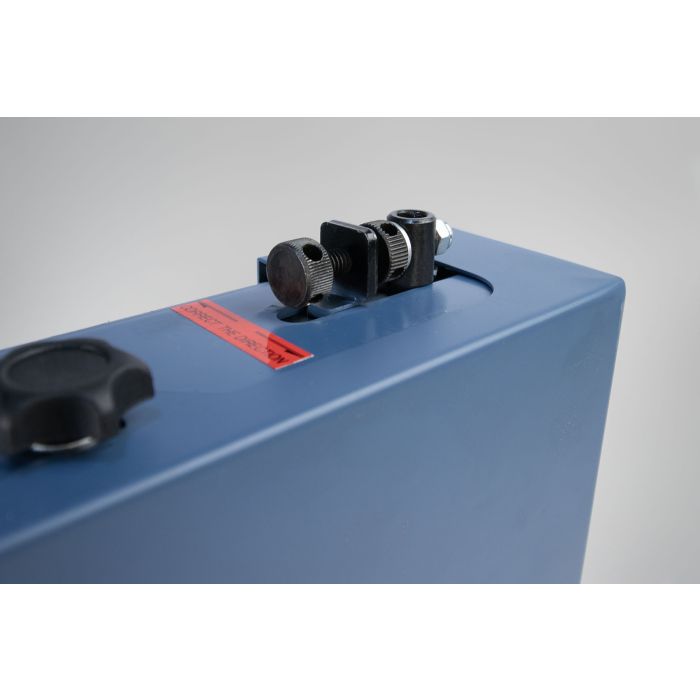

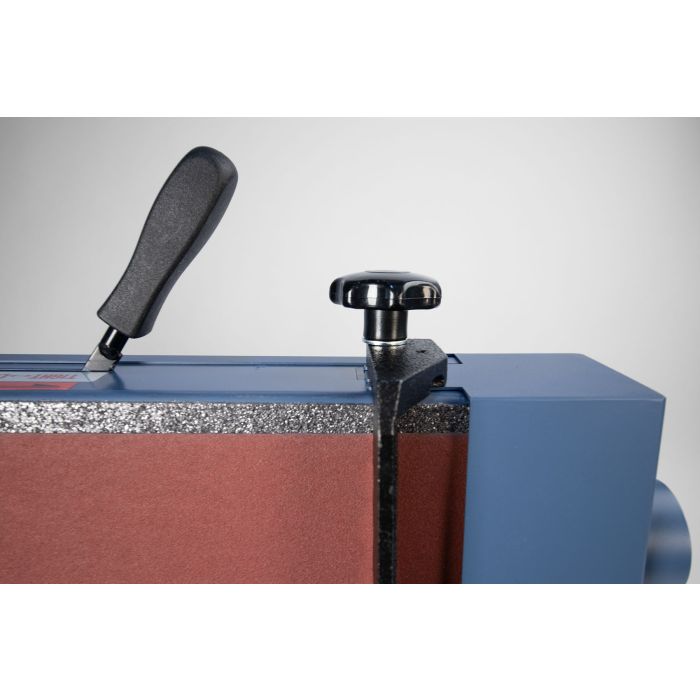

• Belt tracking and tension are easy to adjust.
• Full access to the belt allows quick replacement.
• Miter gauge is included for added value and
  increased versatility.
• Full cabinet design provides a stable work station.

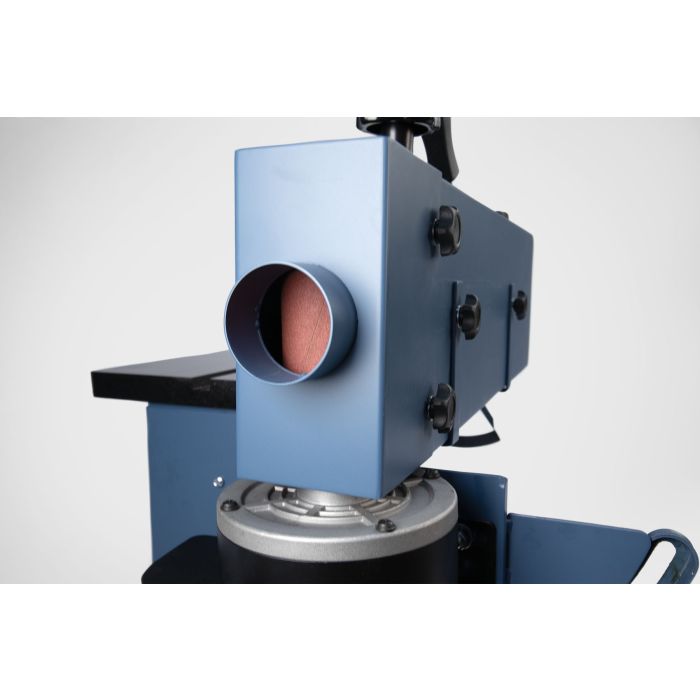

• Built-in 2.5” dust port allows efficient dust management.
• Industrial controls are located for easy operation.

Specifications

• Main Table Size: 17.3” x 10”
• End Table Size: 11.2”, adjustable height
• Belt Size: 6 x 48"
• Belt Speed: 1760 FPM
• Table Tilt: 0 to 45 degrees
• Dust Port Diameter: 2.5"
• Minimum CFM Required: 300 CFM
• Motor: 3/4 HP
• Net Weight: 73lbs
