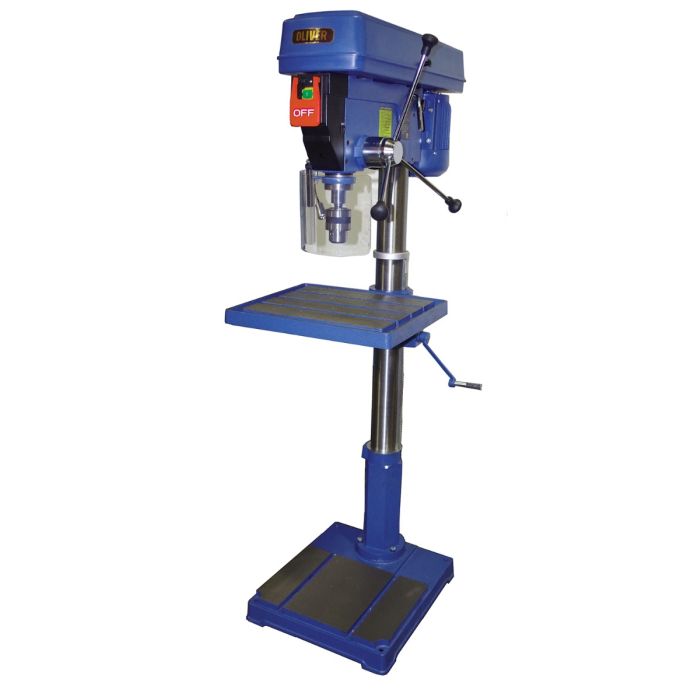

22” Swing Floor Model Drill Press

Experience unmatched drilling power with the Oliver 22" Floor Model Drill Press. Designed for heavy-duty applications, this robust drill press features a powerful 1-1/2 HP motor and a generous swing of 22”, making it perfect for a wide range of drilling tasks. The precision ground table, equipped with T-slots, rotates 360° and tilts up to 45°, providing versatility for various workpieces. A built-in laser pointer ensures accurate repeat drilling, while the LED lamp illuminates your workspace for enhanced visibility. Safety is prioritized with a line interrupt switch and a drill chuck guard with a safety interlock. With a positive depth stop for consistent drilling depths and cast iron pulleys to minimize vibration, the Oliver 22" Floor Model Drill Press is an essential tool for any serious woodworker or metalworker.

Features

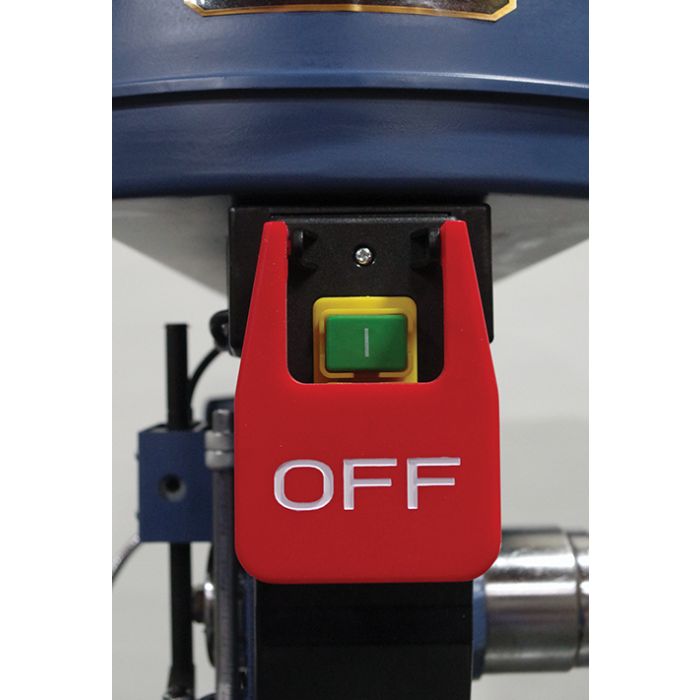

• Line interrupt switch requires manual start in the event of a power loss.
• Spindle is supported by high quality sealed ball bearings.
• LED lamp provides a well lit work area.
• Table rotates 360° and tilts 45°.
• Crank operation moves table up and down with locking clamp.
• Precision ground table features T-Slots.

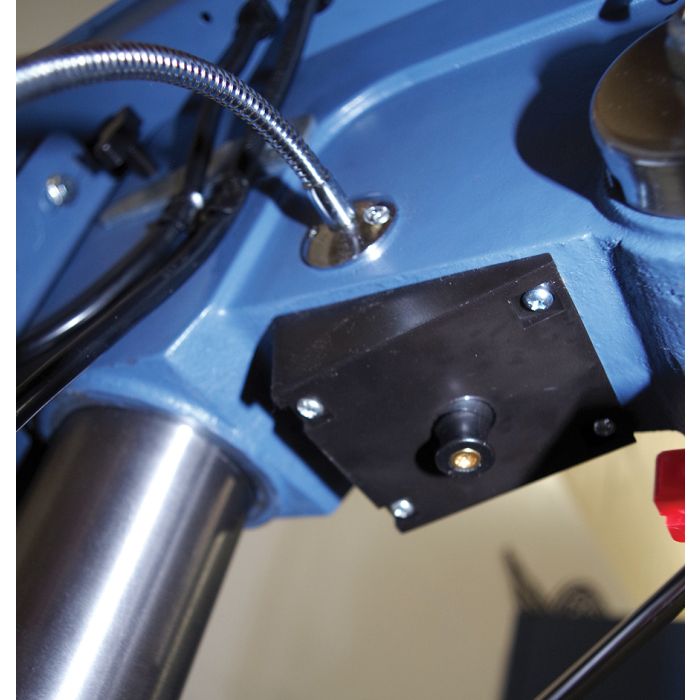

• Laser pointer is built-in for precise repeat drilling.

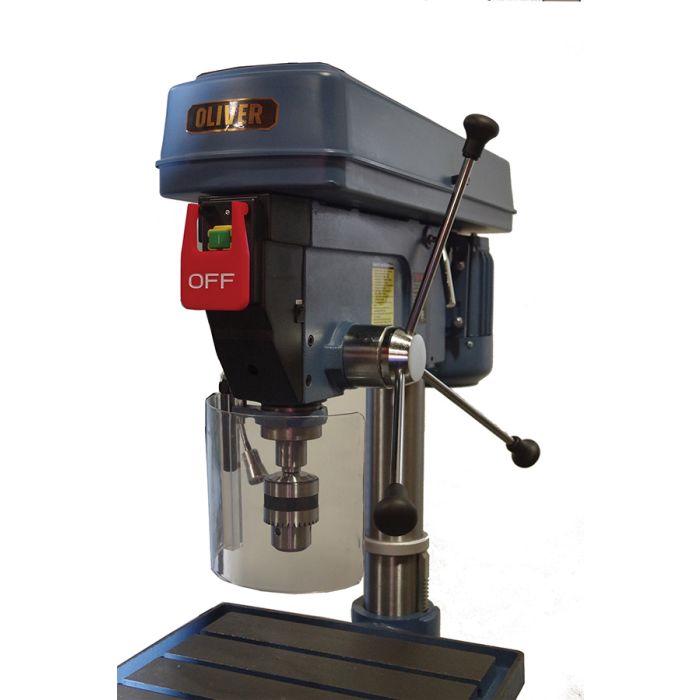

• Drill chuck guard included with safety interlock.
• 3/4” chuck and key holder included.

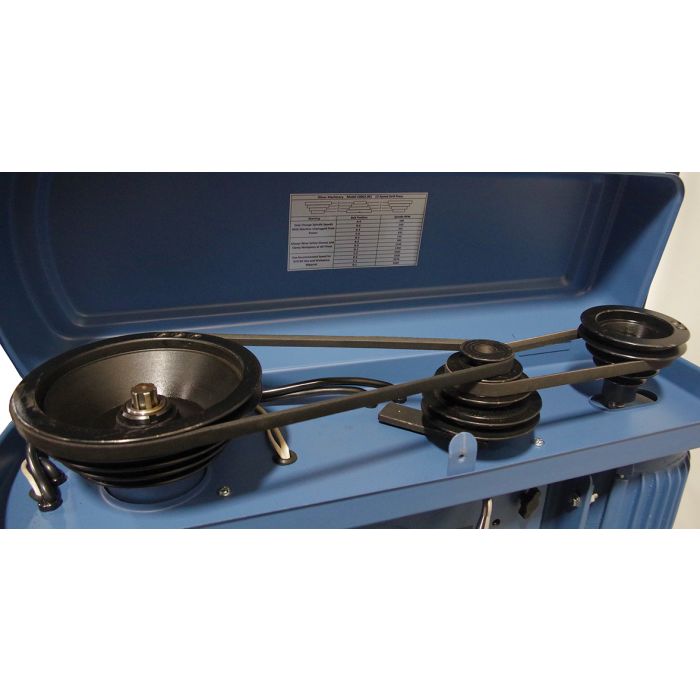

• Cast iron pulleys reduce vibration.

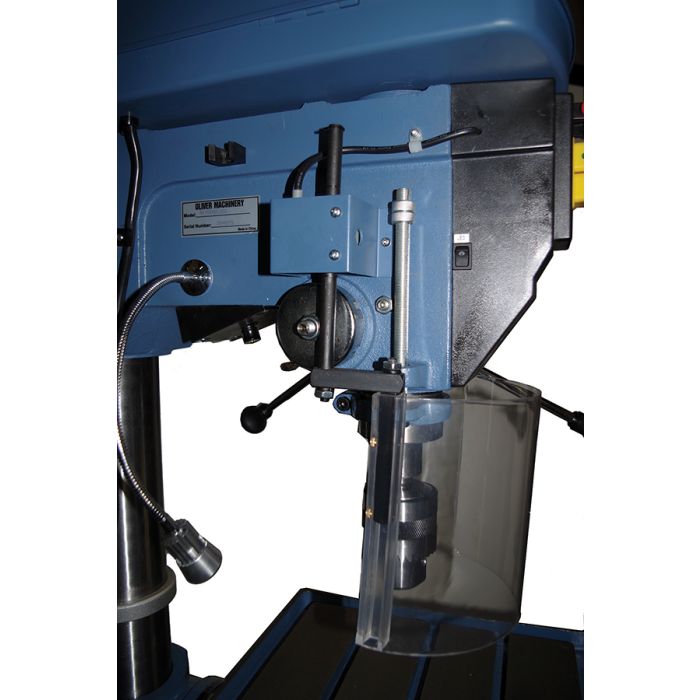

• Positive depth stop allows repeated operations with ease.
• Powerful 1-1/2 HP Motor.

Specifications

• Type: 22” Floor
• Swing: 22”
• Drilling Capacity: 1-1/4”
• Chuck Capacity: 3/4”
• Chuck Taper: JT-3
• Table Size: 16” x 18-1/2”
• Table Tilt: +/- 45°
• Spindle Taper: MT-3
• Spindle Travel: 4-1/2”
• Spindle Speeds: 12
• Speed Range RPM: 180 to 3,420
• Spindle to Table: 26-3/4”
• Spindle to Base: 48”
• Column Diameter: 3-7/8”
• Base Size: 19-5/8” x 22-3/4”
• Overall Height: 68-3/4”
• Motor: 1.5HP, 1Ph, 115V (21 Amps)
• Net Weight: 380 lbs.
• Gross Weight: 395 lbs.
