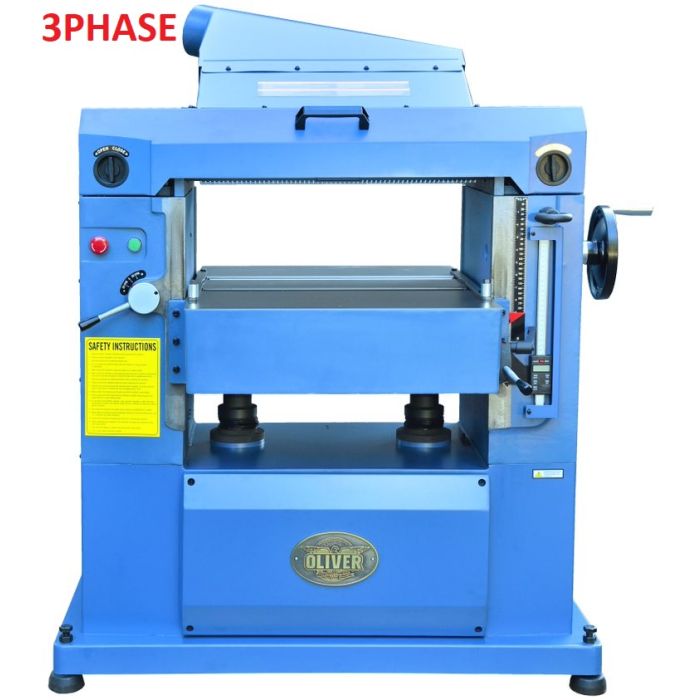

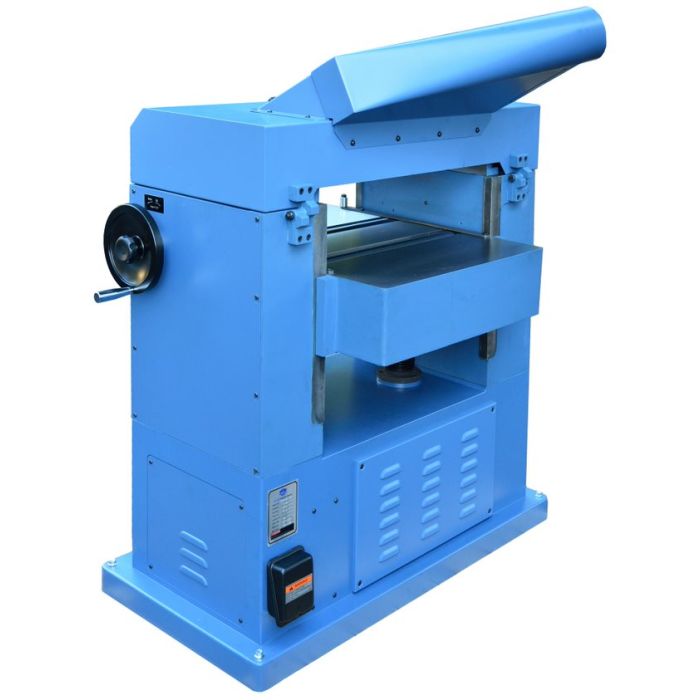

22” Planer with HCX Helical Cutterhead

Introducing the Oliver 22" Planer with HCX Helical Cutterhead, a top-tier tool designed for woodworkers who prioritize precision and efficiency. This planer features the innovative HCX Helical Cutterhead, equipped with premium carbide inserts that are indexed for quick and easy replacement, ensuring a superior finish on every cut. Its robust cast iron construction provides exceptional stability, while the polished built-in table roller aids in the smooth movement of rough stock. The segmented infeed roller and sectional chip breaker are designed to handle challenging materials with ease. With a two-speed gearbox for optimal feed rates and a digital readout for precise thickness adjustments, this planer is engineered for high performance. The 5" dust chute effectively manages chip removal, and the powerful TEFC motor guarantees reliable operation. The Oliver 22" Planer with HCX Helical Cutterhead is the perfect addition to any professional woodworking shop.

Features

• Massive cast iron construction throughout.

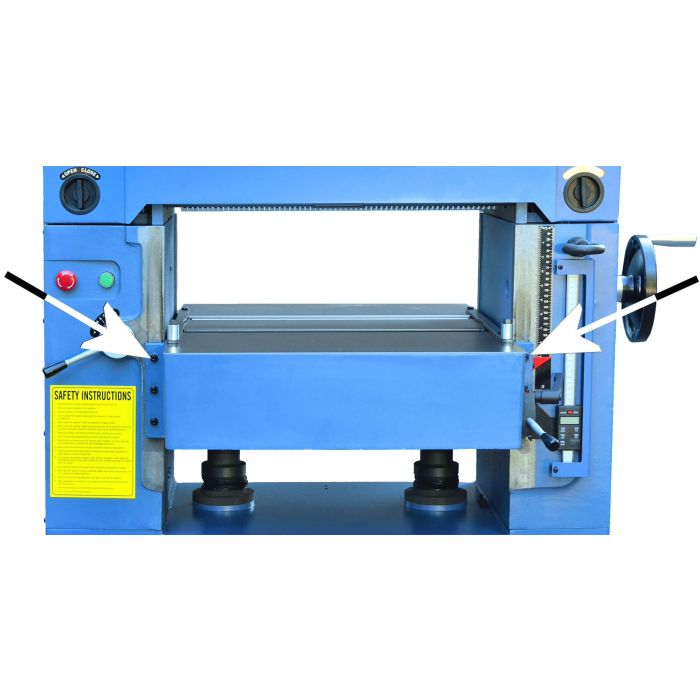

• Polished built-in table roller assists movement of rough stock.
• Oliver HCX Helical cutterhead with premium carbide, indexed inserts.

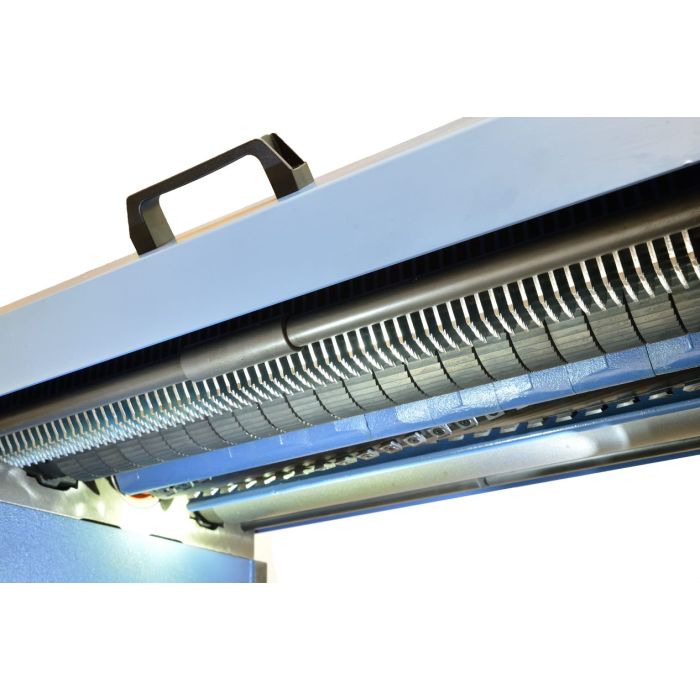

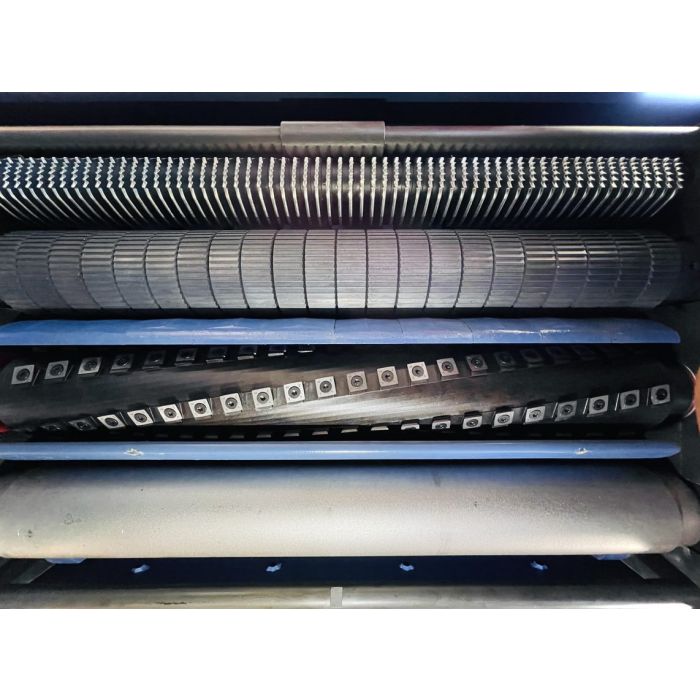

• Segmented infeed roller and sectional chip breaker easily handle rough stock.

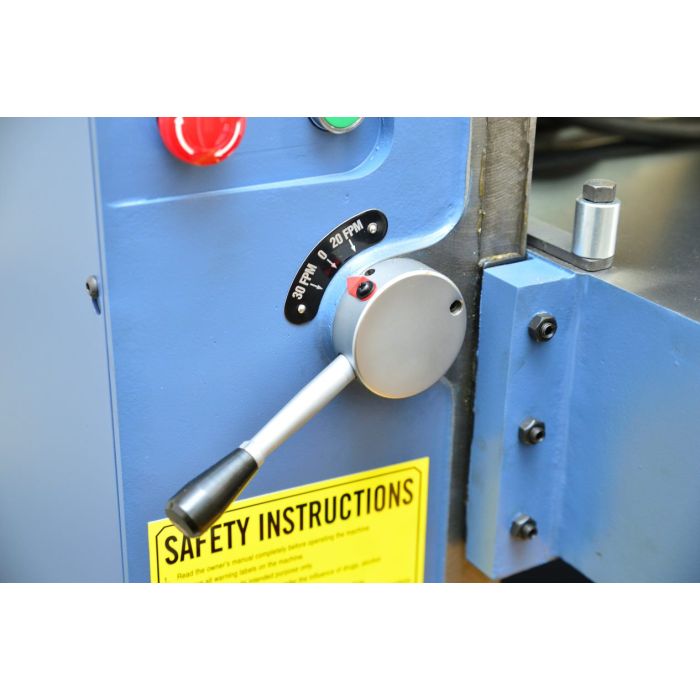

• 2-speed gear box provides the perfect feed rate.

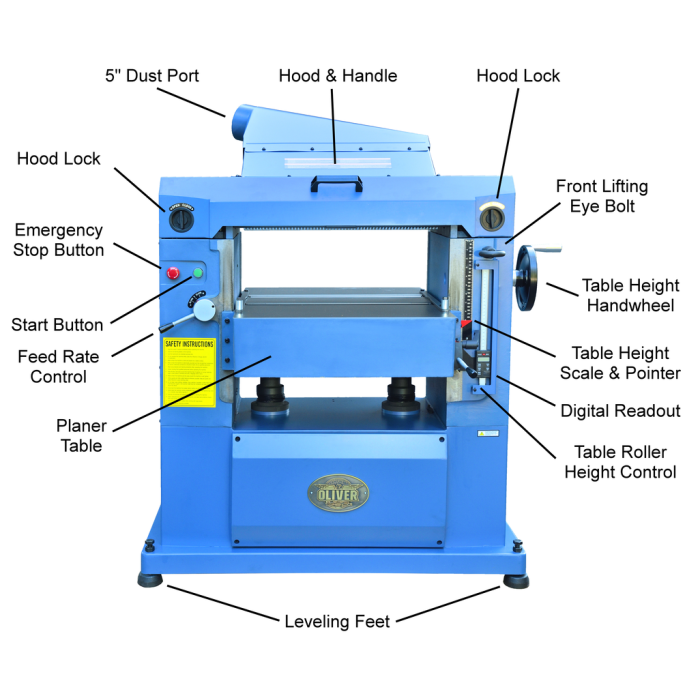

• Magnetic controls with emergency off switch for safer operation.

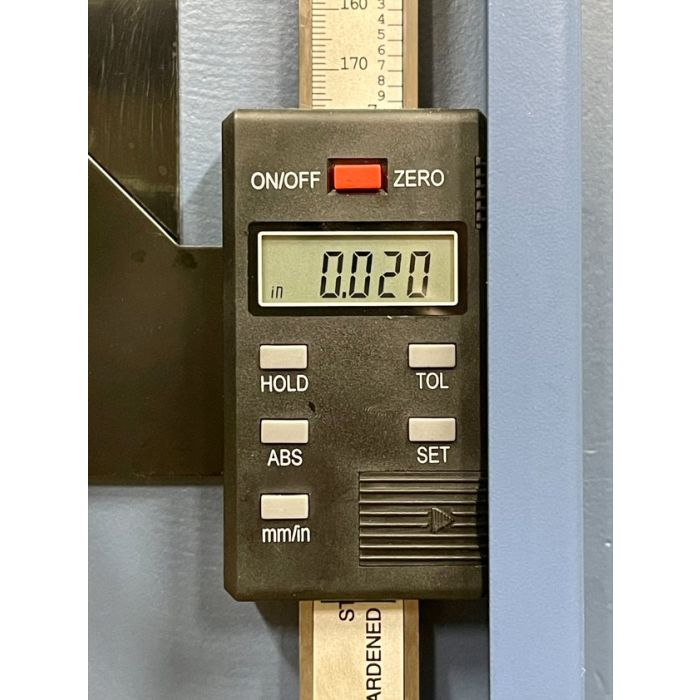

• Digital readout allows precise thickness settings.

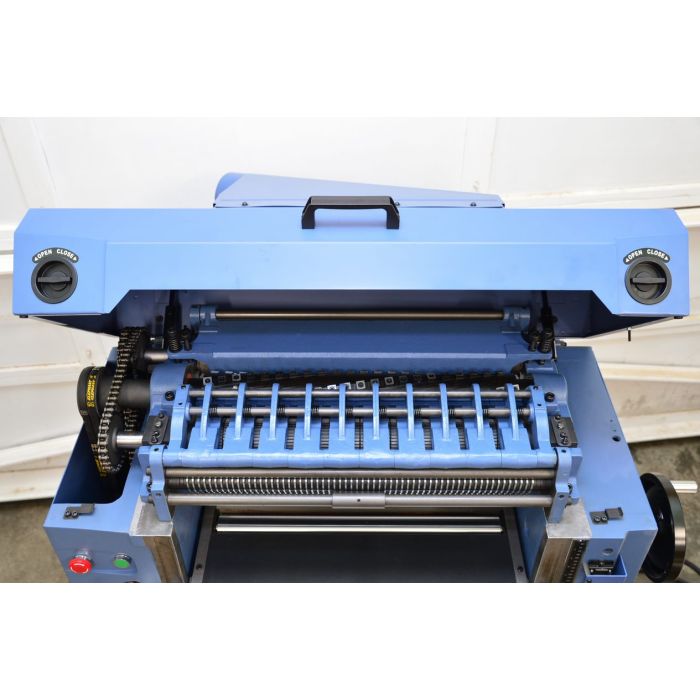

• Hinged access to cutter head and feed rollers for quick set-up.

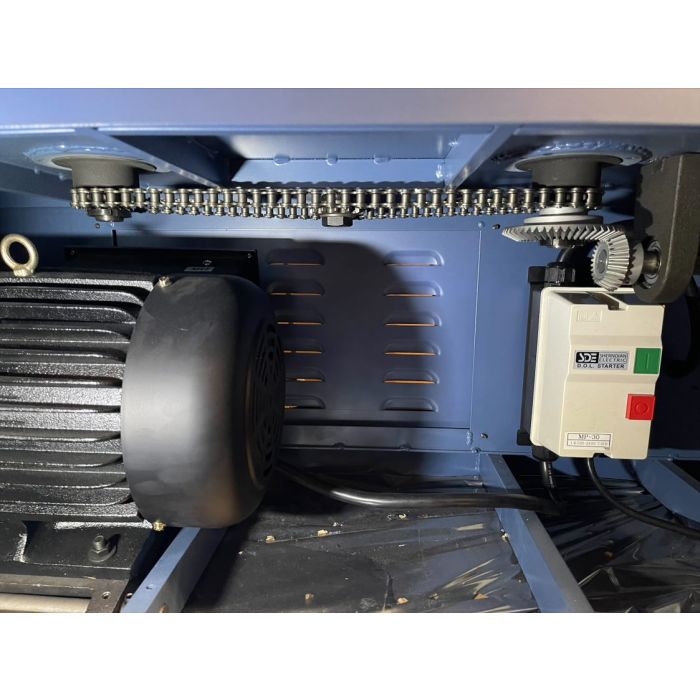

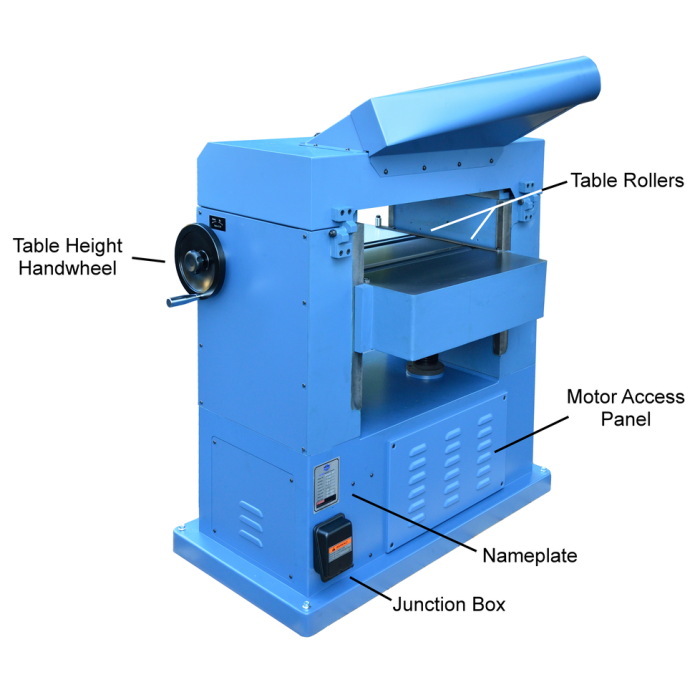

• Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.

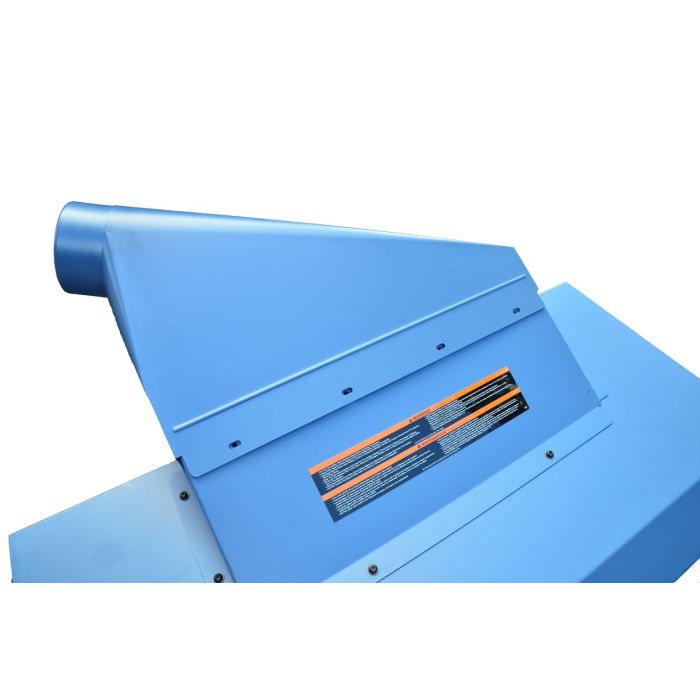

• 5” dust chute easily handles chip removal.
• 3 V-belt drive smoothly transfers power to drive train and cutter head.
• Powerful TEFC motor available in three phase.

Specifications

• Maximum Stock Width: 22"
• Maximum Stock Thickness: 9"
• Minimum Stock Thickness: 1/8"
• Minimum Stock Length: 10"
• Dust Port Diameter: 5"
• Minimum CFM Required: 900 CFM
• Infeed Roller Diameter: 3"
• Outfeed Roller Diameter: 3-5/16"
• Feed Speeds: 20 and 30 FPM
• Bed Rollers: 2, Adjustable
• Table Size: 23-3/4” x 32-1/4”
• Cutterhead Diameter: 3"
• Cutterhead Speed: 5,000 RPM
• Number of Knives (straight): 4
• Number of Knives: 150 inserts
• Footprint: 44”L x 22”W
• Table Support: 2-Column
• Motor: 7.5HP single-phase or 10HP, 220V/440V* 3-phase, Prewired 220V (26/13 Amp)
• Optional: 460V three-phase upgrade (additional cost, contact us at 570-584-2002)
• Overall Dimensions: 45”W x 32”D x 50”H
• Net Weight: 1,340 lbs
• Gross Weight: 1,550 lbs.
