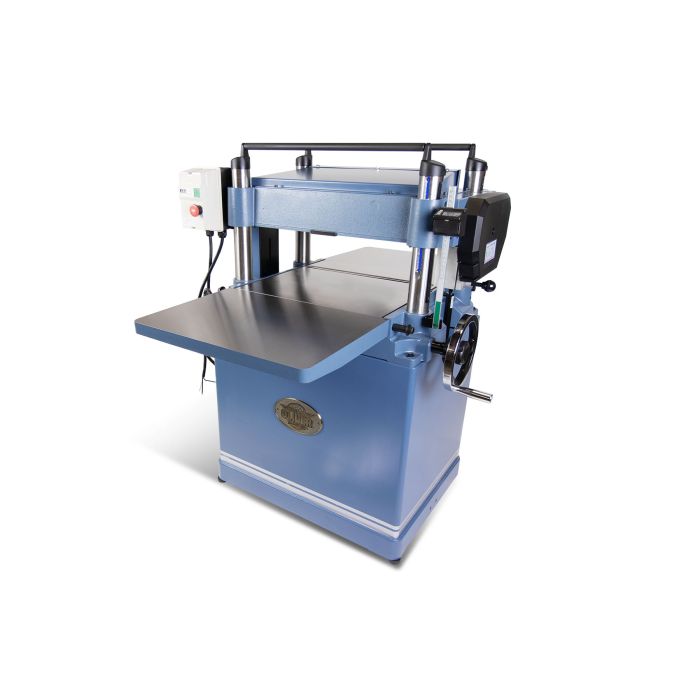

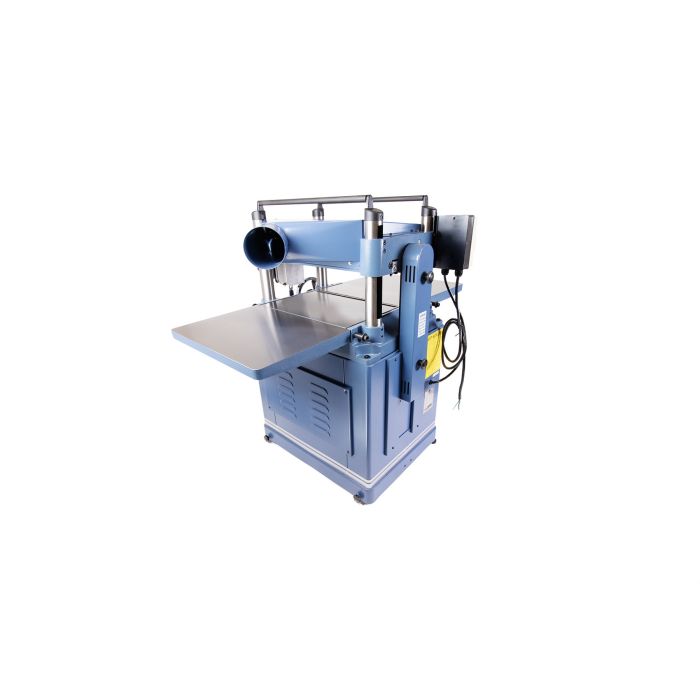

20” Planer with HCX Helical Cutterhead 5Hp Single-Phase

Introducing the Oliver 20" Planer, a robust and high-performance tool designed for serious woodworkers who require precision and efficiency. This planer features a unique design that allows the motor and cutter head to move in unison, ensuring consistent and smooth cuts. Equipped with the Oliver HCX Helical Cutterhead, it utilizes premium carbide inserts that are easy to replace, providing exceptional cutting quality. The heavy cast iron construction, along with precision-ground tables, ensures stability and smooth stock feeding. With a Wixey digital readout for precise thickness settings and a two-speed feed gearbox for enhanced cutting performance, the Oliver 20" Planer is built for durability and ease of use. Its built-in heavy-duty casters offer mobility, making it a valuable addition to any workshop.

Features

• Unique design allows motor and cutter head to move in unison.
• Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping.

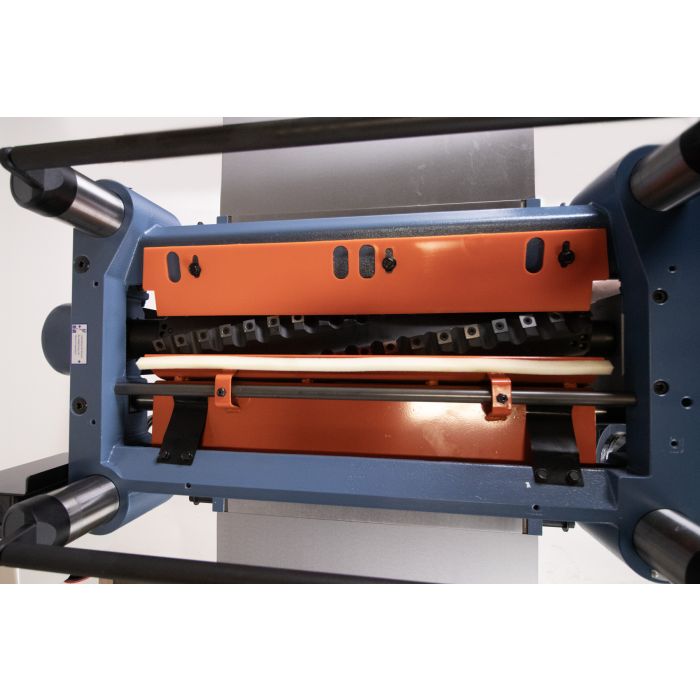

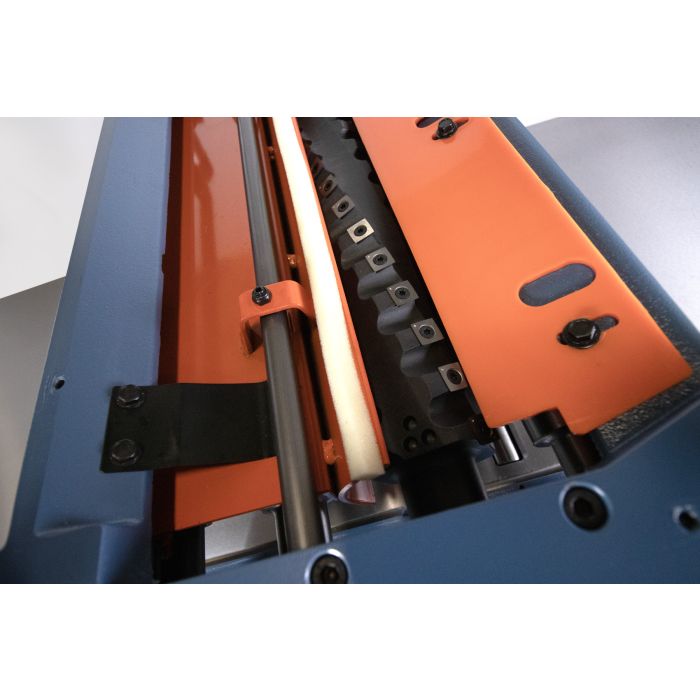

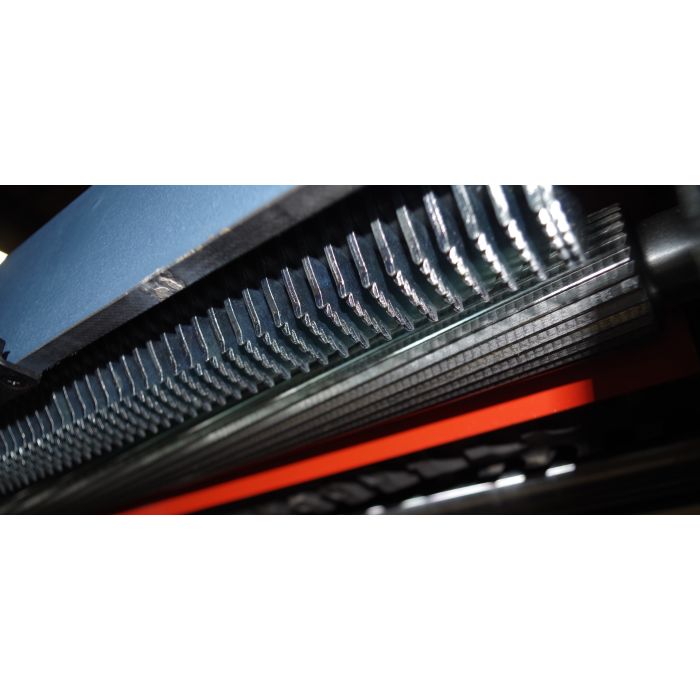

• Oliver HCX Helical cutterhead with premium carbide inserts.
• 4-sided cutting inserts are indexed and easy to replace.
• Heavy cast iron construction including extension wings.
• Table is precision ground for smooth stock feeding
• Table is fixed allowing easy use of auxiliary stock support
• Wixey digital read out allows precise thickness settings
• Large hand wheel and support struts allow easy height adjustment.
• Four-post design ensures head alignment regardless of stock thickness.
• Top mounted roller for easy multiple passes.

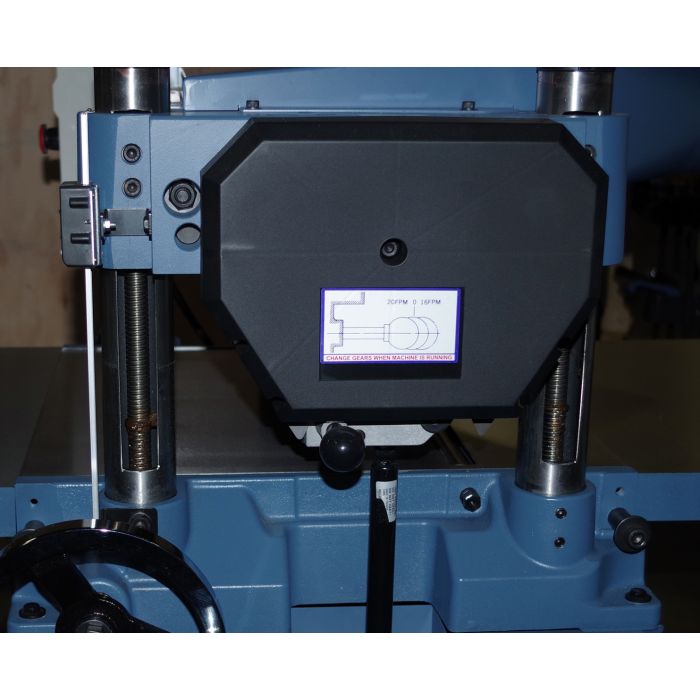

• Two-speed feed gearbox for better cuts.
• Oil bath gear lubrication for years of performance.
• 5” port allows excellent dust management.
• Built-in heavy-duty casters for mobility.

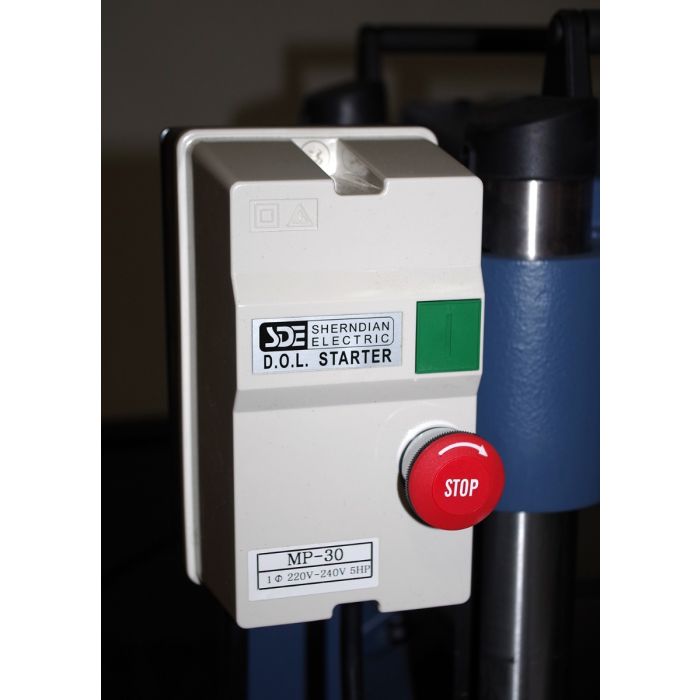

• Magnetic switch for added protection and safety.
• CSA listed.

Specifications

• Maximum Stock Width: 20"
• Maximum Depth of Cut: 1/4" (Stock less than 8” wide) 1/8”(Full Width)
• Maximum Stock Thickness: 8"
• Minimum Stock Thickness: 1/4"
• Minimum Stock Length: 7"
• Dust Port Diameter: 5"
• Minimum CFM Required: 650 CFM
• Feed Speeds: 16/20
• Bed Rollers: 1, Adjustable
• Table Size: 21” x 20”
• Table Size w/Extension Wings: 51” x 20”
• Table Height: 29-3/4”
• Cutterhead Diameter: 3-1/4"
• Cutterhead Speed: 3450 RPM
• Number of Knives (helical): 68
• Footprint: 22-1/2” (L) x 28-3/4”(W)
• Footprint - with Table: 51”(L) x 40”(W) x 46-1/2”(H)
• Motor 1Ph: 5HP 1Ph 230V (1Ph, 18 Amp)
• Overall Dimensions: 38-1/4” (L) x 32”(W) x 51-3/4”(H)
• Net Weight: 546 lbs.
• Gross Weight: 625 lbs.

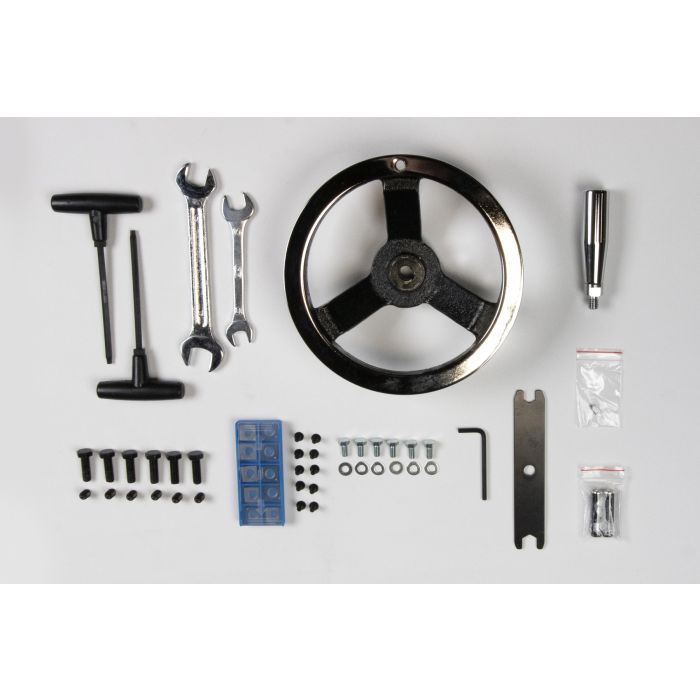

• Includes spare 10 Cutter inserts and compatible Torx screws.
