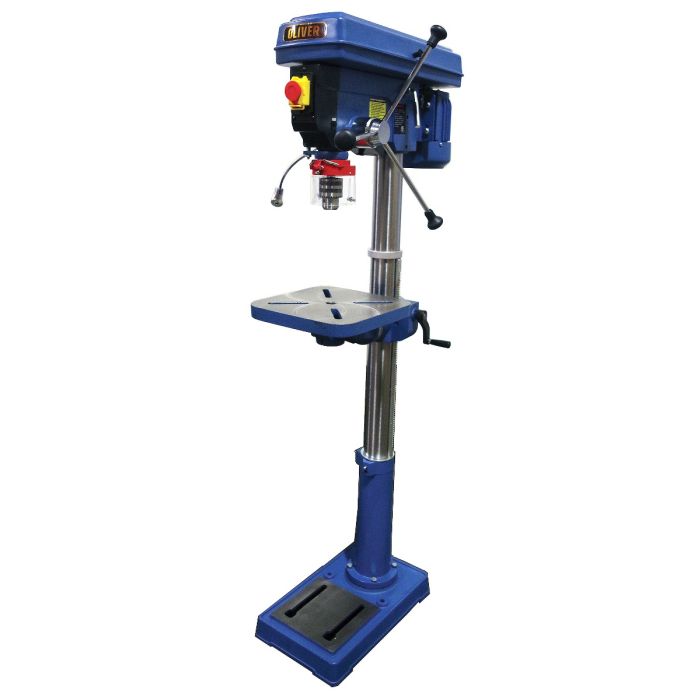

17” Swing Floor Model Drill Press

Discover the power and precision of the Oliver 17" Floor Model Drill Press. Engineered for serious woodworking and metalworking, this robust drill press features a strong 3/4 HP motor and a generous swing of 17”, making it ideal for a variety of drilling tasks. The table rotates 360° and tilts up to 45°, providing flexibility for different workpieces. With a built-in laser pointer for accurate repeat drilling and an LED lamp to illuminate your workspace, you can work efficiently and safely. The line interrupt switch ensures manual operation after a power loss, while the positive depth stop allows for consistent drilling depths. Constructed with high-quality sealed ball bearings and cast iron pulleys to minimize vibration, the Oliver 17" Floor Model Drill Press is a reliable addition to any workshop.

Features

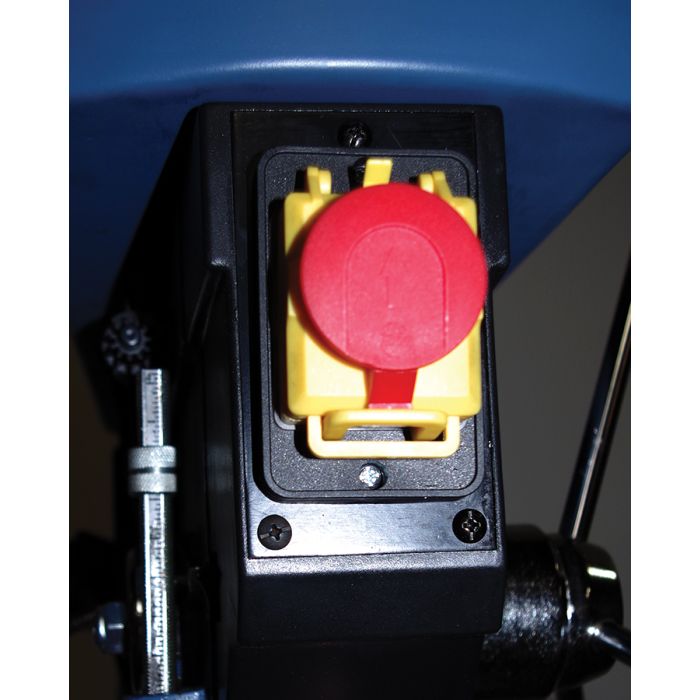

• Line interrupt switch requires manual start in the event of a power loss.
• Spindle is supported by high quality sealed ball bearings.
• LED lamp provides a well lit work area.
• Table rotates 360° and tilts 45°.
• Crank operation moves table up and down with locking clamp.

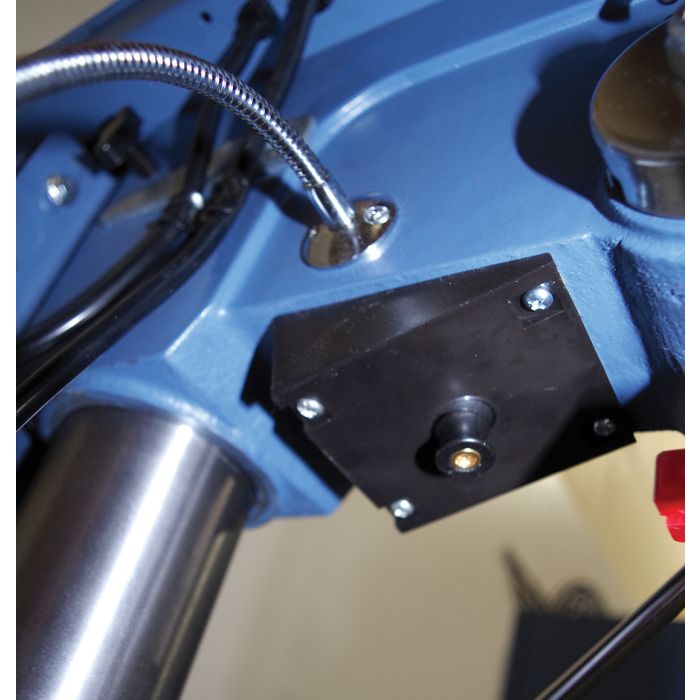

• Laser pointer is built-in for precise repeat drilling.

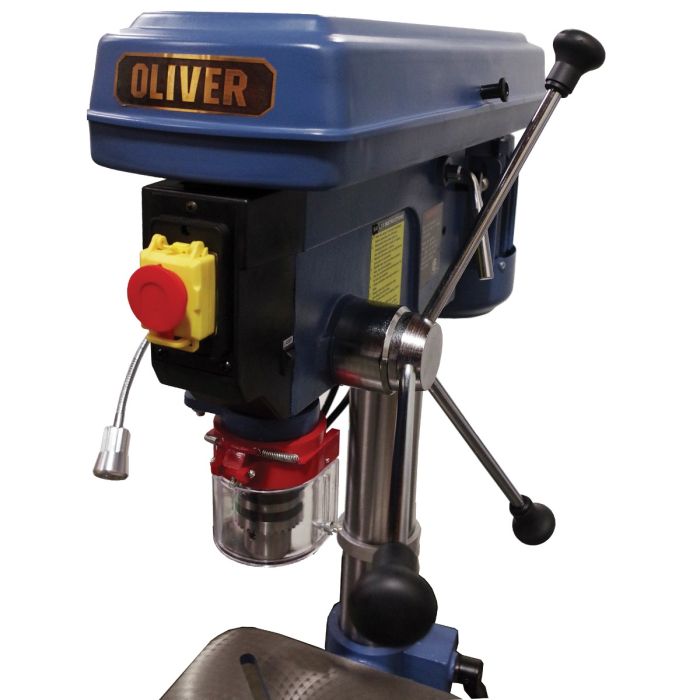

• Drill chuck guard included.
• 5/8”chuck and key holder included.

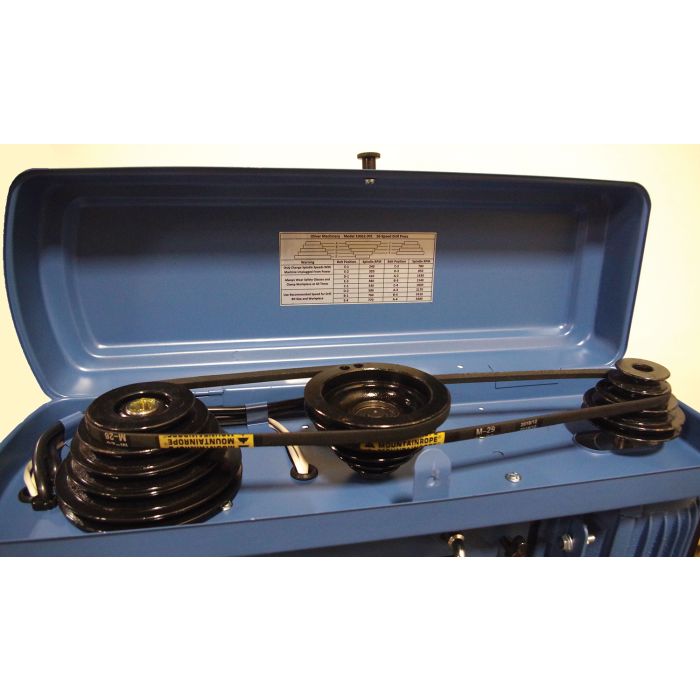

• Cast iron pulleys reduce vibration.
• Positive depth stop allows repeated operations with ease.
• Powerful 3/4 HP Motor.

Specifications

• Type: 17” Floor
• Swing: 17”
• Drilling Capacity: 3/4”
• Chuck Capacity: 5/8”
• Chuck Taper: JT-3
• Table Size: 12” x 12”
• Table Tilt: +/- 45°
• Spindle Taper: MT-2
• Spindle Travel: 3-1/8”
• Spindle Speeds: 16
• Speed Range RPM: 240 to 3,400
• Spindle to Table: 28”
• Spindle to Base: 48-1/2”
• Column Diameter: 3-1/8”
• Base Size: 11-3/4” x 19-5/8”
• Overall Height: 64-1/2”
• Motor: 3/4HP 1Ph 115V (12 Amps)
• Net Weight: 200 lbs.
• Gross Weight: 215 lbs.
