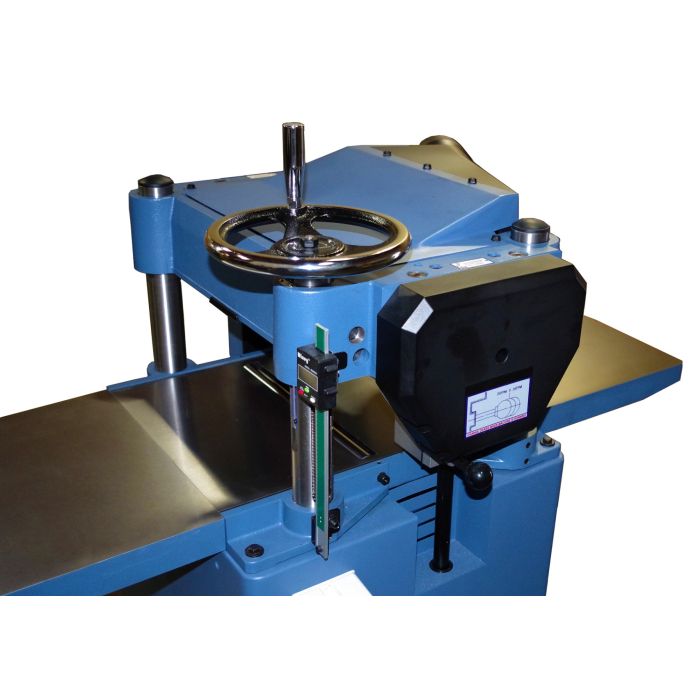

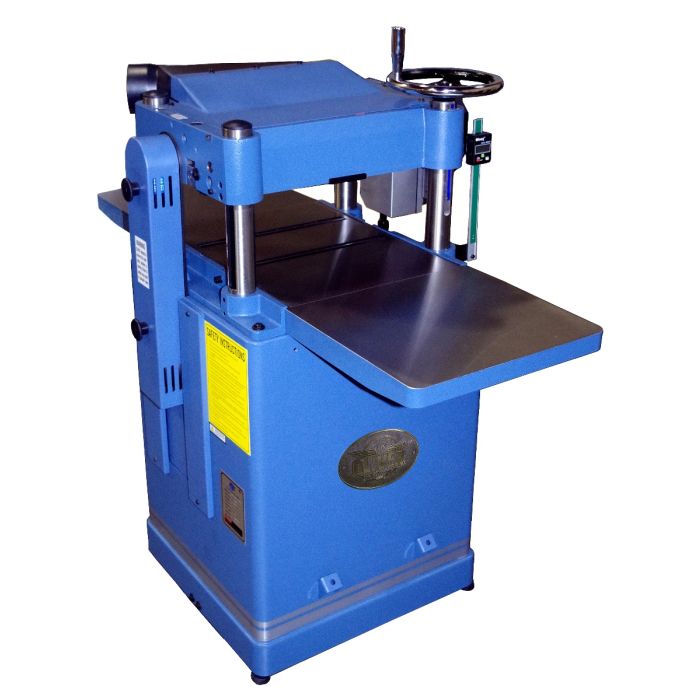

15” Planer with HCX Helical Cutterhead 3Hp Single-Phase

Introducing the Oliver 15" Planer, a powerful and innovative tool designed for woodworkers who demand precision and durability. This planer features a unique design that allows the motor and cutter head to move in unison, ensuring consistent performance. The Oliver HCX Helical Cutterhead, equipped with premium carbide inserts, delivers superior cutting quality with easy-to-replace, four-sided inserts. With a robust cast iron construction and precision-ground tables, this planer provides a stable and smooth feeding surface. The Wixey digital readout allows for precise thickness settings, while the two-speed feed gearbox enhances cutting efficiency. Built-in heavy-duty casters ensure mobility, making the Oliver 15" Planer an essential addition to any workshop.

Features

• Unique design allows motor and cutter head to move in unison.
• Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping.
• Oliver HCX Helical cutterhead with premium carbide inserts.
• 4-sided cutting inserts are indexed and easy to replace.
• Heavy cast iron construction including extension wings.
• Table and extensions wings are precision ground for smooth stock feeding.
• Table is fixed allowing easy use of auxiliary stock support.

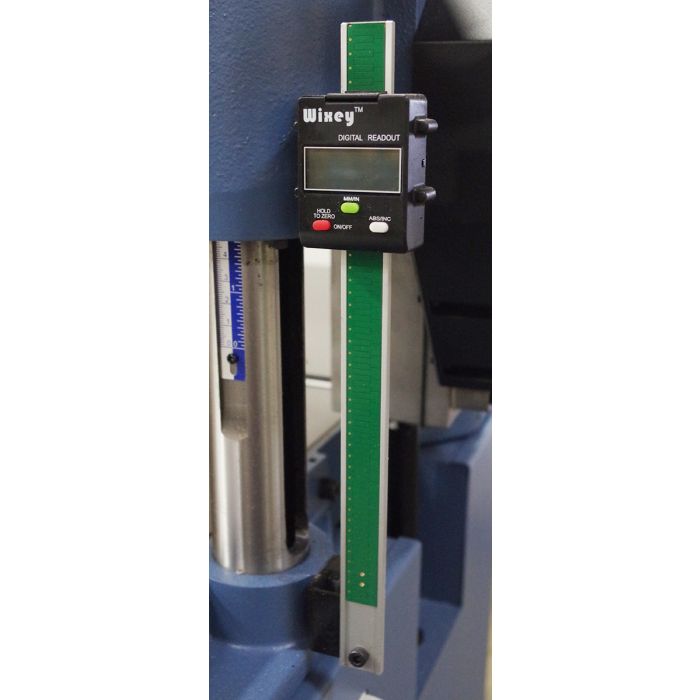

• Wixey digital read out allows precise thickness settings.

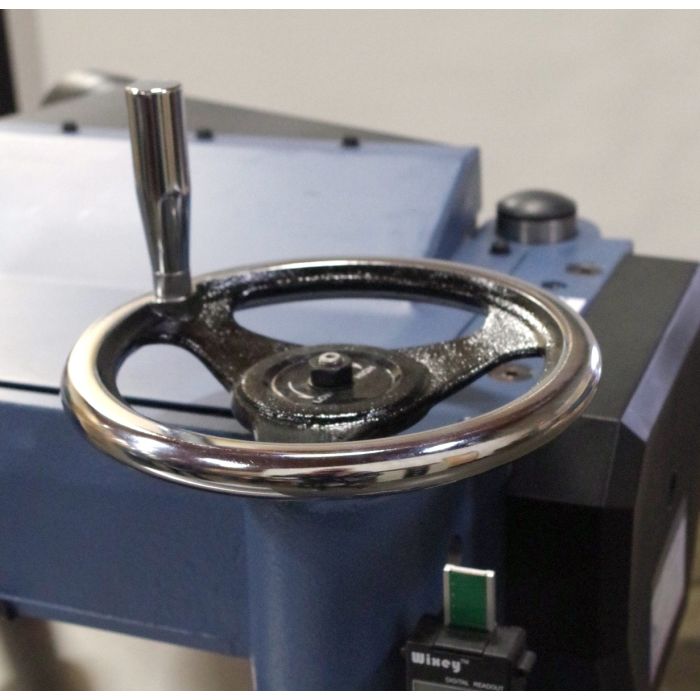

• Large hand wheel and support struts allow easy height adjustment.
• Four-post design ensures head alignment regardless of stock thickness.

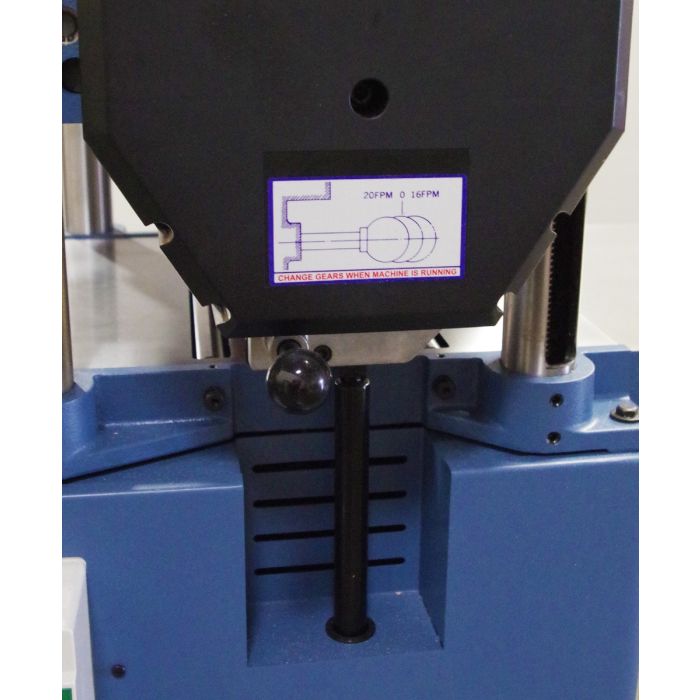

• Two-speed feed gearbox for better cuts.
• Oil bath gear lubrication for years of performance.

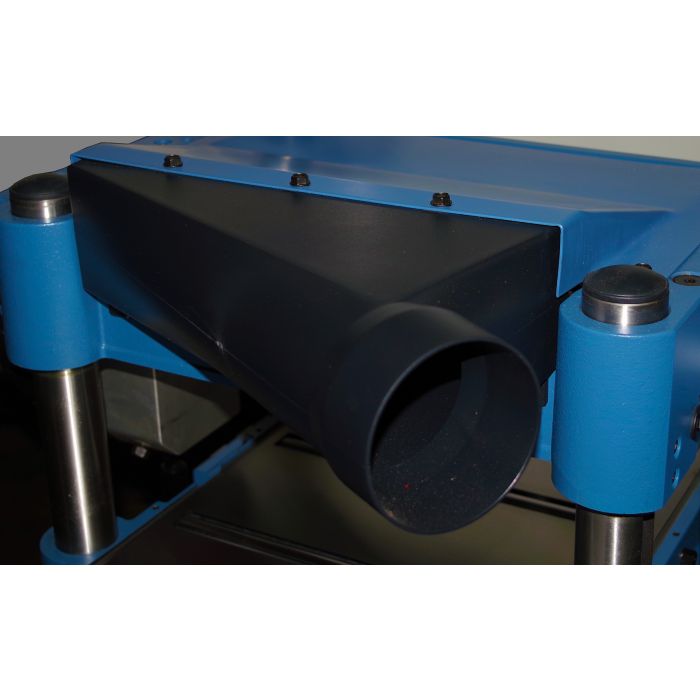

• 4” port allows excellent dust management.

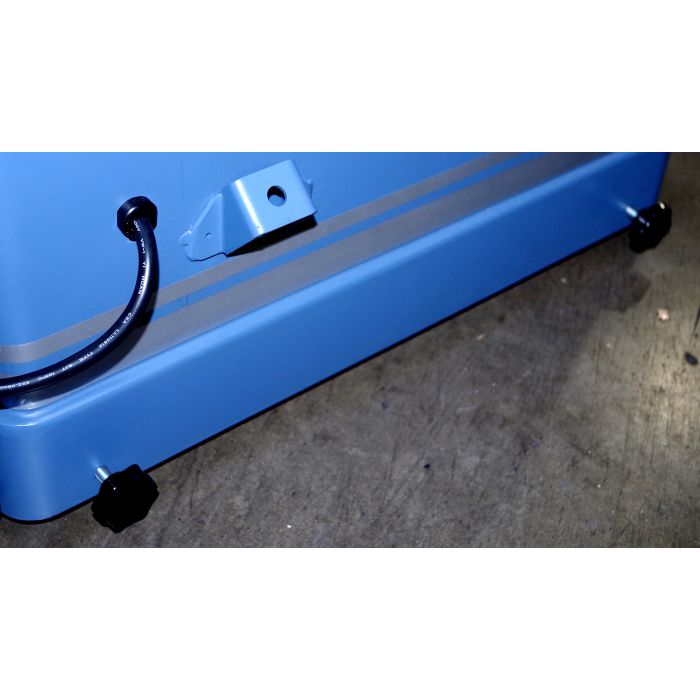

• Built-in heavy-duty casters for mobility.

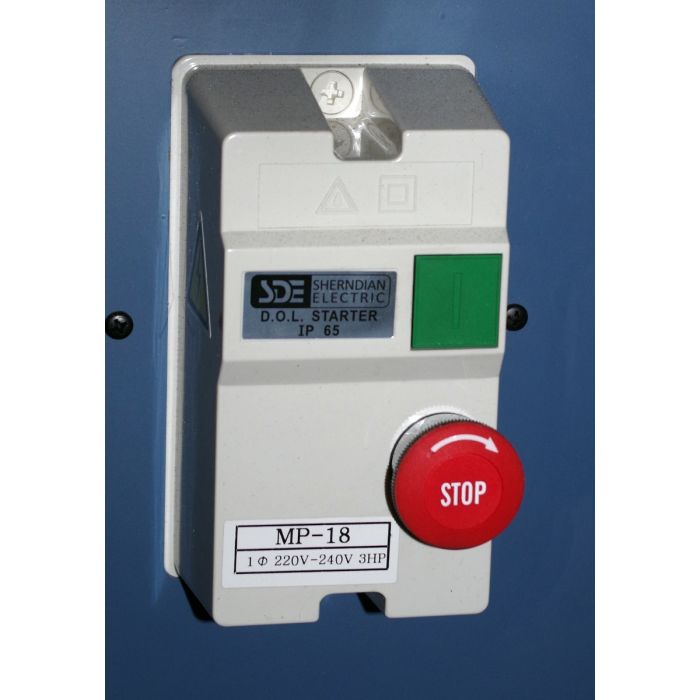

• Magnetic switch for added protection and safety.

Specifications

• Maximum Stock Width: 15"
• Maximum Depth of Cut: 1/8"
• Maximum Stock Thickness: 6"
• Minimum Stock Thickness: 3/16"
• Minimum Stock Length: 6"
• Dust Port Diameter: 4"
• Feed Speeds: 16/20 FPM
• Bed Rollers: 2, Adjustable
• Table Size: 15" x 19-5/8"
• Table Size w/Extension Wings: 15" x 47-5/8"
• Table Height: 30-1/8”
• Cutterhead Diameter: 3"
• Cutterhead Speed: 5,000 RPM
• Number of Knives (helical): 52
• Table Support: 4-Column
• Motor: 3HP, 220V Only (1Ph, 12 Amp)
• Motor 1Ph: 3HP, 220V Only
• Overall Dimensions: 28” x 47-1/2” x 52”
• Net Weight: 401 lbs.
• Gross Weight: 470 lbs.
