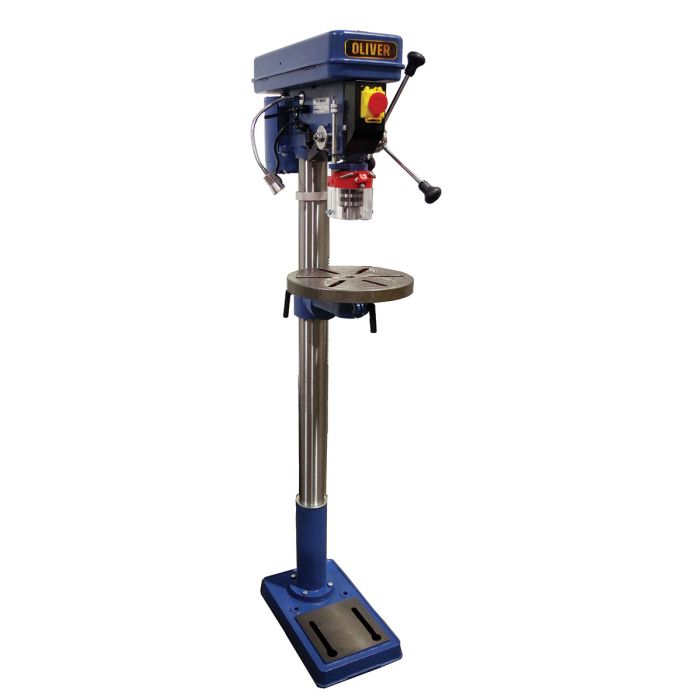

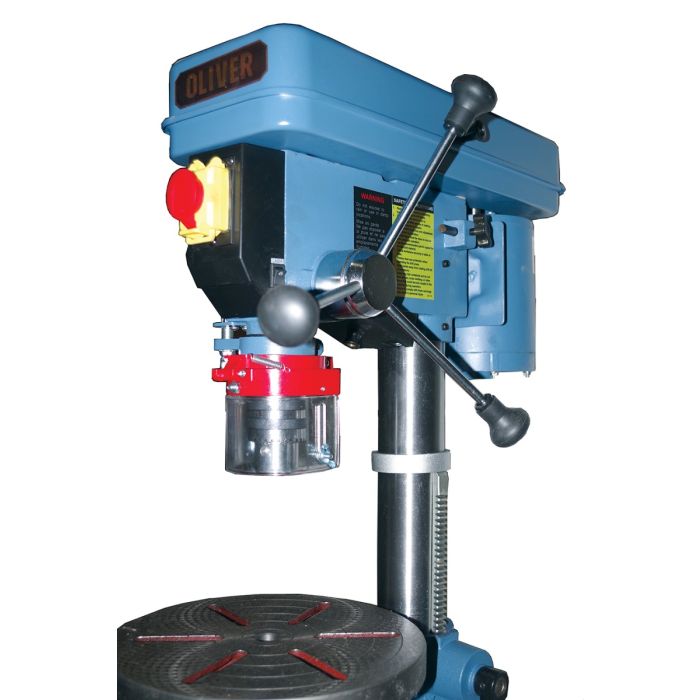

14” Swing Floor Model Drill Press

Elevate your drilling capabilities with the Oliver 14" Floor Model Drill Press. Designed for both precision and durability, this powerful drill press features a robust 1/2 HP motor and a swing of 13-1/4”, making it perfect for a wide range of drilling applications. The table rotates 360° and tilts up to 45°, providing flexibility and ease of use for various workpieces. With a built-in laser pointer for accurate repeat drilling and an LED lamp to illuminate your workspace, you can work efficiently and safely. The line interrupt switch ensures manual operation after a power loss, while the positive depth stop allows for consistent drilling depths. Constructed with high-quality sealed ball bearings and cast iron pulleys to minimize vibration, the Oliver 14" Floor Model Drill Press is an essential tool for any serious woodworker or metalworker.

Features

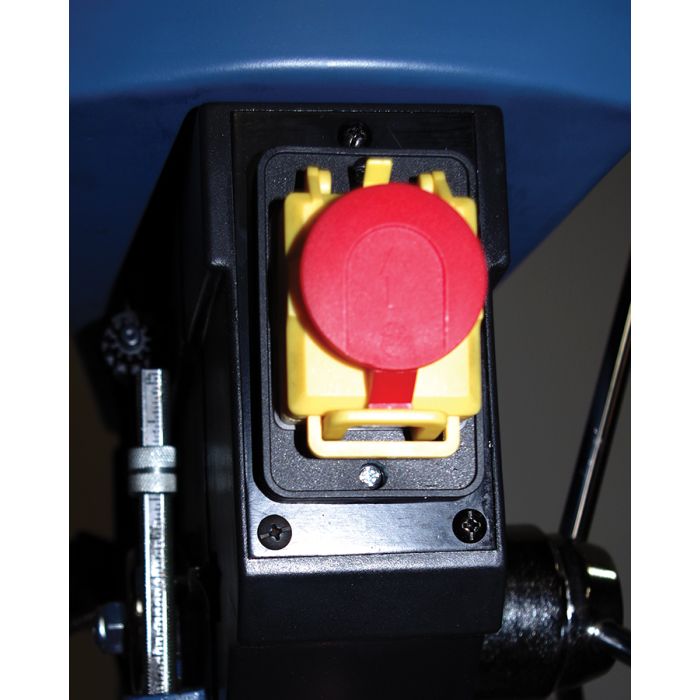

• Line interrupt switch requires manual start in the event of a power loss.
• Spindle is supported by high quality sealed ball bearings.
• LED lamp provides a well lit work area.
• Table rotates 360° and tilts 45°.
• Crank operation moves table up and down with locking clamp.

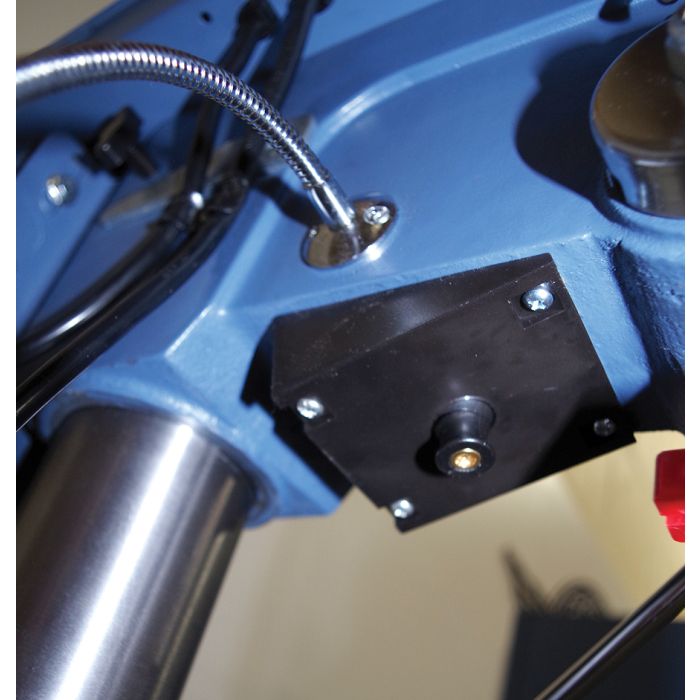

• Laser pointer is built-in for precise repeat drilling.

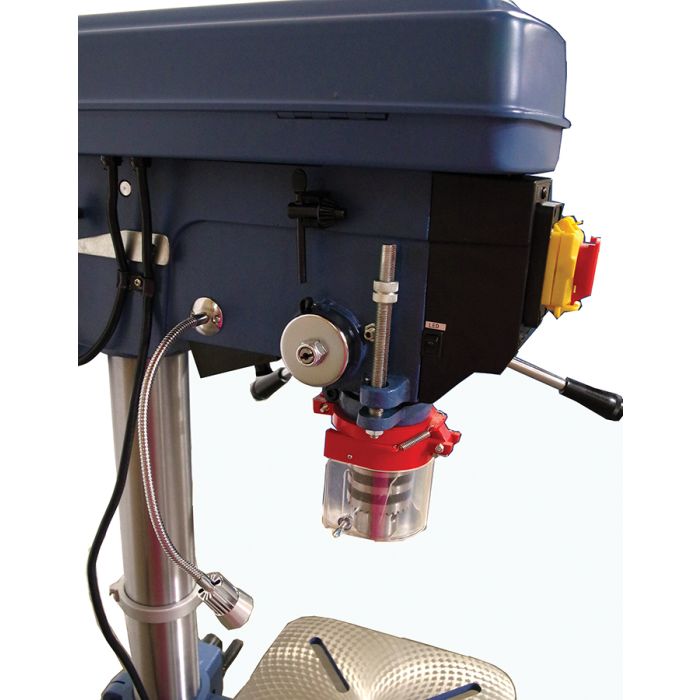

• Drill chuck guard included.
• 5/8”chuck and key holder included.

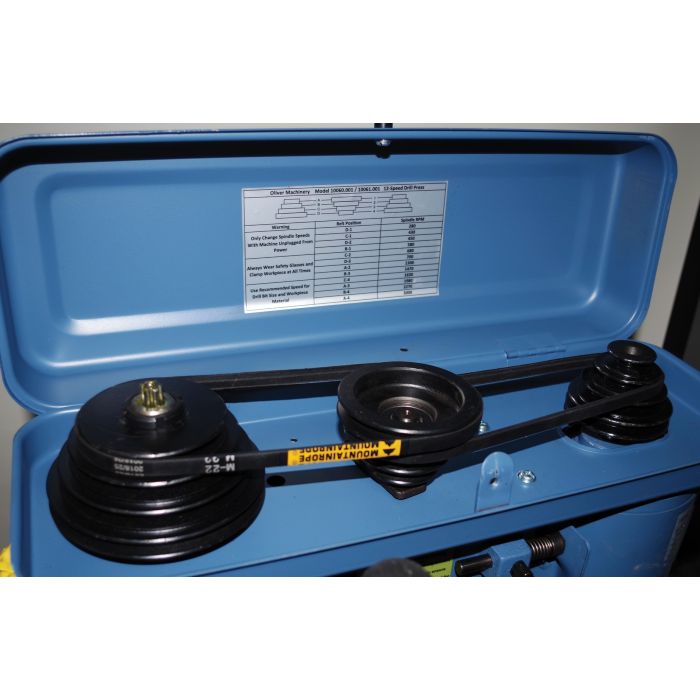

• Cast iron pulleys reduce vibration.
• Positive depth stop allows repeated operations with ease.
• Powerful 1/2 HP Motor.

Specifications

• Type: 14” Floor
• Swing: 13-1/4”
• Drilling Capacity: 3/4”
• Chuck Capacity: 5/8”
• Chuck Taper: JT-3
• Table Size: 11-1/2” Round
• Table Tilt: +/- 45°
• Spindle Taper: MT-2
• Spindle Travel: 3-1/8"
• Spindle Speeds: 12
• Speed Range RPM: 280 to 3,000
• Spindle to Table: 31-1/2”
• Spindle to Base: 48-1/2”
• Column Diameter: 2-7/8”
• Base Size: 10-1/2” x 16-3/4”
• Overall Height: 62”
• Motor: 1/2HP, 1Ph 115V (8 Amps)
• Net Weight: 126 lbs.
• Gross Weight: 135 lbs.
