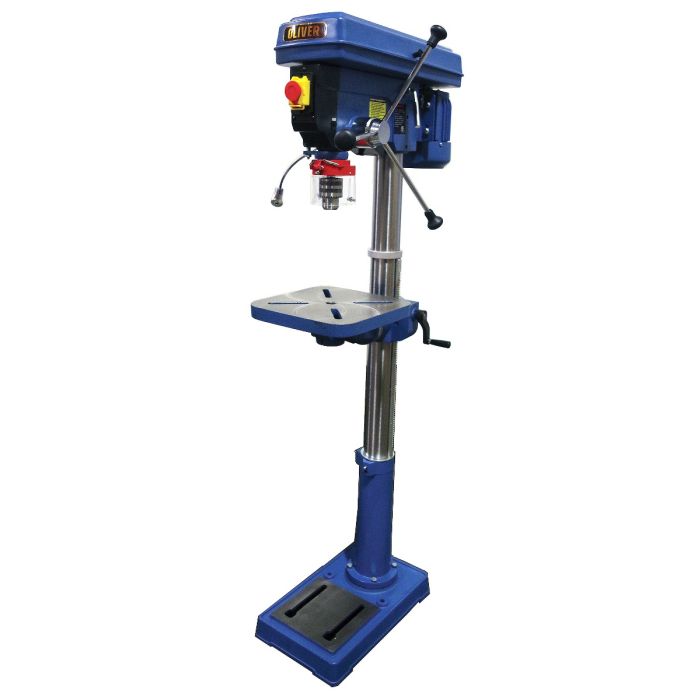

14” Swing Bench Model Drill Press

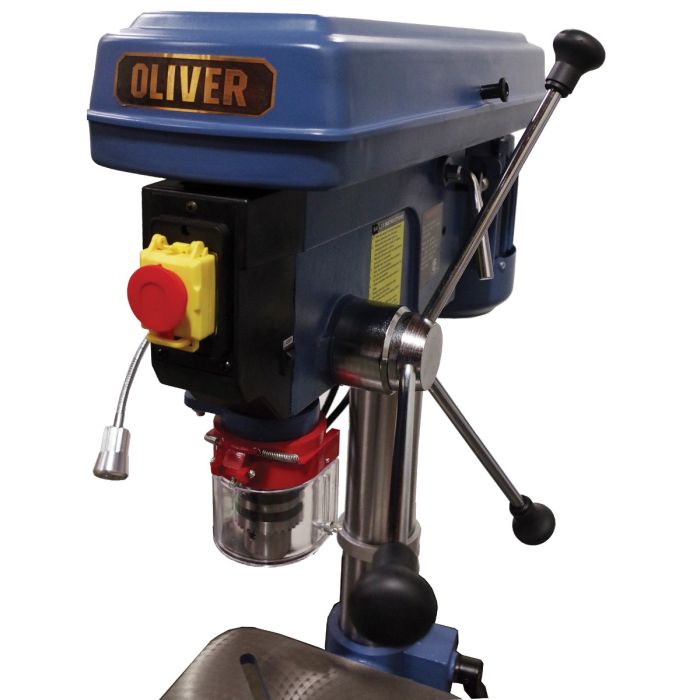

Enhance your workshop with the Oliver 14" Benchtop Drill Press, designed for precision and versatility. This powerful drill press features a robust 1/2 HP motor and a swing of 13-1/4”, making it ideal for a variety of drilling tasks. The table rotates 360° and tilts up to 45°, allowing for flexible positioning and easy access to your workpiece. Equipped with a built-in laser pointer for accurate repeat drilling and a line interrupt switch for safety, this drill press ensures both efficiency and security. The LED lamp illuminates your workspace, while the positive depth stop allows for consistent drilling depths. With its durable construction and high-quality sealed ball bearings, the Oliver 14" Benchtop Drill Press is the perfect addition to any serious woodworker's toolkit.

Features

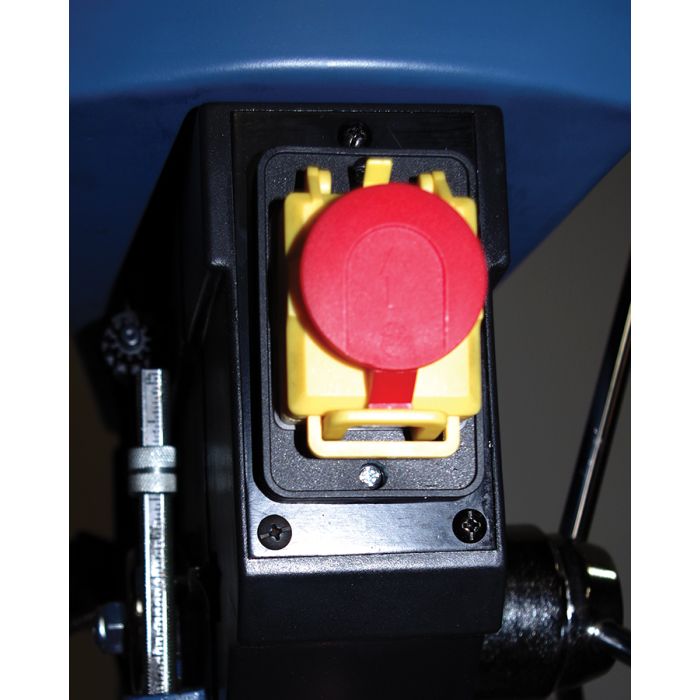

• Line interrupt switch requires manual start in the event of a power loss.
• Spindle is supported by high quality sealed ball bearings.
• LED lamp provides a well lit work area.
• Table rotates 360° and tilts 45°.
• Crank operation moves table up and down with locking clamp.

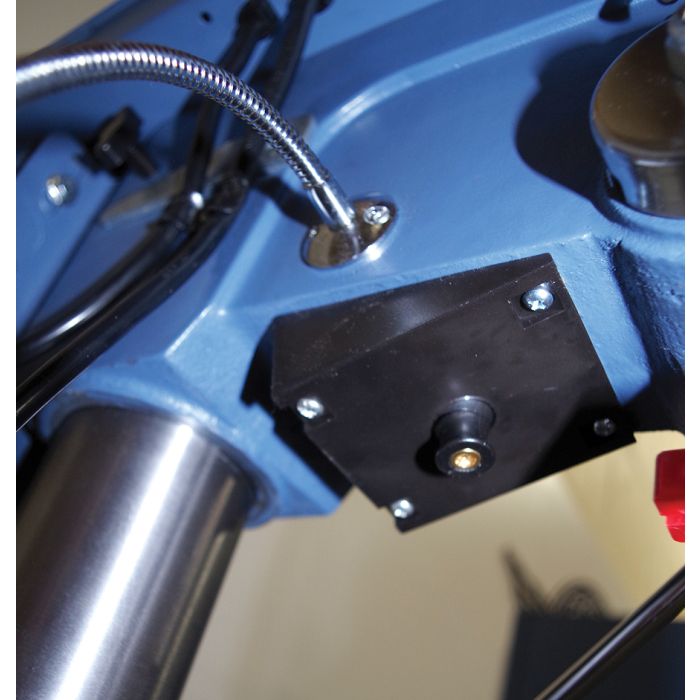

• Laser pointer is built-in for precise repeat drilling.
• Drill chuck guard included.
• 5/8”chuck and key holder included.

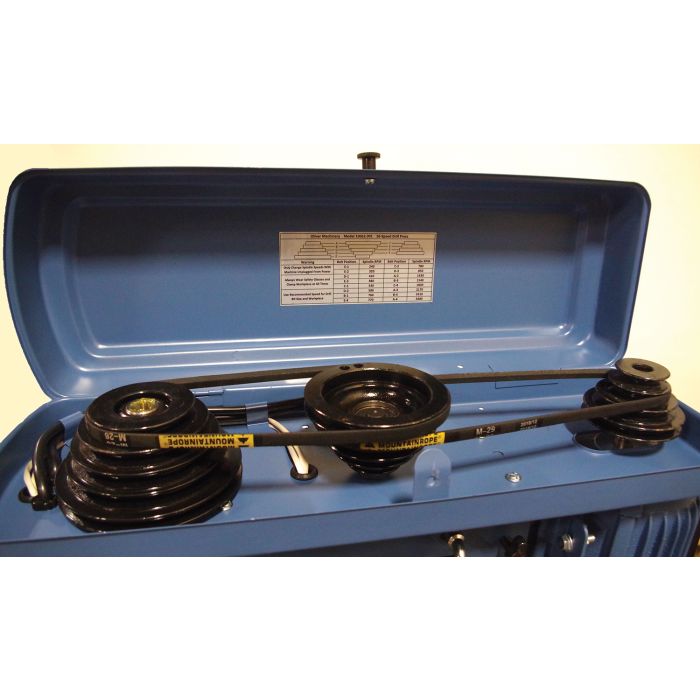

• Cast iron pulleys reduce vibration.
• Positive depth stop allows repeated operations with ease.
• Powerful 1/2 HP Motor.

Specifications

• Type: 14” Bench
• Swing: 13-1/4”
• Drilling Capacity: 3/4”
• Chuck Capacity: 5/8”
• Chuck Taper: JT-3
• Table Size: 11-1/2” Round
• Table Tilt: +/- 45°
• Spindle Taper: MT-2
• Spindle Travel: 3-1/8”
• Spindle Speeds: 12
• Speed Range RPM: 280 to 3,000
• Spindle to Table: 17-3/4”
• Spindle to Base: 25-1/4”
• Column Diameter: 2-7/8”
• Base Size: 9-5/8” x 16-3/4”
• Overall Height: 38-1/2”
• Motor: 1/2HP, 1Ph 115V (8 Amps)
• Net Weight: 105 lbs.
• Gross Weight: 120 lbs.
