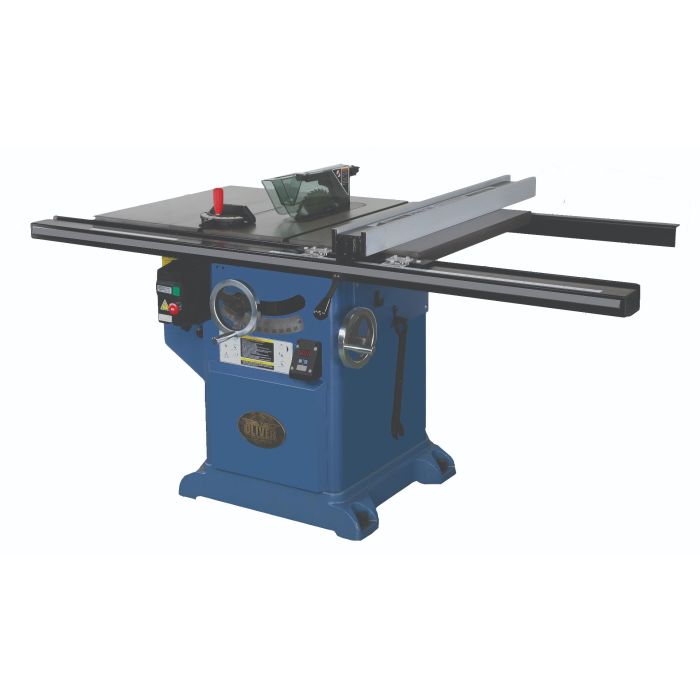

12” Heavy-Duty Table Saw with 36” Rail

Overview

Discover the ultimate woodworking companion with the Oliver 12" Table Saw. Engineered for precision and built to last, this powerful table saw features a spacious cast iron table, advanced dust management, and a robust 5HP motor. Whether you're tackling intricate projects or large sheets of material, the Oliver Table Saw delivers exceptional performance and safety. Elevate your craftsmanship and achieve flawless cuts with ease—perfect for both professional woodworkers and dedicated hobbyists.

Features

• Large precision ground table provides a stable work surface.
• Cast iron base offers a steady platform.

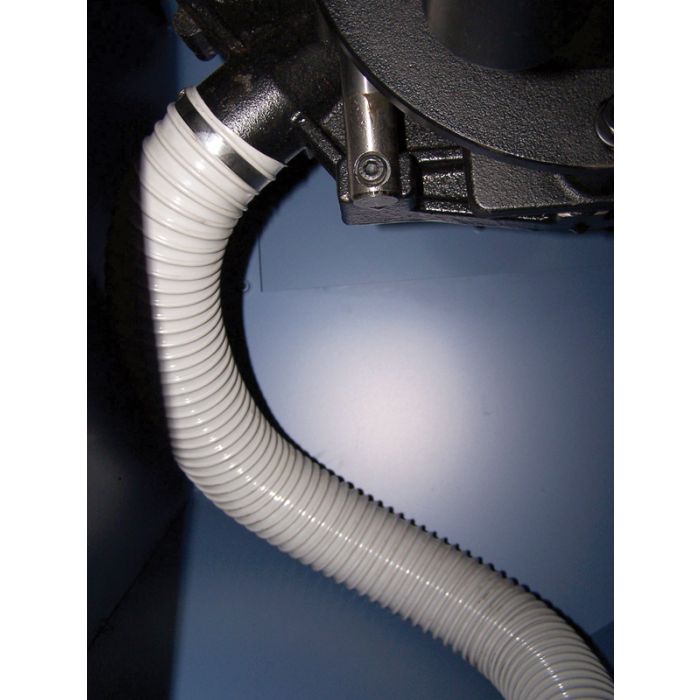

• Fully enclosed cabinet and blade dust shroud for better dust management.
• Precision ground 1” arbor.
• Wide stance trunnion features a left tilt blade.
• Poly V-belt drive smoothly transfers power to the blade.
• Hydraulic assisted blade lift mechanism for easy movement.
• Large chrome hand wheels allow easy movement./

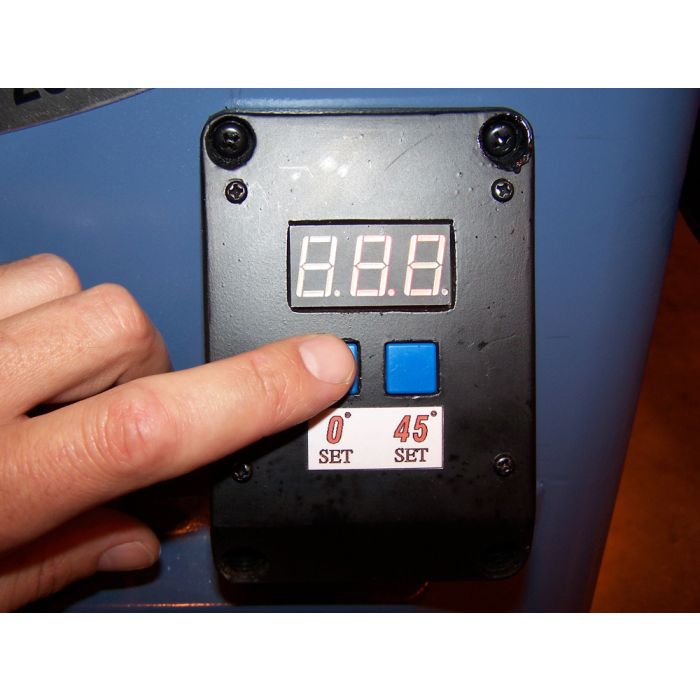

• Includes digital readout of blade tilt.

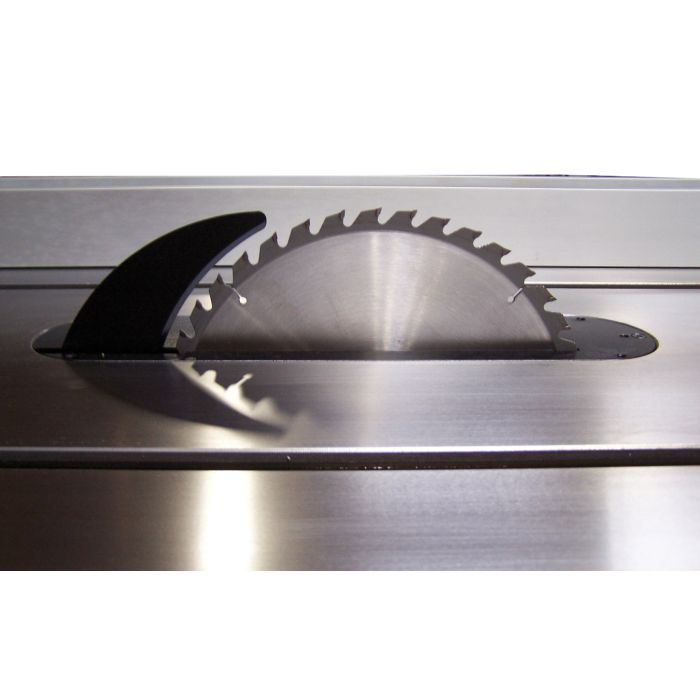

• Riving knife splitter for added safety against kick-back.
• Optimus T-square fence available in 36” rip capacity.
• 36” rail includes (2) cast iron extension wings.
• Optional rear support table available.
• Magnetic controls with emergency off switch.

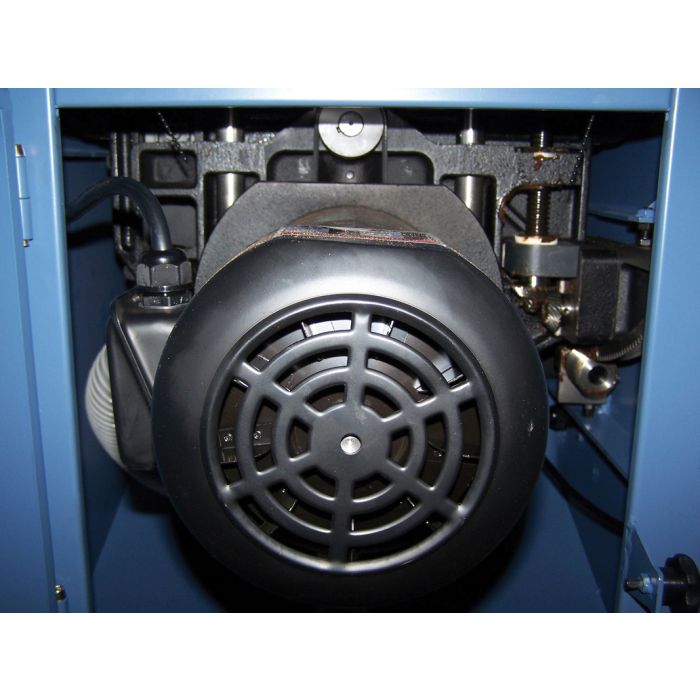

• Powerful TEFC motor available in single phase.

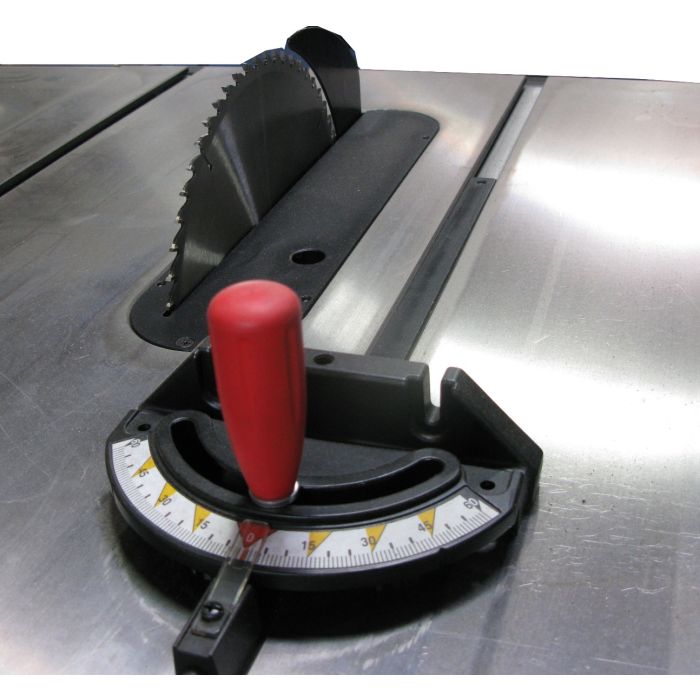

• Miter gauge included.

Specifications

• Rail Length: 36" Rail
• Blade Diameter: 12" - 40 tooth blade included
• Arbor Diameter: 1”
• Blade Tilt: Left
• Arbor Speed: 3,450 RPM
• Maximum Depth of Cut at 90°: 4"
• Maximum Depth of Cut at 45°: 2-2/3"
• Maximum Width of Dado: 13/16"
• Maximum Cut to Right of Blade: 36” Rail
• Maximum Cut to Left of Blade: 12"
• Dust Port Diameter: 4"
• Table Dimensions w/o Extensions: 30-3/4”D x 24”W
• Wing Size: 30-3/4” x 12”
• Table Height: 36"
• Motor 1Ph: 5HP, 1Ph, 220V Only (18 Amp)
• Motor 3Ph: 7.5HP, 3Ph, 220V/440V* Prewired 220V (20/10 Amp)
• Overall Dimensions: 75”L x 45”W x 41”H
• Net Weight: 550 lbs.
• Gross Weight: 750 lbs.
