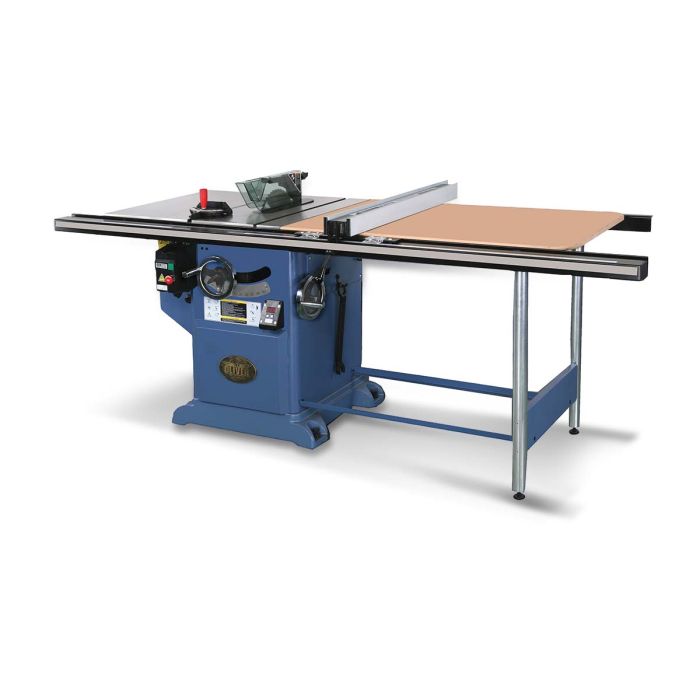

10” Heavy-Duty Table Saw with 52” Rail

Overview

Introducing the Oliver Table Saw, a robust and precision-engineered tool designed for serious woodworkers seeking stability and performance. Featuring a large precision ground table, this saw provides a stable work surface for all your cutting needs. The cast iron base ensures a steady platform, while the fully enclosed cabinet and blade dust shroud enhance dust management for a cleaner workspace. With a left tilt blade and a wide stance trunnion, this saw offers superior control and safety, complemented by a riving knife splitter to prevent kick-back. The hydraulic-assisted blade lift mechanism and large chrome hand wheels allow for easy adjustments, and the included digital readout of blade tilt ensures accuracy. The Optimus T-square fence provides a generous 52” rip capacity, making this table saw an essential addition to any professional workshop.

Features

• Large precision ground table provides a stable work surface.
• Cast iron base offers a steady platform.

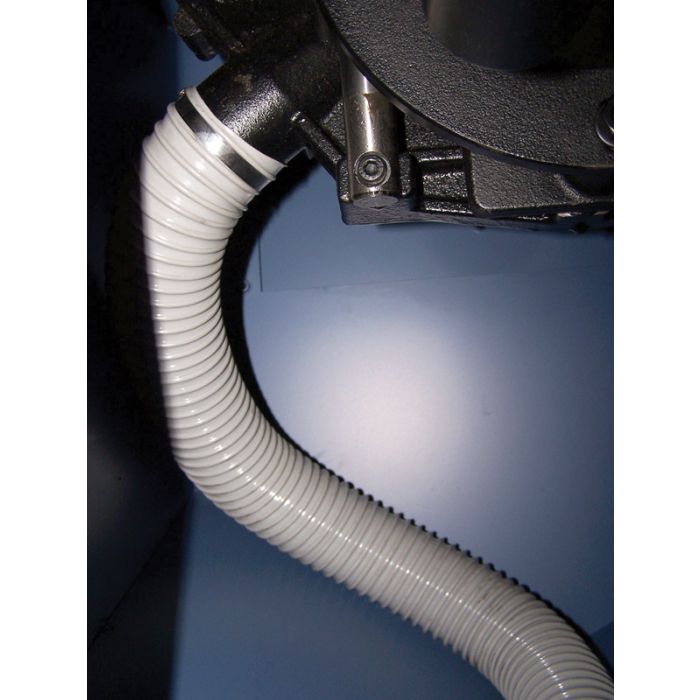

• Fully enclosed cabinet and blade dust shroud for better dust management.
• Precision ground 5/8” arbor.
• Wide stance trunnion features a left tilt blade.
• Poly V-belt drive smoothly transfers power to the blade.
• Hydraulic assisted blade lift mechanism for easy movement.
• Large chrome hand wheels allow easy adjustments.

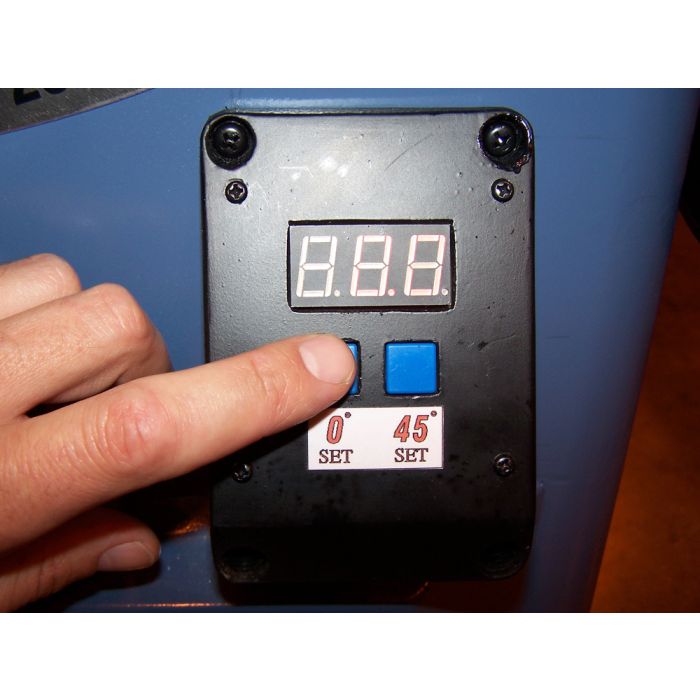

• Includes digital readout of blade tilt.

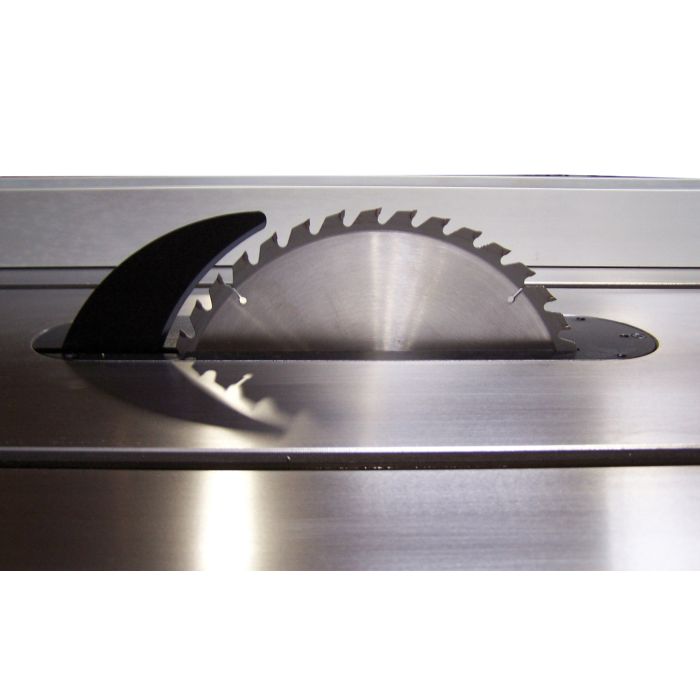

• Riving knife splitter for added safety against kick-back.
• Optimus T-square fence available in 52” rip capacity.
• 52” rail includes wood side table and (1) cast iron extension wing.

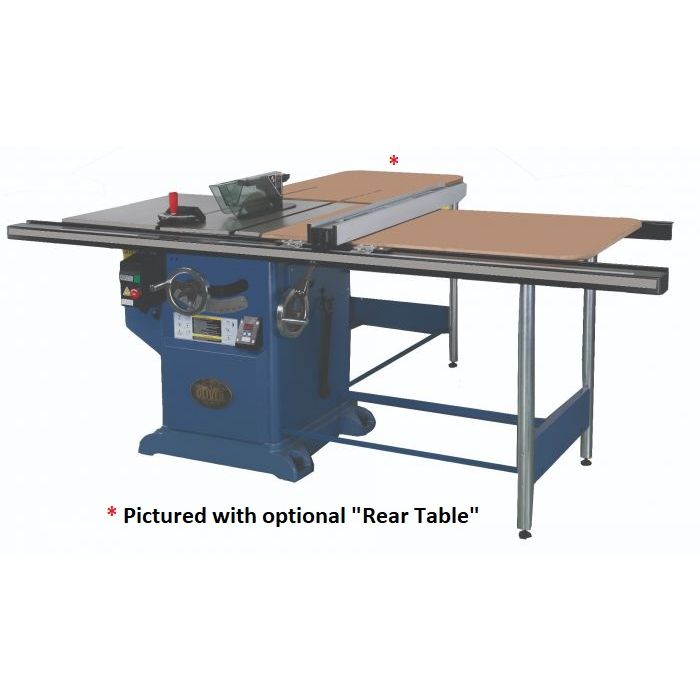

• Optional rear support table available (pictured)
• Magnetic controls with emergency off switch.

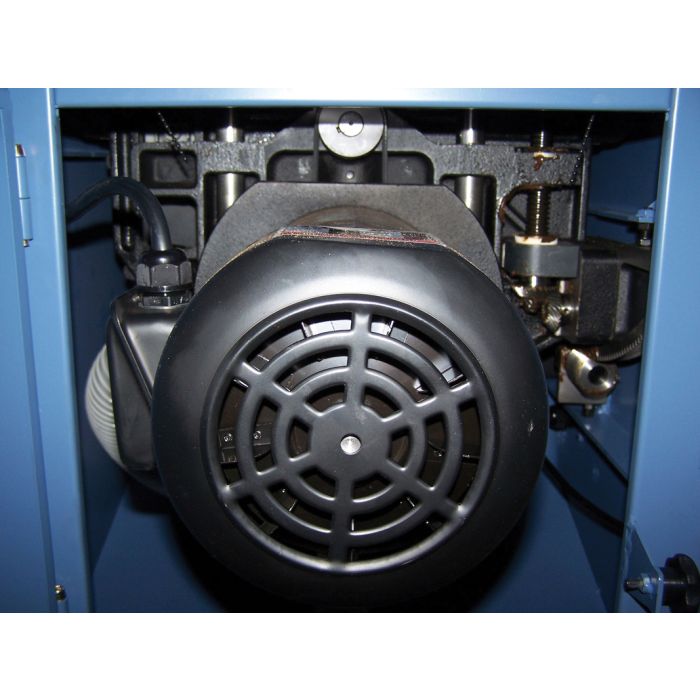

• Powerful TEFC motor available in single phase.

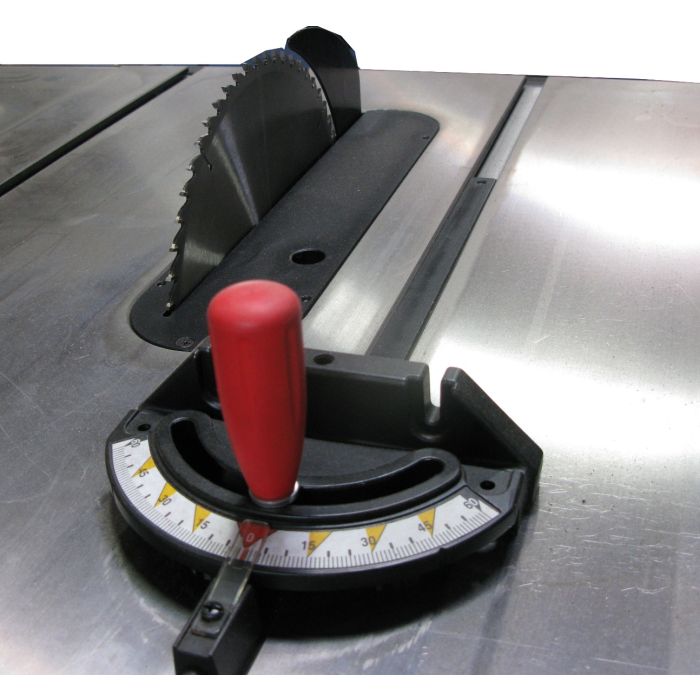

• Miter gauge included.

Specifications

• Rail Length: 52" Rail
• Blade Diameter: 10" - 40 tooth blade included
• Arbor Diameter: 5/8"
• Blade Tilt: Left
• Arbor Speed: 3,450 RPM
• Maximum Depth of Cut at 90°: 3"
• Maximum Depth of Cut at 45°: 2-1/4"
• Maximum Width of Dado: 13/16"
• Maximum Cut to Right of Blade: 52” with side table
• Maximum Cut to Left of Blade: 12"
• Dust Port Diameter: 4"
• Table Dimensions w/o Extensions: 27”D x 21-1/4”W
• Wing Size: 27” x 12”
• Table Height: 36"
• Motor 1Ph: 5HP, 1Ph, 220V Only (18 amps)
• Motor 3Ph: 5HP, 3Ph, 220V/440V* Prewired 220V (15/7.5 Amp)
• Overall Dimensions: 74”L x 32-½”W x 40”H
• Net Weight: 480 lbs.
• Gross Weight: 720 lbs.
