10” Heavy-Duty Table Saw with 36” Rail

Overview

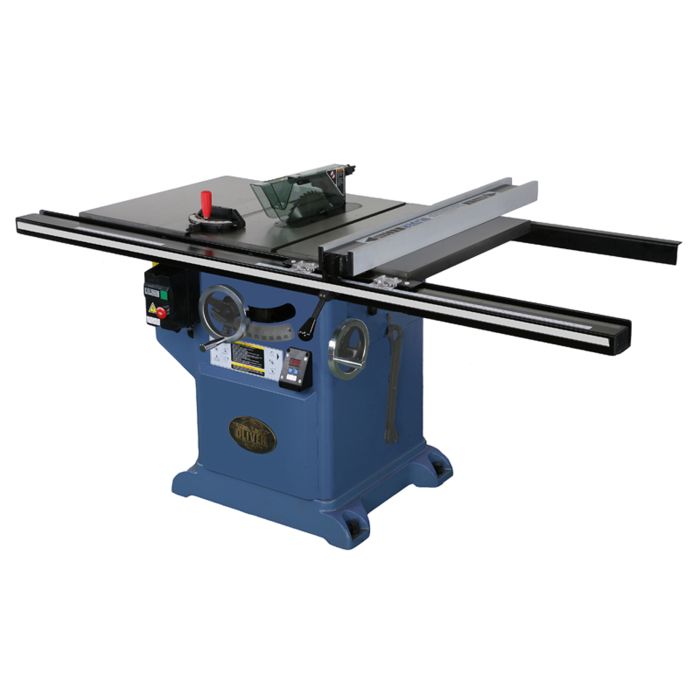

Introducing the Oliver 10" Table Saw, a powerful and precision-engineered tool designed for serious woodworkers. Featuring a large precision ground table and a sturdy cast iron base, this table saw provides a stable work surface for all your cutting needs. The fully enclosed cabinet and blade dust shroud ensure effective dust management, while the hydraulic-assisted blade lift mechanism allows for effortless adjustments. With a left tilt blade and a wide stance trunnion, you can achieve precise cuts with ease. The included Optimus T-square fence offers a generous 36” rip capacity, and safety features like the riving knife splitter and magnetic controls with an emergency off switch provide peace of mind during operation. Experience the reliability and performance of the Oliver 10" Table Saw, perfect for both professional and hobbyist woodworkers alike.

Features

• Large precision ground table provides a stable work surface.
• Cast iron base offers a steady platform.

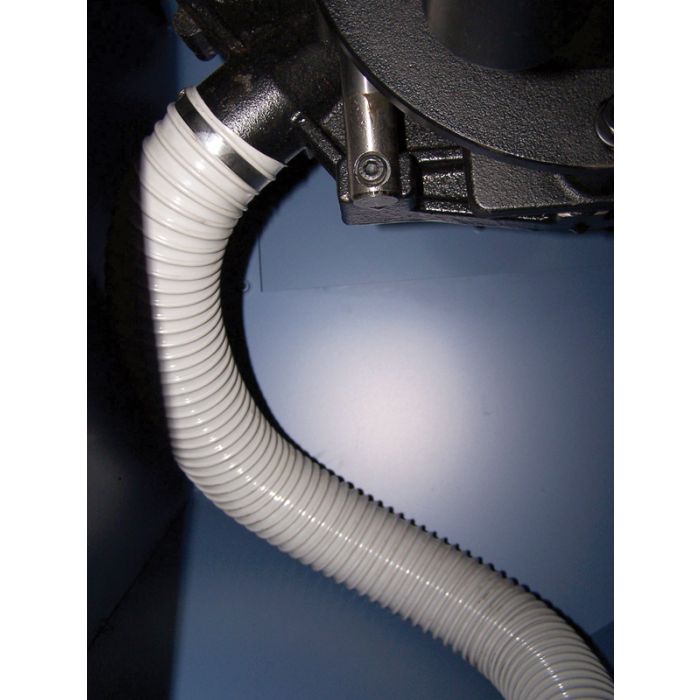

• Fully enclosed cabinet and blade dust shroud for better dust management.
• Precision ground 5/8” arbor.
• Wide stance trunnion features a left tilt blade.
• Poly V-belt drive smoothly transfers power to the blade.
• Hydraulic assisted blade lift mechanism for easy movement.
• Large chrome hand wheels allow easy adjustments.

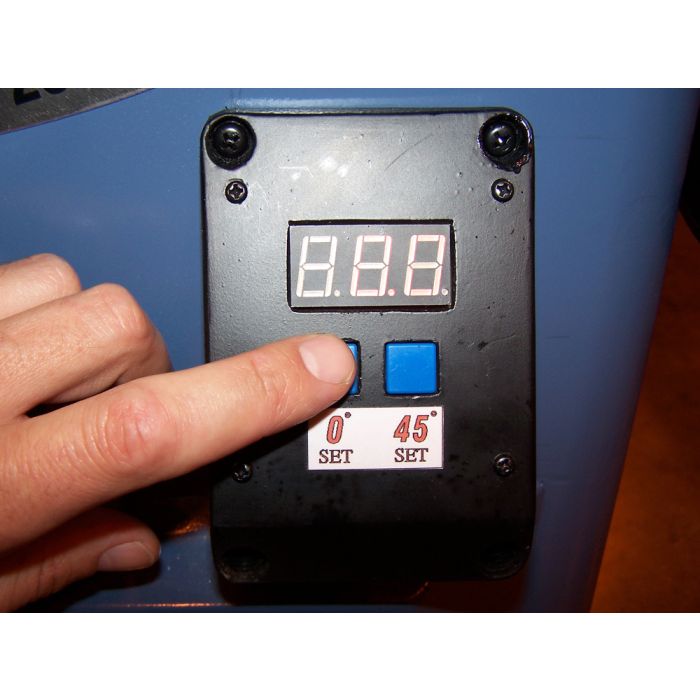

• Includes digital readout of blade tilt.

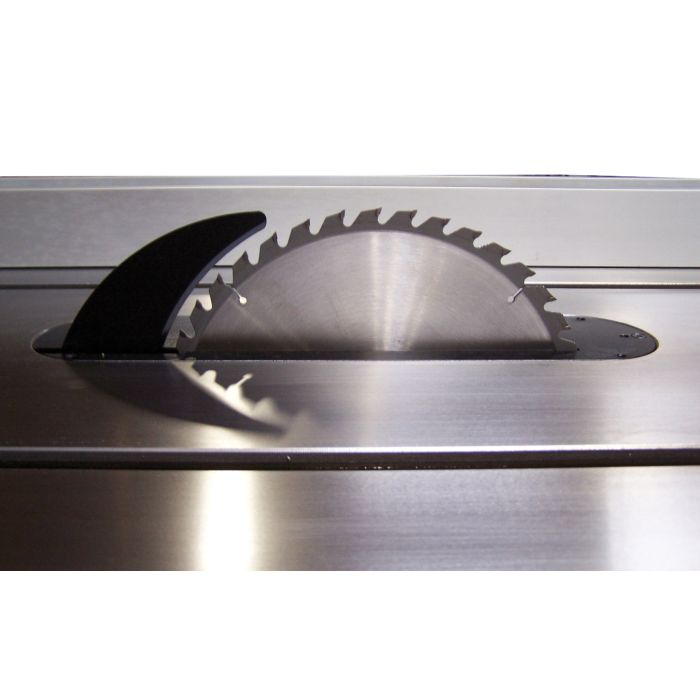

• Riving knife splitter for added safety against kick-back.
• Optimus T-square fence available in 36” rip capacity.
• 36” rail includes (2) cast iron extension wings.
• Optional rear support table available.
• Magnetic controls with emergency off switch.

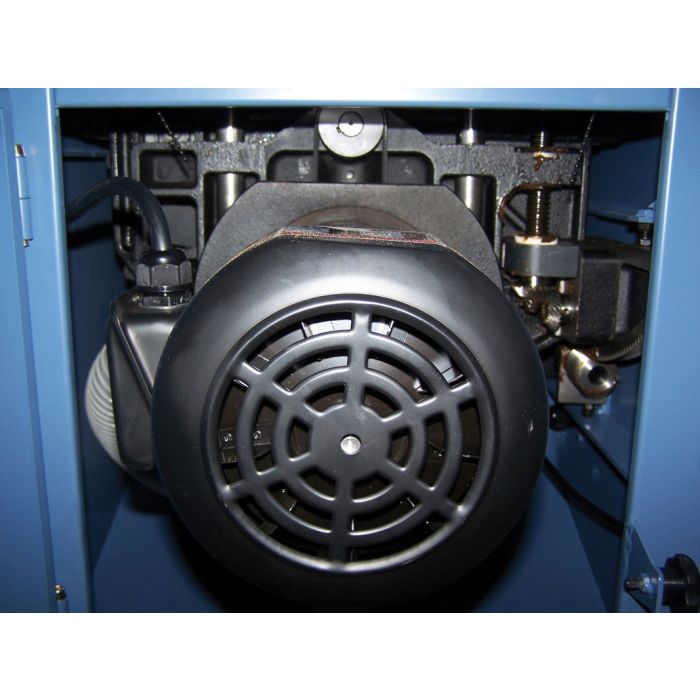

• Powerful TEFC motor available in single phase.

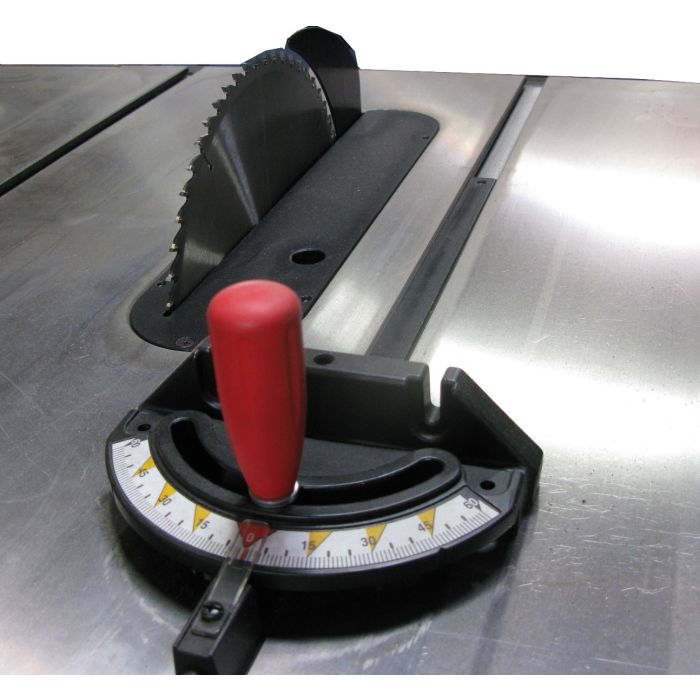

• Miter gauge included.

Specifications

• Rail Length: 36' Rail
• Blade Diameter: 10" - 40 tooth blade included
• Arbor Diameter: 5/8"
• Blade Tilt: Left
• Arbor Speed: 3,450 RPM
• Maximum Depth of Cut at 90°: 3"
• Maximum Depth of Cut at 45°: 2-1/4"
• Maximum Width of Dado: 13/16"
• Maximum Cut to Right of Blade: 36”
• Maximum Cut to Left of Blade: 12"
• Dust Port Diameter: 4"
• Table Dimensions w/o Extensions: 27”D x 21-1/4”W
• Wing Size: 27” x 12”
• Table Height: 36"
• Motor 1Ph: 5HP, 1Ph, 220V Only (18 amps)
• Motor 3Ph: 5HP, 3Ph, 220V/440V* Prewired 220V (15/7.5 Amp)
• Overall Dimensions: 74”L x 32-½”W x 40”H
• Net Weight: 480 lbs.
• Gross Weight: 720 lbs.
