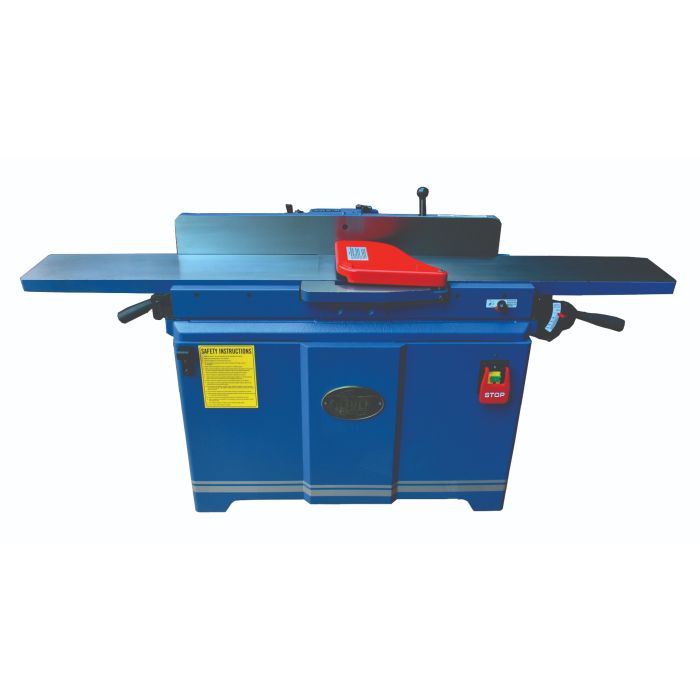

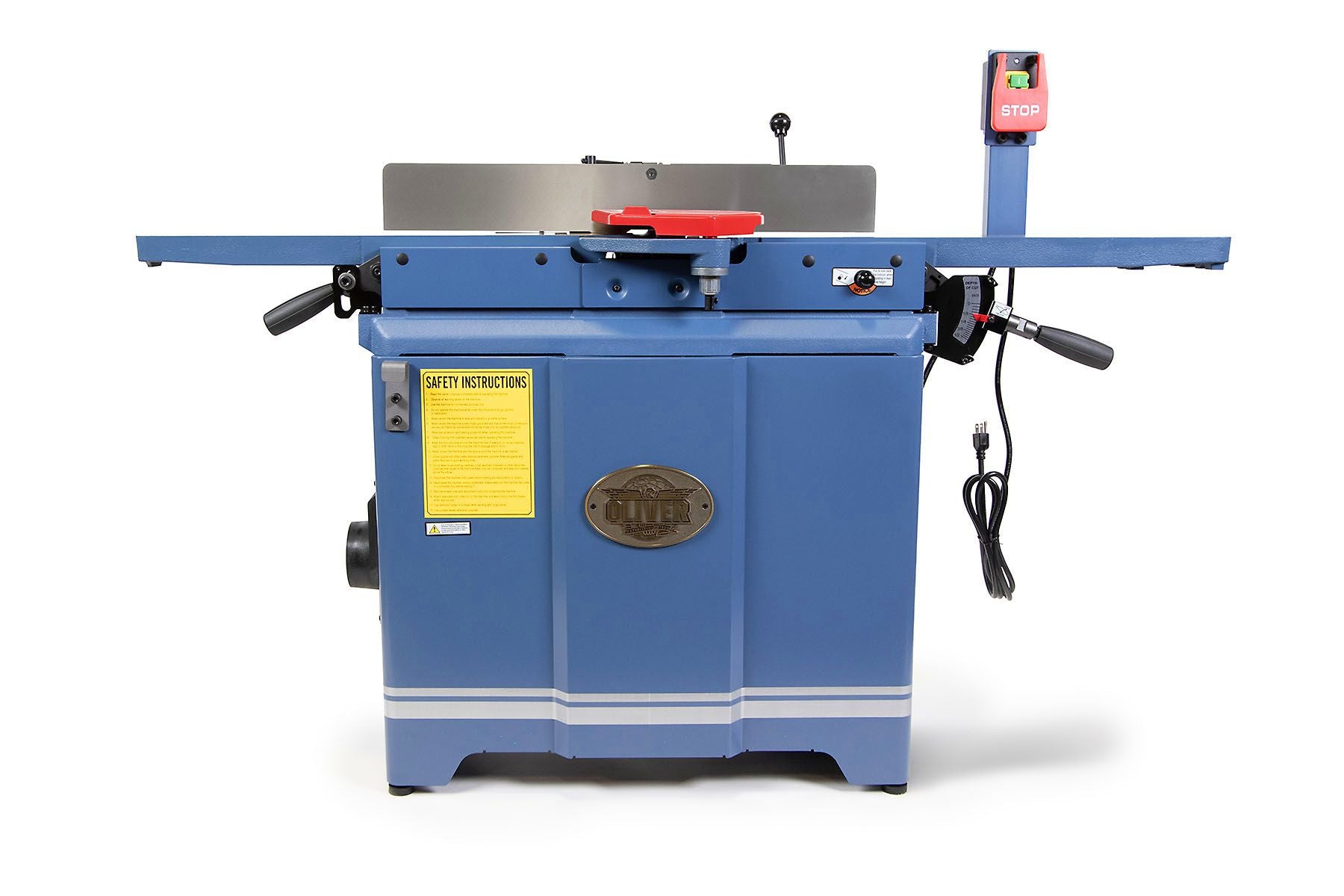

• heavy-duty jointer front view

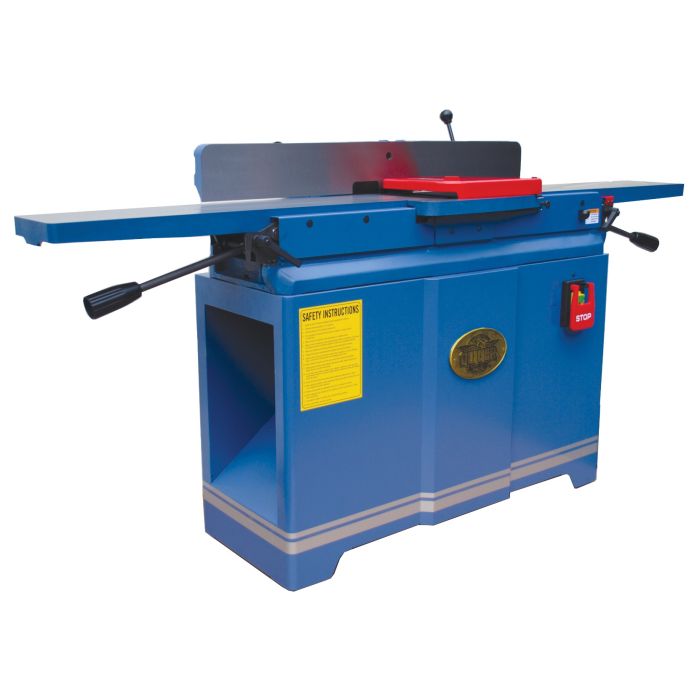

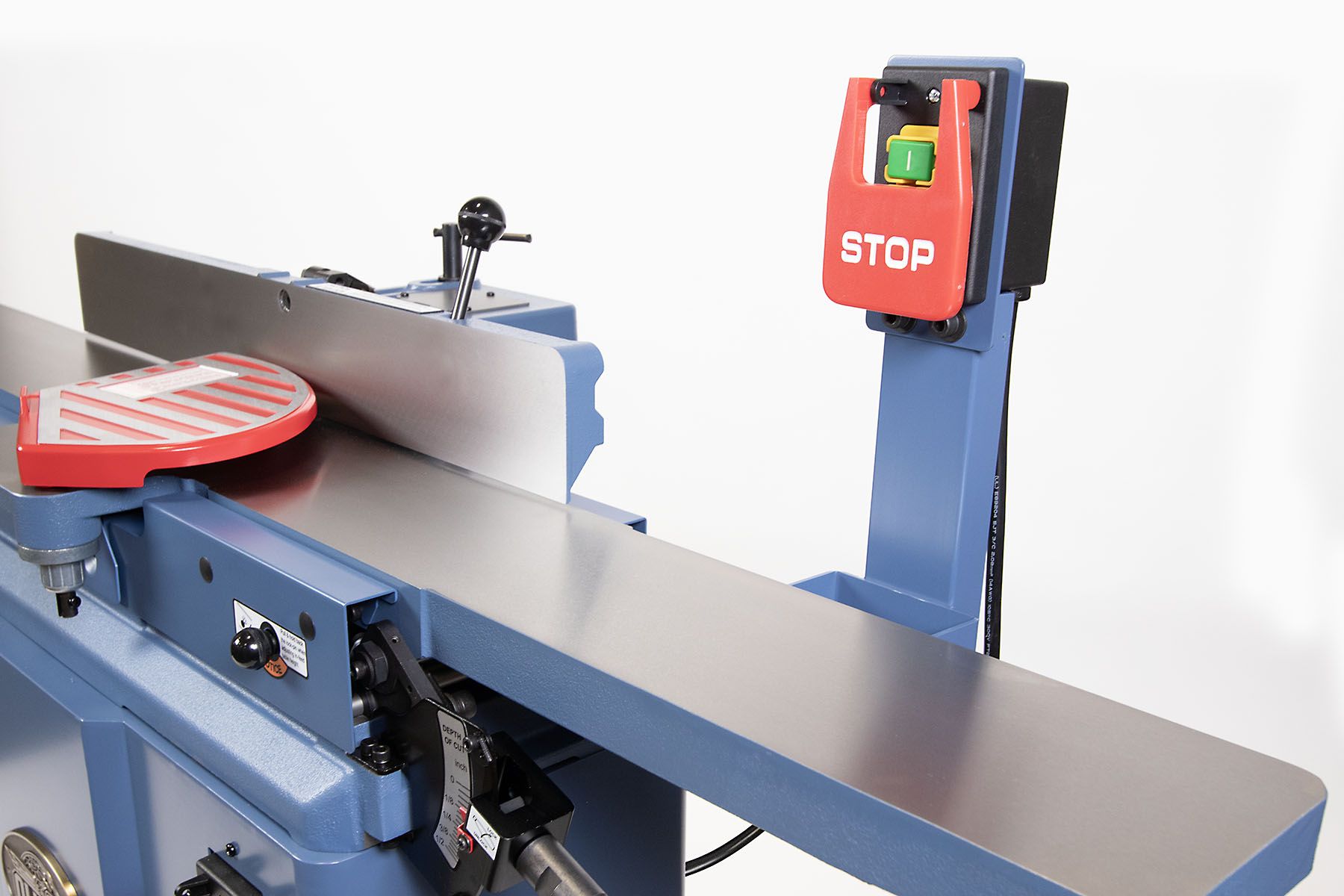

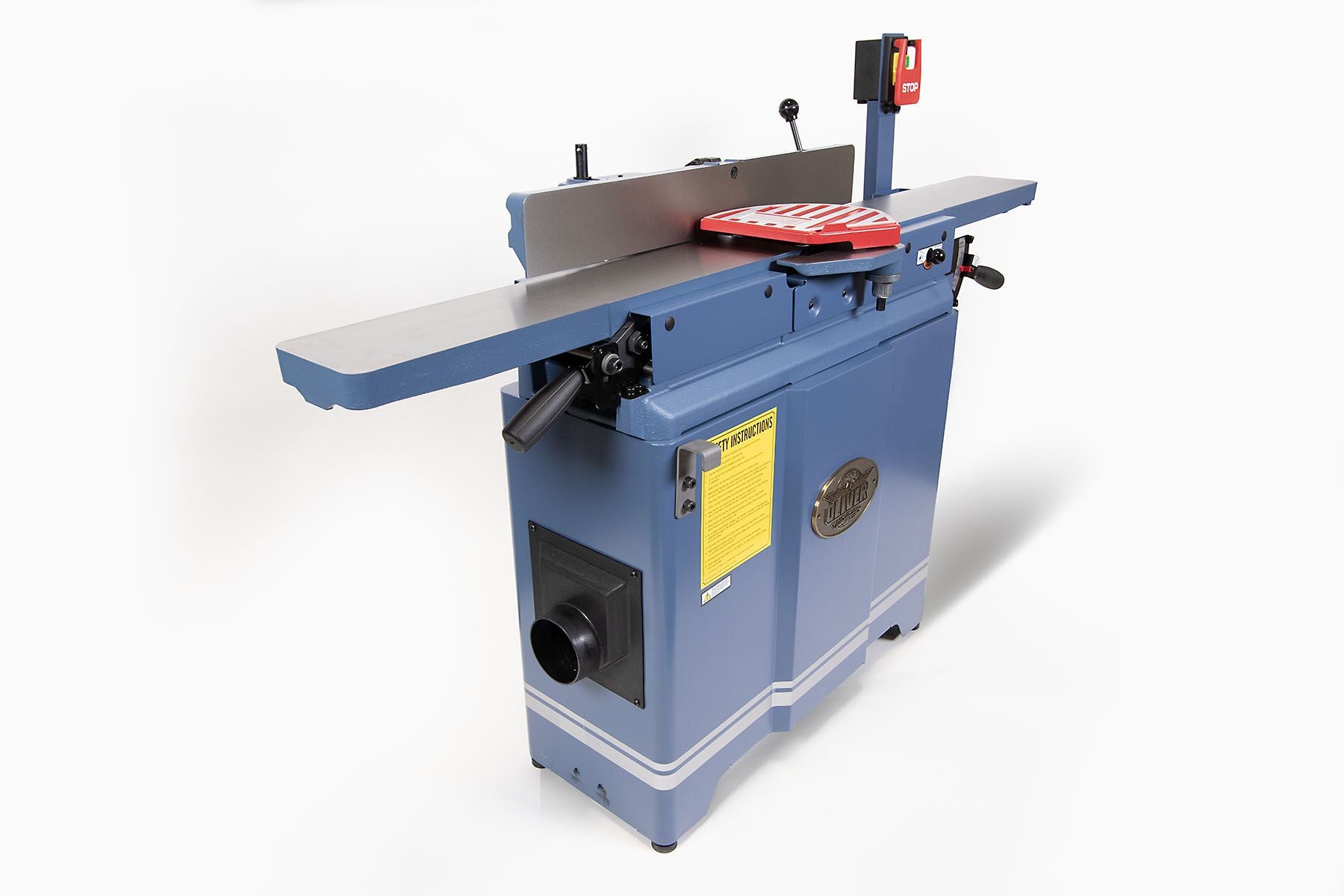

  • industrial jointer front corner view

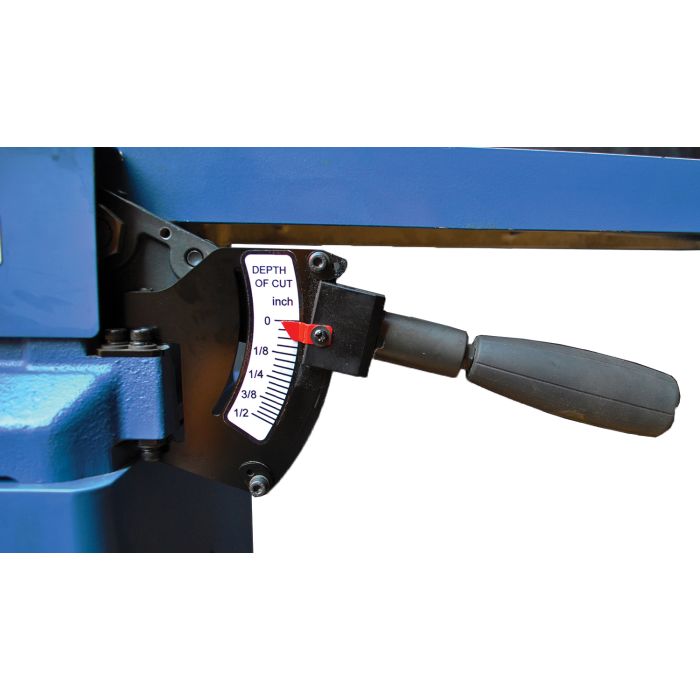

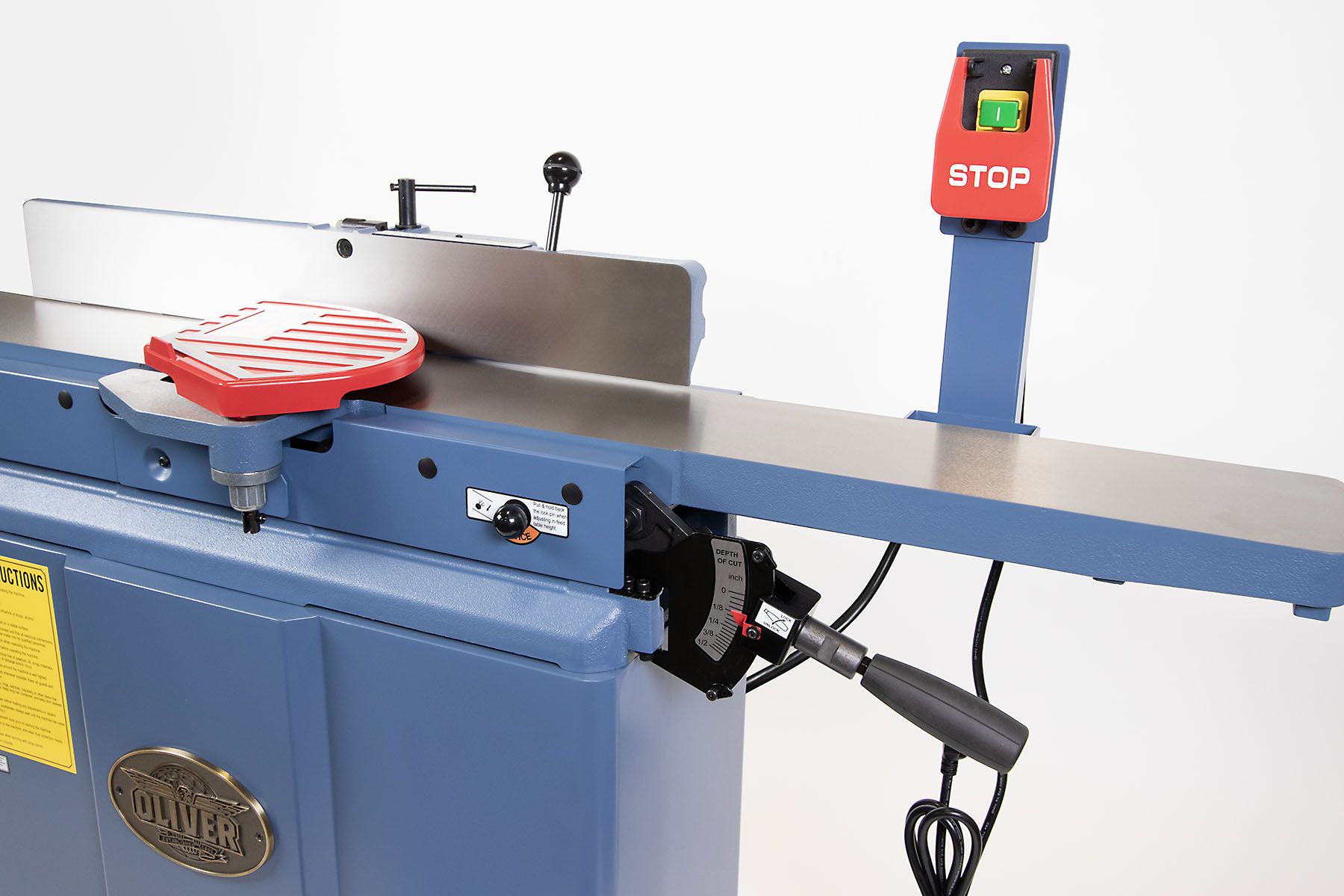

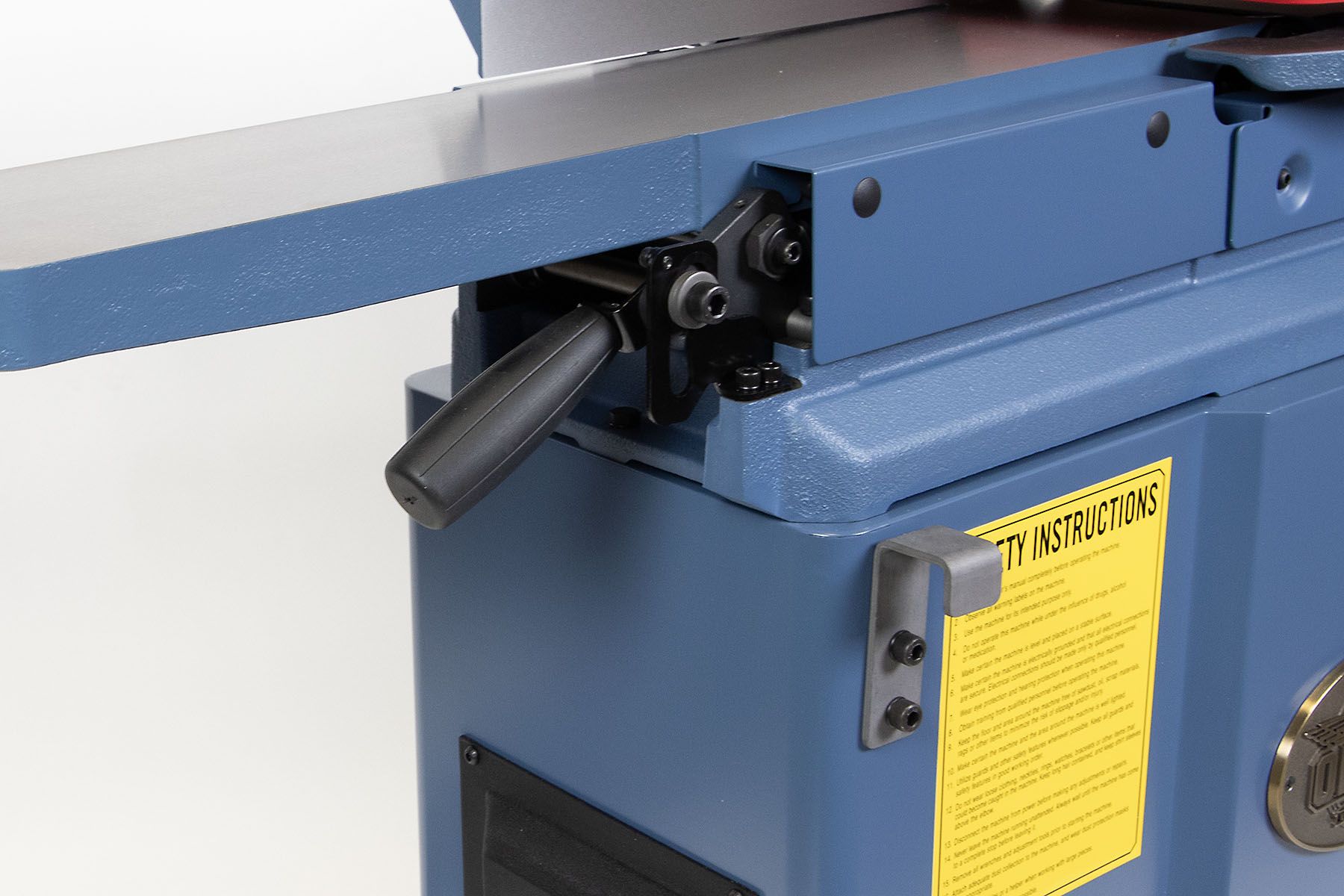

  • infeed table height lever with depth of cut scale

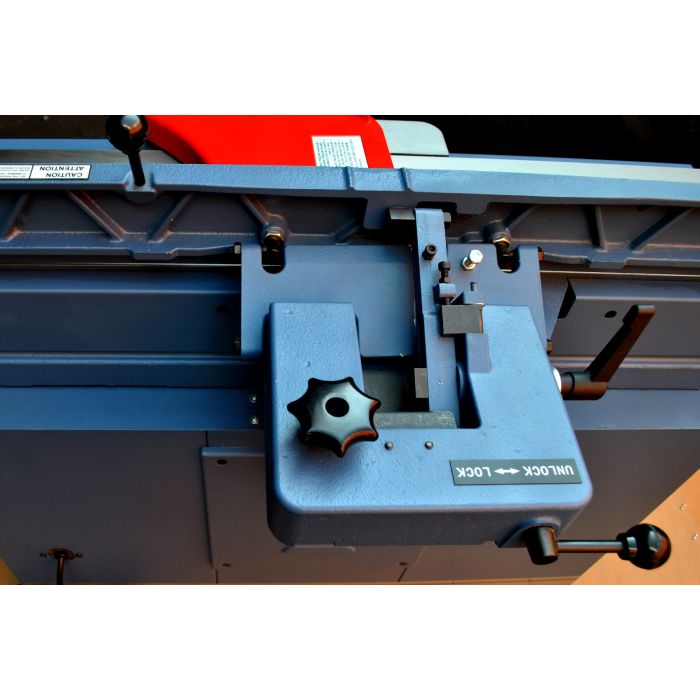

  • tilting fence with locking lever and positive stops at 45 degrees and 90 degrees

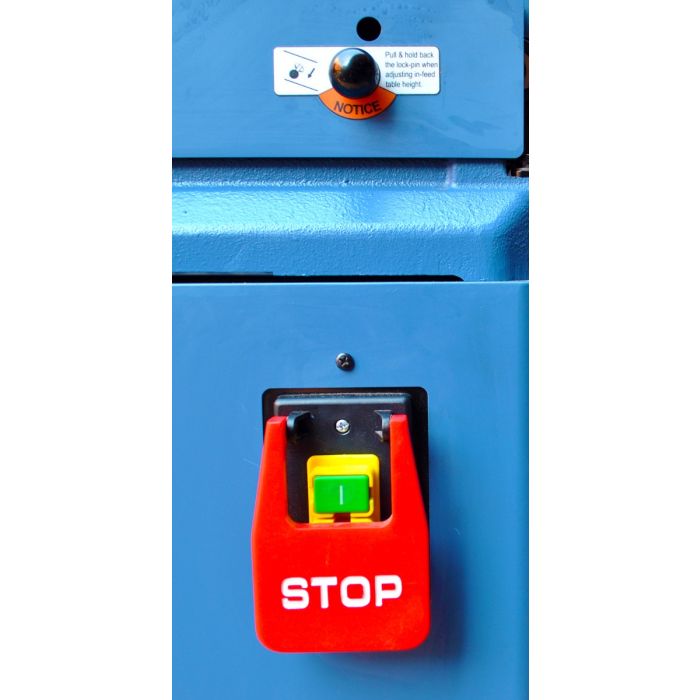

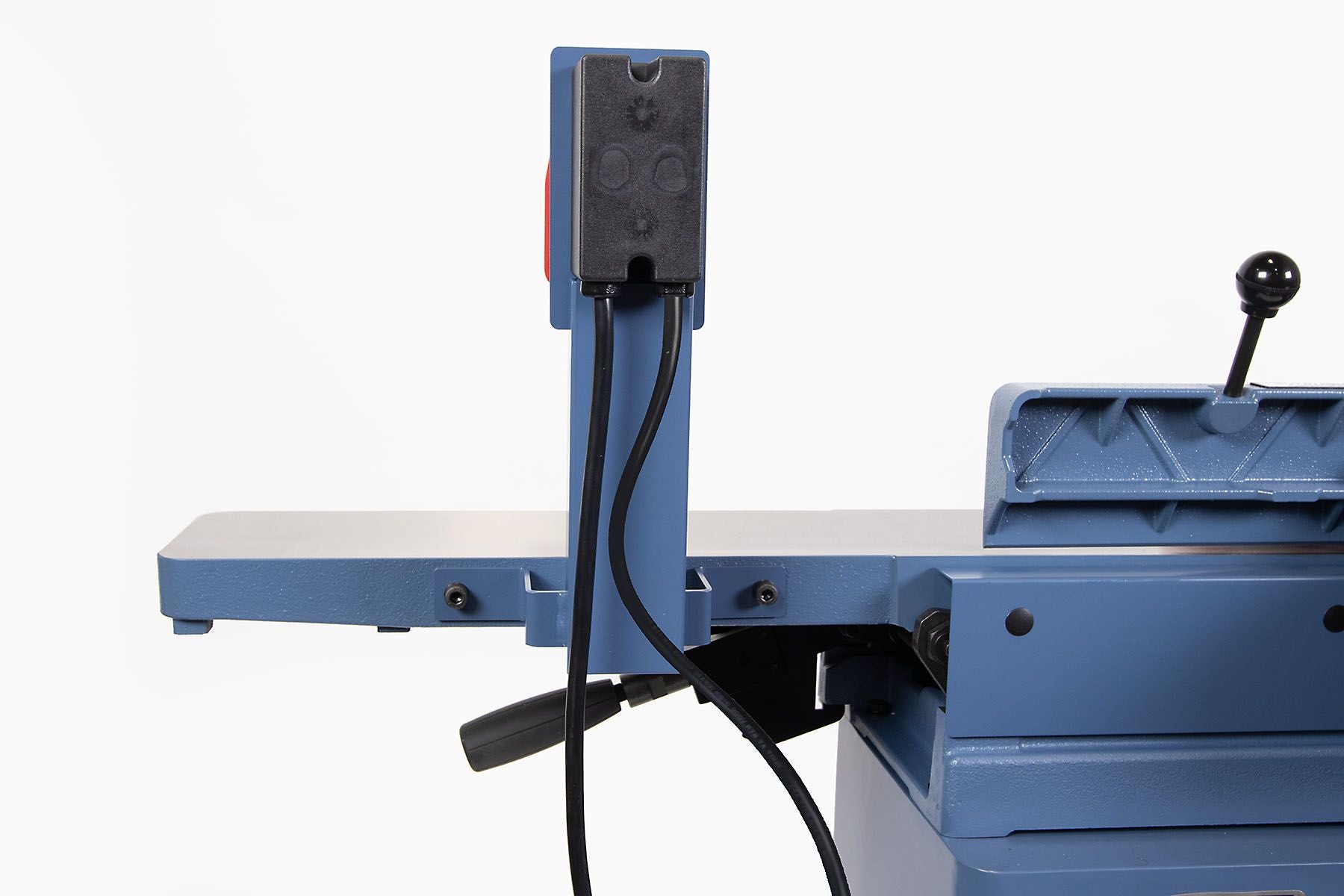

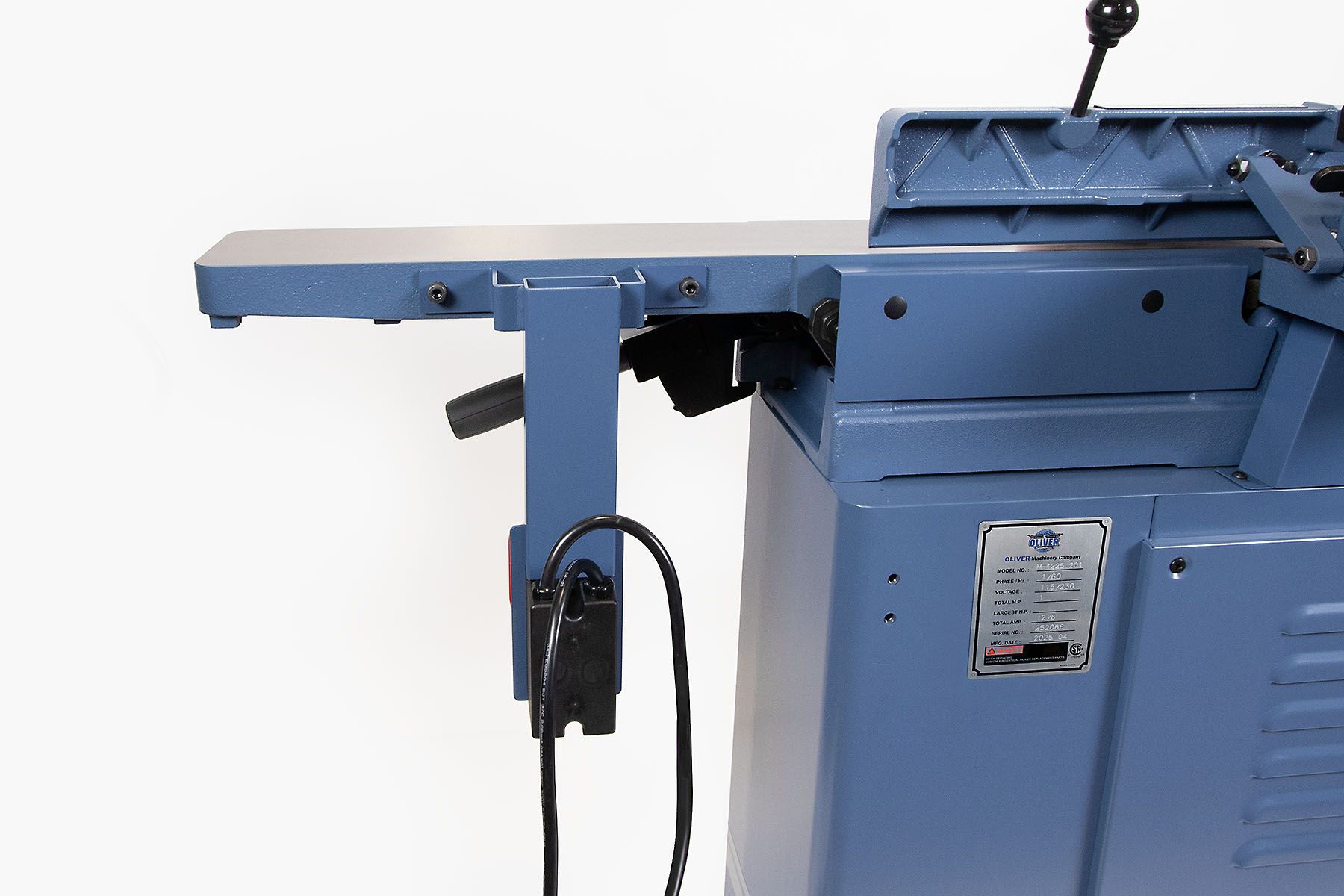

  • cabinet mounted knee height safety paddle switch

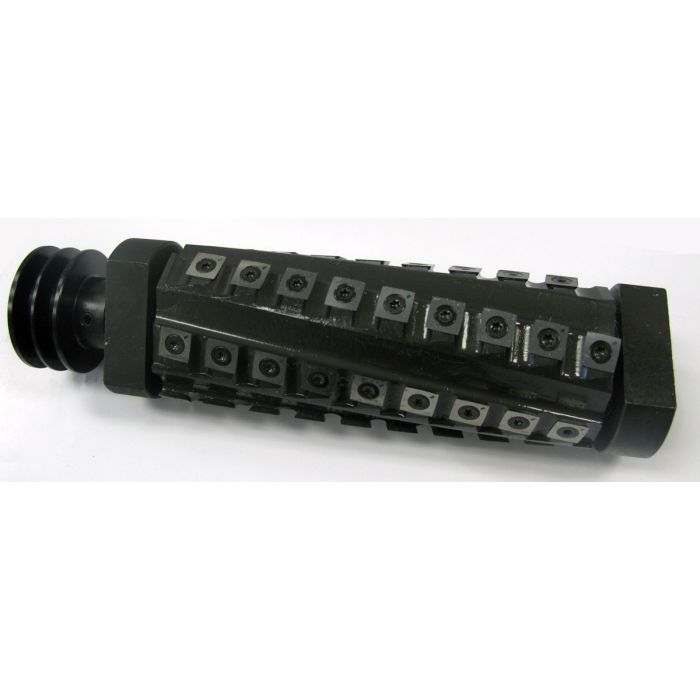

  • HCX high-tech helical cutterhead with bearing blocks and pulley for jointer

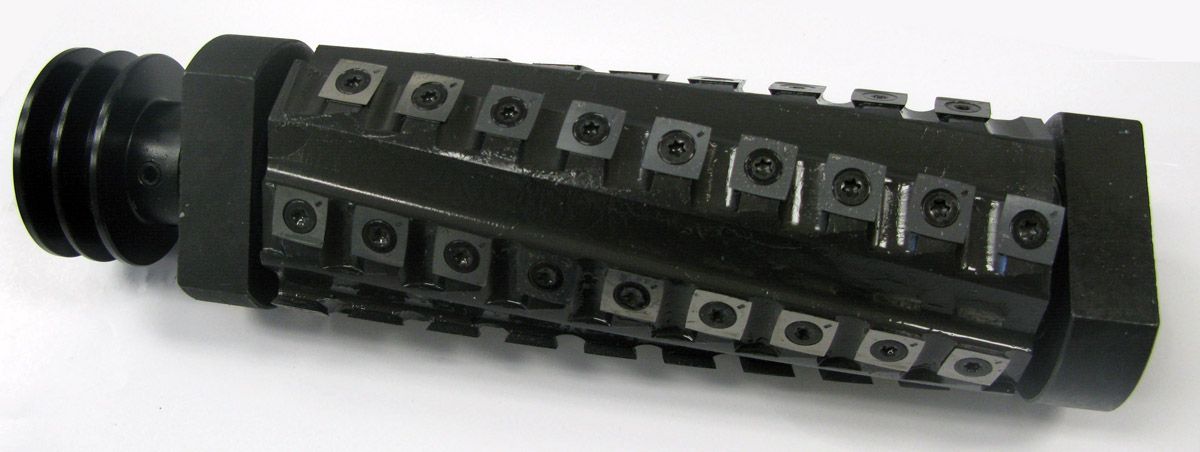

  • HCX high-tech helical cutterhead by Oliver

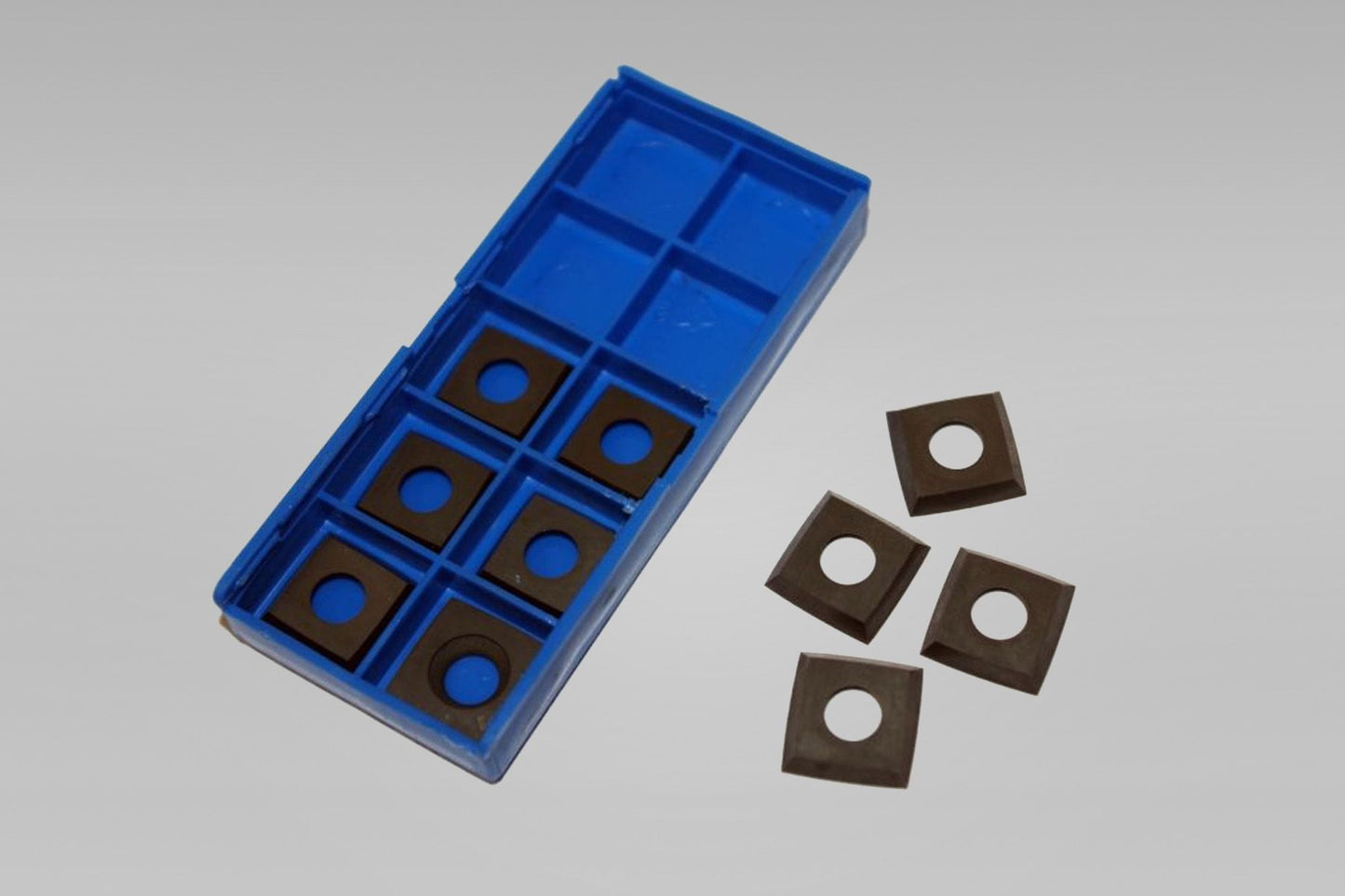

  • HCX inserts pack of 10
1 8

Oliver Machinery

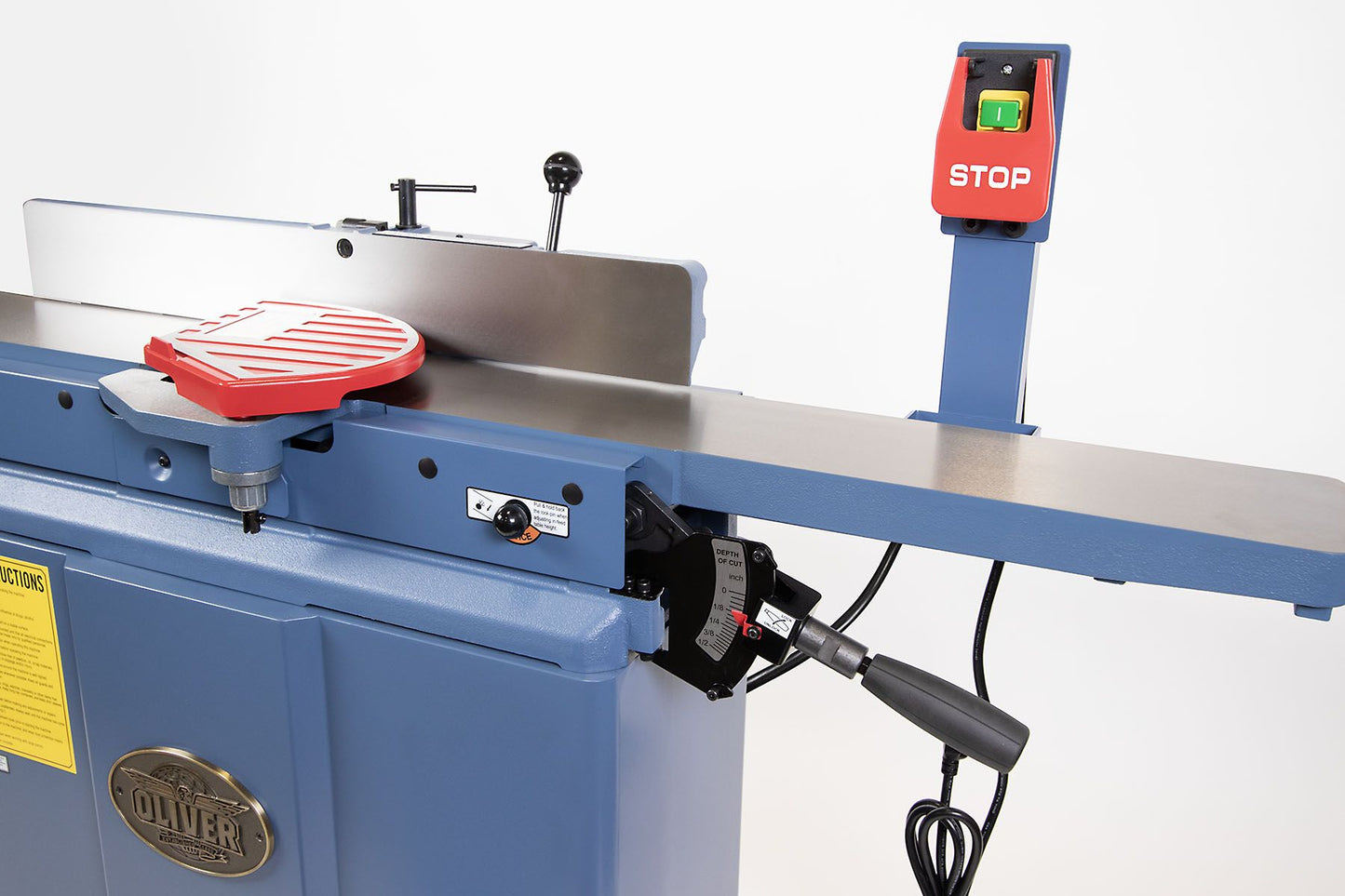

8” Parallelogram Jointer with HCX Helical Cutterhead

8” Parallelogram Jointer with HCX Helical Cutterhead

$3,189.99 USD
$3,978.00 USD $3,189.99 USD
Sale Sold out
Shipping calculated at checkout.

Elevate your woodworking projects with the Oliver 8" Parallelogram Jointer with HCX Cutterhead. Designed for precision and stability, this jointer features extra-long precision ground tables and a robust parallelogram design that ensures smooth, accurate cuts every time. The powerful 2HP TEFC motor drives the Oliver HCX Helical cutterhead, equipped with premium carbide inserts for exceptional performance and easy maintenance. With a fully enclosed cabinet and a 4" dust port, dust management is efficient, keeping your workspace clean. The built-in mobile base with lockable wheels allows for easy maneuverability, while the adjustable fence tilts up to 135° for versatile jointing options. Experience the perfect blend of power, precision, and convenience with the Oliver 8" Parallelogram Jointer.

Features

  • Extra-long precision ground tables provide a stable work surface.
  • Parallelogram design provides smooth accurate cuts.
  • Cast iron frame offers stable table support.
  • Fully enclosed cabinet with 4" port for superior dust management.
  • Built-in mobile base with lockable wheels.
  • Cabinet includes push pad storage.
  • Oliver HCX Helical cutterheads with premium carbide inserts.
  • 4-sided cutting inserts are indexed and easy to replace.
  • Lever controlled infeed and outfeed table adjustment allows quick set-up.
  • Long precision ground fence tilts up to 135° with positive stops at 45° and 90°.
  • Easy to read depth of cut gauge.
  • Large lockable paddle switch for added safety.
  • Powerful TEFC 2HP single-phase motor.
  • Poly V-belt drive efficiently delivers power to the cutter head.
  • CSA Listed.

Specifications

  • Infeed Table Travel: 1/2"
  • Cutterhead Speed: 5,500 RPM
  • Number of Knives (helical): 36 Inserts
  • Maximum Depth of Cut: 1/8"
  • Rabbeting Capacity: 1/2"
  • Dust Port Diameter: 4"
  • Table Dimensions: 72” L x 8” W
  • Table Height: 31-1/2"
  • Fence Dimensions: 38" x 5"
  • Fence Tilts: 90°, 45°, 135°
  • Positive Stops: 90° and 45°
  • Motor 1Ph: 2HP, 230V Only (1Ph, 8 Amp)
  • Net Weight: 352 lbs.
  • Gross Weight: 490 lbs.
