Royce//Ayr

Industrial Glue Joint Rip Saw Blades

$172.14 USD

Sale Sold out

Shipping calculated at checkout.

S12 Glue Joint Rip Saw Blades 12" Glue Joint Saw Blade for Diehl - PT=0.110" x K=0.157" x HK=20° x d=2" x Z=36 - with keyway 12" Glue Joint Saw Blade for Mereen-Johnson - PT=0.110" x K=0.157" x HK=20° x d=3-1/8" x Z=36 - with keyway 12" Glue Joint Saw Blade for Cameron - PT=0.110" x K=0.157" x HK=20° x d=90mm x Z=36 - with keyway/pinholes 14" Glue Joint Saw Blade for Diehl - PT=0.118" x K=0.169" x HK=20° x d=2" x Z=36 - with keyway 14" Glue Joint Saw Blade for Mereen-Johnson - PT=0.118" x HK=20° x d=3-1/8" x Z=36 - with keyway

Quantity

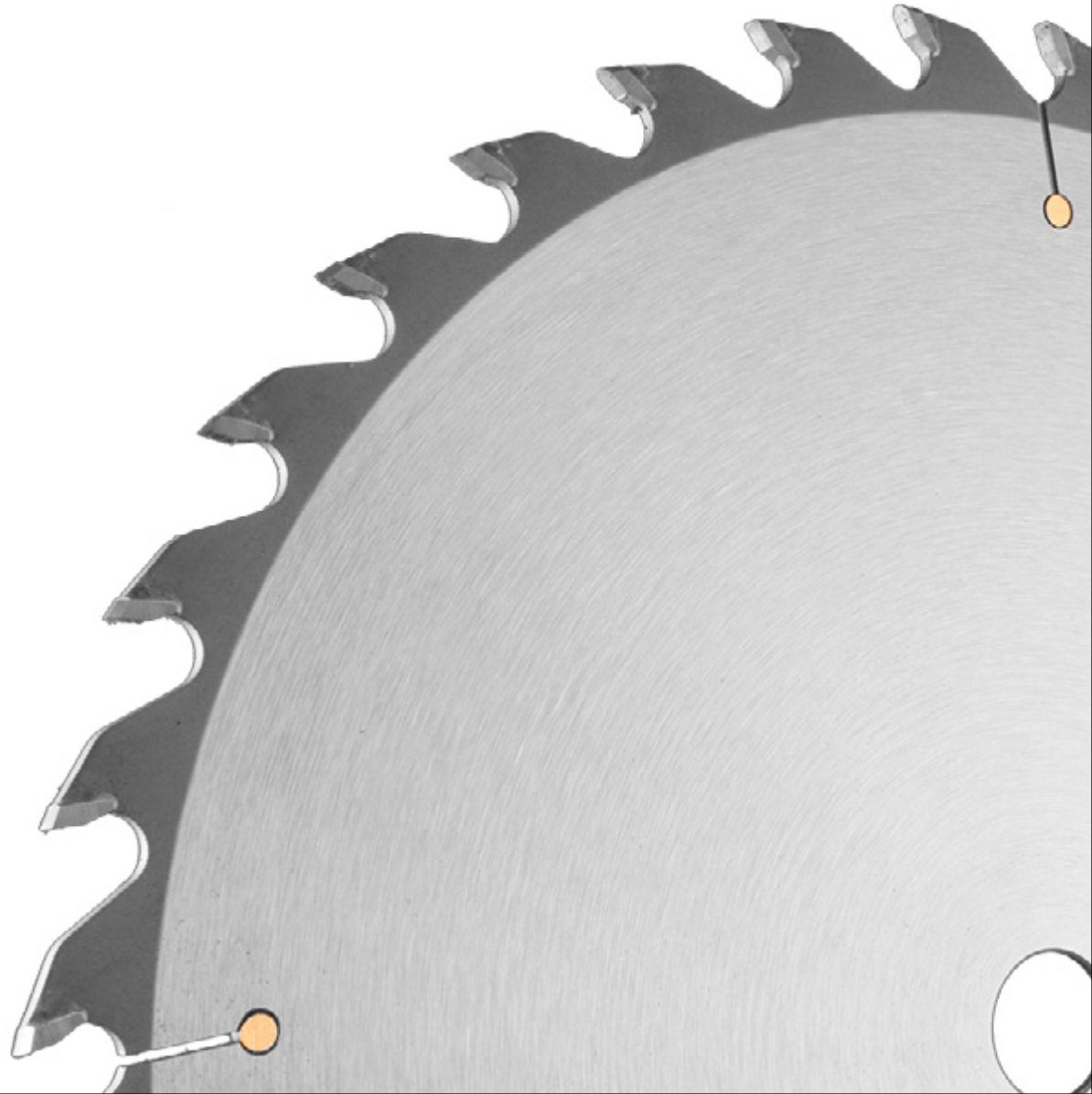

Industrial rip saw blade for single line and gang rip saws. Impact resistant grade of carbide used to withstand demanding applications. Unique tooth design to produce smooth finish for Glue Joints.

Best for Hardwood, Softwood
Good for Fiberboard, Plywood

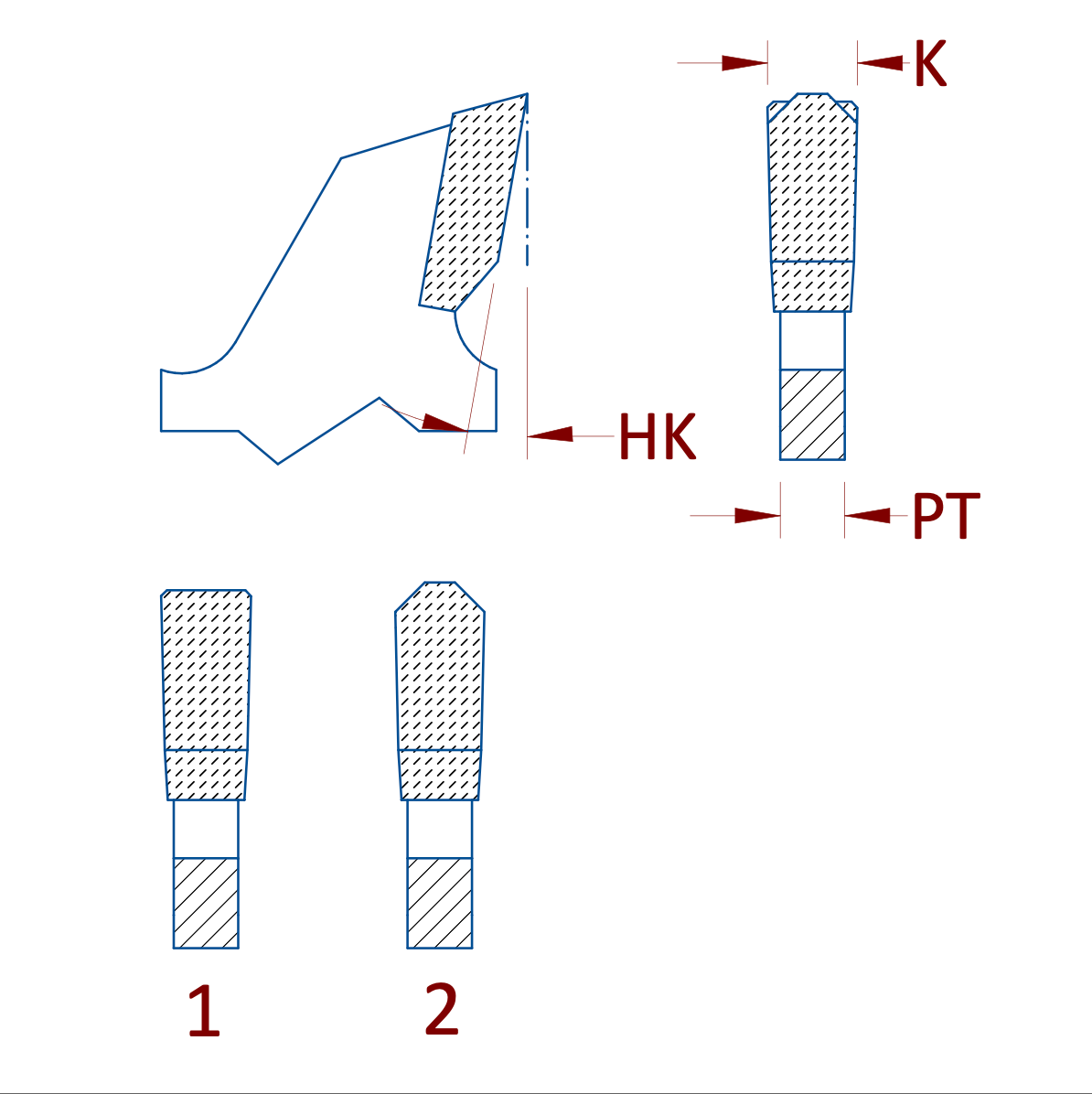

PT=Plate Thickness
K=Kerf
HK=Hook Angle
d=Bore Diameter
Z=Number of Teeth

Diehl = 1 pinhole 9/16" on a 5" bolt circle
Mereen-Johnson = 1 keyway 1/4" x 1/4"
Cameron = 2 keyways 8mm x 18.5mm, 2 pinholes 13mm on a 115mm bolt circle and 4 pinholes 6.6mm on a 110mm bolt circle

Other blade styles for Raimann and SCM available upon request.
