Safety Speed Manufacturing

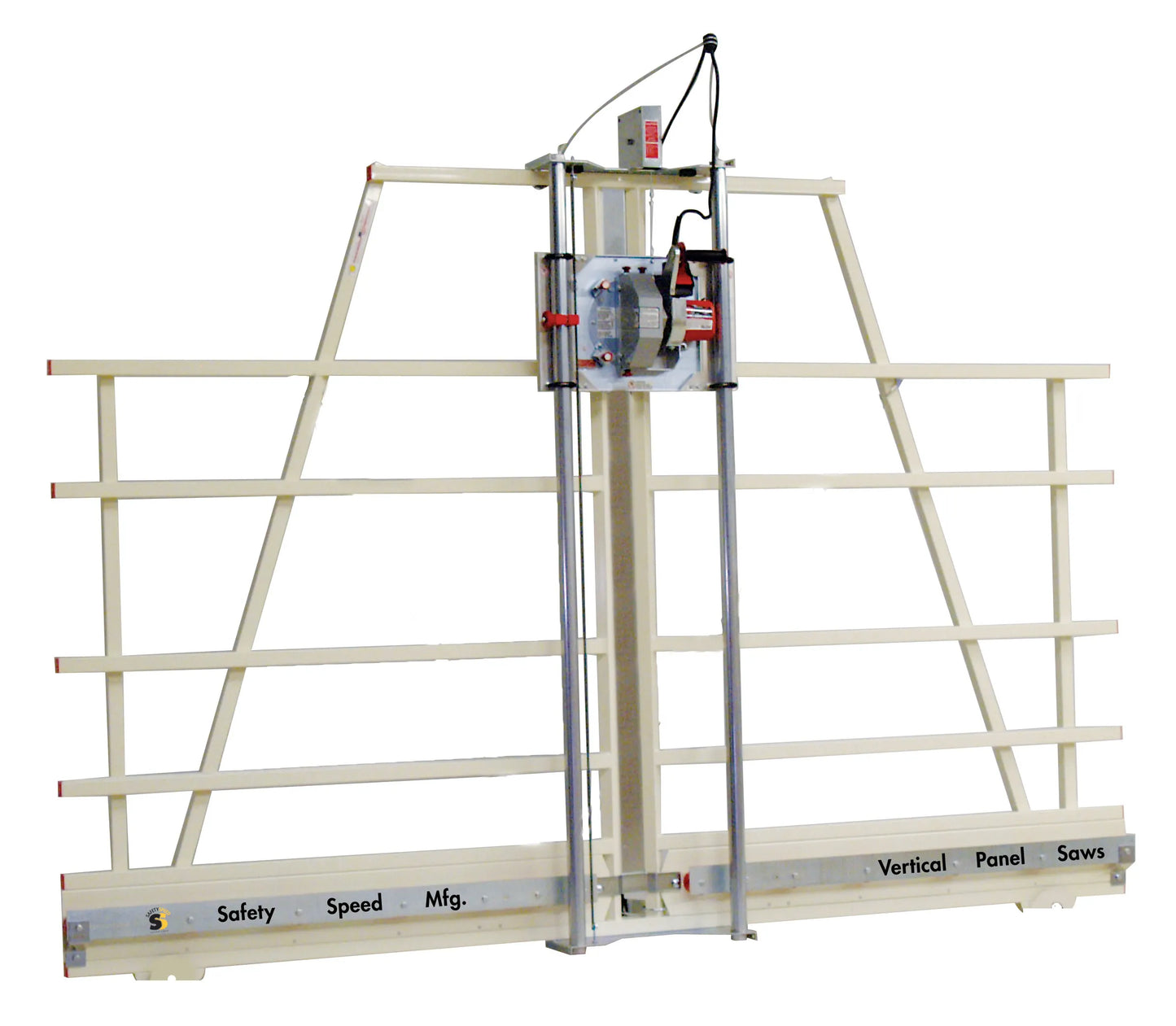

Safety Speed H6 Vertical Panel Saw with 74" Cutting Height
Safety Speed H6 Vertical Panel Saw with 74" Cutting Height
Couldn't load pickup availability
Overview
The H6 Panel Saw provide a 74″ crosscut, ideal for cutting a 10′ X 6′ piece of material, up to 1.75″ thick while only occupying 30 square feet of floor space. A motor made by Milwaukee Tool is currently used on the H6 vertical saw.
Our most common accessories include a fixed stand, 8″ saw blade, dust collection kit which allows for connecting your panel saw or router to your vacuum system of choice, and our pair of extensions adding 22″ to each side.
Applications
- Cabinet Shops
- Crate & Boxmaking
- Home Hobbyist
- Lumber Yards & Home Centers
- Plastic Processors
- Sign Makers
- Store Fixture Builders
Standard Equipment
- Zinc plated 1¾”steel guide tubes.
- 4 Nylatron roller bearing systems.
- Milwaukee Tool Motor
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
Specifications
- Max. Crosscut: 74"/1850mm
- Max. Rip Cut: Unlimited
- Cut Depth: 1 ¾"/45mm
- Cut Accuracy: 1/32"/.8mm
- Frame Length: 120"/3050mm
- Daily Usage: 1-3 Hours
- Rollers: 14
- Saw Blade Diameter: 8"/210mm
- Saw Blade Bore: 5/8"
- Motor Horsepower, Amperage and Volts: 3.25 HP, 15 amp, 120 Volt, 3.25 HP, 7.5 amp, 220 Volt
- Motor Manufacturer: Milwaukee Tool
- Country of Origin: USA
- Dimensions: 120" x 11" x 95"
- Weight: 359 lbs
