Royce//Ayr

Finger Joint Cutterhead

$802.93 USD

Sale Sold out

Shipping calculated at checkout.

518B Finger Joint Cutter 30mm Finger Joint Cutter - D=140 x K=30mm x Z=3 x b1=10mm x b2=7.75mm x d=1-1/4" - Knife #158-518B-140.030 40mm Finger Joint Cutter - D=140 x K=40mm x Z=3 x b1=10mm x b2=7.75mm x d=1-1/4" - Knife #158-518B-140.040 50mm Finger Joint Cutter - D=140 x K=50mm x Z=3 x b1=10mm x b2=7.75mm x d=1-1/4" - Knife #158-518B-140.050 30mm Insert Knife 40mm Insert Knife 50mm Insert Knife Gib Screw Stop Screw

Quantity

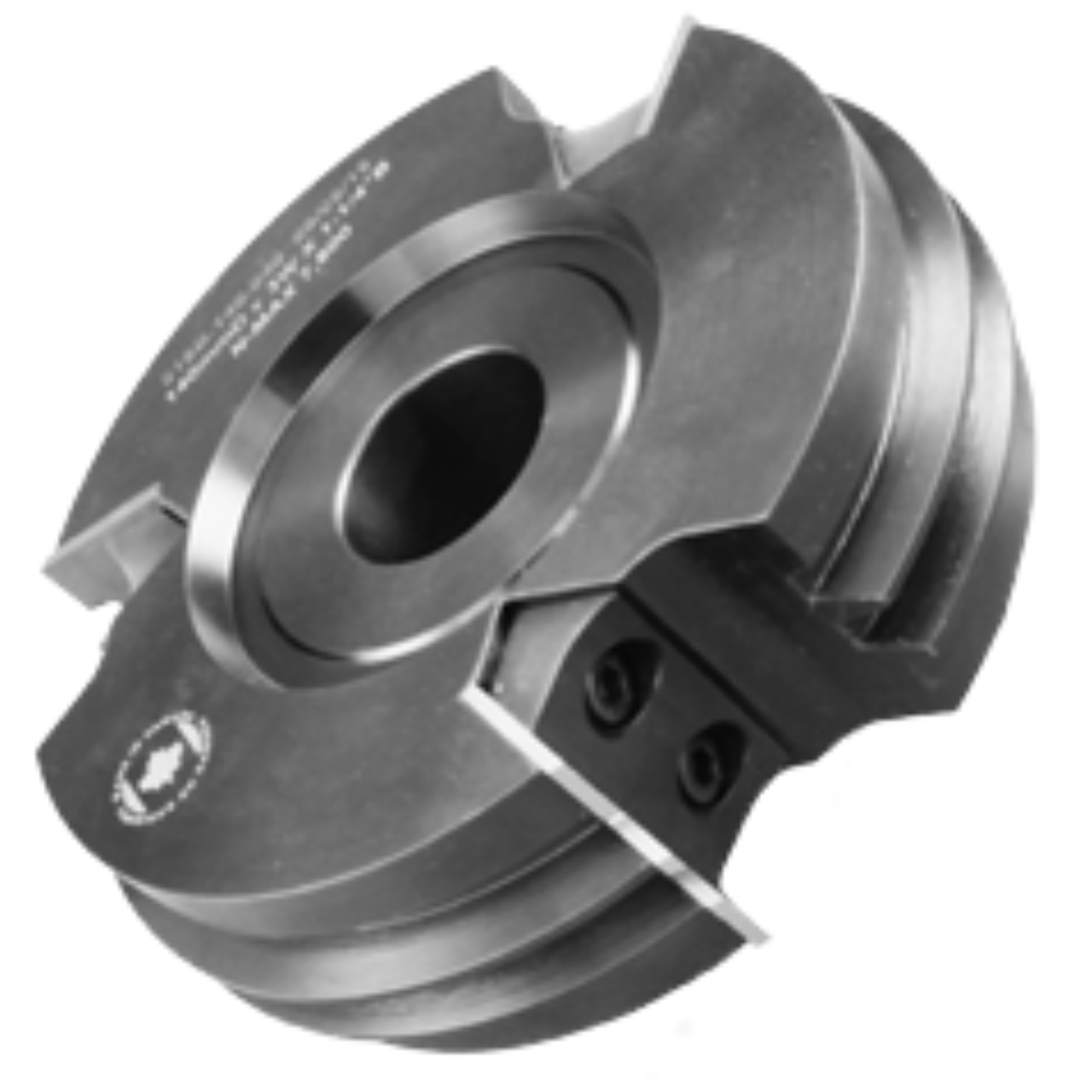

Finger joint insert tool for use on shapers. Produces a stronger joint when gluing material together.

Best for Hardwood, Softwood
Good for Fiberboard, Particle Board, Plywood

D=Diameter
K=Cutting Length
Z=Number of WIngs/Cutters
b1=Profile Depth
b2=Profile Segment Height
d=Bore Diameter

North American-made items from Canada and U.S.
