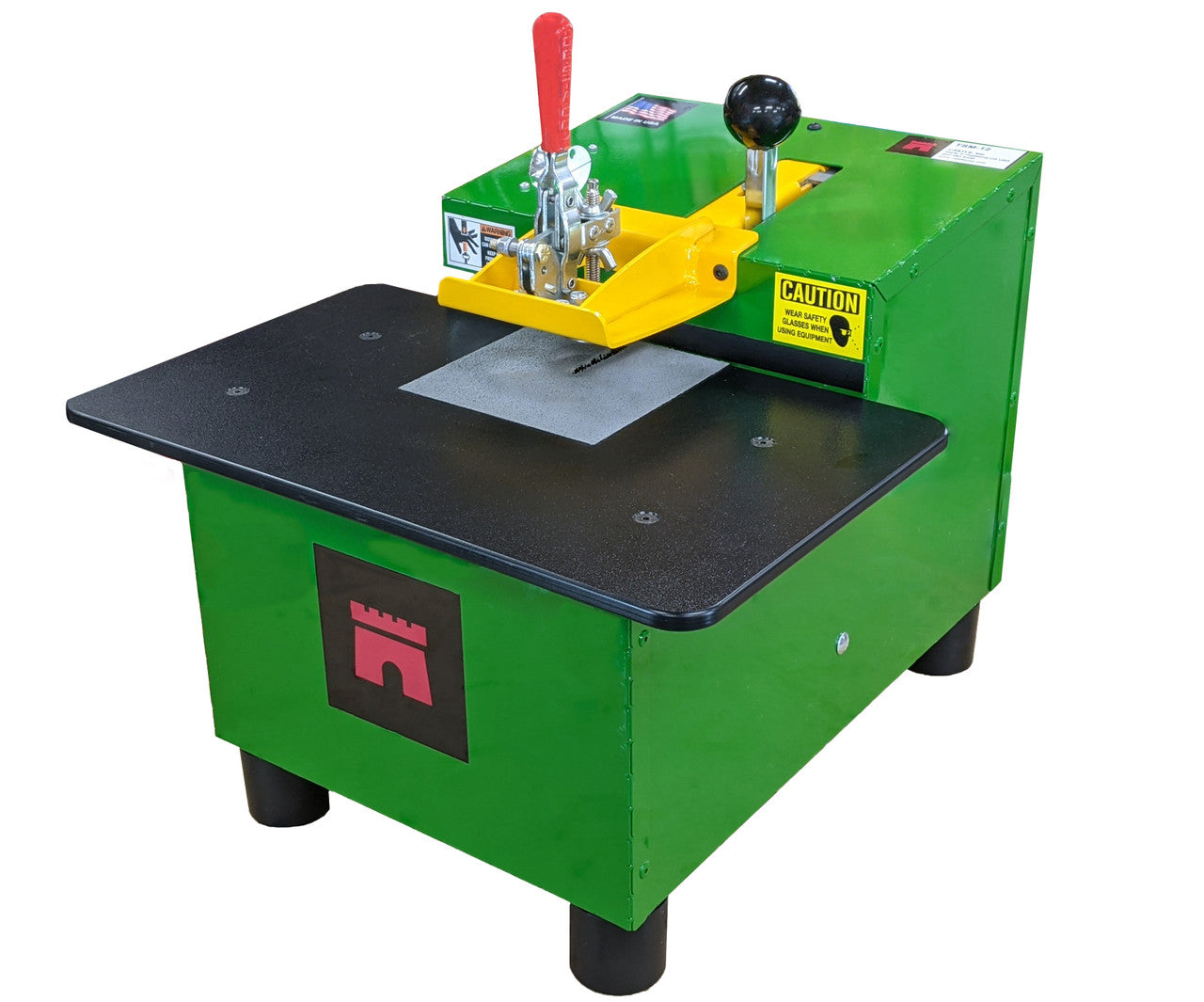

Bench Top Pocket Cutter Machine

Overview

Get all of the benefits of a Castle Professional Pocket Cutting Machine in a benchtop model - the TSM-12 routs the 6 degree, low-angle Castle Pocket with no tear out in less than 2 seconds. The superior low screw angle minimizes joint shift while providing strong, stable joints. The TSM-12 uses standard 110V electric, and does not require any shop air, so it’s ideal for jobsites, small shops, or the weekend woodworker.

The TSM-12 benchtop pocket cutter machine is the latest generation of the original Castle pocket cutter, many of which are still in use today. These machines have an amazingly long service life, and an outstanding reputation for their simplicity, robust build, and performance, and on the rare occasion one becomes available in the used tool market, it tends to sell quickly and at a price that’s close to the current MSRP.

The TSM-12 requires minimal set-up, so you’ll quickly be creating Castle quality with every pocket you cut.

Features and Benefits include:

• Cuts the Castle 6° low-angle pocket, for strong, stable, tight, and superior joints
• Equipped with:
• Bosch 1617EVS Router with a 3/8” three-flute solid carbide router bit for cutting the pocket
• Bosch Colt Router with a 9/64” premium drill bit for drilling the pilot hole
• Low-angle pockets minimize the need for clamping during assembly
• Wide throat opening for thicker stock – accommodates stock from 1/2"to 1-1/2" thick
• Adjustable web for handling various pocket screw lengths
• Integral work clamp and pocket cutting lever are ergonomically positioned for fast pocket cutting

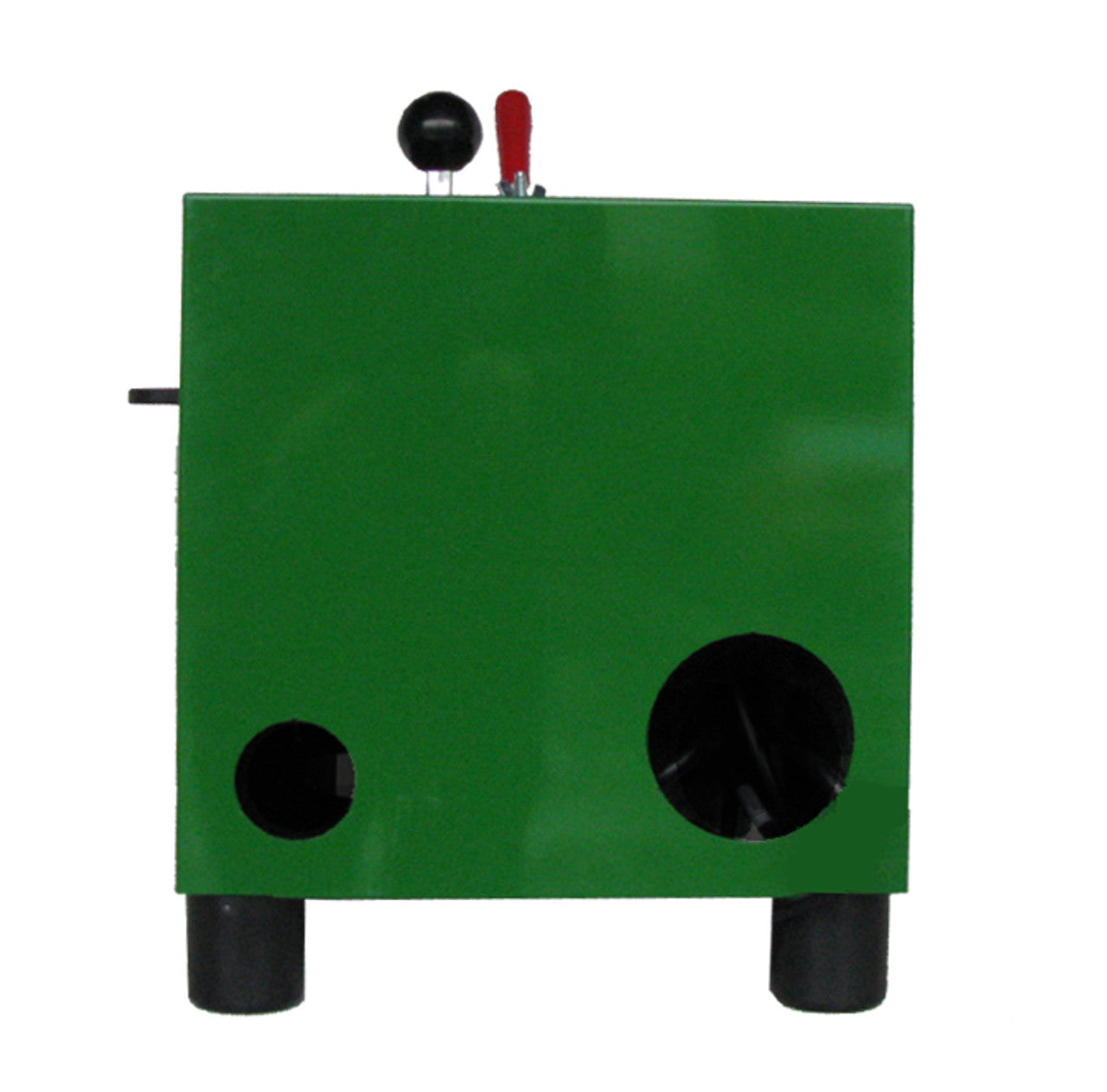

• Two, integrated dust port knockouts for Shop Vac or 4" hose sizes
• Easy maintenance and bit changing

• Requires only basic, 110V power
• Durable, solid surface work top
• TSM-12 comes factory tested with minimal set-up required

Technical Specifications:

• Router: Bosch 2.25hp #1617EVS Router Motor
• Drill: Bosch Colt 1.0hp #PR20EVS
• Router Bit: Premium 3/8” Solid Carbide, Rough Mill
• Drill bit: Premium 9/64” Brad and Spur TiN-Coated Bit
• Power req: 110V, 15 amps
• Shipping weight: 65 lbs
• Footprint: 13.5W x 20L x 20H
