Air Filtration System

Overview:

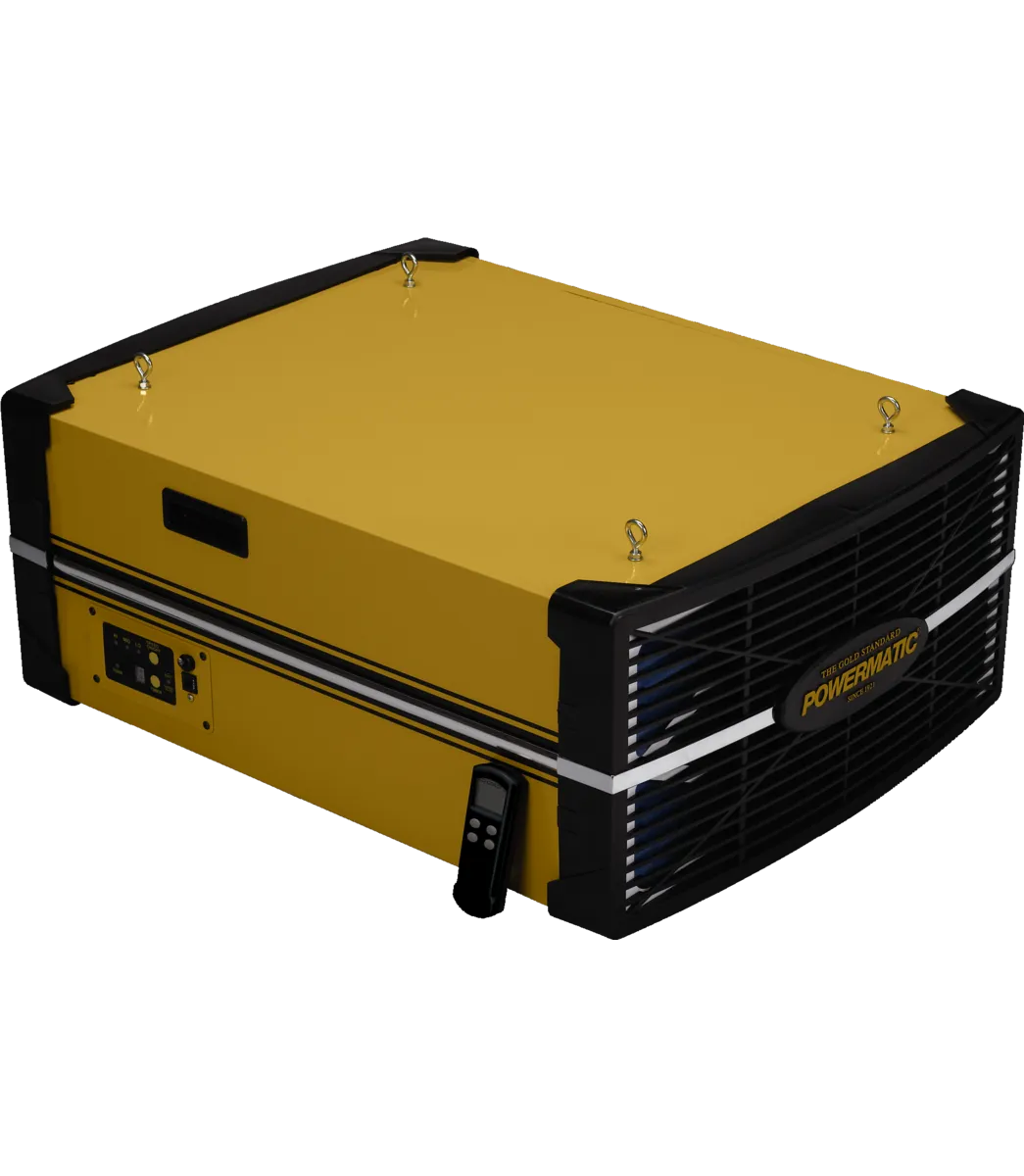

Your shop may look clean, but how clean is the air? The PM1200 Air Filtration System traps up to 99% of all 5-micron particles and 85% of all 1-micron particles for a healthier work environment. Three blower speeds modify air flow. The unit can be operated either at the cabinet or with the remote transmitter which uses radio-frequency, eliminating the need for line-of-sight operation. The timer has nine settings, allowing continuous operation for up to 9 hours while you’re away, and will shut off at the end of that period. The filter guards can be removed and installed without tools, for instant filter access.

Features:

• Diffusion filter disperses exhausted air
• Disperses exhausted air
• Filter guards install and remove easily without tools for quick access to filters
• Four eye bolts allow suspension from shop ceiling
• Indicator lights up after 200 hours to remind user to replace filters
• Inner filter has fine mesh pockets for high efficiency, can be blown clean
• Remote control operates on radio frequency for wider range of effectiveness
• Three blower speeds to modify air flow
• Timer has nine settings, for up to nine hours of continuous operation
• Two-filter system traps particles as small as 1 micron

Specifcations:

• Fan Motor: 0.25 HP 115V single-phase
• Motor Amps: 3.5 / 2.8 / 2.3
• Speeds: 3
• Speeds (CFM): 547 / 706 / 1196
• Prop 65 Cancer and Reproductive Harm
• Warranty 5 Year
• Overall Dimensions (L x W x H) (In.) 33 x 25 x 13
• Gross Weight 76.75
• Net weight 76.0

Delivery Note: Ground parcel delivery. Have a hand truck or helper available if needed.
