37" Dual Drum Sander

Overview:

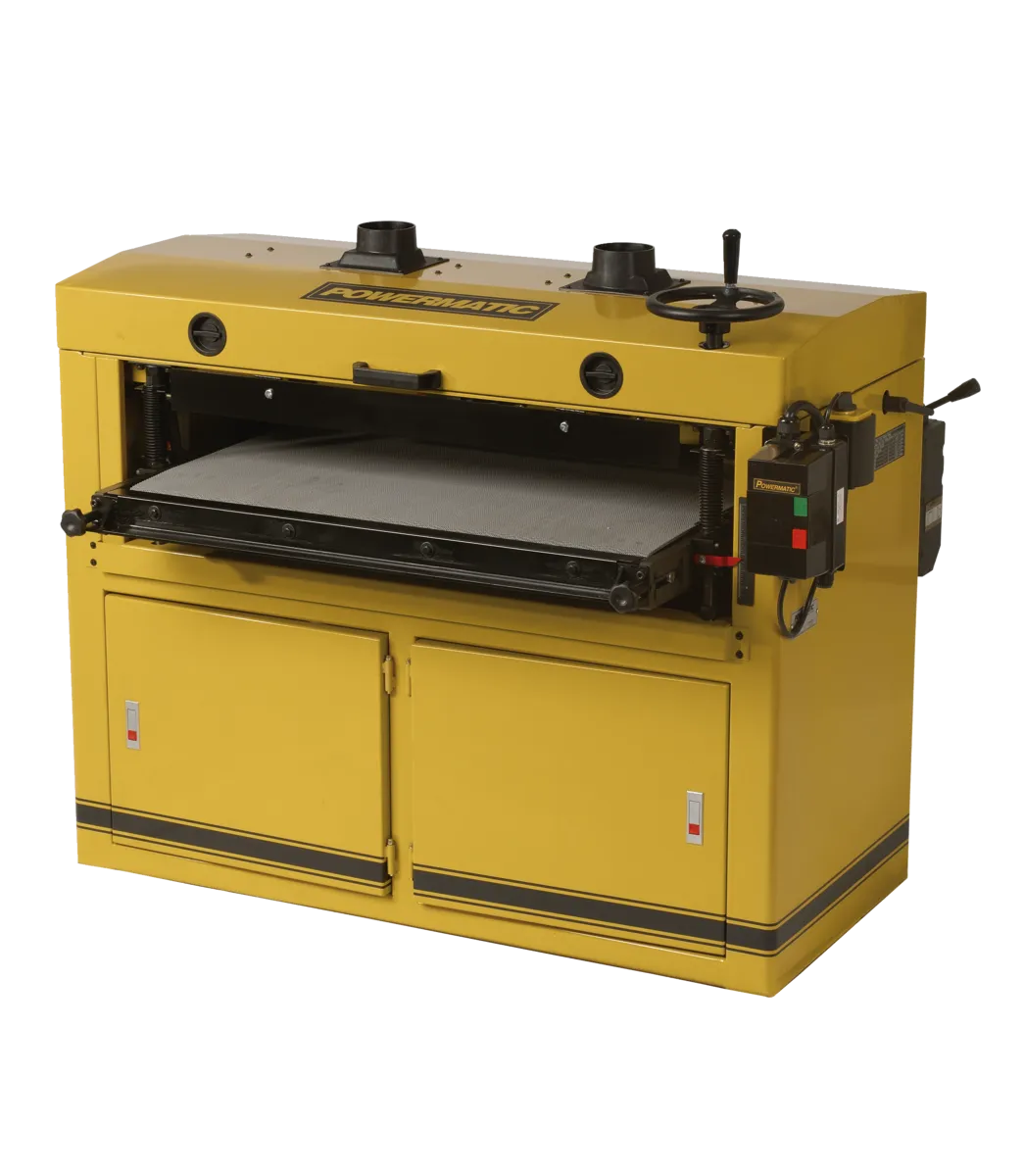

The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 7.5HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.

Features:

• Dual drum head for superior finish
• Dual dust ports with directional baffles for more efficient dust removal
• Forward/reverse conveyor belt grips stock evenly
• Full size cast iron table for solid support
• Hard durometer rubber coating on steel drums provides flat, smooth finish
• Independently adjustable rear drum for fine tuning
• Two-speed gearbox for wide range of sanding projects.

General Specifications:

• Maximum Board Width: 37in
• Maximum Board Thickness: 5-1/4in
• Minimum Board Length: 9in
• Minimum Board Thickness: 1/32in
• Drum Length: 37in
• Drum Diameter: 6in
• Drum Speed (RPM): 1,700
• Conveyor Speed (FPM): 8 and 12
• Dust Port Outside Diameter: 4in
• Dust Collection Minimum CFM Required (CFM): 1,200
• Prop 65: Cancer and Reproductive Harm
• Warranty: 5 Year
• Gross Weight: 1142.0
• Net weight: 990.0

Single-Phase Motor Specs:

• Drum Motor: 7.5 HP single-phase 230V only
• Conveyor Motor: 0.25 HP 230V single-phase

3-Phase Motor Specs:

• Drum Motor: 10 HP 230/460V 3-phase, prewired 230V
• Conveyor Motor: 0.25 HP 230/460V 3-phase, prewired 230V
