35” x 20” Woodworking Lathe

Overview:

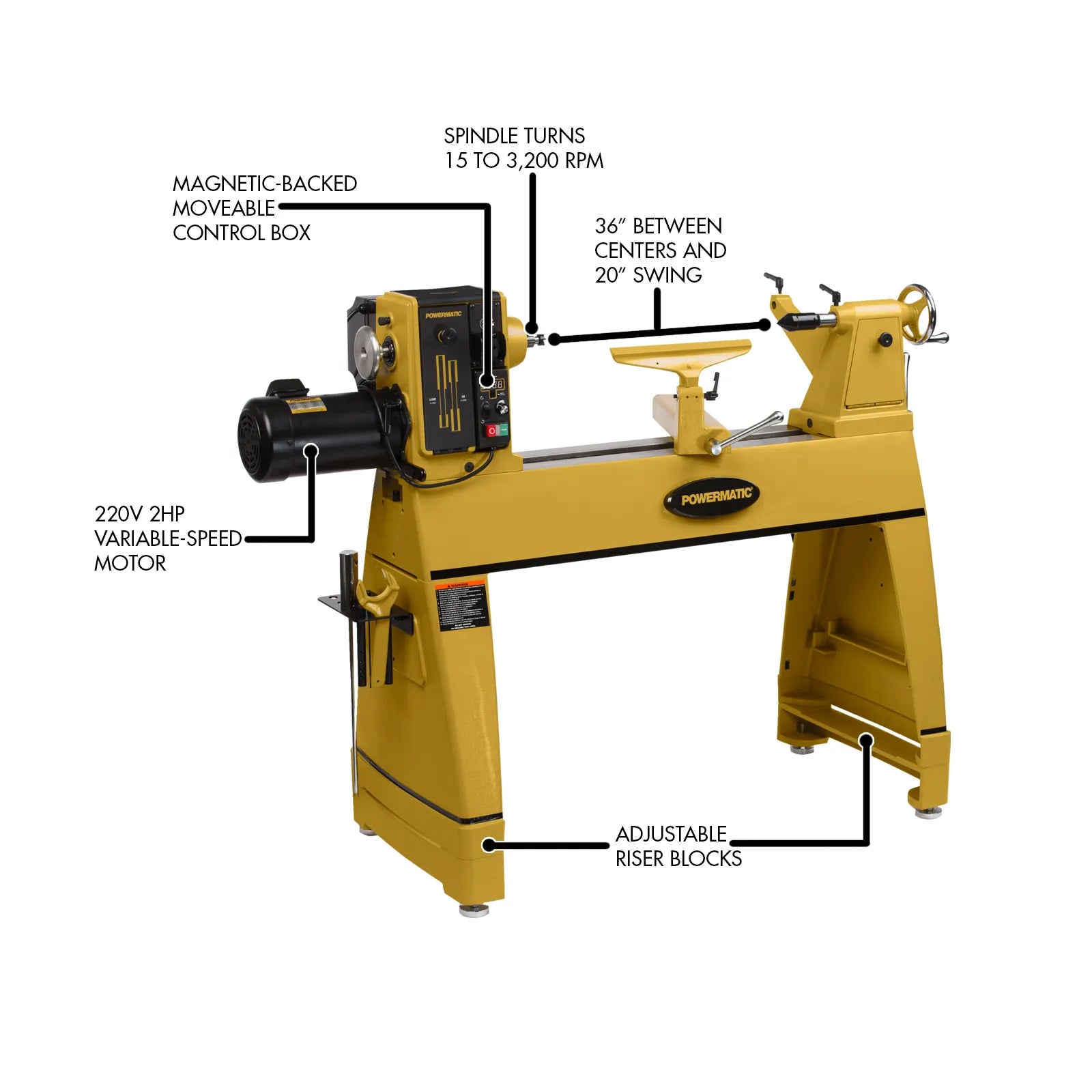

The Powermatic® 3520C is the fourth evolution of the time honored lathe with many new and improved features. The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout, and a laser etched quill that is self-ejecting. The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6 inches or more of height adjustment, and an increased weight of 726 LBS (814 LBS with the bed extension). Additional features include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.

Features:

• Maintain speeds as low as 15 RPM
• Adjustable riser blocks for 4 inches of height adjustment, allowing maximum comfort when turning
• Extended spindle nose increased access to the work piece
• Fully enclosed VFD for increased user protection
• Magnetic-backed moveable control box for versatility and safety
• Main power disconnect switch located on rear of headstock
• Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement
• IMPORTANT: This Lathe cannot be run on a GFCI circuit. Please reference the manual for more information. When Lathe is not in use, disconnect from power.

Specifications:

• Bed Construction: Cast Iron
• Swing Over Bed: 20in
• Swing Over Tool Rest Base: 15-3/4in
• Distance Between Centers: 35in
• Spindle Speeds in Low Range (RPM): 15-1200
• Spindle Speeds in High Range (RPM): 40-3200
• Spindle Motor: 2 HP 220V single-phase only
• Motor Amps: 20A
• Recommended Circuit Size (Amps.): 20
• Overall Dimensions (L x W x H): 69-1/2in x 36-1/2in x 47in
• Prop 65: Cancer and Reproductive Harm
• Warranty: 5 Year
• Gross Weight: 772.0
• Net weight: 726.0
