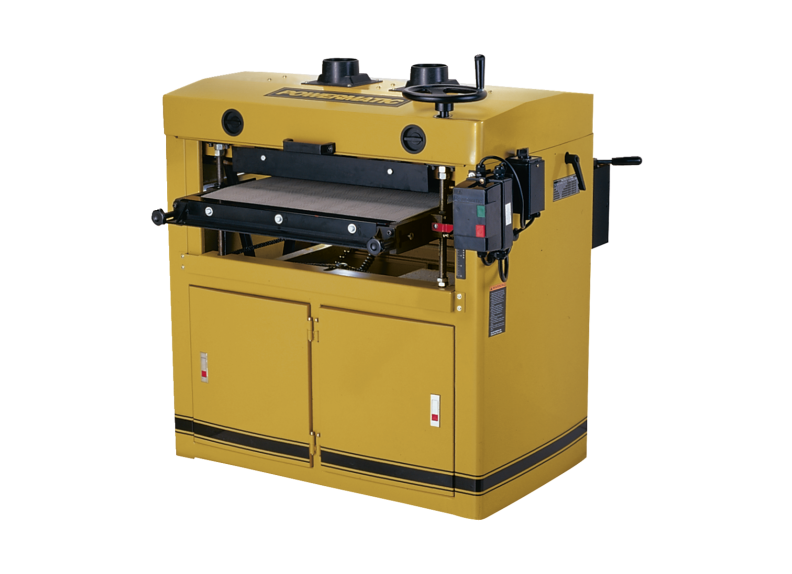

25" Dual Drum Sander

Overview:

Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.

Features:

• Dual drum head for superior finish
• Dual dust ports with directional baffles for more efficient dust removal
• Forward/reverse conveyor belt grips stock evenly
• Full size cast iron table for solid support
• Hard durometer rubber coating on steel drums provides flat, smooth finish
• Independently adjustable rear drum for fine tuning
• Two-speed gearbox for wide range of sanding projects.

General Specifications:

• Maximum Board Width: 25in
• Maximum Board Thickness: 5-1/4in
• Minimum Board Length: 9in
• Minimum Board Thickness: 1/32in
• Drum Diameter: 6in
• Drum Length: 25in
• Drum Speed (RPM): 1,700
• Conveyor Speed (FPM): 8 and 12
• Drum Motor: 5 HP 230V single-phase
• Recommended Circuit Size (Amps.) 40
• Dust Port Outside Diameter (2): 4in
• Dust Collection Minimum CFM Required (CFM): 600
• Prop 65: Cancer and Reproductive Harm
• Warranty: 5 Year
• Gross Weight: 840.0
• Net weight: 730.0
