Powermatic

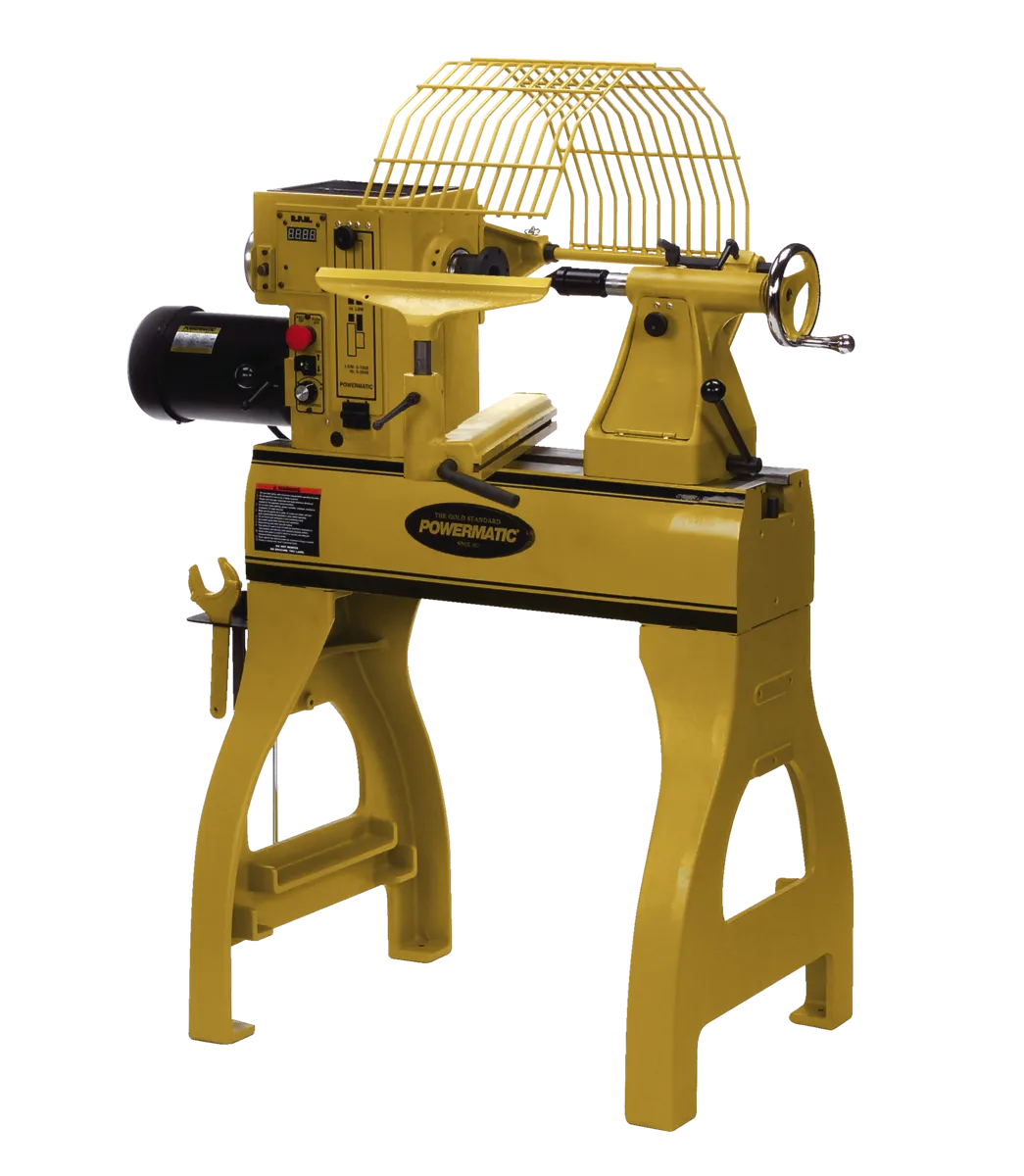

20” x 20” Woodworking Lathe
20” x 20” Woodworking Lathe
Couldn't load pickup availability
Overview:
The features you love on the 3520B Lathe are now available in a smaller footprint. The PM2020 Lathe is perfect for turners short on space, or projects where a short bed is convenient. Like its big brother, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Additional features include a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.
Features:
- Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
- Digital RPM readout for accurate speed adjustments
- Redesigned tool rest geometry allows for better chisel movement along the tool rest
- Set of dead centers which hold a spindle for visual comparison
- Sliding headstock with electronic variable speed
- Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
- Tailstock has internal storage for additional accessories
- Tailstock has internal storage for additional accessories and attached tool caddy allows convenient access to centers and wrenches
- Two position mount for optional bed extension
- IMPORTANT: This Lathe cannot be run on a GFCI circuit. Please reference the manual for more information. When Lathe is not in use, disconnect from power.
Specifications:
- Bed Construction: Cast Iron
- Swing Over Bed: 20in
- Distance Between Centers: 20in
- Spindle Motor: 2 HP 230V 3-phase
- Motor Amps: 6.2
- Power Input: 220V single-phase
- Recommended Circuit Size (Amps.): 20
- Prop 65: Cancer and Reproductive Harm
- Warranty: 5 Year
- Shipping Dimensions (L x W x H): 55-1/8in x 27-1/4in x 30-5/8in
- Gross Weight: 582.0
- Net weight: 530.0
