20" Disc Sander

Overview:

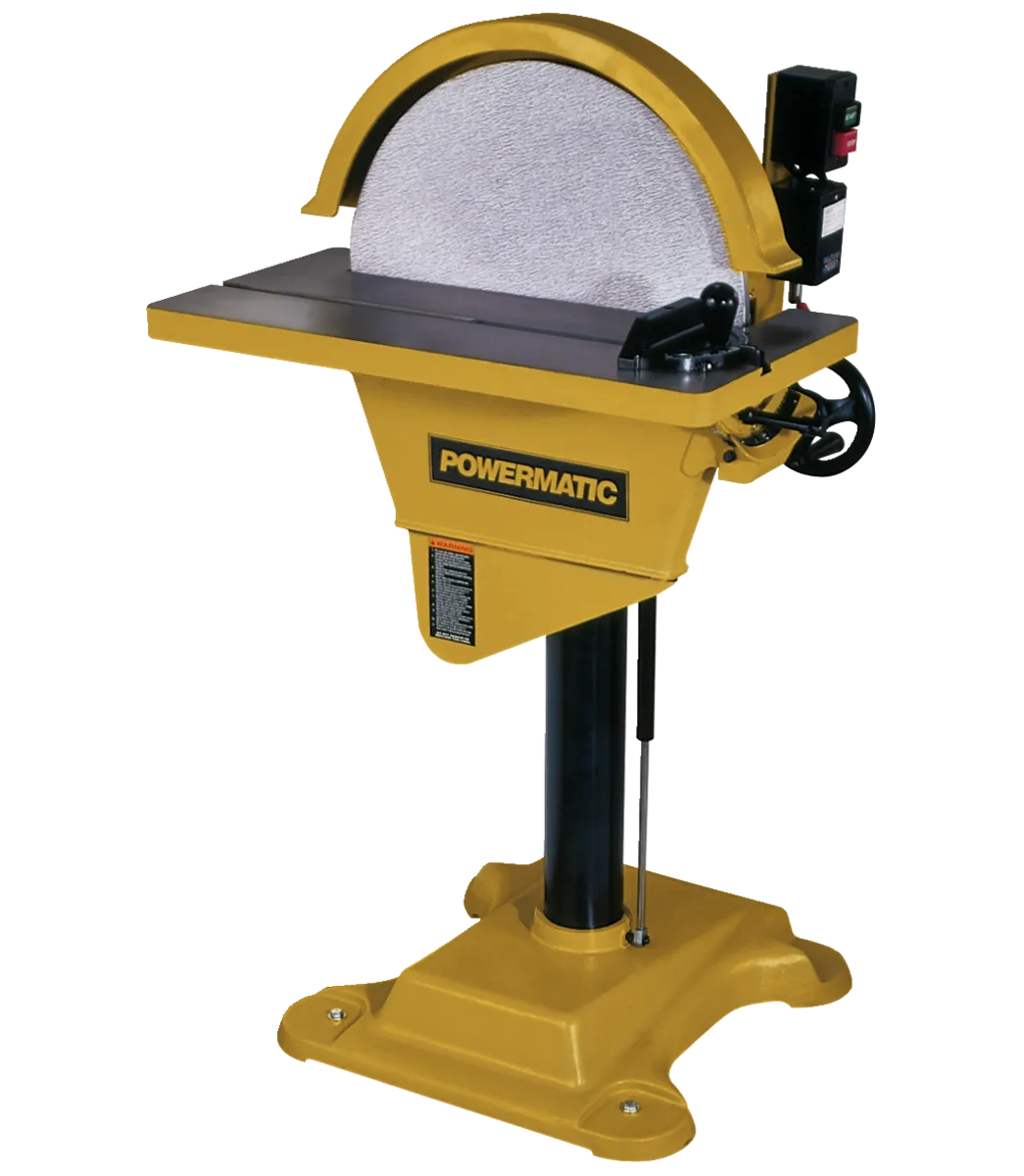

The Powermatic DS20 20" Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.

Features:

• 20" sanding disc for larger capacity
• Direct drive from motor to disc for maximum efficiency
• Forward and Reverse Switch
• Forward and reverse switch for additional usage
• Miter gauge for angle sanding
• Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
• Tilting table allows bevel sanding

Specifications:

• Disc Diameter: 20in
• Disc Speed (RPM): 1,720
• Table Dimensions: 27.5in x 10.5in
• Table Height from Floor: 28-3/16in min., 35-7/8in max.
• Table Tilt: 30° up, 45° down
• Dust Collection Minimum CFM Required (CFM): 600
• Dust Port Outside Diameter: 4in
• Prop 65: Cancer and Reproductive Harm
• Warranty: 5 Year
• Overall Size (L x W x H): 31in x 28in x 48-1/2in
• Gross Weight: 529.0
• Net weight: 426.0

Single-Phase Motor Specs:

• Disc Motor: 2 HP 230V single-phase only
• Motor Amps: 14A
• Recommended Circuit Size (Amps.): 30

3-Phase Motor Specs:

• Disc Motor: 3 HP 230/460V 3-phase, prewired 230V
• Motor Amps: 9.8/4.9A
• Recommended Circuit Size (Amps.): 20@230V, 15@460V

Some 460V machines may have 3-4 week delivery times. Please contact us at 570-584-2002 ext. 301 to check if you need an order rushed. Thank you.
