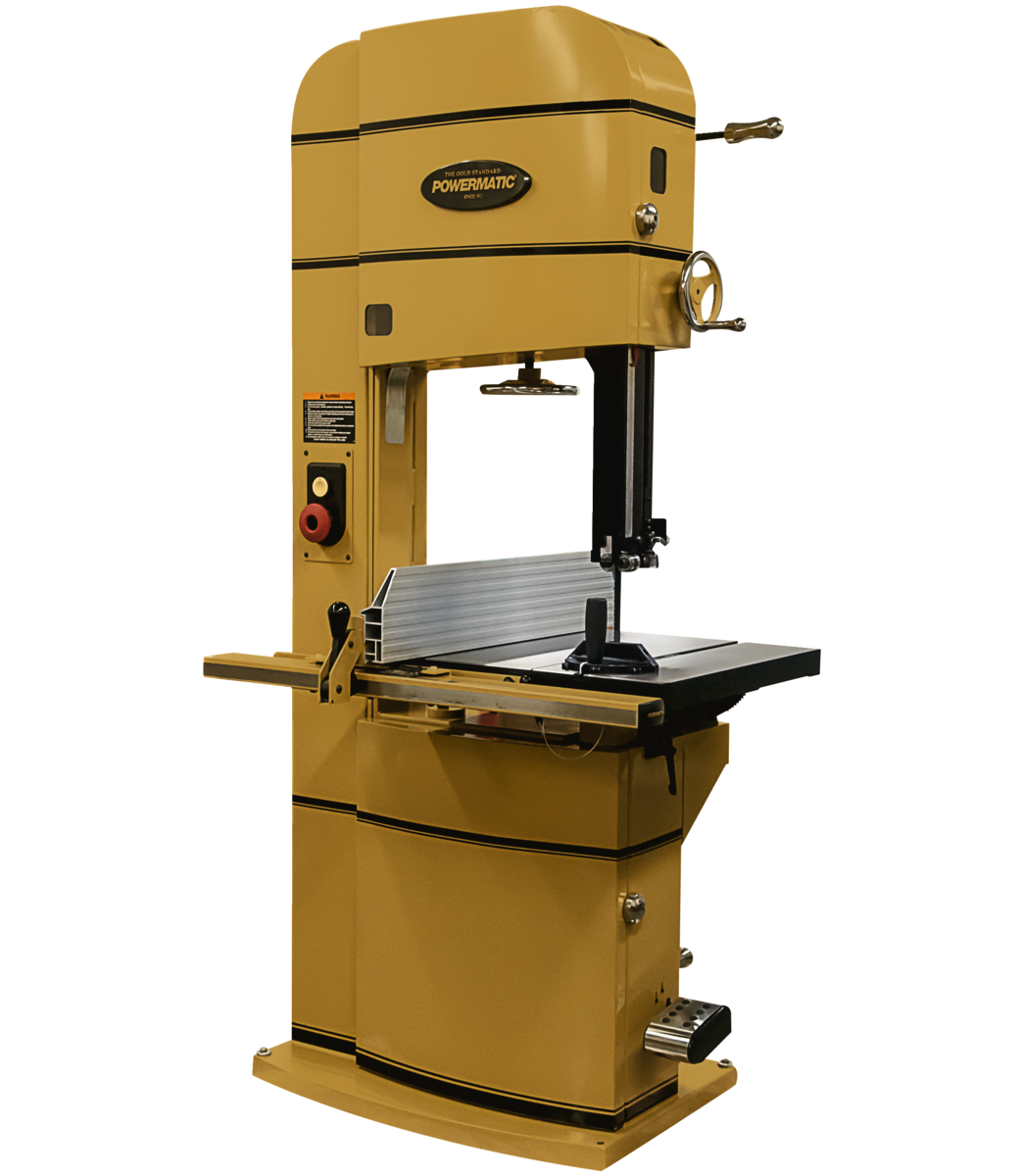

20” Bandsaw with Accu-Fence

Overview:

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.

Features:

• Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
• Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
• Heavy duty upper wheel support and tracking mechanism for smooth operation
• High end blade guides with tool less adjustment provide stability, increasing cut accuracy
• Rack and pinion table tilt system allows for easy and accurate adjustments
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
• Accu-Fence has complete adjustability for aligning to blade and squaring to table

General Specifications:

• Blade Length: 170in
• Minimum Saw Blade Width: 1/4in
• Maximum Saw Blade Width: 1-1/2in
• Blade Speed (SFPM): 2300/4400
• Cutting Capacity Height: 18in
• Cutting Capacity Width:20in
• Dust Port Outside Diameter: 4in
• Dust Collection Minimum CFM Required (CFM): 600
• Table Tilt: 45° Right / 10° Left
• Table Height from Floor: 36in
• Table T-Slot: 3/4in
• Prop 65 Cancer and Reproductive Harm
• Warranty: 5 Year
• Net weight: 860.0
• Gross Weight: 959.0

Single-Phase Motor Specs:

• Blade Wheel Motor: 5 HP single-phase 230V only
• Recommended Circuit Size: 30A

3-Phase 230V Motor Specs:

• Blade Wheel Motor: 5 HP 230/460V 3-phase, prewired 230V
• Recommended Circuit Size: 20A

3-Phase 460V Motor Specs:

• Blade Wheel Motor: 5 HP 230/460V 3-phase, prewired 460V
• Recommended Circuit Size: 20A

Some 460V machines may have 3-4 week delivery times. Please contact us at 570-584-2002 ext. 301 to check if you need an order rushed. Thank you.
